Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
QE2100VH

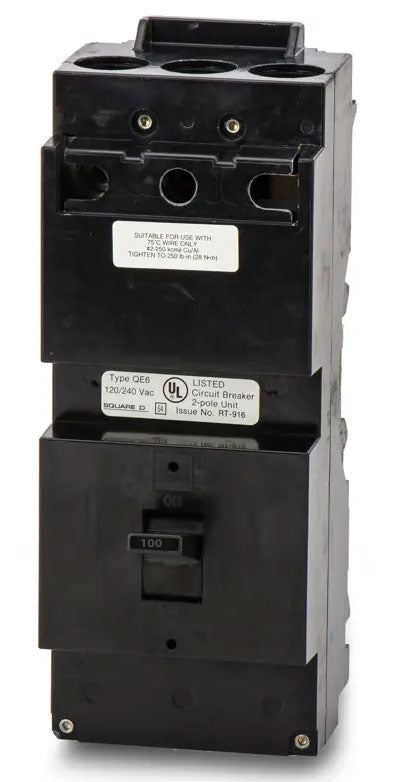

QE2100VH is a Square D QE Series 2 pole, 100 amp, 240V plug-in molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications. This breaker features a thermal magnetic trip unit and a high interrupting capacity of 22kA at 240V, suitable for use in 1-phase systems. The QE2100VH is engineered for plug-in mounting, providing easy installation and replacement. It offers long time and instantaneous trip functions for robust protection against overloads and short circuits. The breaker is rated for operation at 40°C and is built to meet industry standards for safety and performance.
- Part Number: QE2100VH
- Manufacturer: Square D
- Series/Frame: QE Series
- Amperage: 100A
- Voltage: 240V AC
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 22kA@240V
- Trip Unit: Thermal Magnetic
- Phase: 1 Phase
- Operating Temperature: 40°C
- Functions: Long Time and Instantaneous Trip
Specifications
- Part Number: QE2100VH
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QE Series
- Type : QE
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- GTIN : 00785901002420
- Dimensions : Depth 2.24 in (57 mm) Width 1.42 in (36 mm)
- Weight : 1
