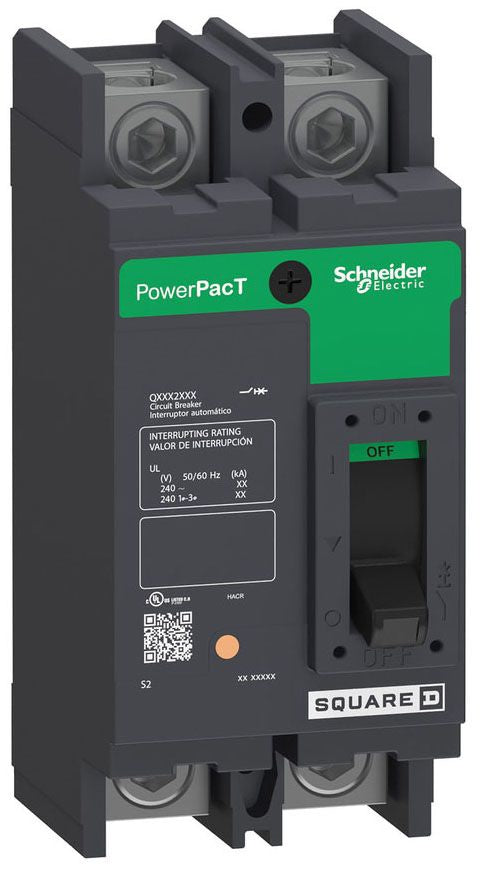

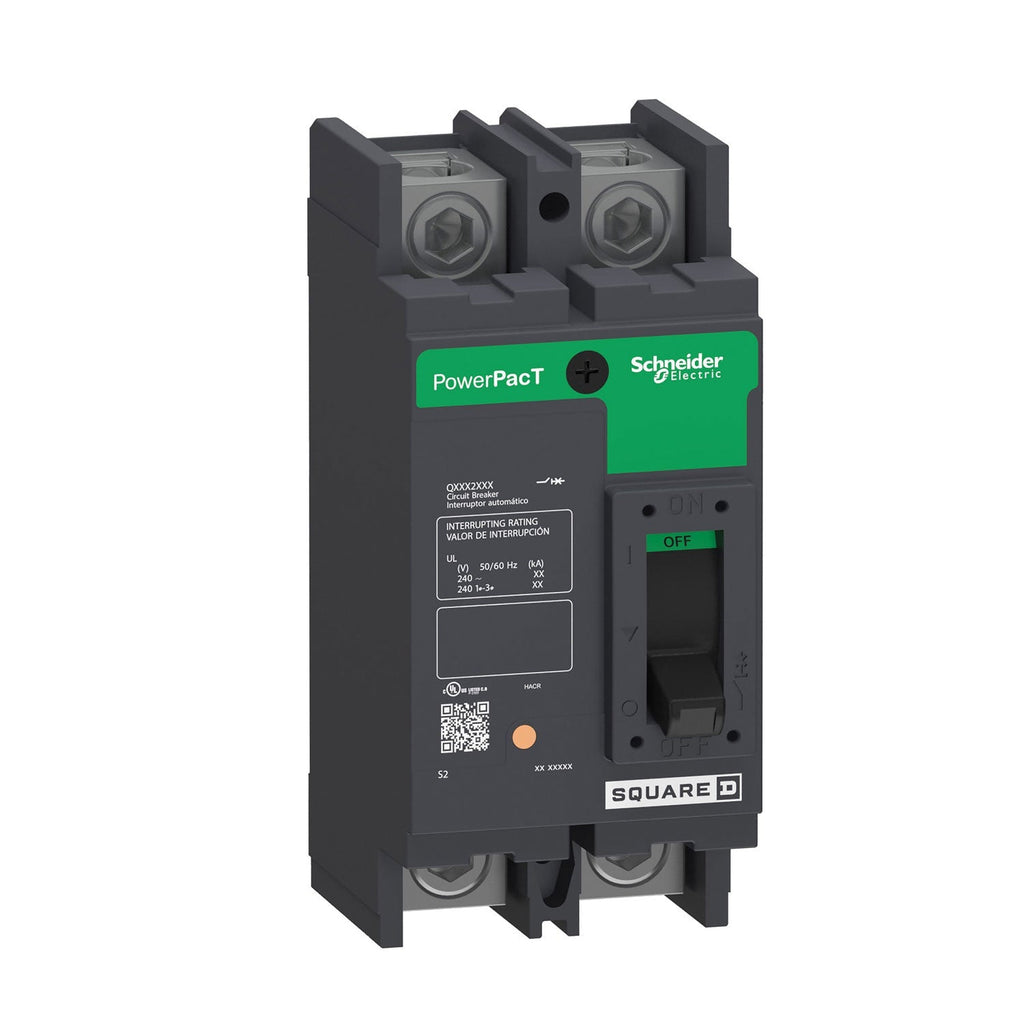

QDP22225TM - Square D 225A 240V 2 Pole Molded Case Circuit Breaker Thermal Magnetic

QDP22225TM

QDP22225TM is a 225A, 240V, 2 pole molded case circuit breaker from Square D, designed for reliable branch circuit protection in commercial and industrial applications. This breaker features a thermal magnetic trip unit and a bolt-on mounting design for secure installation. The QDP22225TM is part of the PowerPact Q series, offering a robust 25kA interrupting rating at 240V AC. It is UL, CSA, and IEC listed, ensuring compliance with major safety standards. The breaker includes long time and instantaneous trip functions for precise protection and is suitable for use in panelboards and meter centers.

• Part Number: QDP22225TM
• Manufacturer: Square D
• Amperage: 225A
• Voltage: 240V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA at 240V AC
• Series/Frame: PowerPact Q
• Protection Type: Thermal Magnetic
• Functions: Long Time and Instantaneous Trip
• Certifications: UL, CSA, IEC
• Wire Size: 4 AWG to 300 kcmil (Aluminum/Copper)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDP22225TM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDP
• Voltage : 240
• Amperage : 225
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Protection : Thermal Magnetic

Product Data

• UPC : 785901568957
• GTIN : 00785901568957
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.26
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
