Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
QDP22225

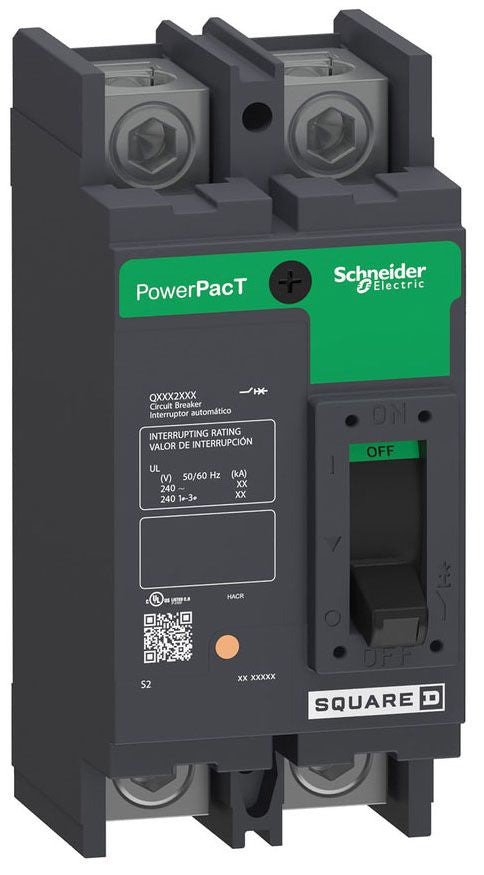

QDP22225 is a 2-pole, 240 volt, 225 amp rated molded case circuit breaker manufactured by Square D with a 25kA interrupting capacity at 240V. This PowerPact Q-frame breaker features bolt-on mounting with line side lug terminals and thermal magnetic trip functions for reliable overcurrent protection and switching on AC systems. The unit is designed for use in power distribution equipment and metering centers, accommodating wire sizes from 4 AWG to 300 kcmil in aluminum or copper. Key Specifications
- Amperage Rating: 225 Amp
- Voltage Rating: 240 VAC
- Poles: 2
- Interrupting Capacity: 25kA at 240V
- Mounting Type: Bolt-On
- Series: PowerPact Q Frame
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous functions
- Terminal Type: Line Side Lugs
- Wire Size Range: 4 AWG to 300 kcmil
- Certifications: UL 489, CSA, ANCE, IEC
- Mechanical Durability: 1000 cycles loaded
Specifications
- Part Number: QDP22225
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QDP
- Voltage : 240
- Amperage : 225
- Phase : 1
- Poles : 2
- AIC rating : 25kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : Q Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 4
