QDM32200TN - Square D PowerPacT Q 200A 3 Pole 240VAC 25kAIC Thermal Magnetic Circuit Breaker

SKU: QDM32200TN-New
Condition: New
Price:
$598.89
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

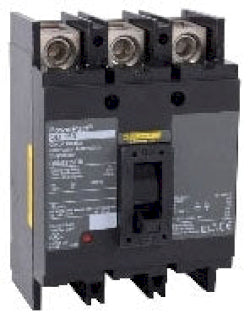

QDM32200TN - Square D/ Schneider Electric Bolt-On 200 Amp 3 Pole Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QDM32200TN - Square D/ Schneider Electric Bolt-On 200 Amp 3 Pole Circuit Breaker - Essential Electric Supply

Description

QDM32200TN


QDM32200TN is a 3 pole, 200A, 240VAC thermal magnetic molded case circuit breaker from the Square D PowerPacT Q series, designed for reliable overcurrent protection and switching in commercial and industrial applications. This unit mount breaker features a 25kAIC interrupting rating at 240VAC, thermal magnetic trip protection, and is UL 489 listed. It is suitable for use in 240VAC systems and provides long time and instantaneous trip functions for enhanced safety and performance.
  • Part Number: QDM32200TN
  • Manufacturer: Square D
  • Series/Frame: PowerPacT Q
  • Amperage: 200A
  • Voltage: 240VAC
  • Poles: 3
  • Mounting Type: Unit Mount
  • Interrupting Rating: 25kAIC at 240VAC
  • Protection Type: Thermal Magnetic
  • Continuous Current Rating: 80%
  • Certifications: UL 489, CSA, NOM, IEC
  • Standards: RoHS, REACh, HACR
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QDM32200TN
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : QDM
  • Voltage : 240
  • Amperage : 200
  • Phase : 3
  • Poles : 3
  • AIC rating : 25kA@240V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug, Terminal Nut
  • Frame Size : Q
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901417309
  • GTIN : 00785901417309
  • Country of Origin : Mexico
  • Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
  • Weight : 4.65
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
  • Certification : UL, CSA, NOM
