Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QCR3020HT

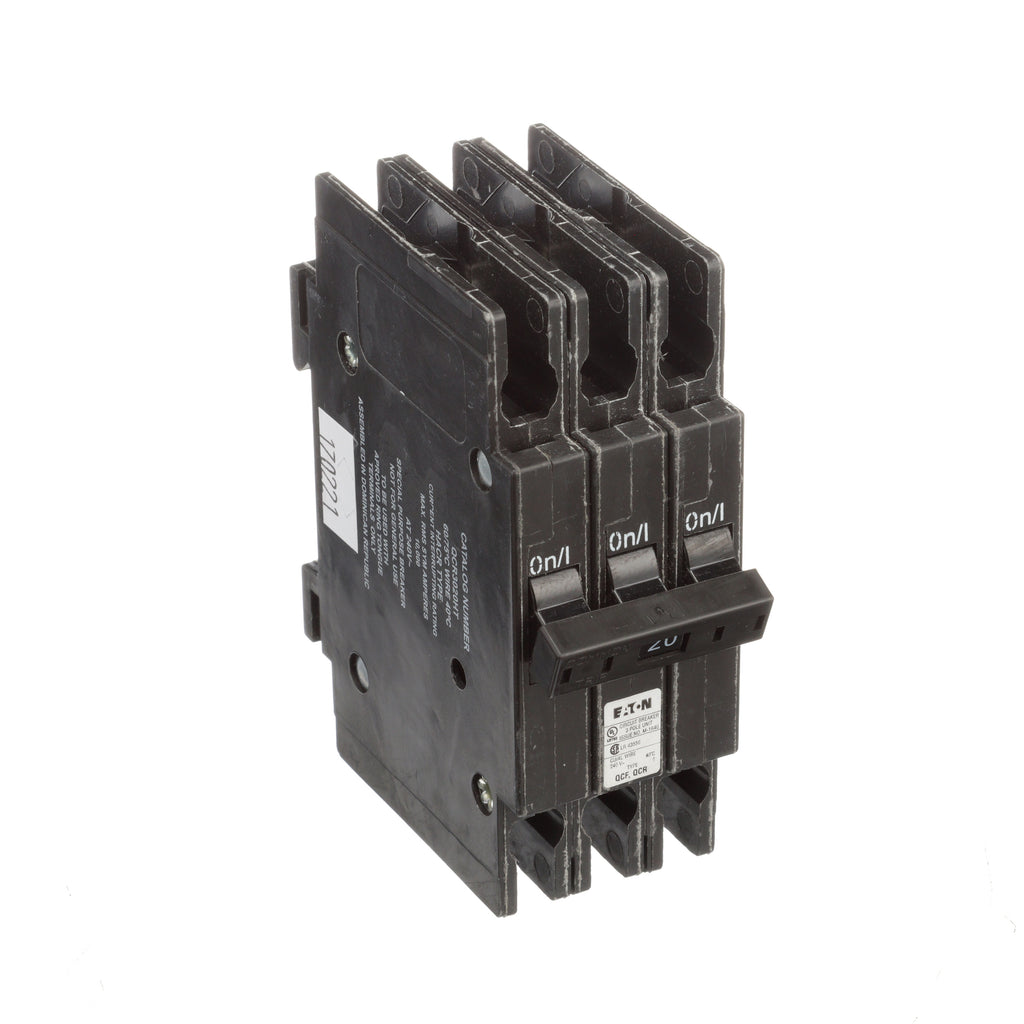

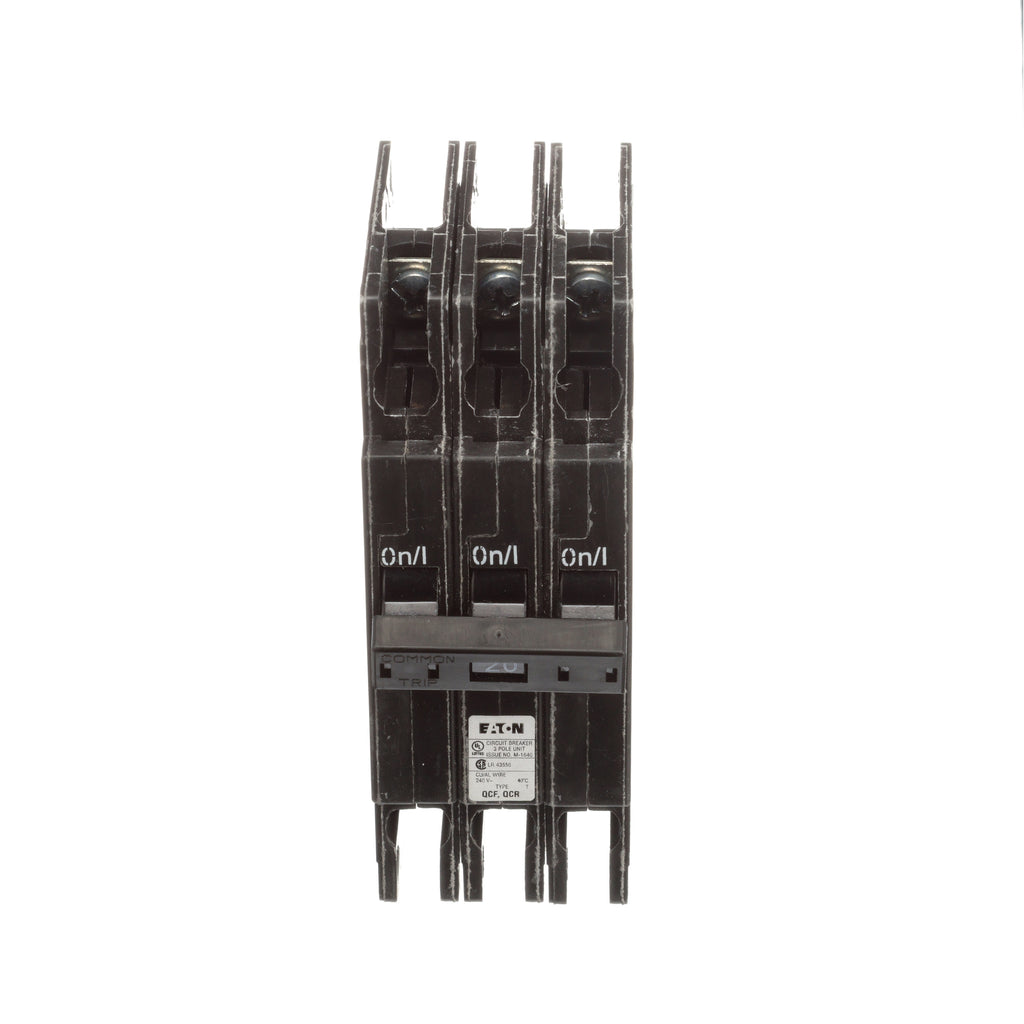

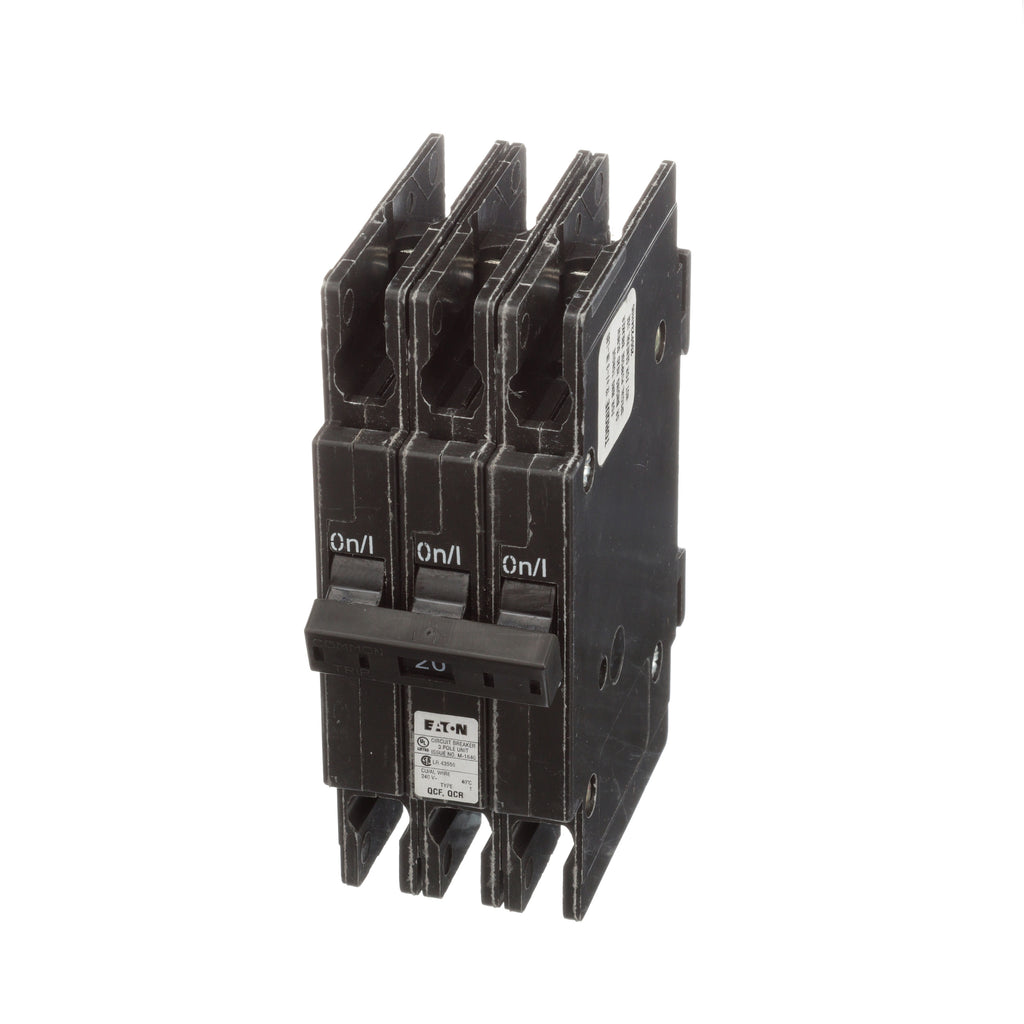

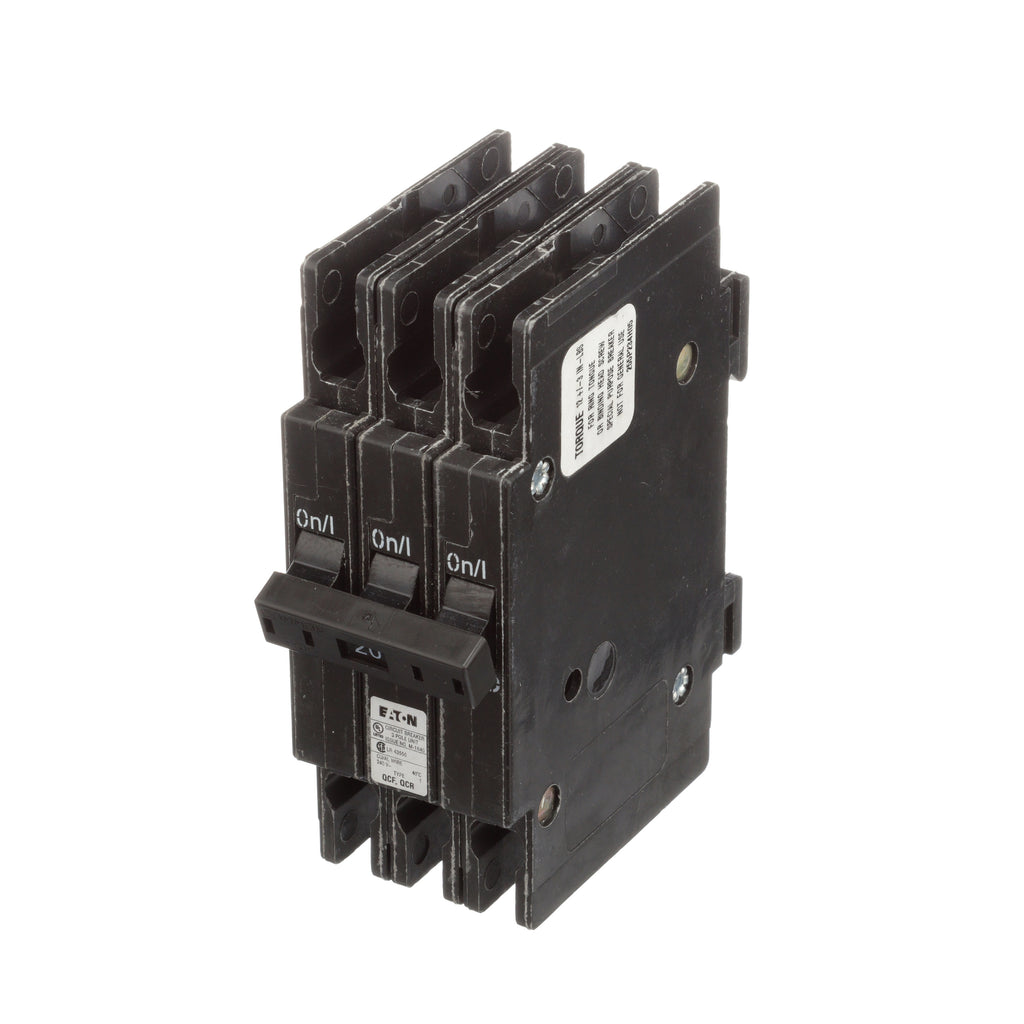

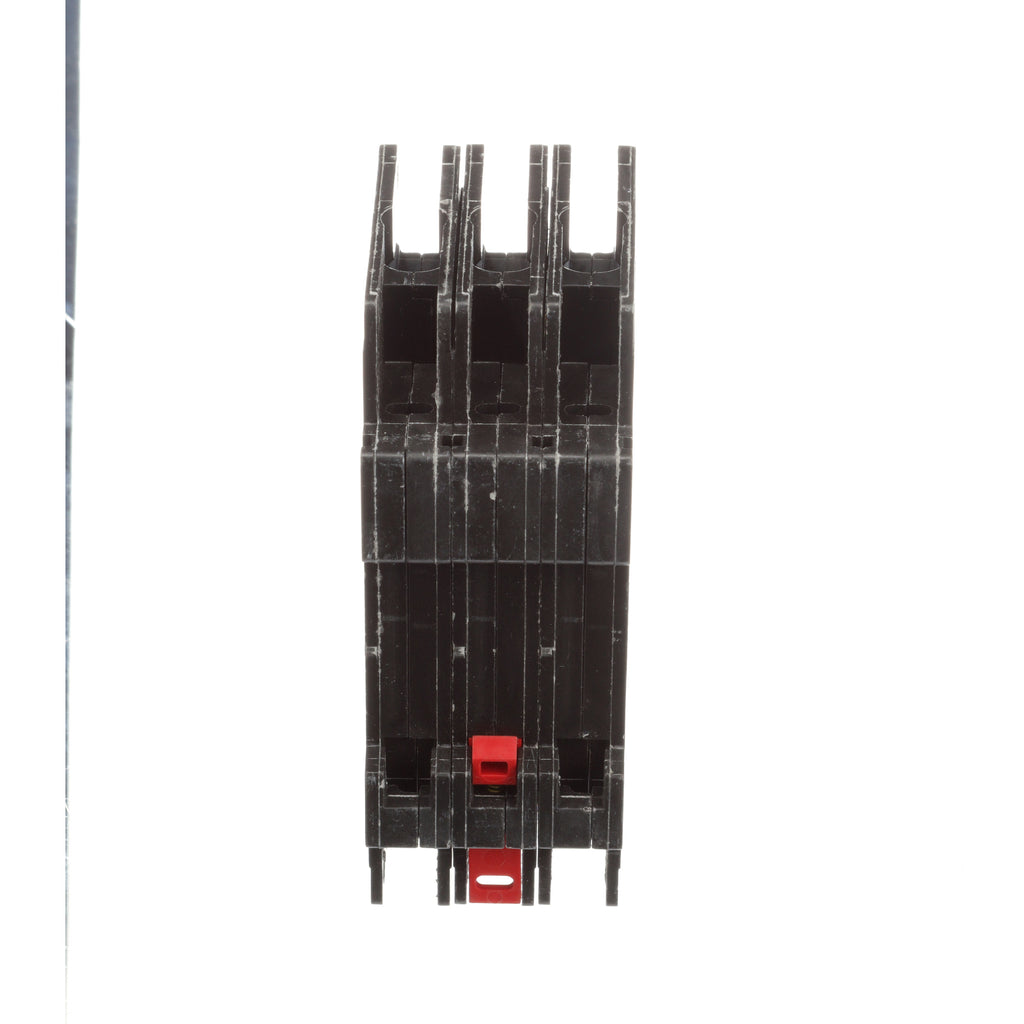

QCR3020HT is a 3 pole, 20 amp, 240 volt thermal magnetic circuit breaker manufactured by Cutler Hammer, designed for industrial applications requiring reliable overcurrent protection.This Eaton Cutler Hammer QCR3020HT circuit breaker features a 10 kA interrupt rating at 240 VAC, rear mounting style, and cable-in/cable-out connection with ring or spade lug terminals. It is HACR rated and CSA certified with UL listing, suitable for use in a variety of industrial panel configurations. The breaker uses a thermal-magnetic trip unit (T268) and is compact for space-saving installation.
- Key Specifications
- Amperage Rating: 20 Amp
- Voltage Rating: 240 VAC
- Number of Poles: 3 Pole
- Interrupt Rating: 10 kAIC
- Mounting Type: Rear Mount
- Trip Unit: Thermal-Magnetic (T268)
- Terminals: Ring or Spade Lug
- Certifications: CSA Certified, UL Listed, HACR Rated
- Connection: Cable-in/Cable-out
- Series/Frame: QCR
Specifications
- Part Number: QCR3020HT
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QCR
- Voltage : 240
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 782114225691
- GTIN : 00782114225691
- Country of Origin : Dominican Republic
- Dimensions : 5.8 in x 2.1 in x 3.7 in (Length/Depth x Height x Width)
- Weight : 0.8
- Certification : UL Listed,CSA Certified,HACR Rated
