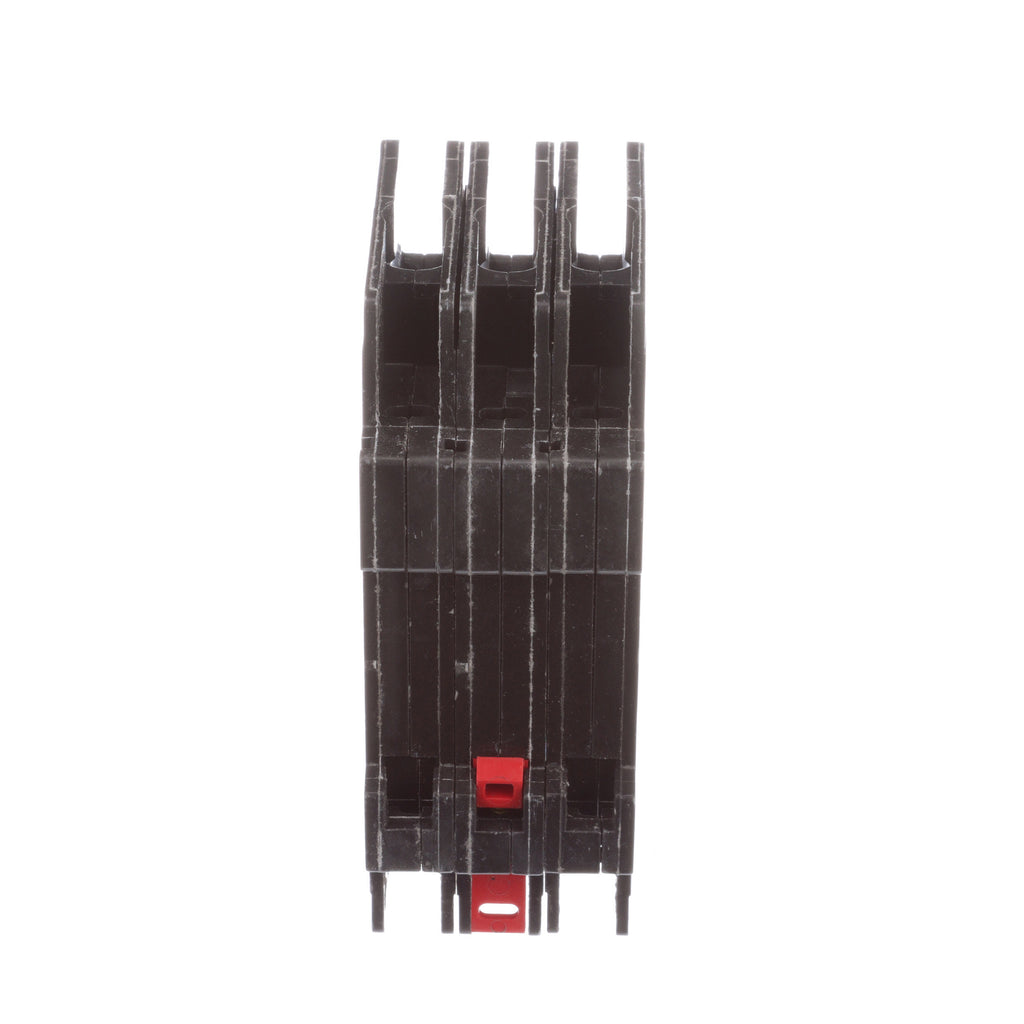

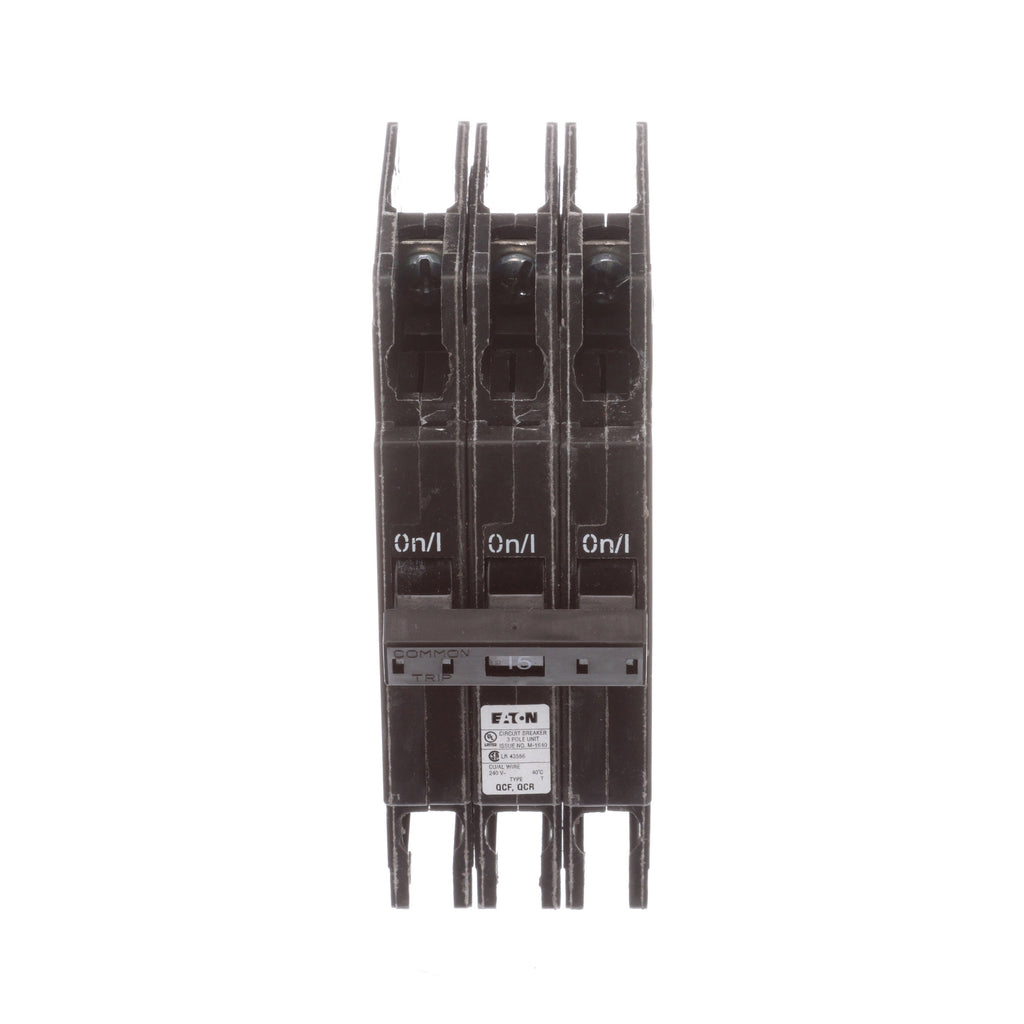

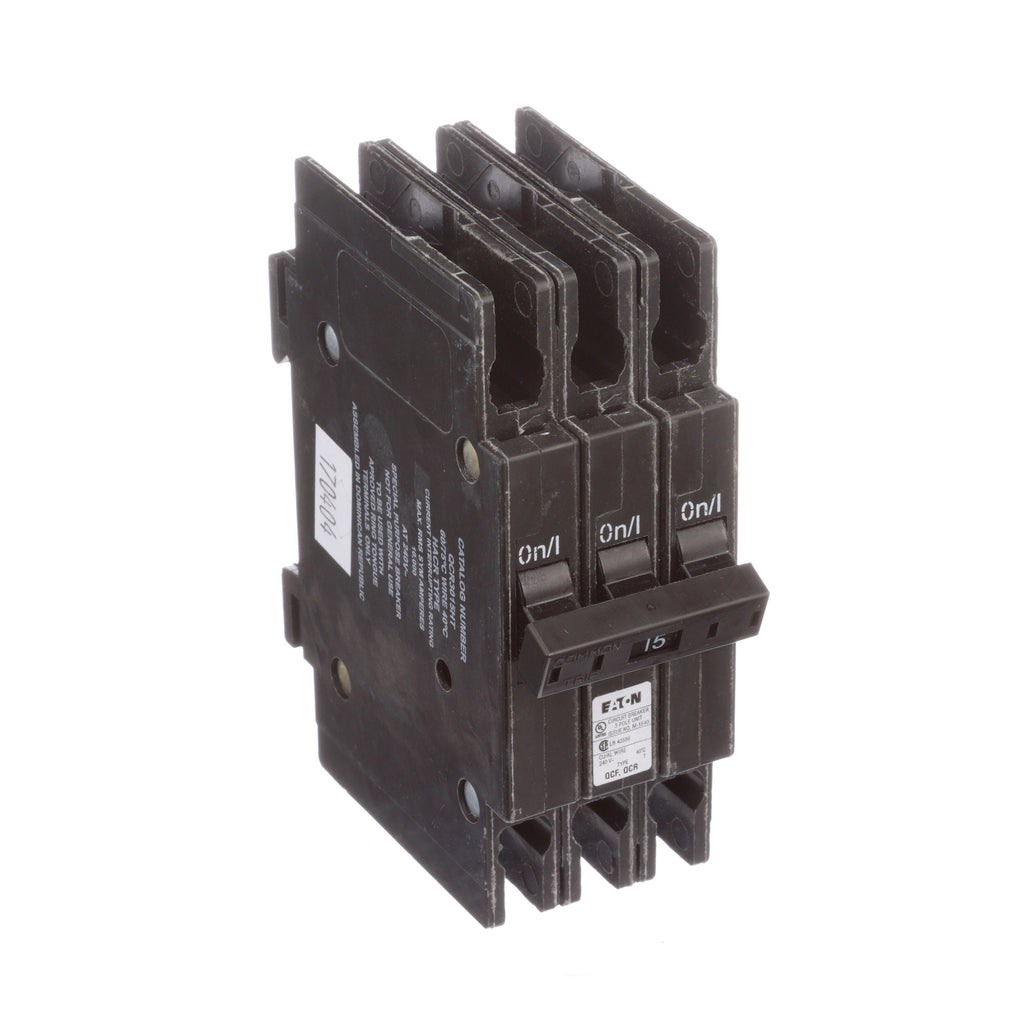

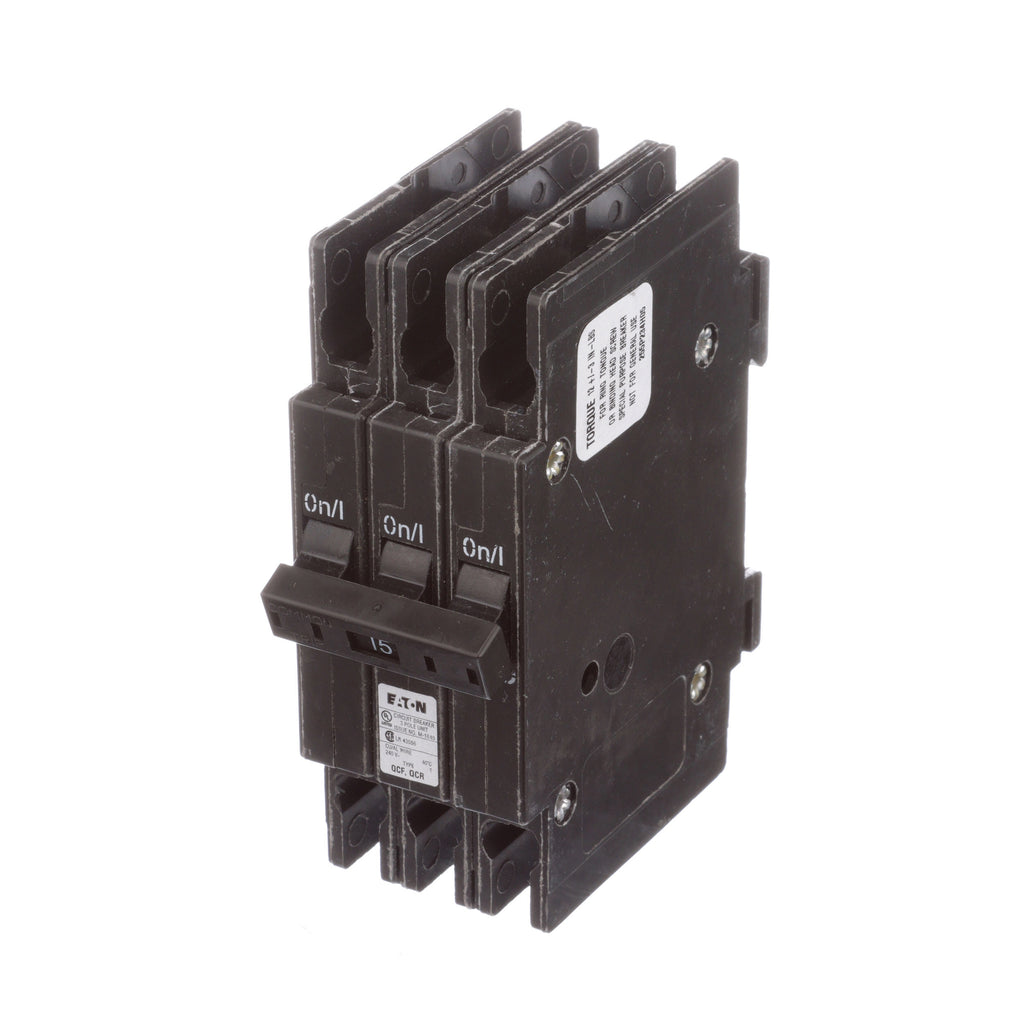

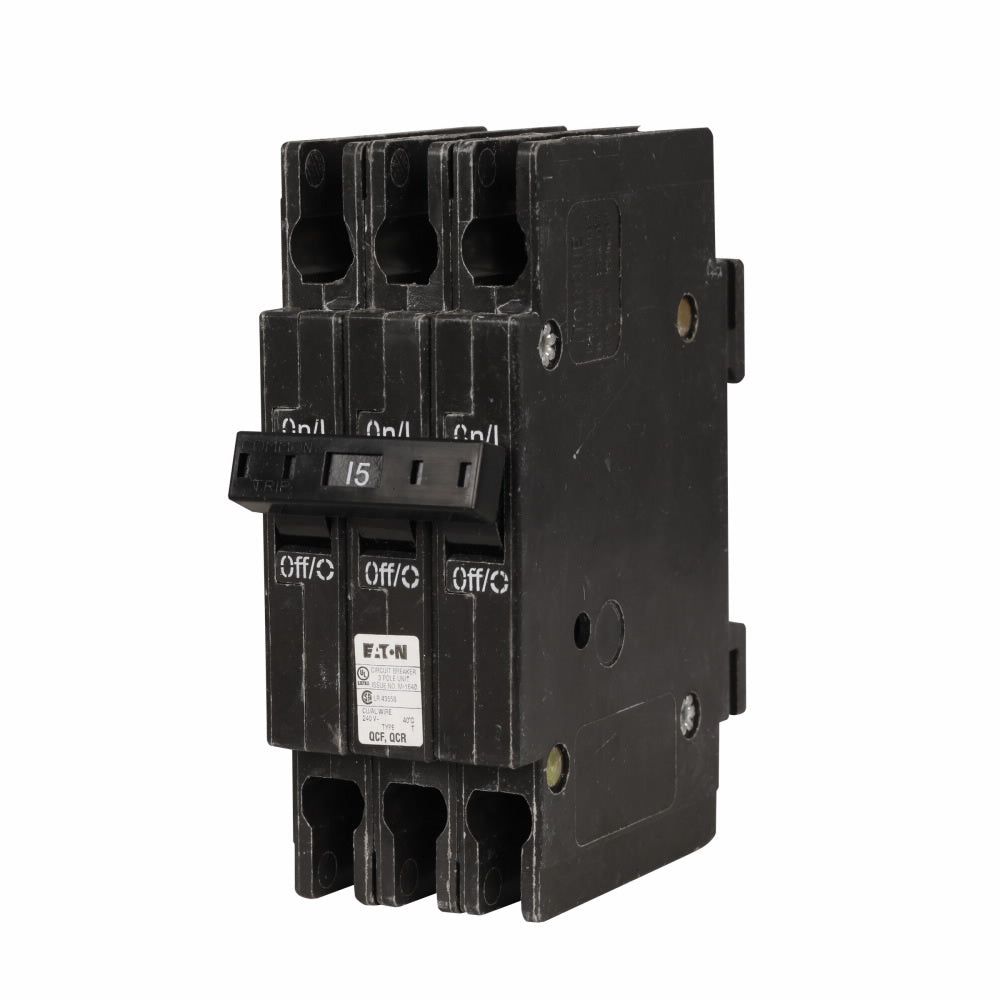

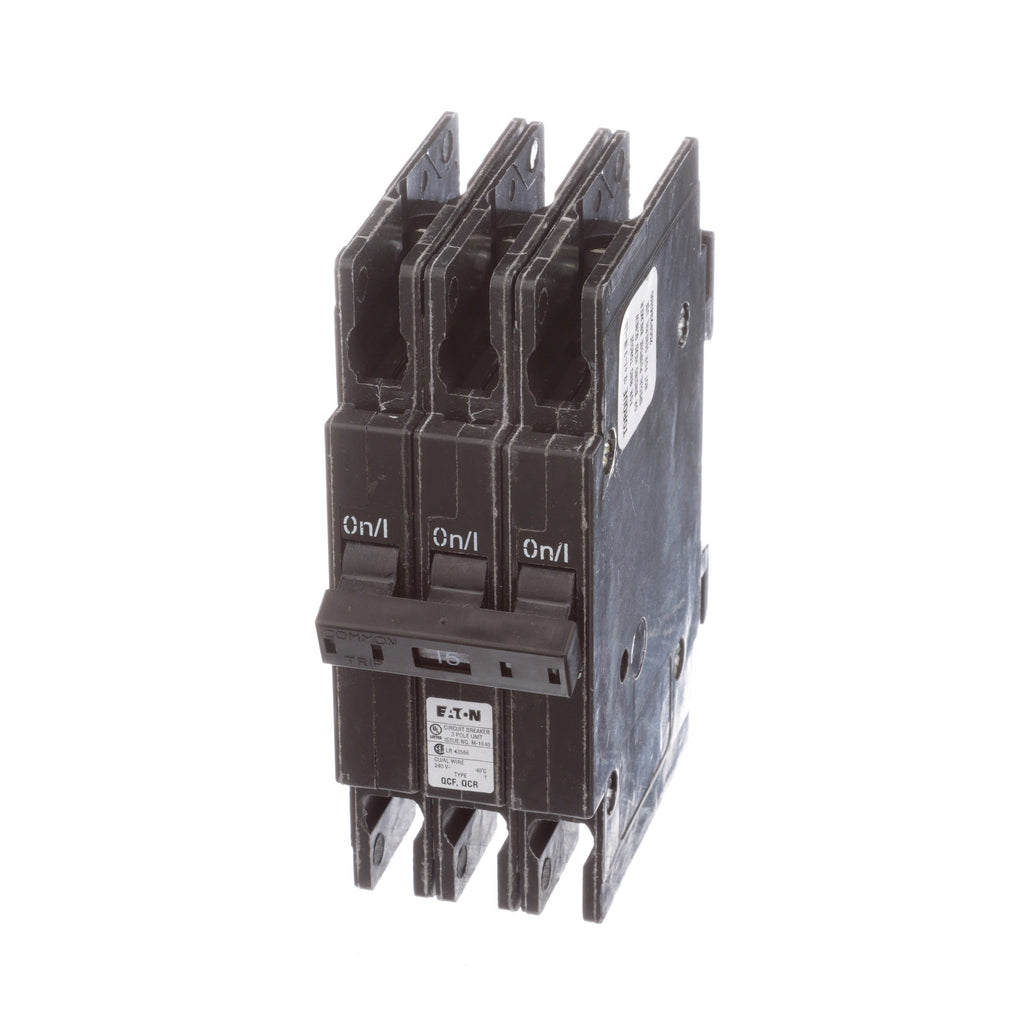

QCR3015HT - Cutler Hammer 3 Pole 240V 15A Thermal Magnetic Circuit Breaker, 10kAIC, Quicklag Series, DIN Rail Mount

QCR3015HT

QCR3015HT is a Cutler Hammer (Eaton) 3-pole, 240V, 15A thermal magnetic circuit breaker designed for industrial power distribution.

This circuit breaker features a thermal-magnetic trip unit, 10kA interrupting capacity, and is part of the Quicklag series. It is rated for 50/60 Hz systems and is designed for rear mounting on 35 mm DIN rail with a spring-loaded release. The QCR3015HT is suitable for cable-in/cable-out applications and is commonly used in panelboards and industrial control panels.

Key Specifications

• Part Number: QCR3015HT
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 15A
• Voltage: 240V
• Poles: 3
• Mounting Type: 35 mm DIN rail, rear mount
• Interrupt Rating: 10kAIC @ 240V
• Series/Frame: Quicklag
• Trip Unit: Thermal-magnetic
• Frequency: 50/60 Hz
• Connection: Cable-in/cable-out
• Certifications: Not specified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QCR3015HT
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QCR
• Voltage : 240
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 782114225684
• GTIN : 00782114225684
• Country of Origin : Dominican Republic
• Dimensions : 5.8 in x 2.1 in x 3.6 in (Length/Depth x Height x Width)
• Weight : 0.75
• Certification : UL Listed,CSA Certified,HACR Rated
