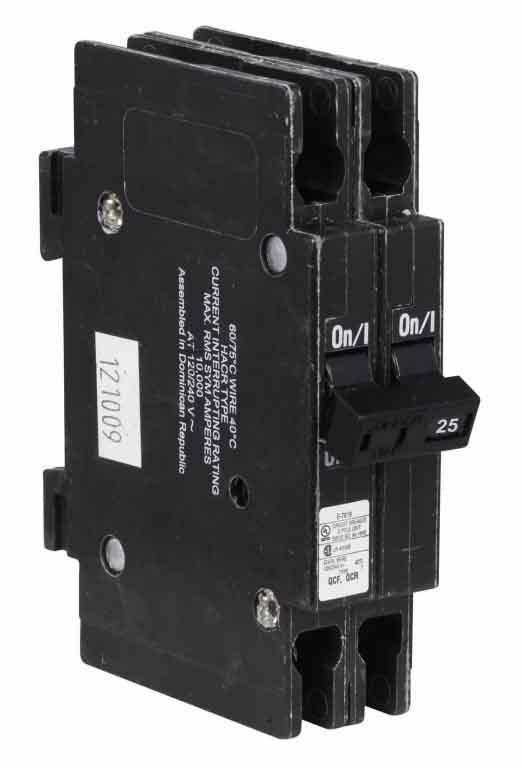

QCR2025 - Eaton 25A 2-Pole 120/240V Thermal Magnetic Circuit Breaker Type QCR 10kAIC DIN Rail Mount

QCR2025

QCR2025 is a 25 amp, 2-pole thermal magnetic circuit breaker designed for industrial applications by Eaton.This Eaton QCR series breaker features a 1/2-inch frame, fixed mounting type suitable for DIN rail installation, and operates at 120/240 volts AC with a 10 kA interrupt rating. It provides reliable protection with a thermal-magnetic trip unit and cable-in/cable-out configuration.

Key Specifications
• Amperage: 25 A
• Poles: 2
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 10 kAIC
• Mounting Type: DIN Rail Fixed
• Frame/Series: QCR 1/2-inch
• Trip Unit: Thermal Magnetic
• Configuration: Cable-in/Cable-out
• Industrial Grade Circuit Breaker
• Non-Illuminated Handle Actuator
• Operating Temperature Range: -40°C to +75°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QCR2025
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QCR
• Voltage : 240
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• UPC : 786679473573
• GTIN : 00786679473573
• Country of Origin : Dominican Republic
• Dimensions : 4.6 in x 1.2 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.35
• Certification : CSA Certified,UL Listed,HACR Rated
