2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QCR2020HT

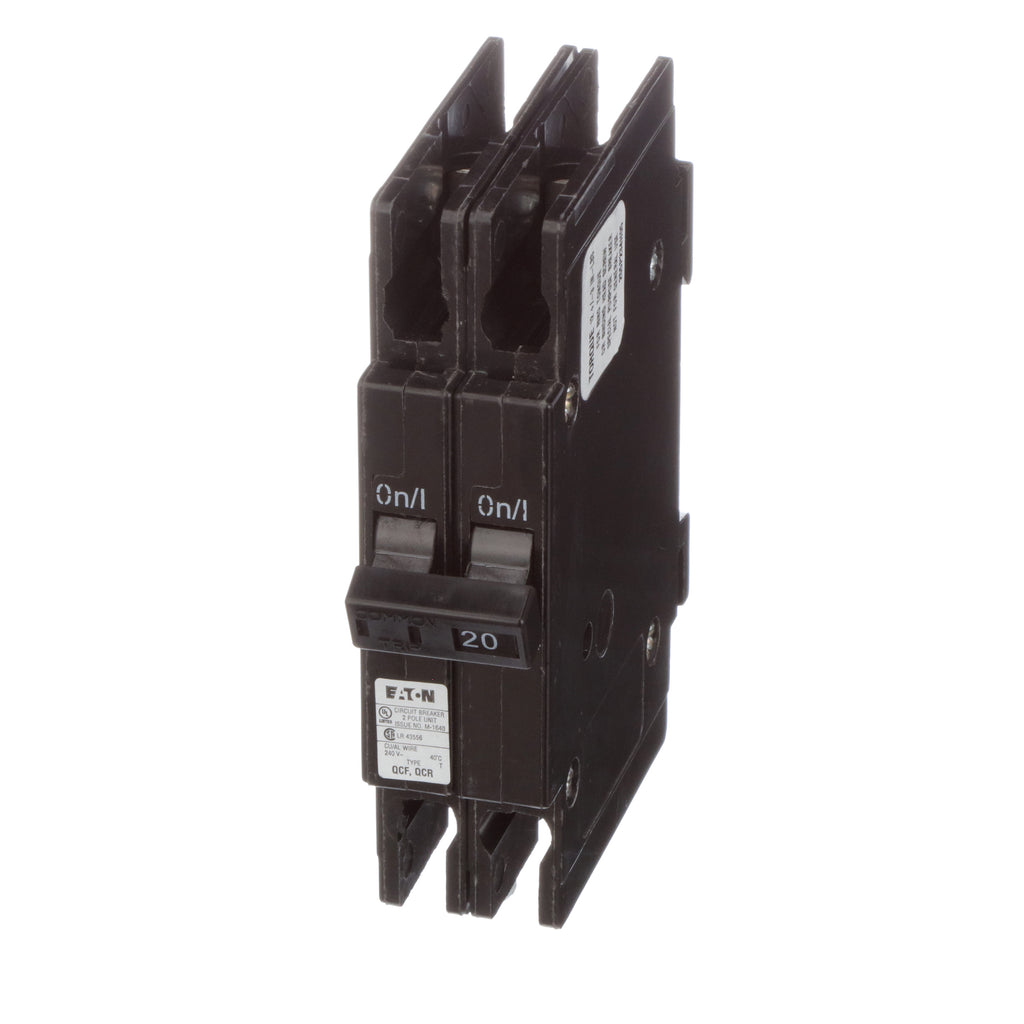

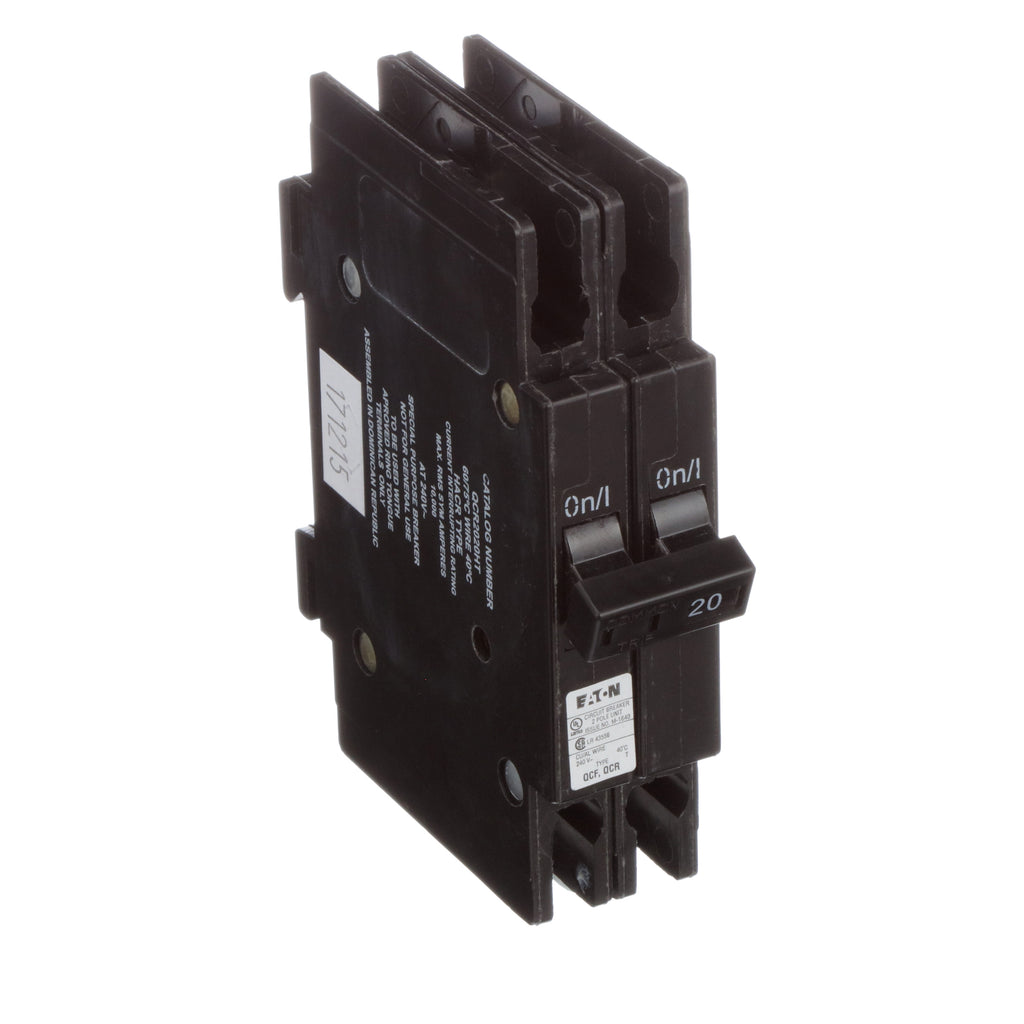

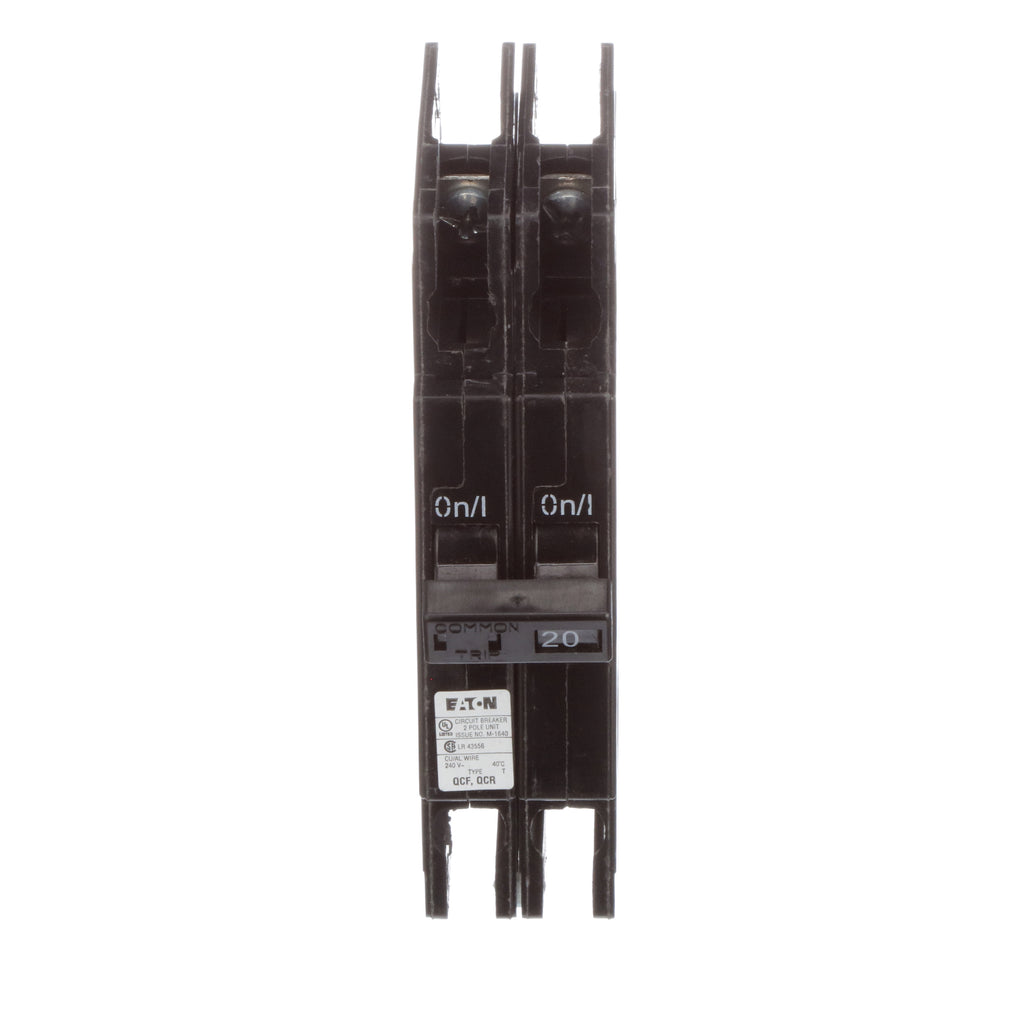

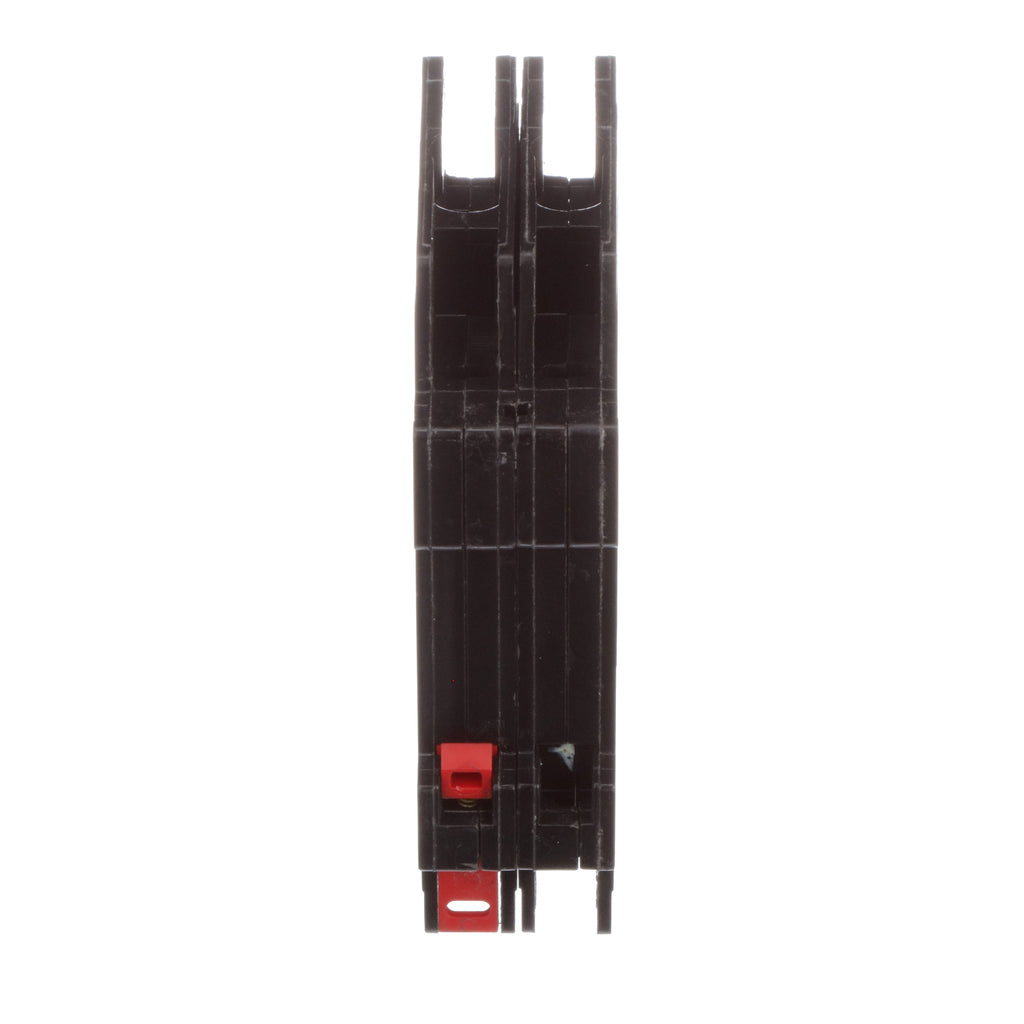

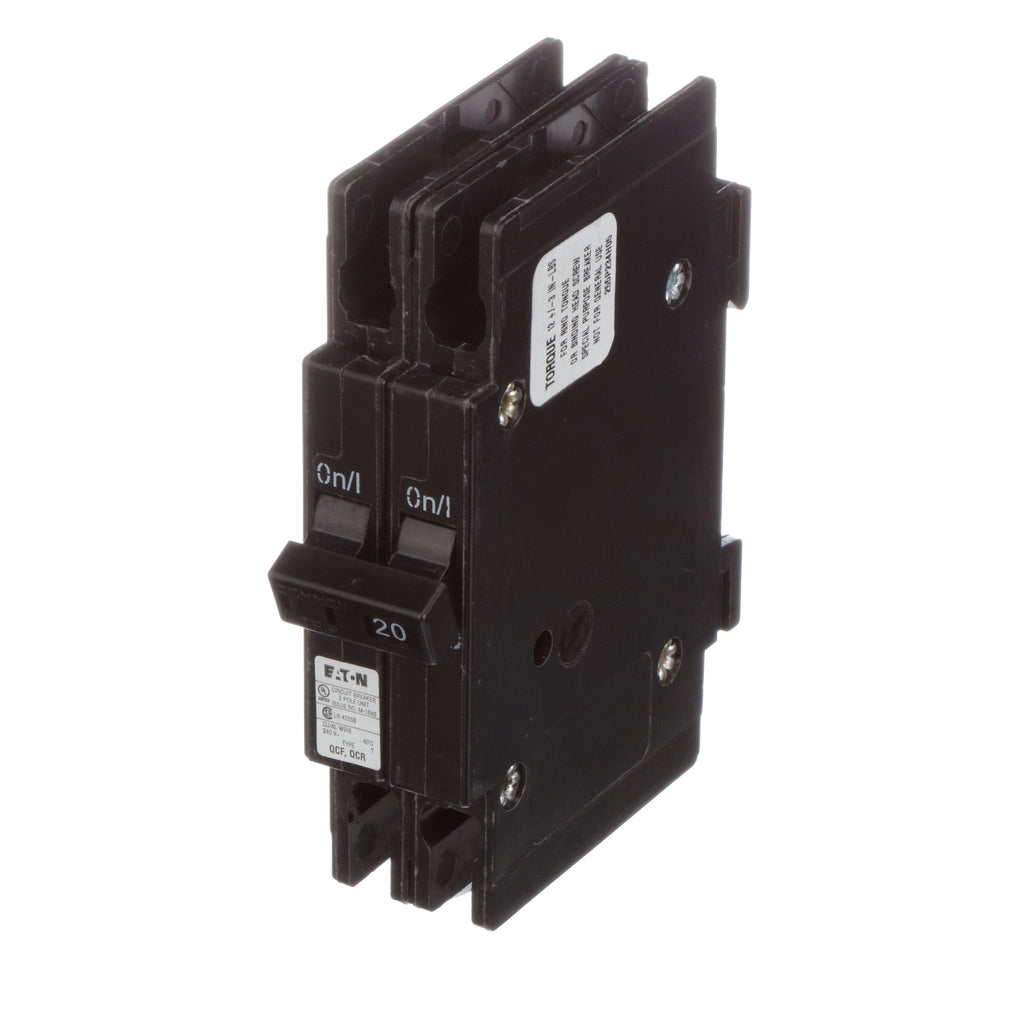

QCR2020HT is a Cutler Hammer QCR series 20A 240VAC two-pole thermal magnetic circuit breaker with rear mounting and 10kA interrupt rating. This industrial circuit breaker features a compact design, ring or spade lug terminals, and is suitable for cable-in/cable-out applications. It is HACR rated and certified by UL and CSA for reliable performance in demanding environments.
- Part Number: QCR2020HT
- Manufacturer: Cutler Hammer (Eaton)
- Series: QCR
- Amperage Rating: 20 A
- Voltage Rating: 240 VAC
- Poles: 2
- Mounting Type: Rear Mount
- Interrupt Rating: 10 kAIC
- Connection: Cable-in/cable-out
- Terminals: Ring or Spade Lug
- Trip Type: Thermal Magnetic
- Certifications: UL Listed, CSA Certified, HACR Rated
Specifications
- Part Number: QCR2020HT
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QCR
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 782114225851
- GTIN : 00782114225851
- Country of Origin : Dominican Republic
- Dimensions : 5.75 in x 3.5 in x 2 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : CSA Certified,UL Listed,HACR Rated
