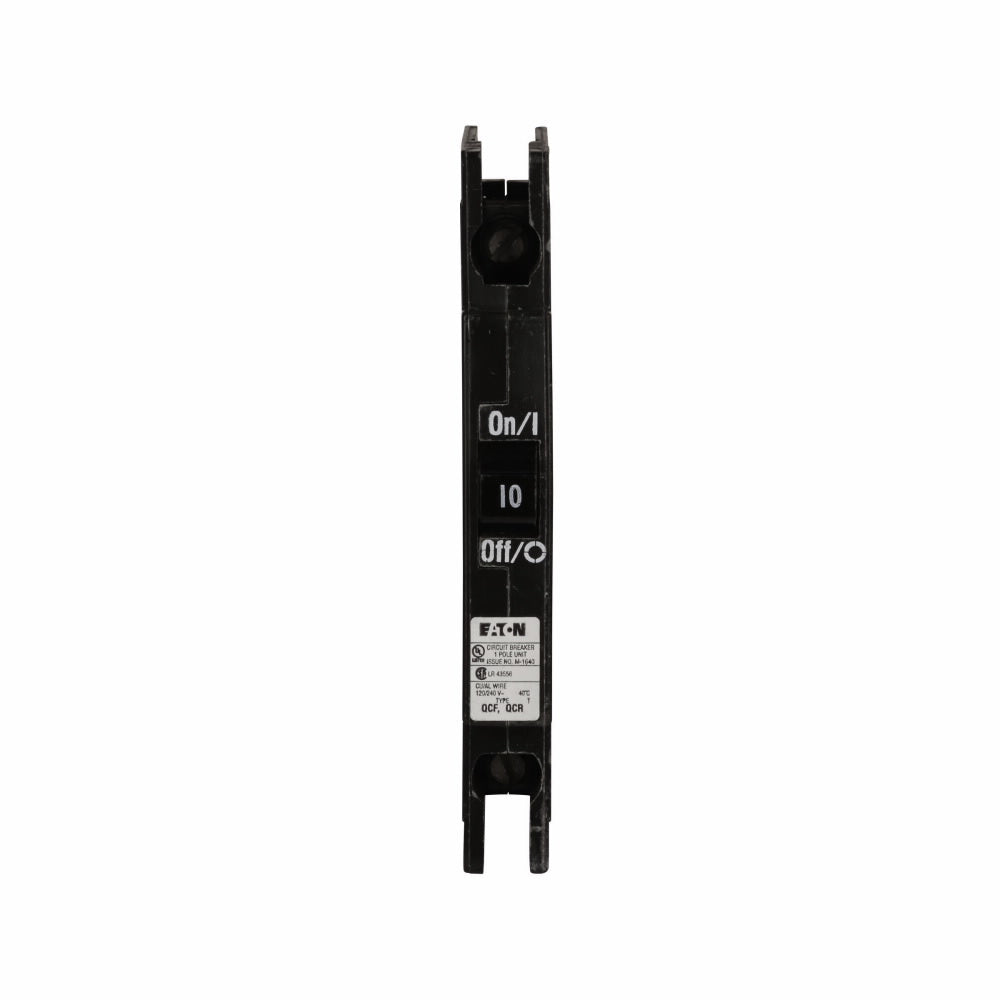

QCR1010T - Cutler Hammer 10 Amp 120/240 Volt 1 Pole Thermal Magnetic Circuit Breaker 10 kAIC Rear Mount

QCR1010T

QCR1010T is a Cutler Hammer 10 Amp thermal magnetic circuit breaker designed for industrial applications.This 1/2-inch Quicklag series circuit breaker features a single pole, 120/240 VAC voltage rating, and a 10 kA interrupt rating. It mounts on a 35 mm DIN rail with a spring-loaded rear mounting system. The thermal-magnetic trip unit provides reliable protection against overloads and short circuits.

Key Specifications
• Amperage: 10 Amp
• Voltage Rating: 120/240 VAC
• Poles: Single Pole
• Mounting Type: Rear Mount, 35 mm DIN Rail
• Interrupt Rating: 10 kAIC
• Series/Frame: Quicklag Type QCR
• Trip Unit: Thermal Magnetic
• Width: 1/2 inch
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QCR1010T
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QCR
• Voltage : 120
• Amperage : 10
• Phase : 1
• Poles : 1
• AIC rating : 22kA@120V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• UPC : 782114154496
• GTIN : 00782114154496
• Country of Origin : Dominican Republic
• Dimensions : 5 in x 1.1 in x 3.3 in (Length/Depth x Height x Width)
• Weight : 0.2
• Certification : CSA Certified,UL Listed,HACR Rated
