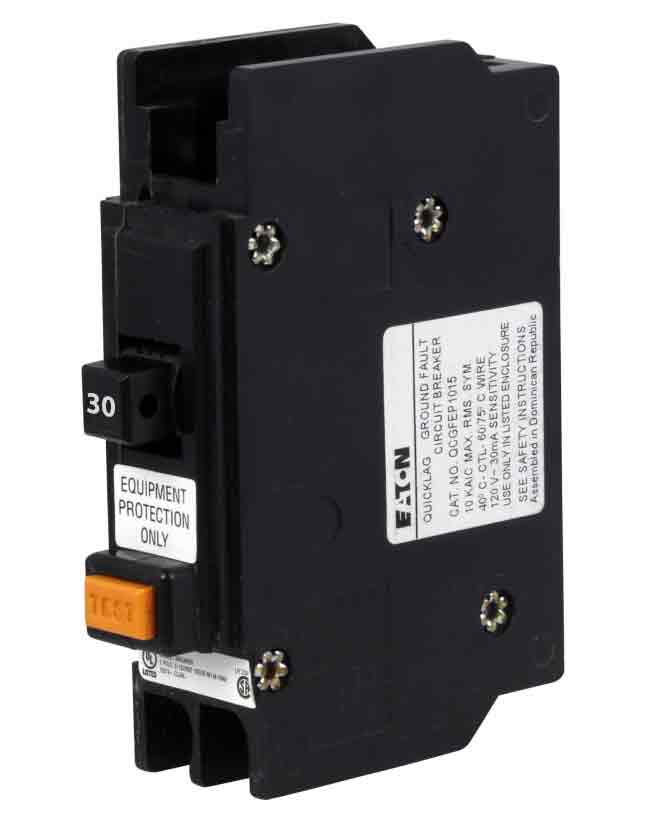

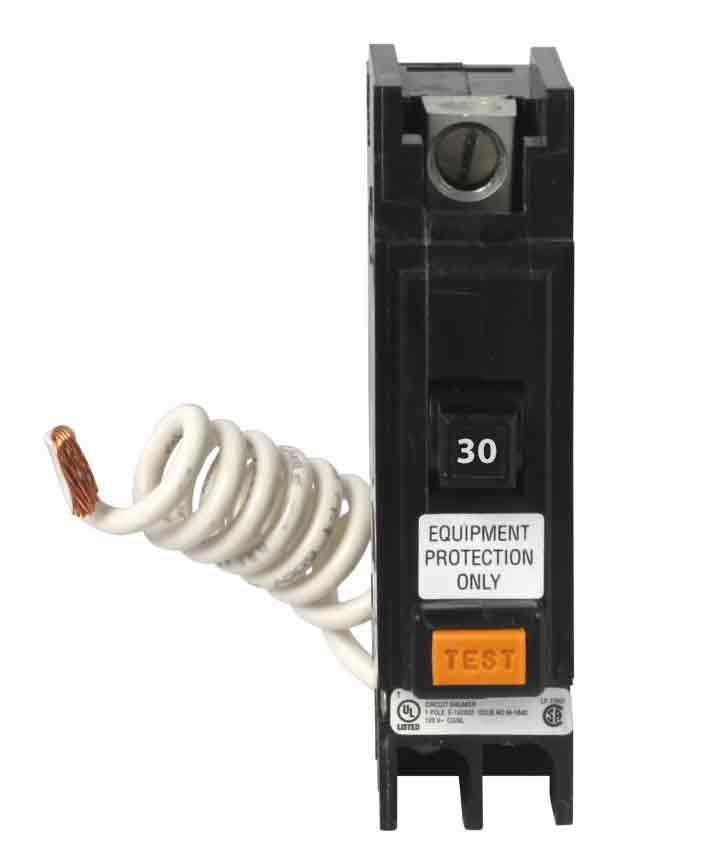

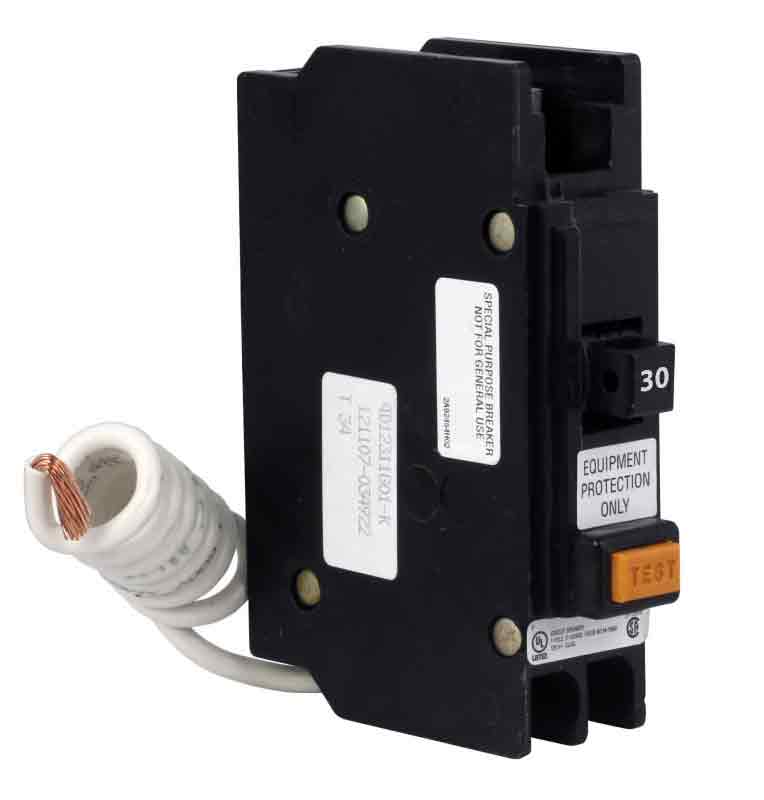

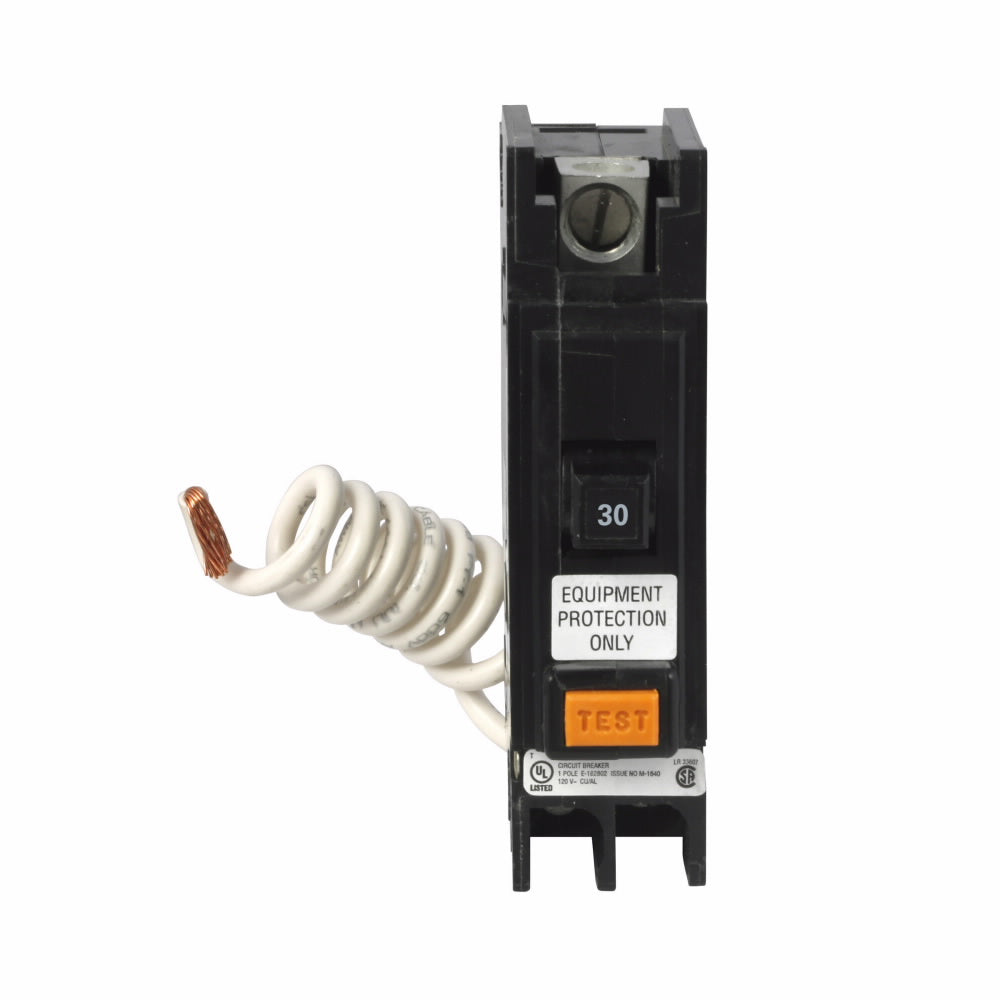

QCGFEP1030 - Cutler Hammer 30A 120V 1-Pole Ground Fault Circuit Breaker QCGF Frame

QCGFEP1030

QCGFEP1030 is a Cutler Hammer 1-pole ground fault circuit breaker rated for 30 amps and 120 volts, designed for reliable equipment protection.This molded case circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions, 10kA interrupting rating at 120V, and 30 mA ground fault trip sensitivity. It uses a feed-thru connection type with line and load side lug terminals and is UL and CSA certified.

• Manufacturer: Cutler Hammer (Eaton)
• Part Number: QCGFEP1030
• Amperage: 30 A
• Voltage: 120 V AC
• Poles: 1
• Frame/Series: QCGF
• Interrupt Rating: 10 kAIC at 120 V
• Trip Unit: Thermal Magnetic with long-time and instantaneous trip
• Ground Fault Trip Sensitivity: 30 mA
• Connection Type: Feed-Thru with line and load side lugs
• Mounting Type: Bolt-On
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QCGFEP1030
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QCGF
• Voltage : 120
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679146651
• GTIN : 00786679146651
• Country of Origin : Dominican Republic
• Dimensions : 5.3 in x 1.2 in x 3.2 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : UL Listed,CSA Certified
• Wire Size : 14 TO 10 AWG Aluminum/Copper (Line); 14 TO 4 AWG Aluminum/Copper (Load)
