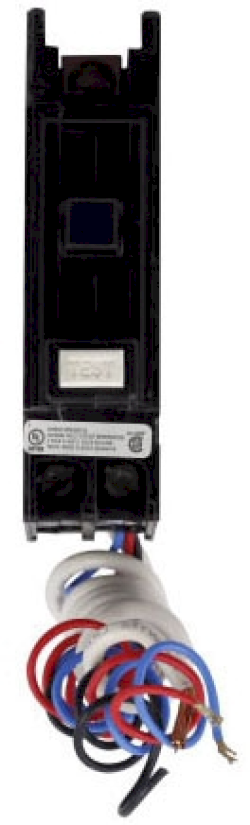

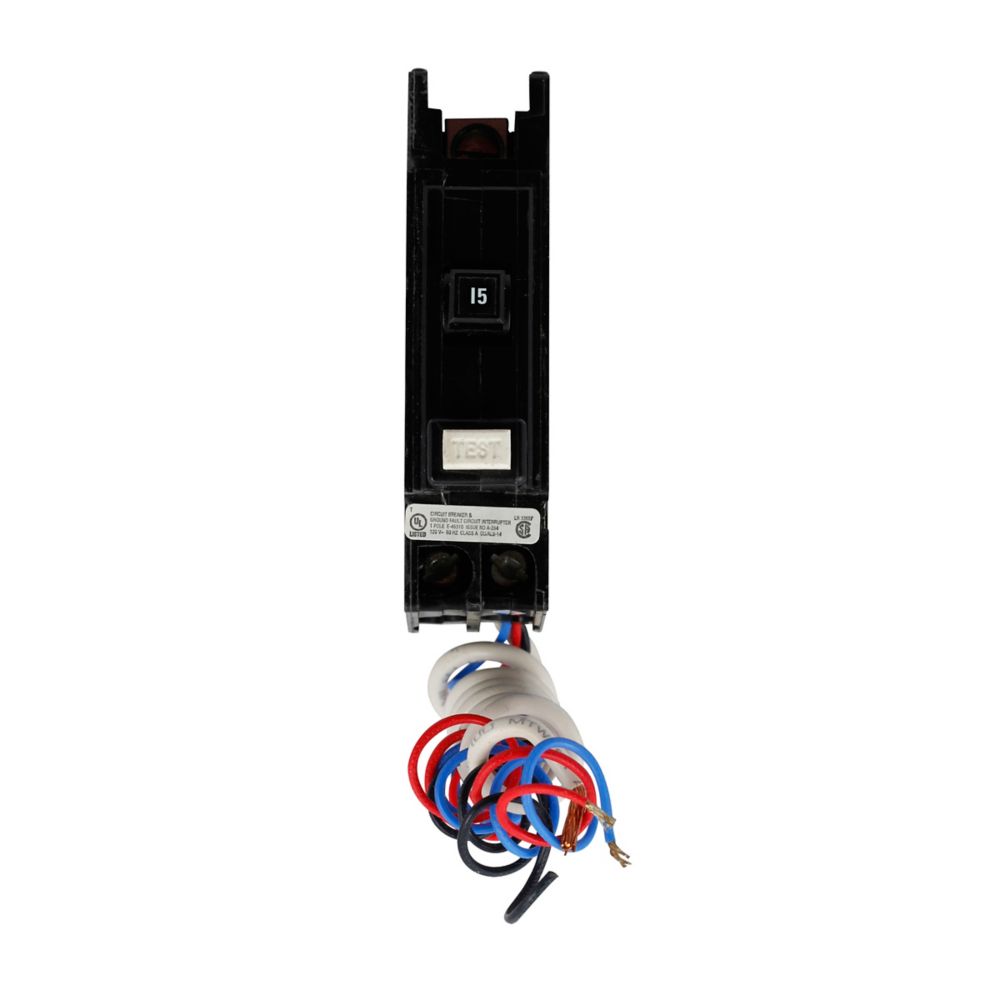

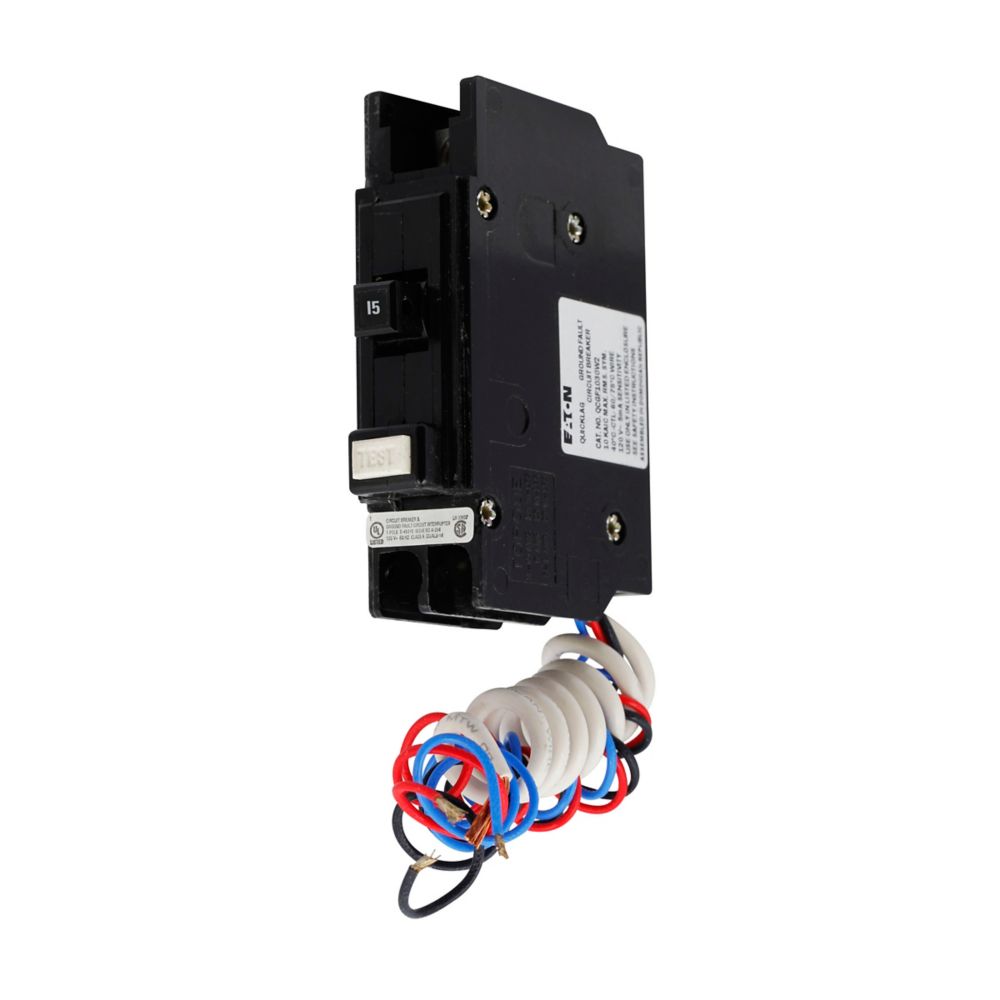

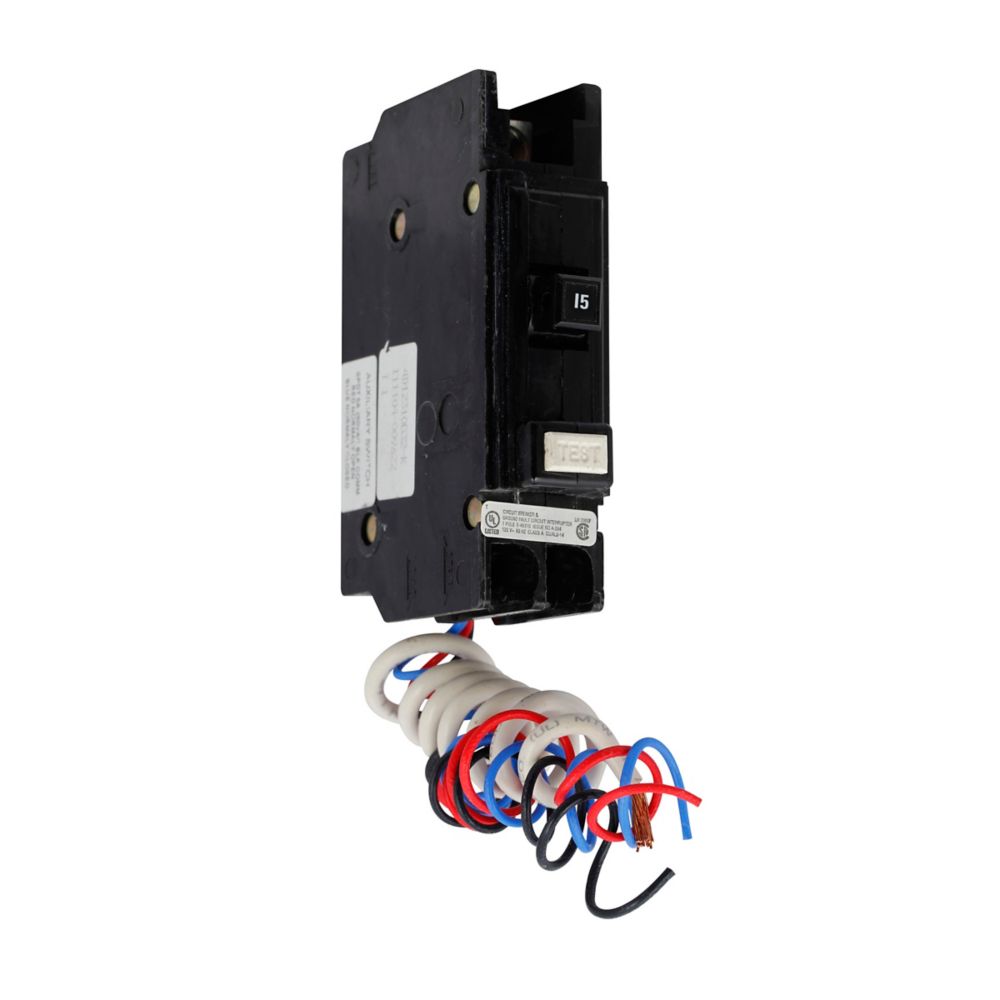

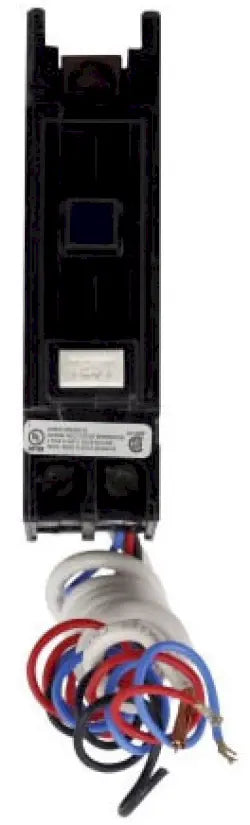

QCGF1015 - Cutler Hammer 1-Pole 15A 120V Ground Fault Circuit Breaker

QCGF1015

QCGF1015 is a single-pole molded case ground fault circuit breaker designed for industrial and commercial applications requiring reliable overcurrent and ground fault protection.

This Cutler Hammer circuit breaker features a 15 ampere rating at 120 volts AC with a 10 kAIC interrupting capacity. The breaker incorporates a 5 milliampere trip sensitivity for ground fault detection and utilizes thermal magnetic trip technology. It is configured as a cable-in/cable-out mount unit with aluminum lug line terminals compatible with 14 to 4 AWG aluminum or copper conductors. The non-interchangeable design ensures proper installation and operation within QC series panelboards.

• Amperage Rating: 15 A
• Voltage Rating: 120 VAC
• Poles: 1
• Interrupting Rating: 10 kAIC
• Trip Sensitivity: 5 mA
• Terminal Type: Aluminum Lug Line Terminal
• Wire Size: 14 to 4 AWG
• Mounting: Cable-in/Cable-out
• Trip Type: Non-Interchangeable
• Series: QC GFCI

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QCGF1015
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QC Series
• Type : QCGF
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679146002
• GTIN : 00786679146002
• Country of Origin : Dominican Republic
• Dimensions : 5.2 in x 1.2 in x 3.2 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : UL Listed; CSA Certified
• Wire Size : 14 TO 10 AWG Aluminum/Copper (Line); 14 TO 4 AWG Aluminum/Copper (Load)
