Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QCF2035

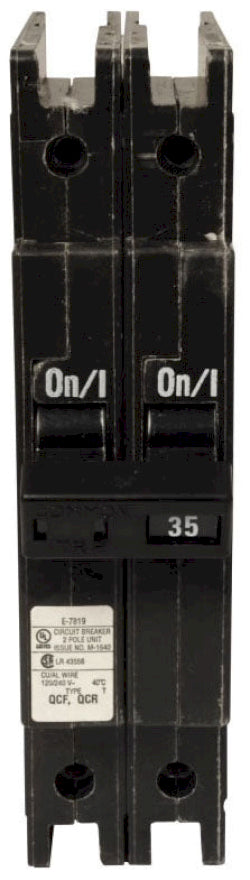

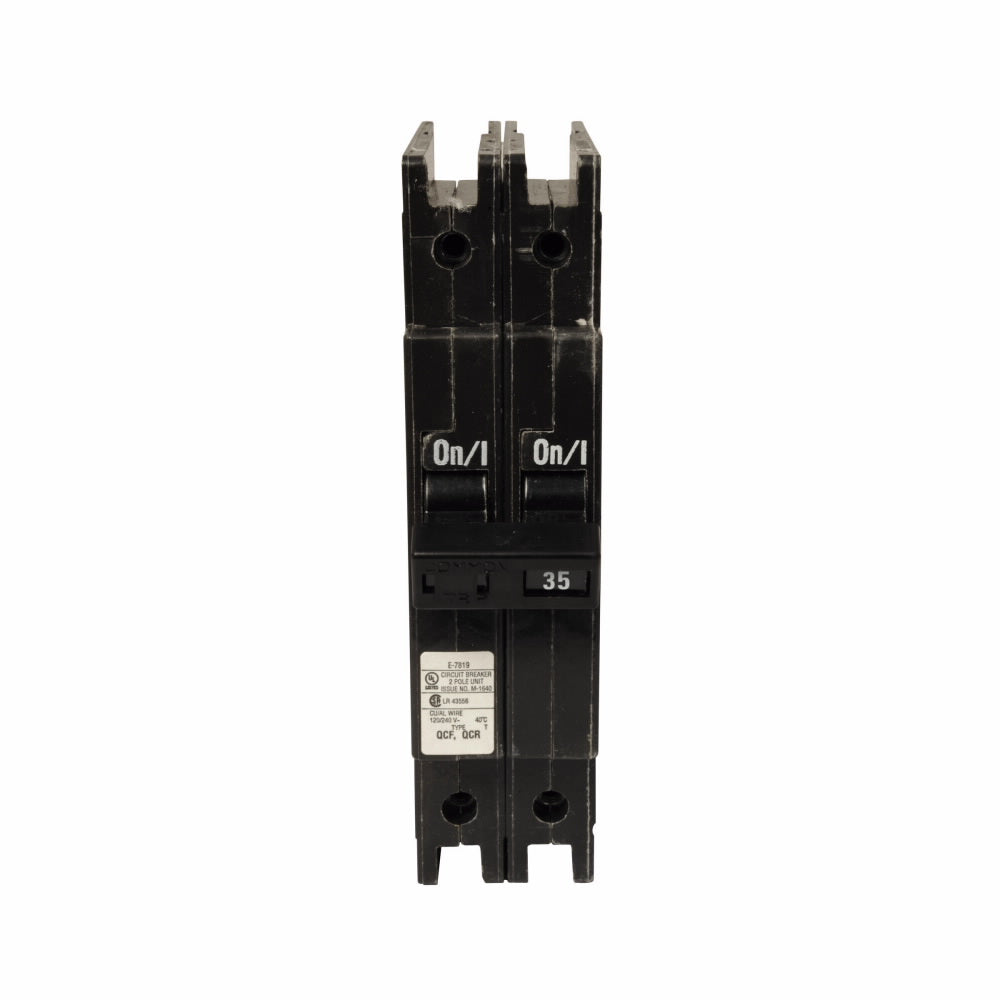

QCF2035 is a Cutler Hammer 2-pole thermal magnetic circuit breaker rated for 35 amps and 120/240 volts, designed for front mounting applications.This industrial-grade breaker provides reliable overcurrent protection with a 10 kA interrupt rating and fixed cable-in/cable-out terminals.
- Amperage: 35 A
- Voltage: 120/240 V AC
- Poles: 2
- Mounting Type: Front mount
- Interrupt Rating: 10 kAIC
- Trip Unit: Thermal-magnetic (T268)
- Connection: Cable-in/cable-out fixed terminals
- Series/Frame: QCF
- Certifications: UL Listed, CSA Certified
- Type: Industrial circuit breaker
- Weight: Approximately 0.45 lbs
- Warranty: 1 year
Specifications
- Part Number: QCF2035
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QCF
- Voltage : 240
- Amperage : 35
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 786679143360
- GTIN : 00786679143360
- Country of Origin : Dominican Republic
- Dimensions : 5 in x 1.5 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : CSA Certified,UL Listed
