Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QCF2020

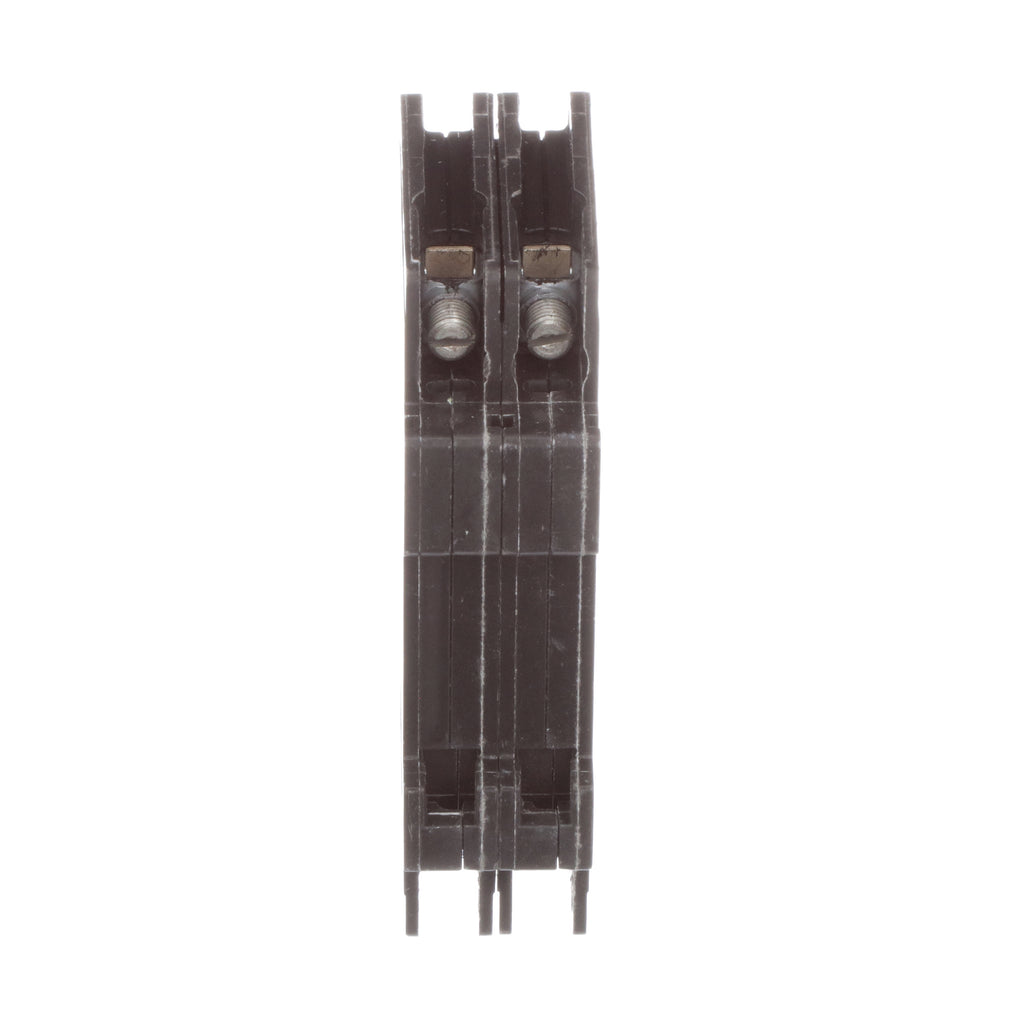

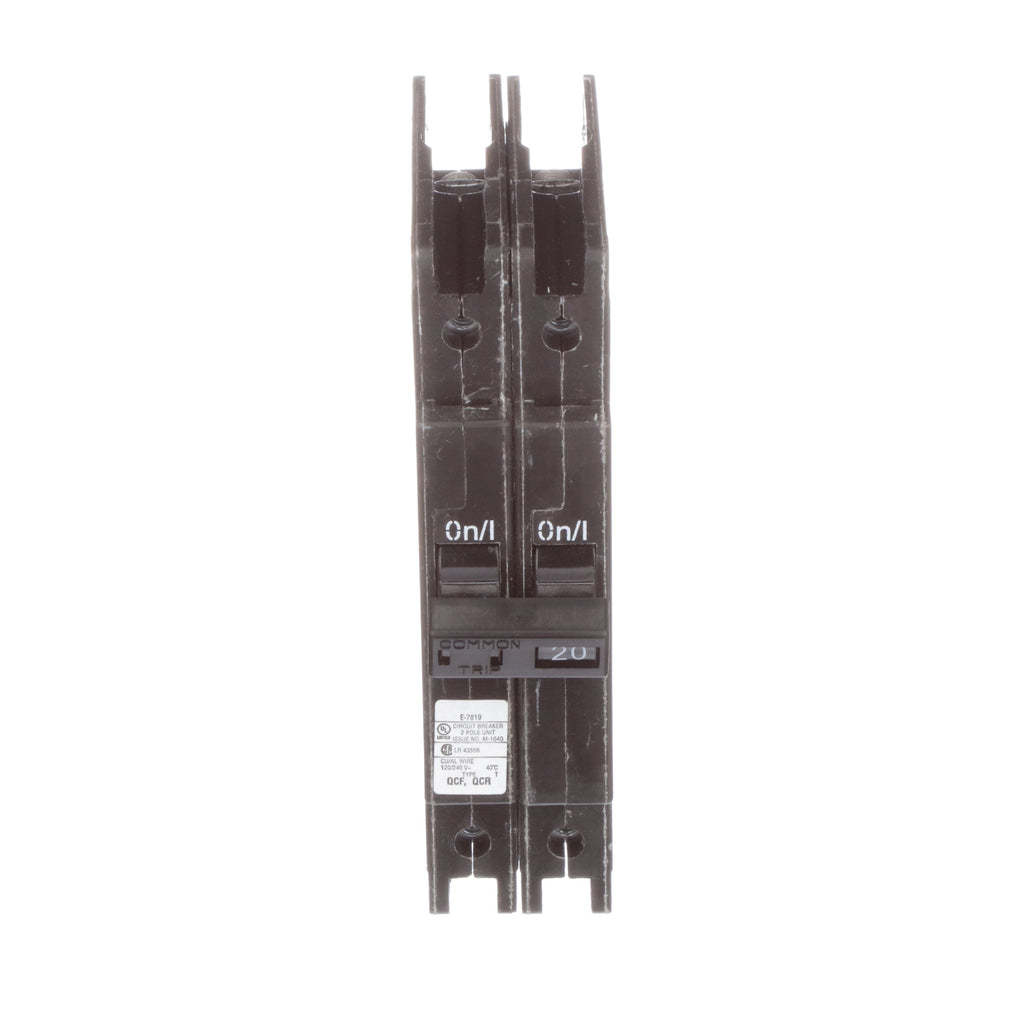

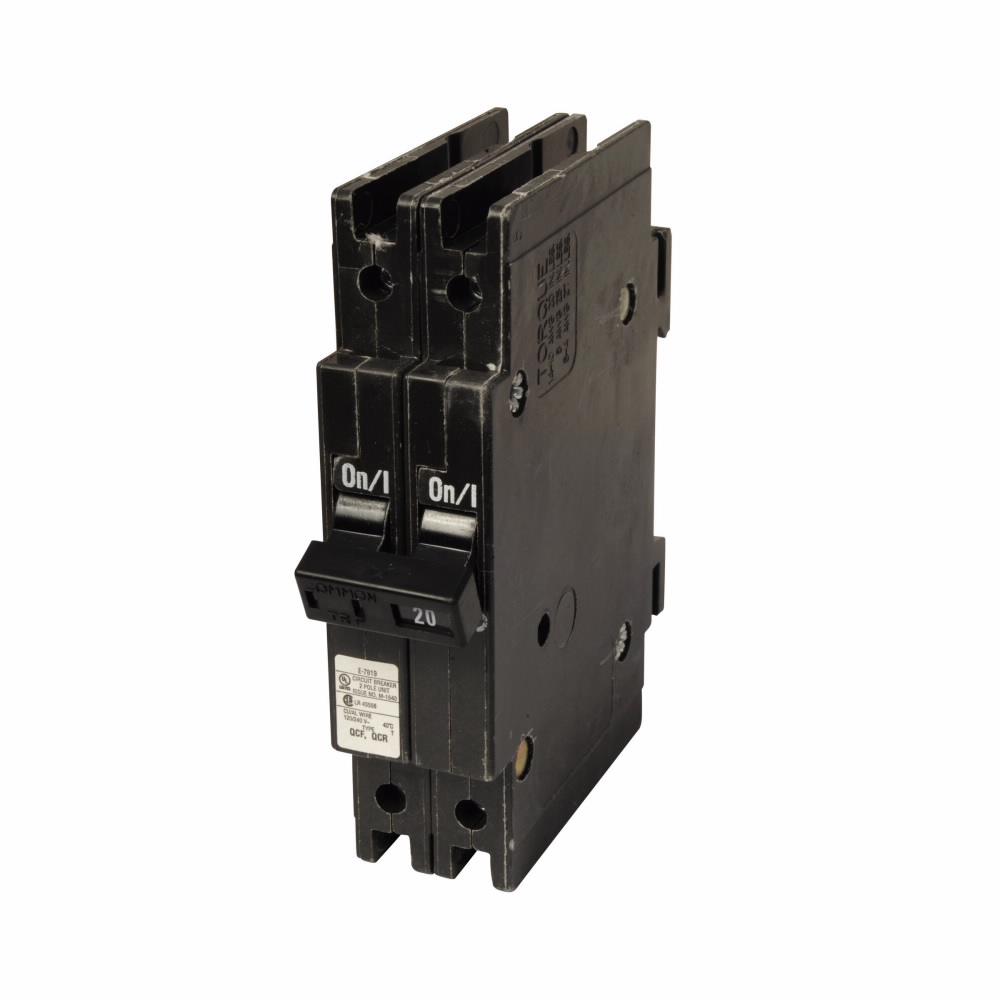

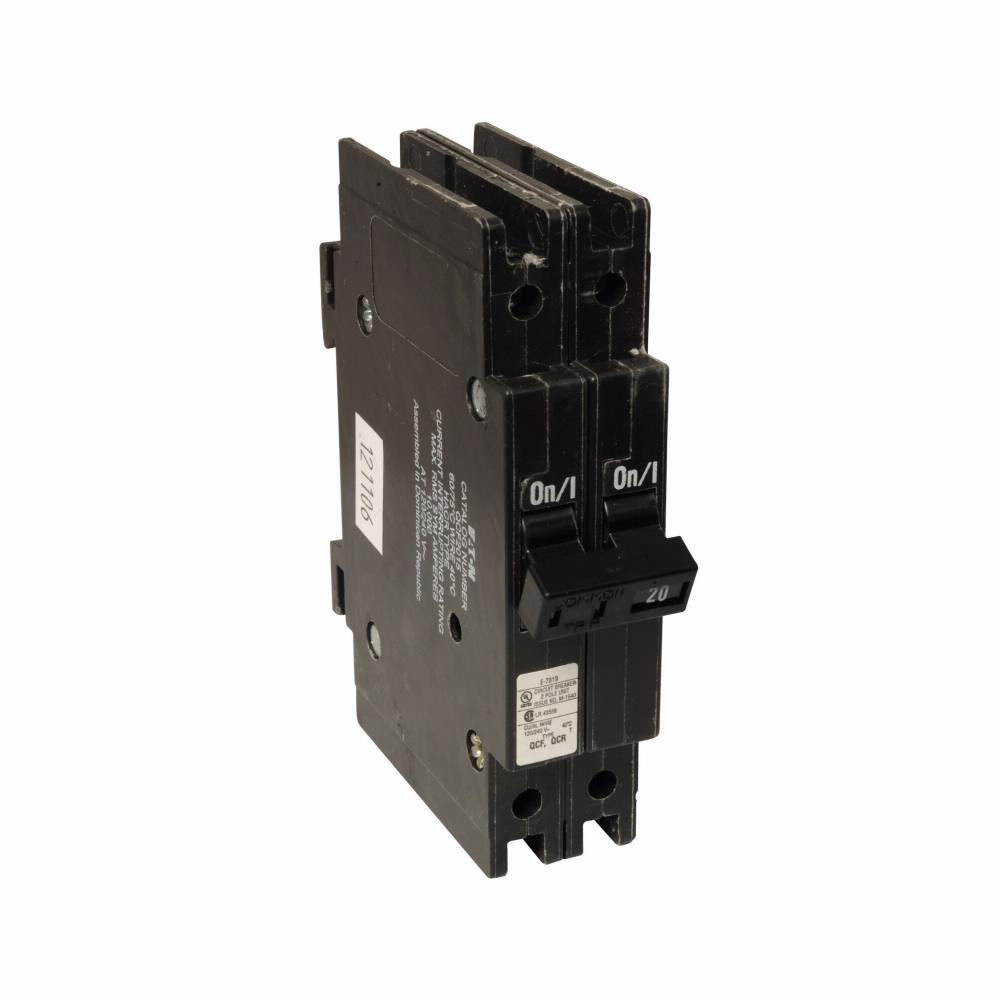

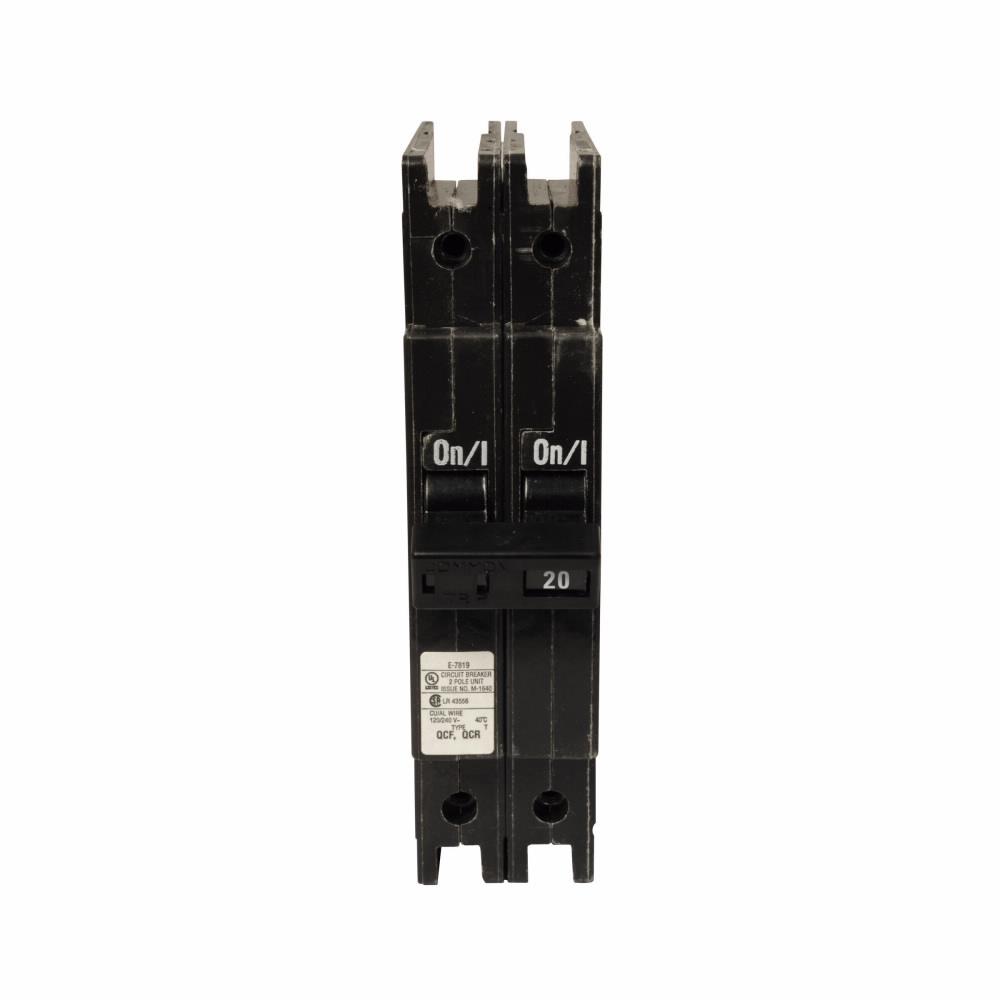

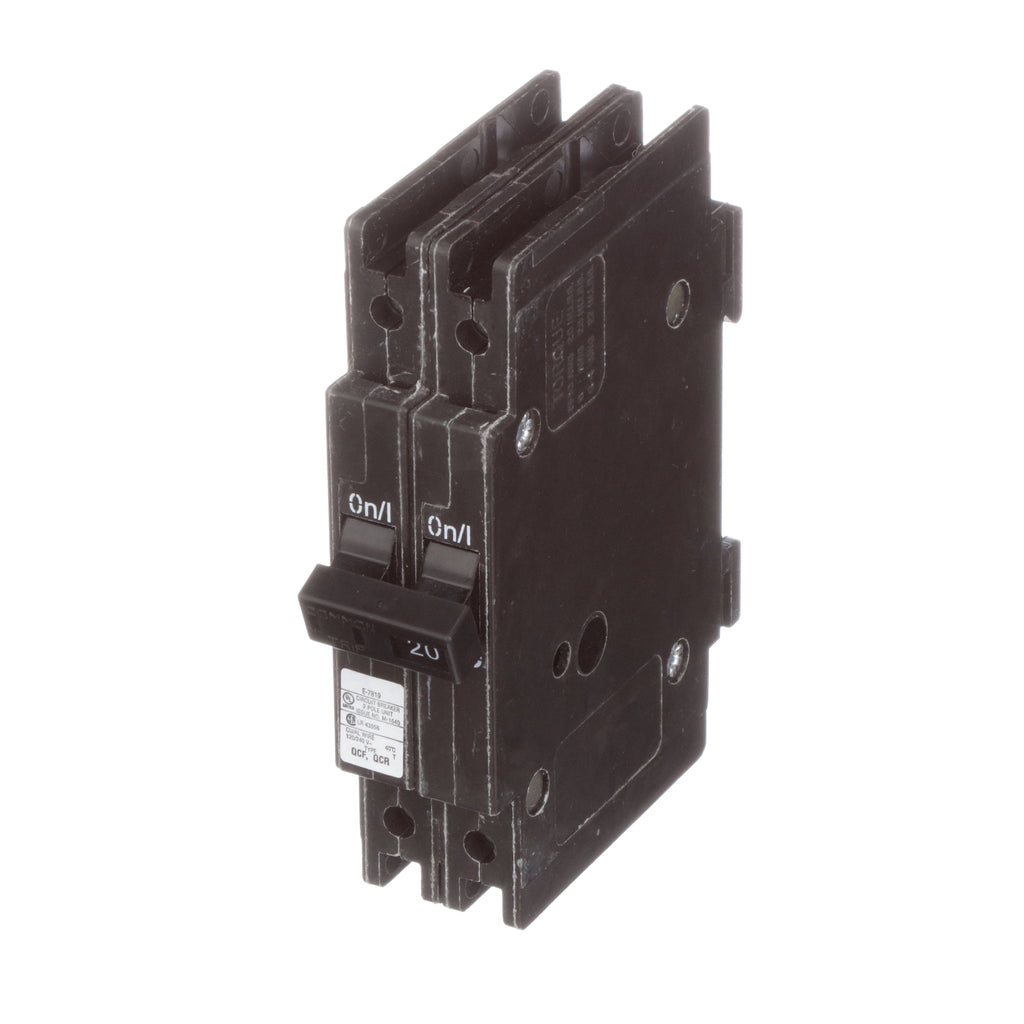

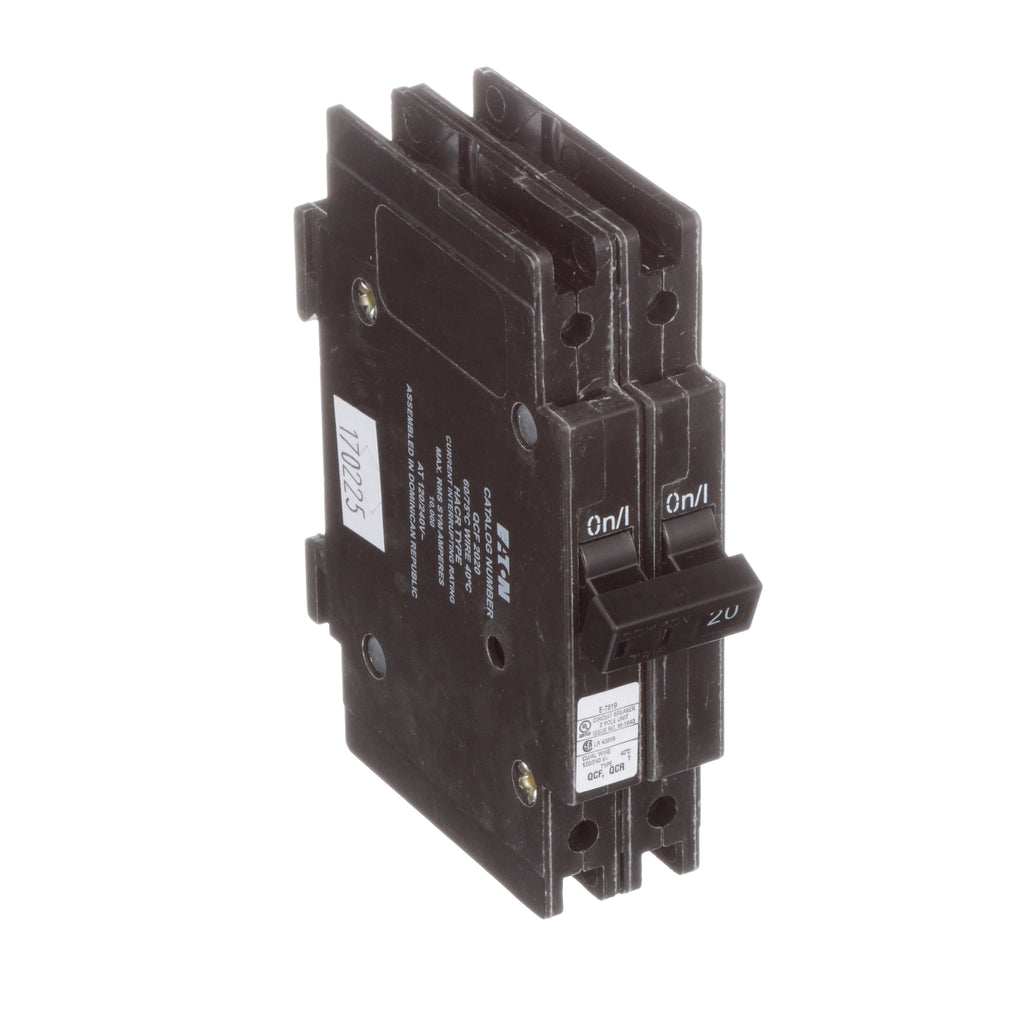

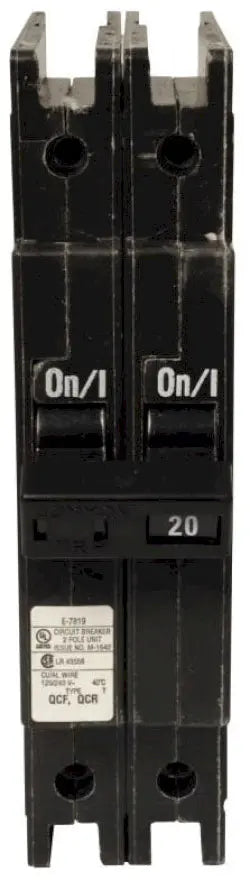

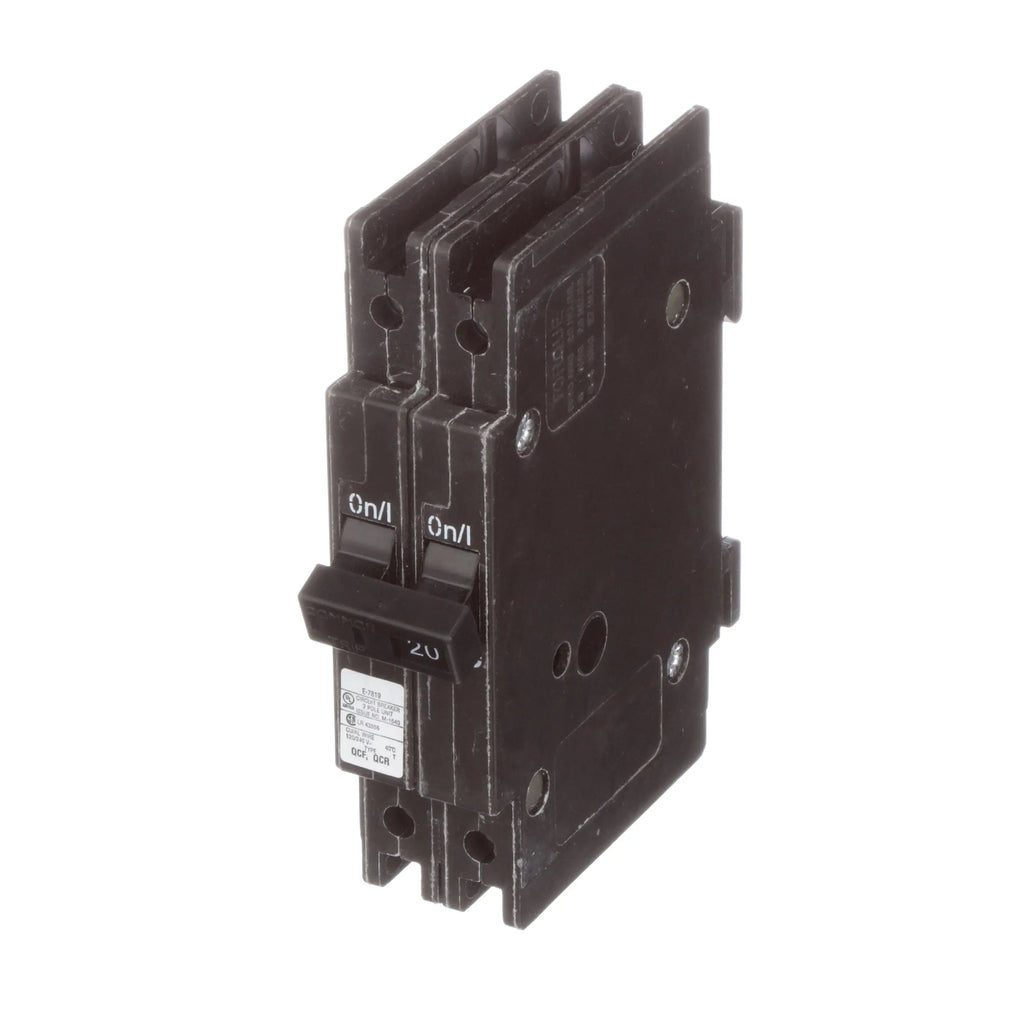

QCF2020 is a Cutler Hammer Quicklag 1/2-inch industrial thermal-magnetic circuit breaker designed for reliable overload and short circuit protection.
This 20 amp, 2-pole circuit breaker operates at 120/240 volts AC with a 10 kA interrupt rating. It features a fixed thermal-magnetic trip unit and cable-in/cable-out connection type, ideal for industrial power distribution. The compact 1/2-inch size allows efficient panel space use, and it is UL listed and CSA certified for safety and compliance.
- Key Specifications
- Amperage: 20 A
- Voltage Rating: 120/240 VAC
- Poles: 2
- Interrupt Rating: 10 kAIC
- Trip Type: Thermal-Magnetic Fixed
- Mounting Type: Cable-in/Cable-out
- Series/Frame: Quicklag (QCF)
- Certifications: UL Listed, CSA Certified
- Dimensions: 1.2" H x 3" W x 4.6" D
- Weight: 0.31 lbs
- Part Number: QCF2020
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QCF
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
- UPC : 786679143308
- GTIN : 00786679143308
- Country of Origin : Dominican Republic
- Dimensions : 4.6 in x 1.2 in x 3 in (Length/Depth x Height x Width)
- Weight : 0.31
- Certification : UL Listed,CSA Certified
