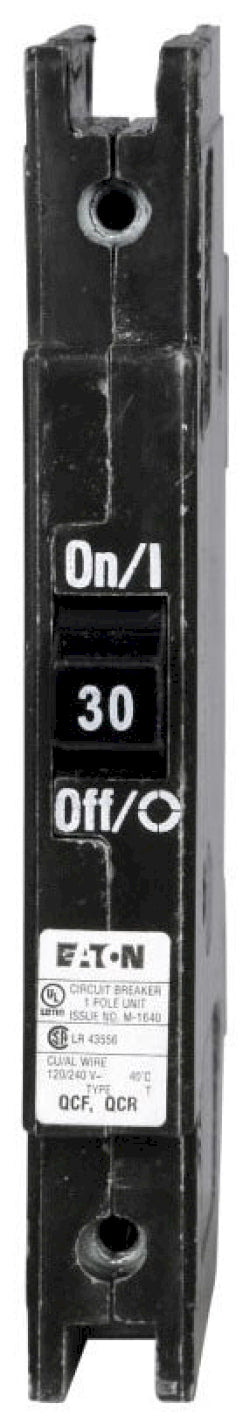

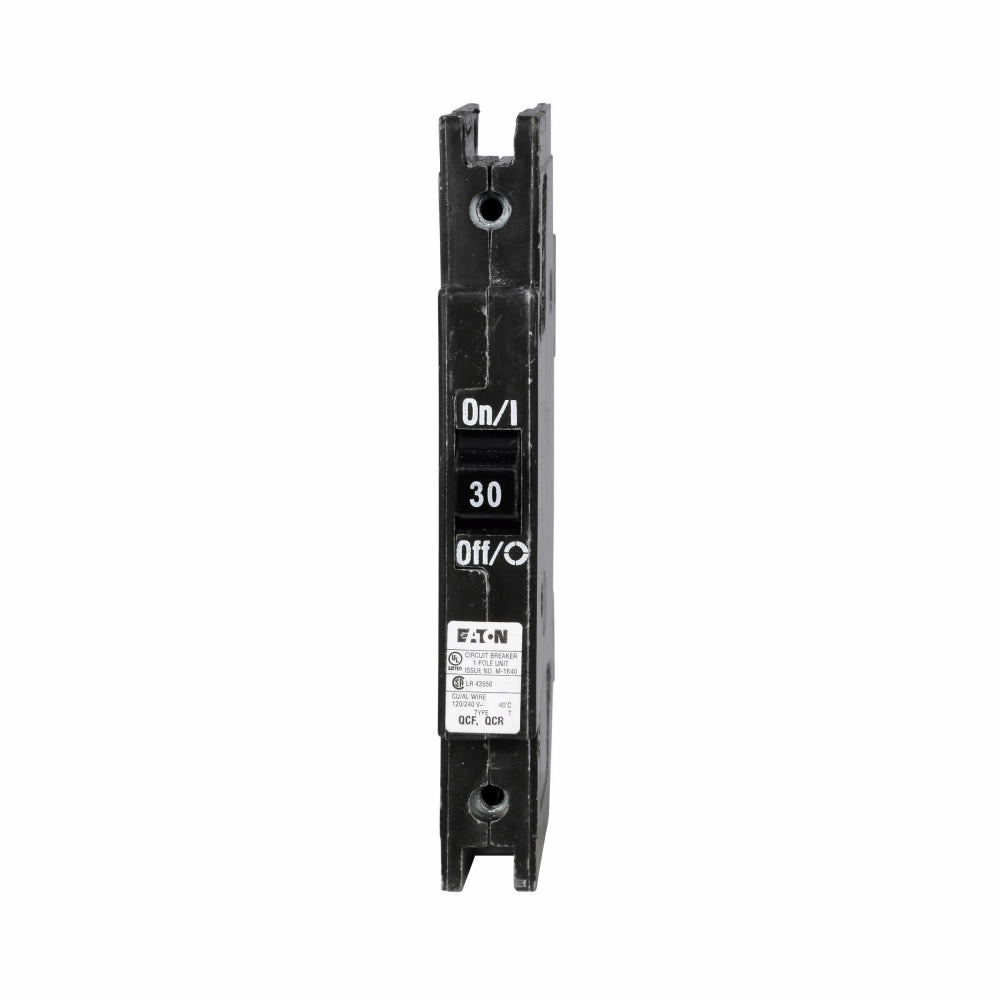

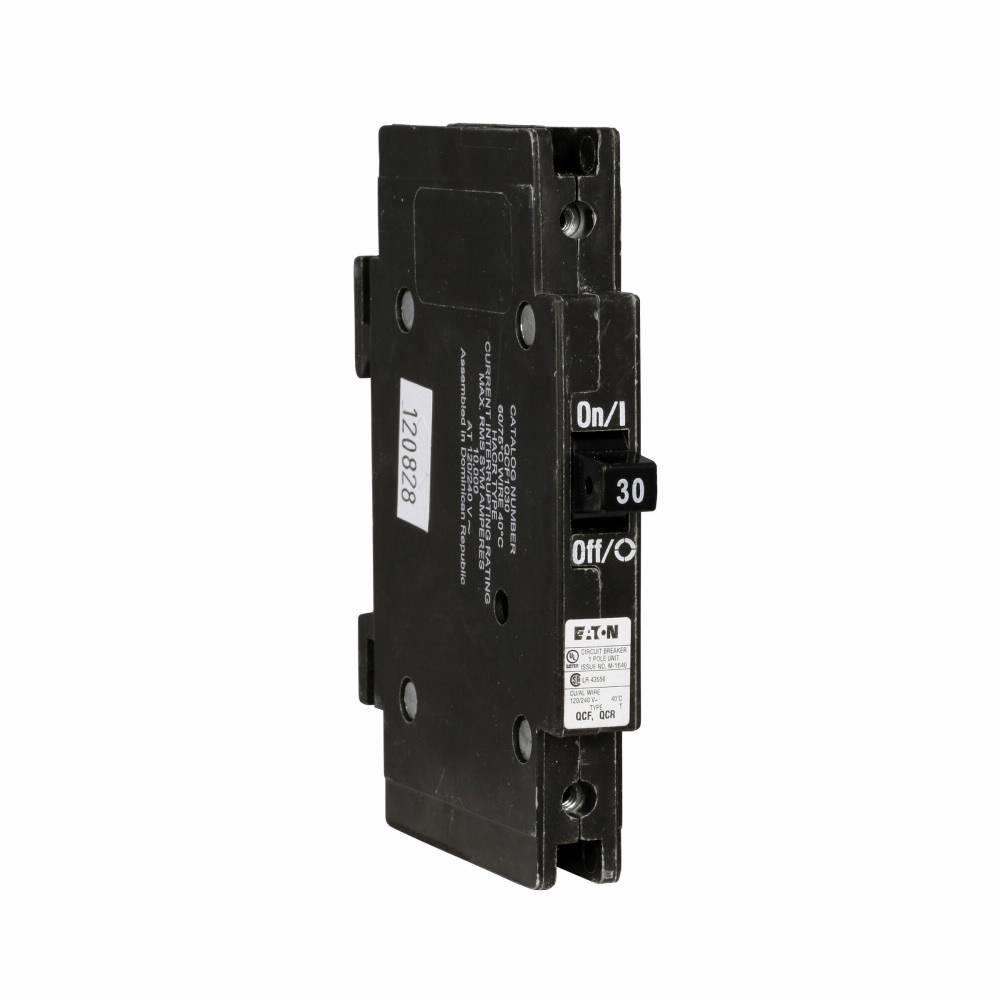

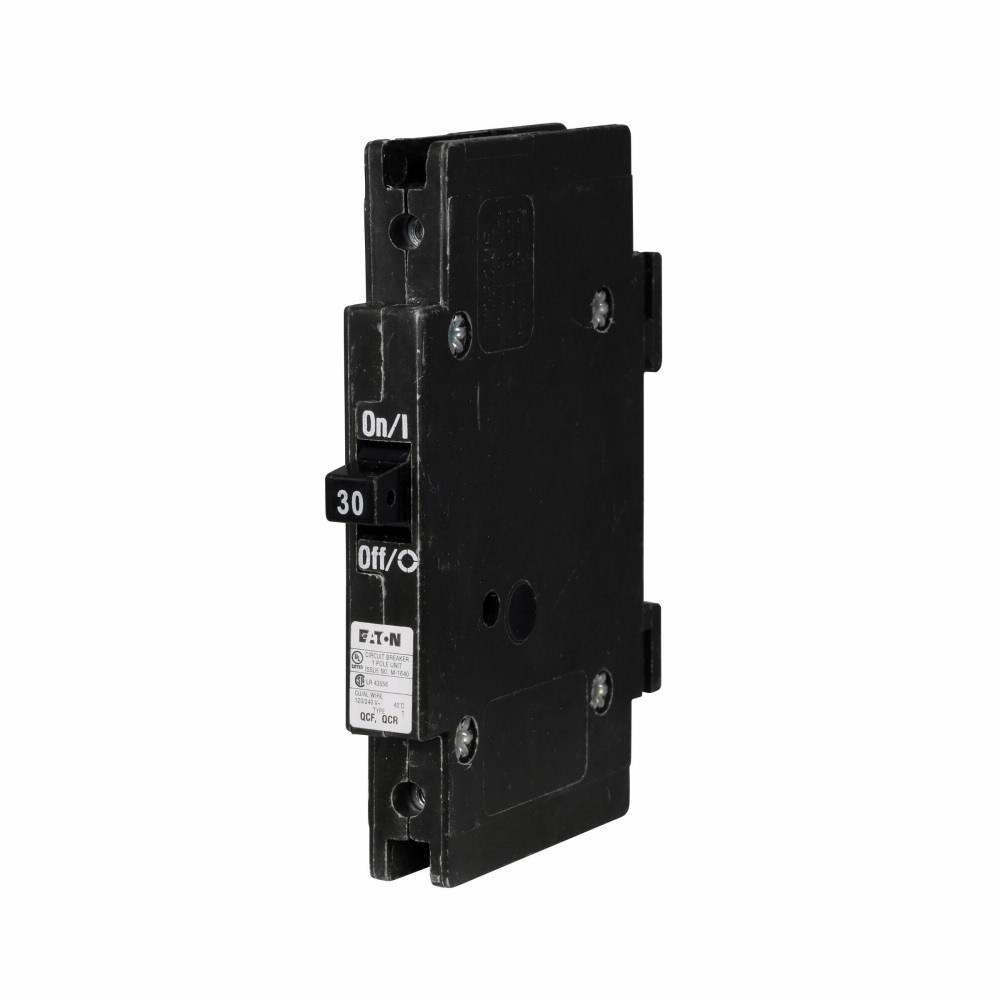

QCF1030 - Cutler Hammer 30A 120/240VAC 1 Pole QCF Series Thermal Magnetic Circuit Breaker, 10kAIC, DIN Rail Mount, Feed-Thru, UL Listed

QCF1030

QCF1030 is a Cutler Hammer single-pole, 30A thermal magnetic circuit breaker designed for reliable protection in industrial applications.

This Eaton Cutler-Hammer Quicklag QCF series breaker features a thermal-magnetic trip unit with both long-time and instantaneous trip functions, providing comprehensive overload and short circuit protection. It is rated for 120/240VAC, offers a 10kA interrupting capacity, and is UL listed for use as a branch circuit protector. The compact, front-mounted design with feed-thru line and load side lug terminals allows for easy DIN rail installation in a variety of electrical panels.

Key Specifications
• Amperage: 30A
• Voltage: 120/240VAC
• Poles: 1
• Mounting Type: DIN Rail
• Interrupt Rating: 10kAIC @ 120V
• Series/Frame: QCF (Quicklag)
• Trip Unit: Thermal Magnetic (Long Time & Instantaneous)
• Connection: Feed-Thru (Line & Load Side Lug)
• Certifications: UL Listed
• Phase: 1
• Actuator Type: Toggle
• Approval: RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QCF1030
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QCF
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 786679143124
• GTIN : 00786679143124
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 1 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.301
• Certification : CSA Certified,UL Listed
