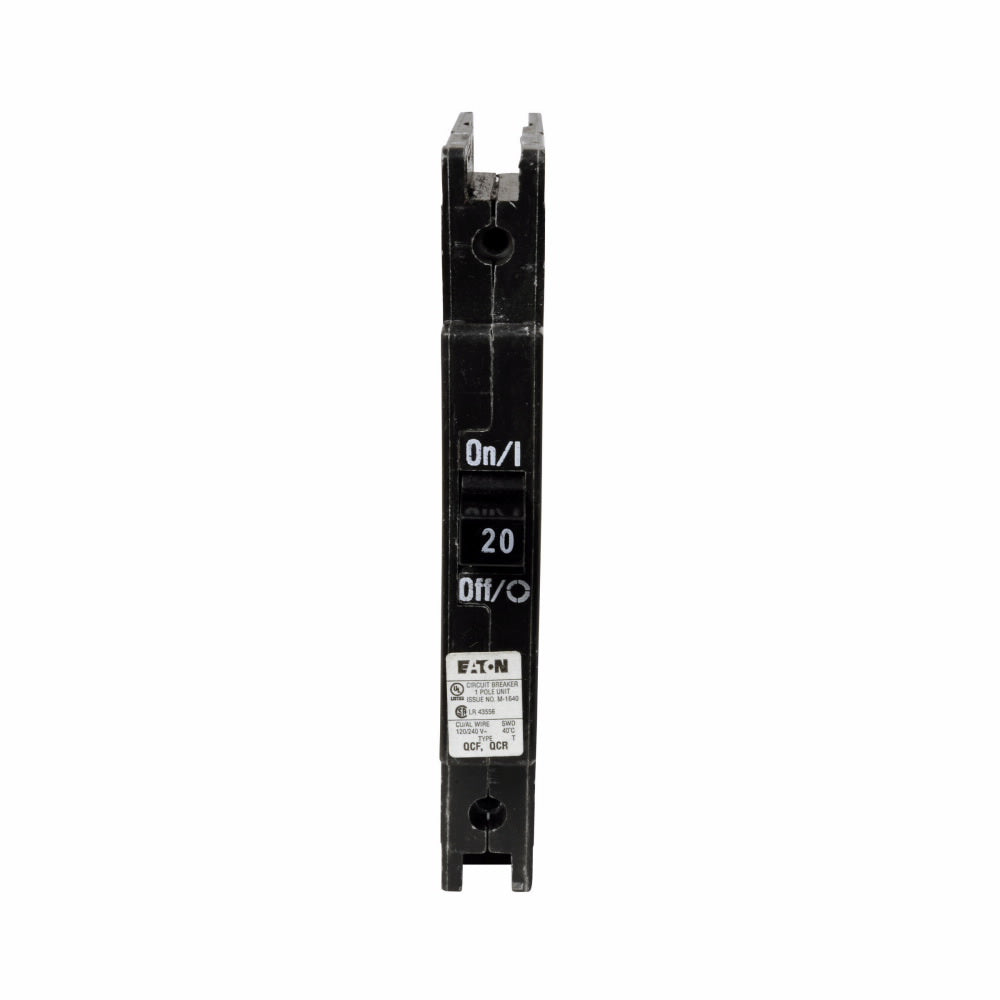

QCF1020T - Cutler Hammer 20A 1-Pole 120/240V 10kAIC QCF Series Thermal-Magnetic Circuit Breaker, Front Mount, UL Listed

QCF1020T

QCF1020T is a Cutler Hammer (Eaton) industrial thermal-magnetic circuit breaker designed for reliable circuit protection in demanding applications.

This single-pole breaker features a 20A current rating, 120/240V voltage rating, and a 10 kA interrupting capacity. It is part of the Quicklag QCF series, with front mounting, cable-in/cable-out connection, and ring or spade lug terminals. The thermal-magnetic trip unit (Type T268) ensures both overload and short-circuit protection, and the breaker is rated for switching duty in fluorescent lighting applications. Certifications include UL Listed and CSA Certified for safety and compliance.

Key Specifications
• Part Number: QCF1020T
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 20A
• Voltage: 120/240V
• Poles: 1
• Mounting Type: Front
• Interrupt Rating: 10 kAIC
• Series/Frame: Quicklag QCF
• Trip Unit: Thermal-Magnetic (Type T268)
• Connection: Cable-in/cable-out, ring or spade lug terminals
• Certifications: UL Listed, CSA Certified
• Application: Industrial, suitable for line and load side connections
• Switching Duty: Rated for fluorescent lighting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QCF1020T
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QCF
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 782114154618
• GTIN : 00782114154618
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 1 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : CSA Certified,UL Listed
