Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

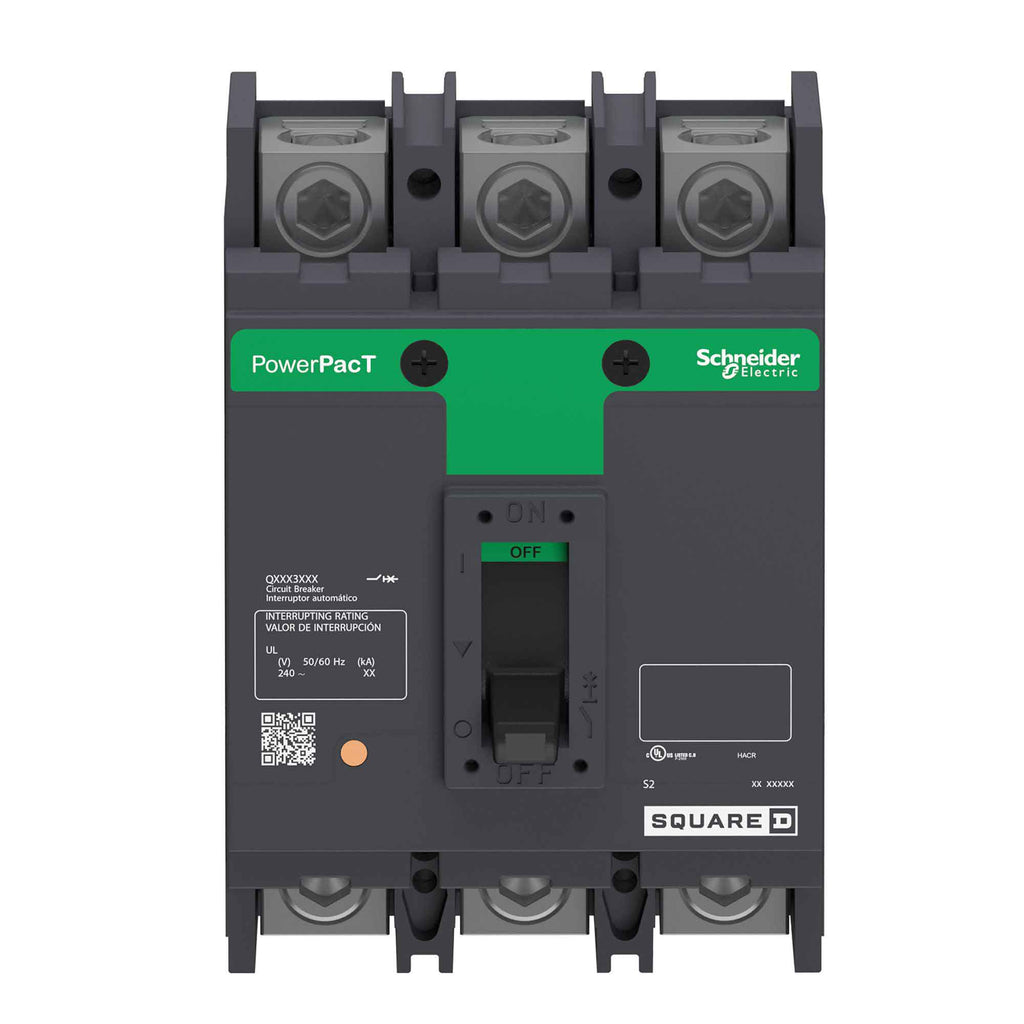

QBP32225TM
QBP32225TM is a 3 pole, 225A, 240V thermal magnetic molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.Engineered for use in Meter-Pak metering equipment, this Square D PowerPact Q-frame breaker features bolt-on mounting, load side lugs, and a 10kA interrupting rating at 240V. It includes long time and instantaneous trip functions for precise protection and is UL, CSA, and IEC listed for safety and compliance.
- Part Number: QBP32225TM
- Manufacturer: Square D
- Series/Frame: PowerPact Q
- Amperage: 225A
- Voltage: 240VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 10kA@240V
- Protection Type: Thermal Magnetic
- Functions: Long Time and Instantaneous Trip
- Terminal Connection: Load Side Lug
- Certifications: UL, CSA, IEC, NOM, RoHS
Specifications
- Part Number: QBP32225TM
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Meter-Pak
- Type : QBP
- Voltage : 240
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug, Terminal Nut
- Frame Size : Q
- Protection : Thermal Magnetic
Product Data
- UPC : 785901569572
- GTIN : 00785901569572
- Country of Origin : Mexico
- Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
- Weight : 4.661
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Certification : UL, CSA, NOM
