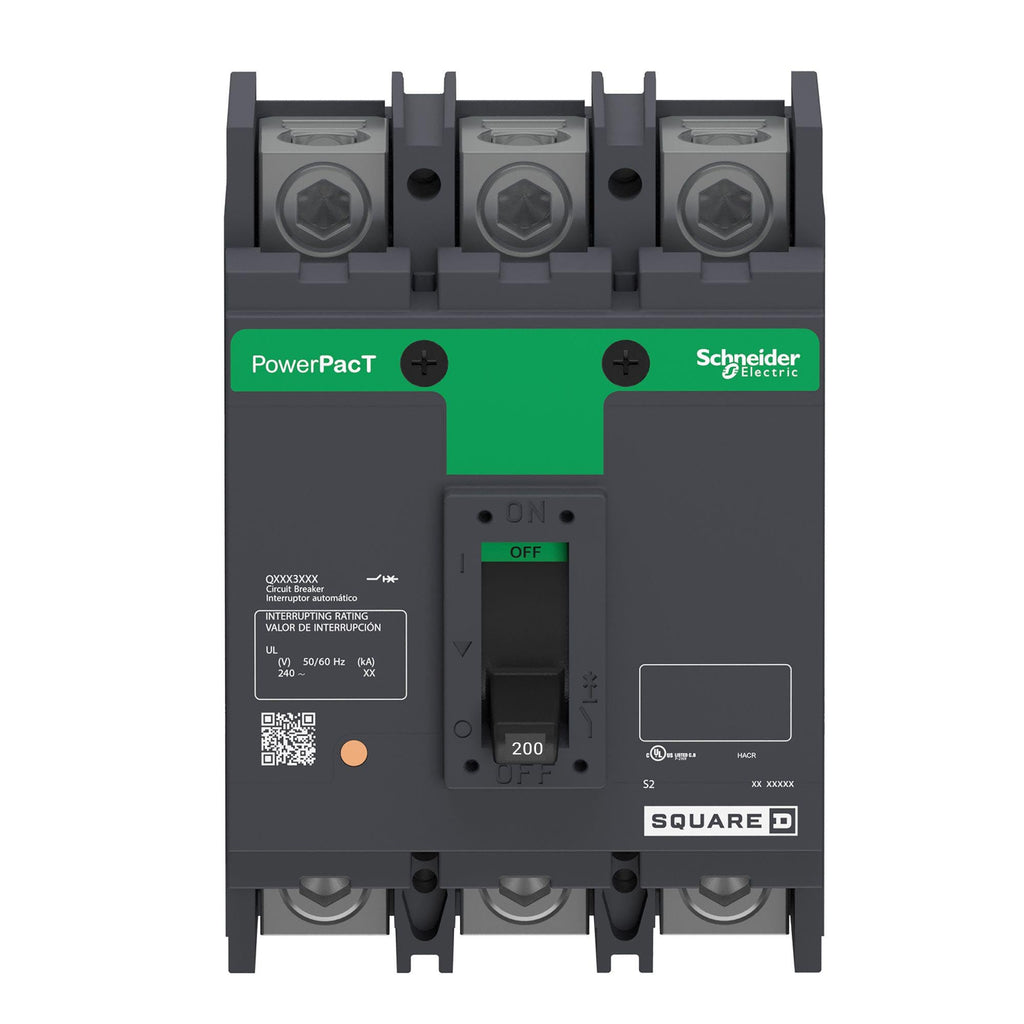

QBL32200 - Square D PowerPacT Q 200A 3P 240VAC 10kAIC Molded Case Circuit Breaker, Thermal Magnetic, Feed-Thru, UL/CSA/NEMA/NOM, RoHS, HACR, Mercury Free, PVC Free

QBL32200

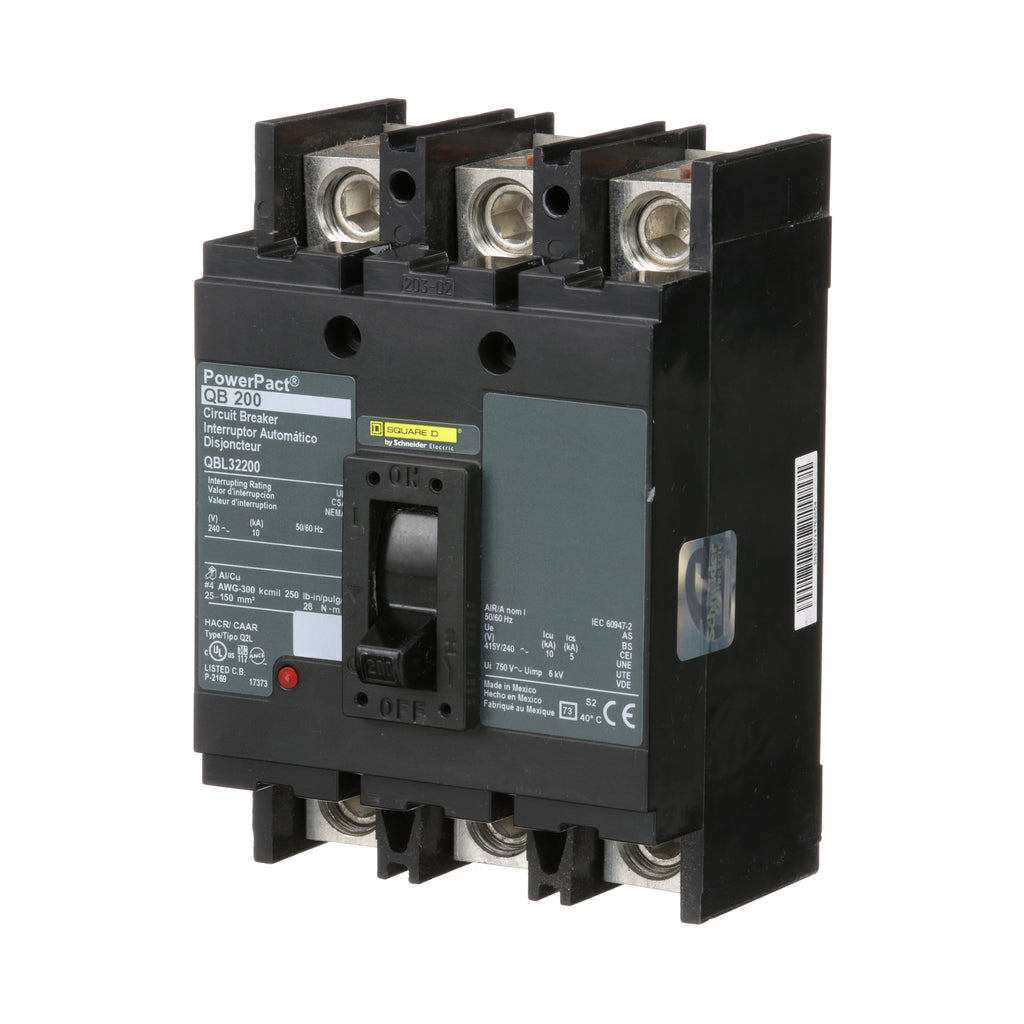

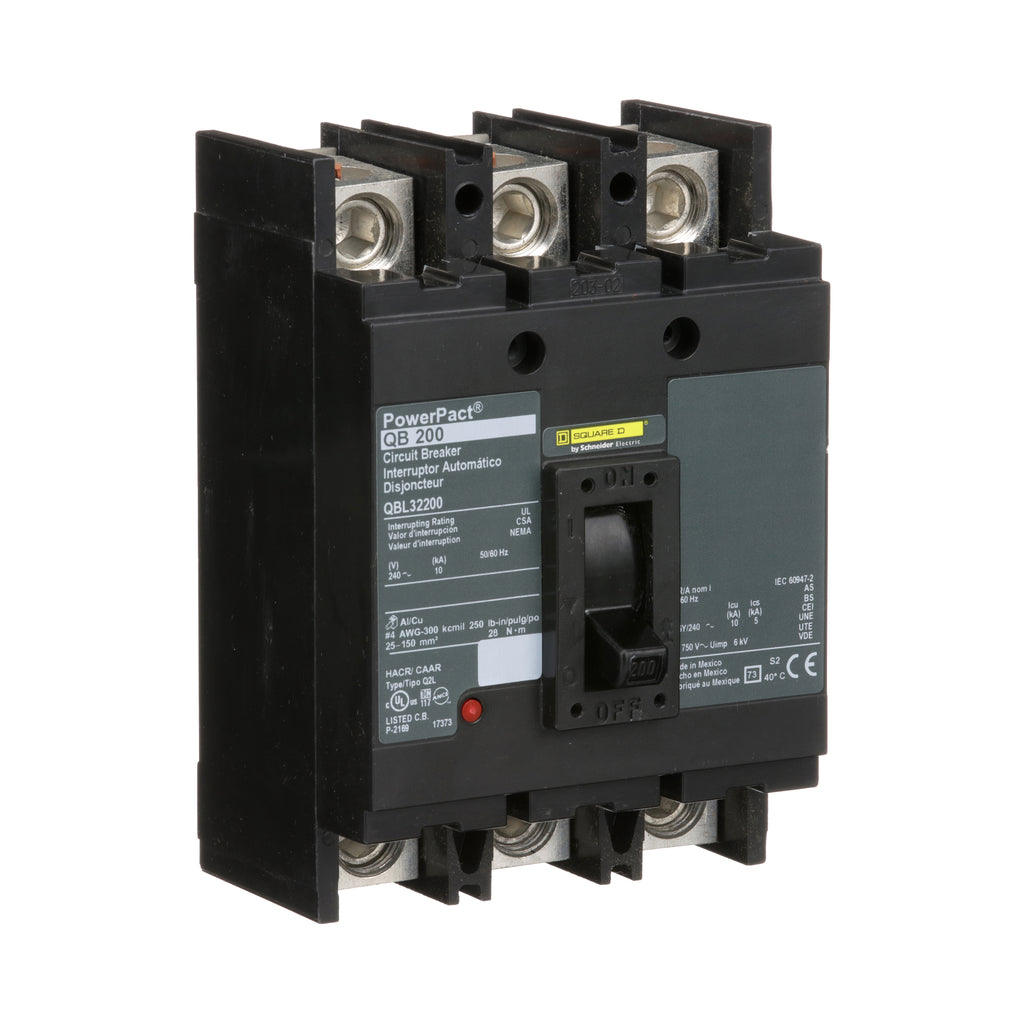

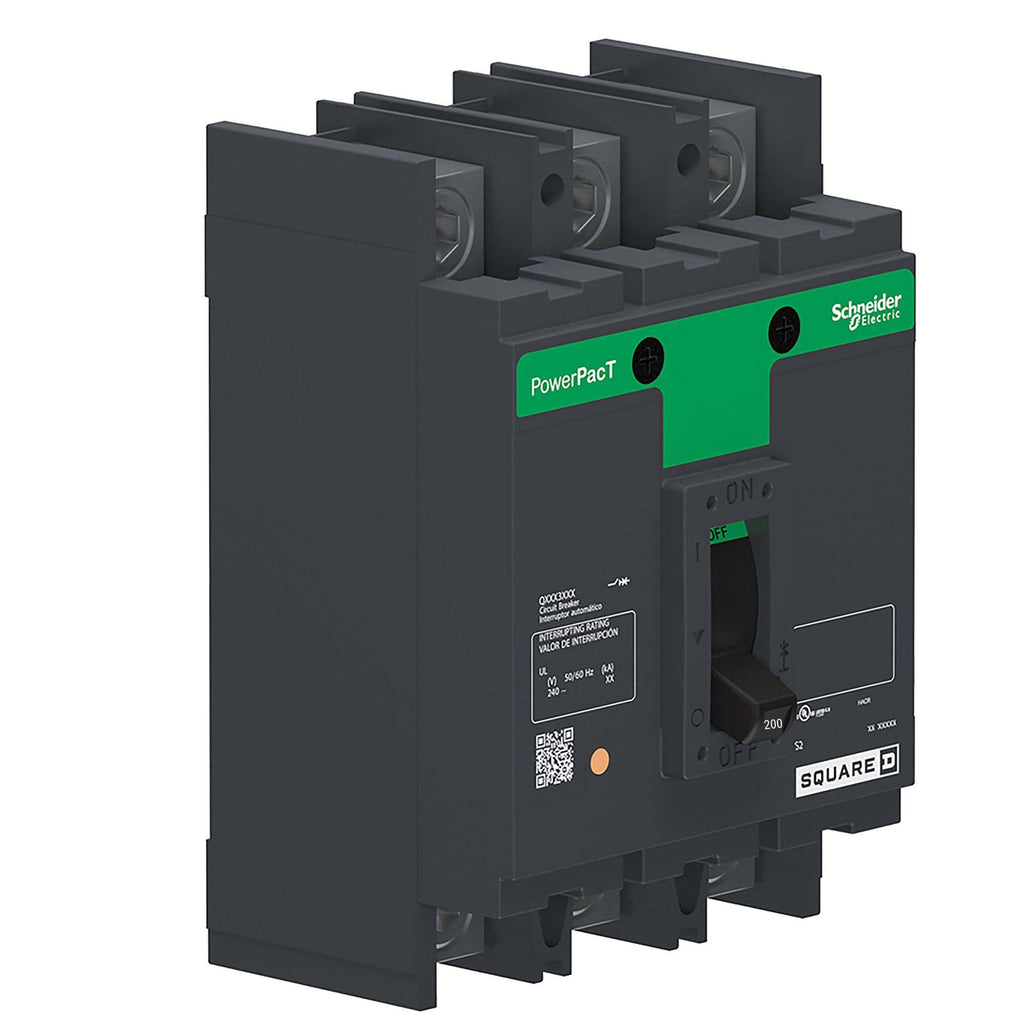

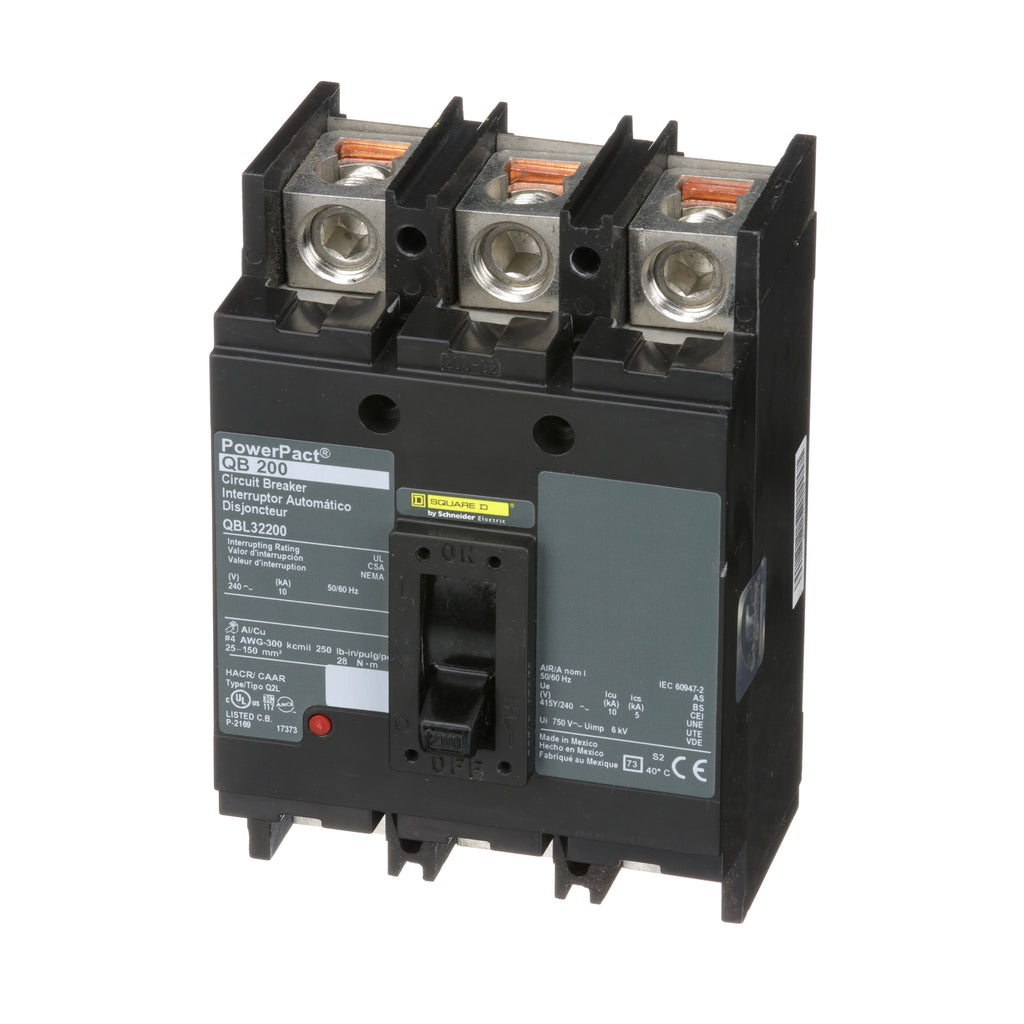

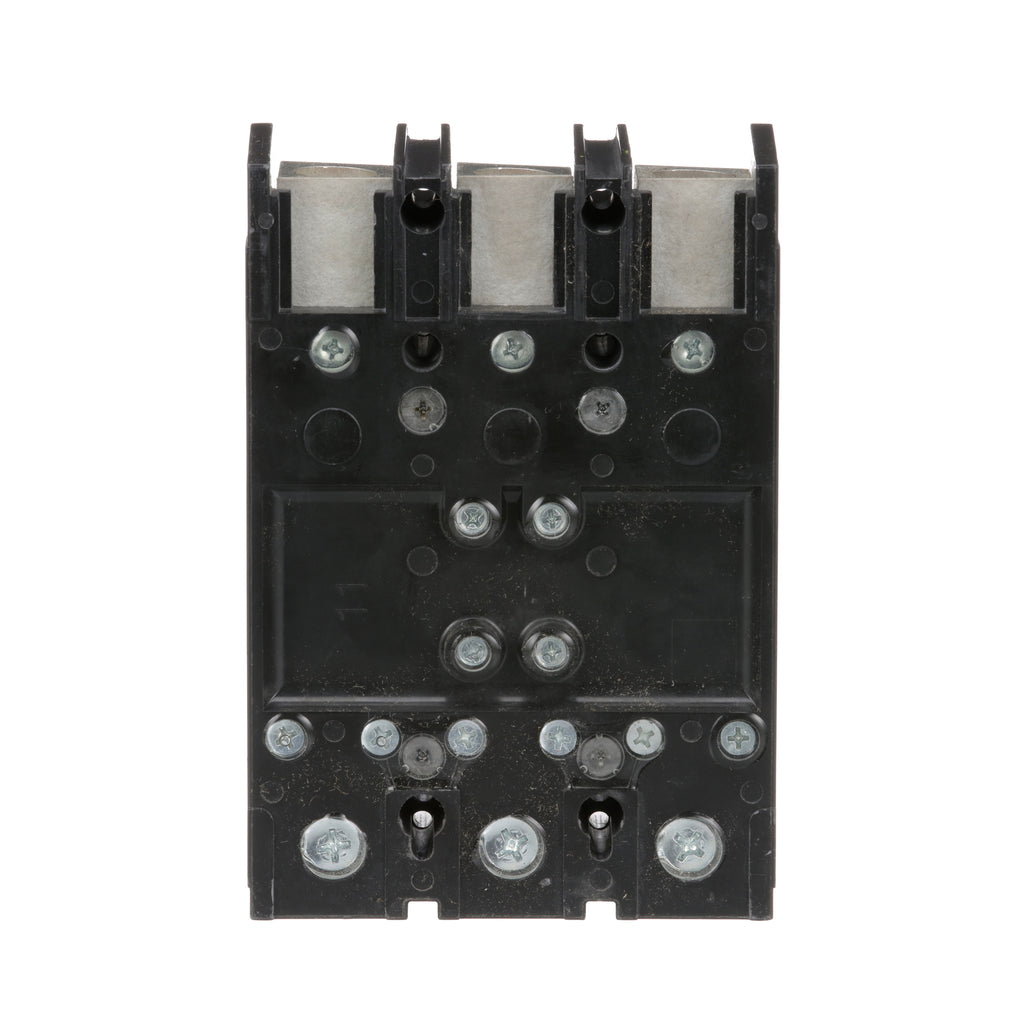

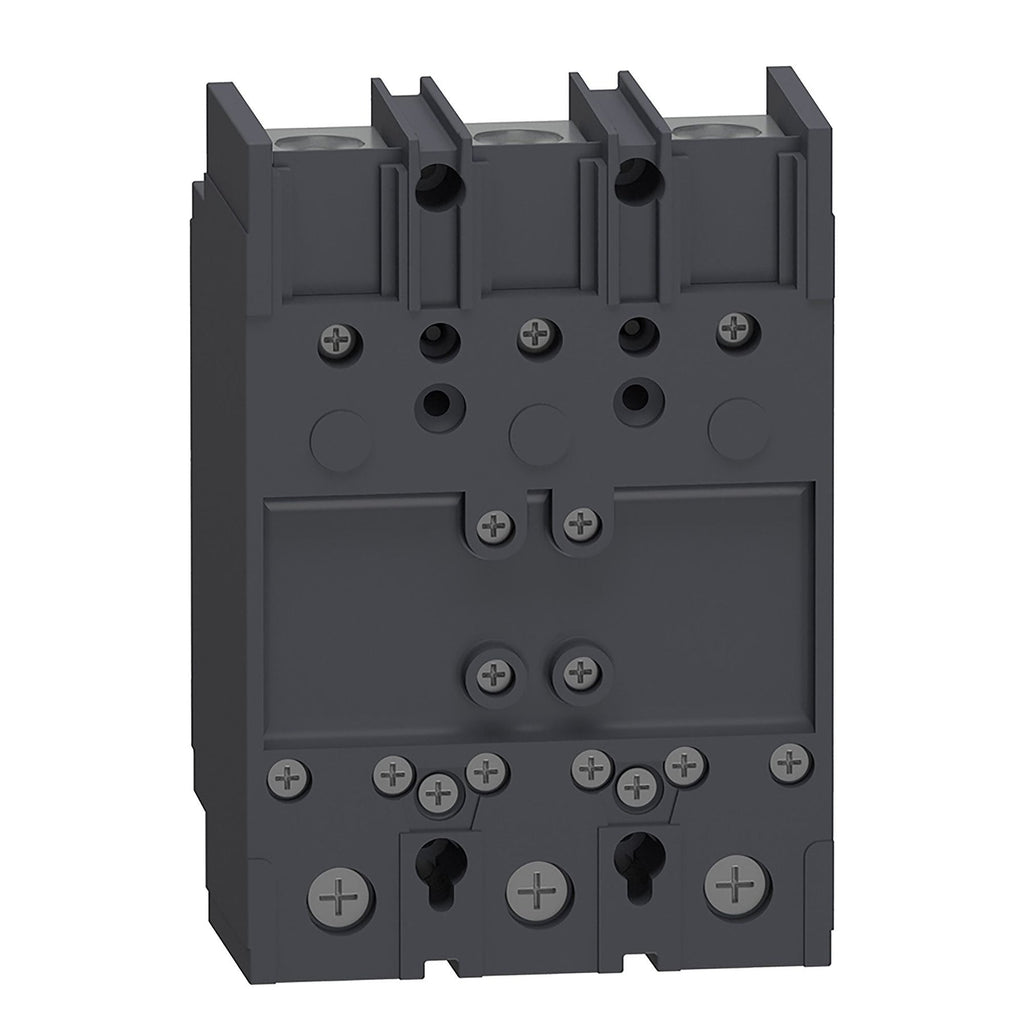

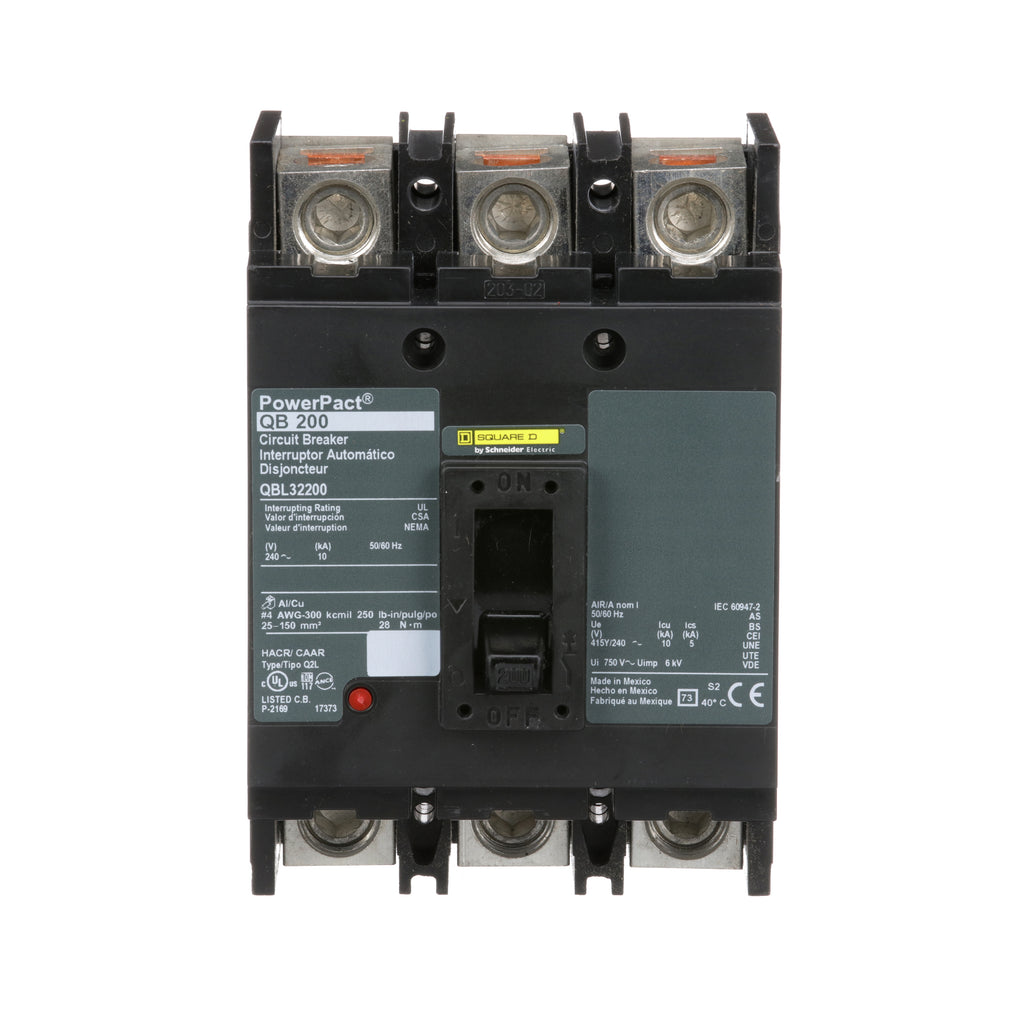

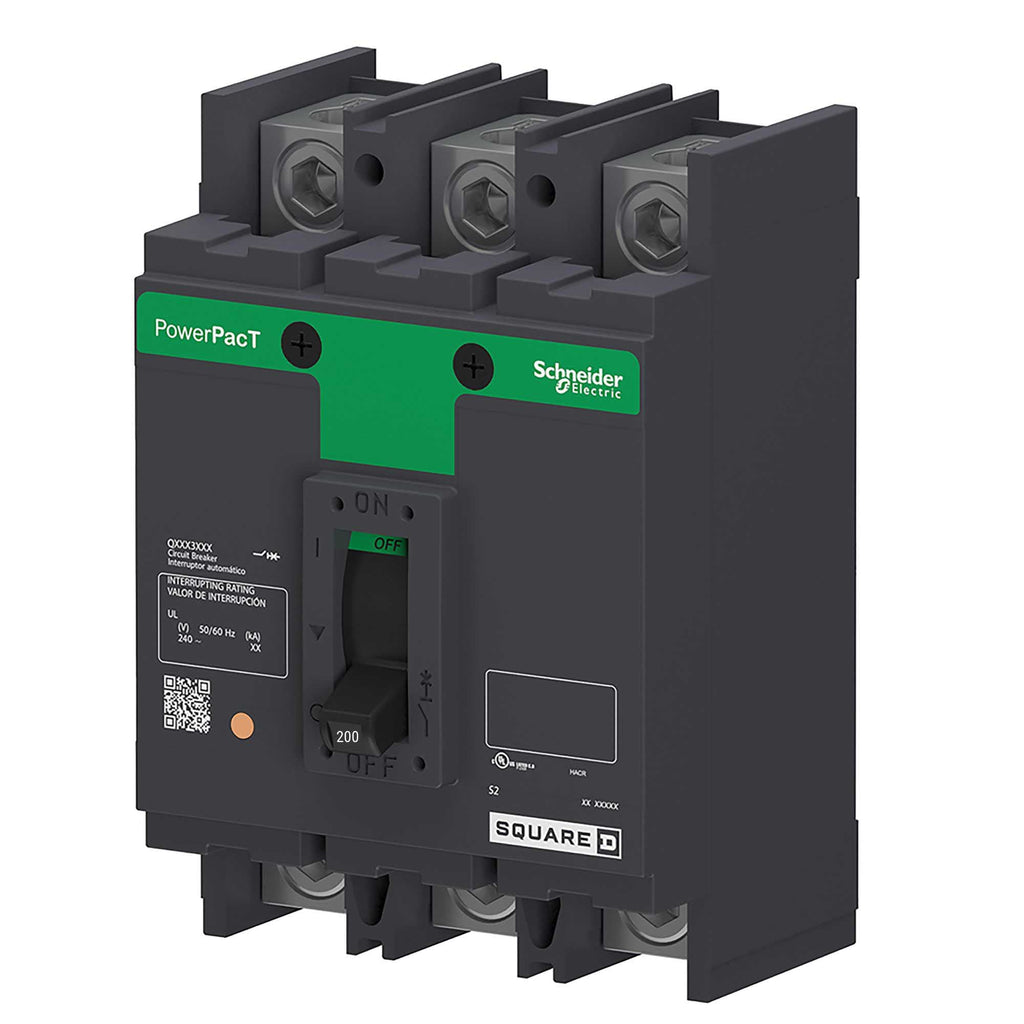

QBL32200 is a Square D PowerPacT Q series 3-pole, 200A molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a 240VAC voltage rating, 10kA interrupting capacity, and feed-thru lug connections for both line and load. It is mercury free, PVC free, and compliant with RoHS and HACR standards. The QBL32200 is UL, CSA, NEMA, and NOM certified, ensuring broad acceptance and safety in demanding environments.

Key Specifications
• Amperage: 200A
• Voltage: 240VAC
• Poles: 3
• Mounting Type: Unit (fixed)
• Interrupt Rating: 10kAIC at 120/208/240VAC
• Series/Frame: PowerPacT Q (QBL)
• Trip Unit: Thermal magnetic with long time and instantaneous trip
• Certifications: UL, CSA, NEMA, NOM, RoHS, HACR
• Connection Type: Feed-thru lugs (line and load)
• Max Wire Size: 300 MCM
• Min Wire Size: AWG 4
• Temperature Rating: 40 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBL32200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBL
• Voltage : 240
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/QB
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901417866
• GTIN : 00785901417866
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.751 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
