QBL32080 - Square D 80 Amp 240 Volt 3 Pole Circuit Breaker Q Frame Thermal Magnetic

QBL32080

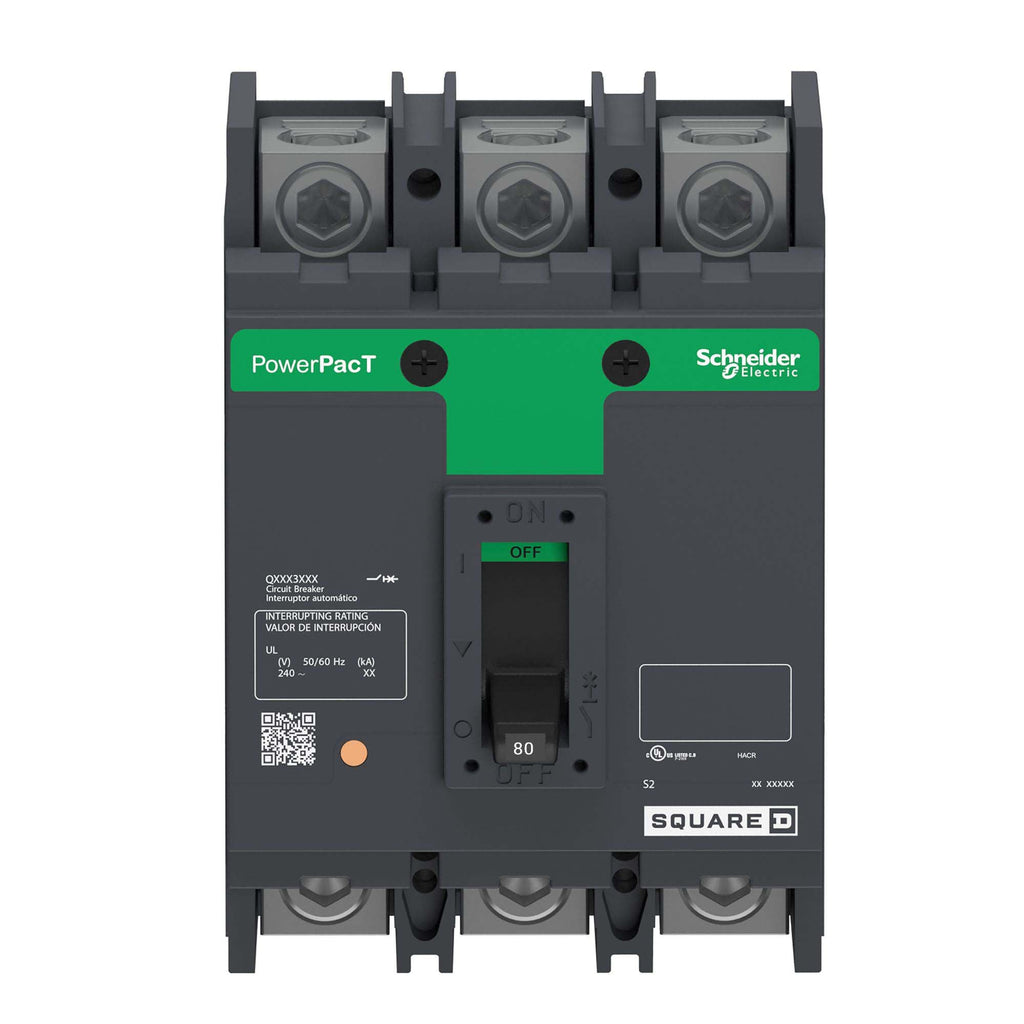

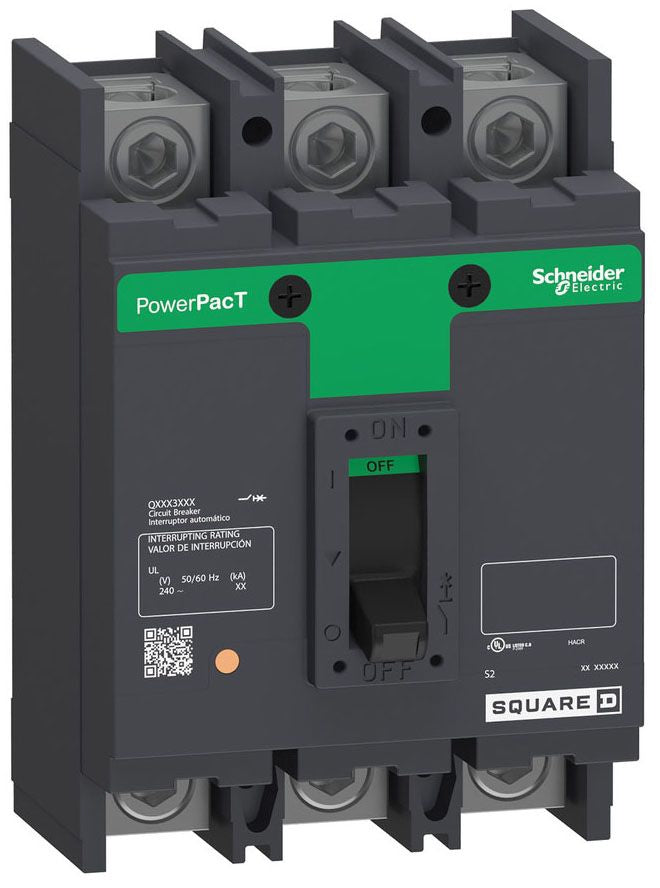

QBL32080 is a Square D 3 pole circuit breaker with an 80 amp rating and 240 volt capacity designed for unit mounting.

This molded case circuit breaker features a thermal magnetic trip unit providing long-time and instantaneous protection. It has a 10kA interrupt rating at 240V and is UL, CSA, and IEC approved. The breaker uses line/load lug terminals with feed-thru connection and supports wire sizes from 4 AWG to 300 KCMIL for aluminum or copper conductors. Its compact dimensions are 6.47 inches high, 4.5 inches wide, and 3.93 inches deep.

Key Specifications
• Manufacturer: Square D
• Part Number: QBL32080
• Amperage: 80 A
• Voltage Rating: 240 V AC
• Number of Poles: 3
• Frame/Series: Q Frame
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Interrupt Rating: 10 kA @ 240 V
• Mounting Type: Unit Mount
• Terminal Connection: Line/Load Lug
• Connection Type: Feed-Thru
• Certifications: UL, CSA, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBL32080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBL
• Voltage : 240
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : Q Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901458548
• GTIN : 00785901458548
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.76
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
