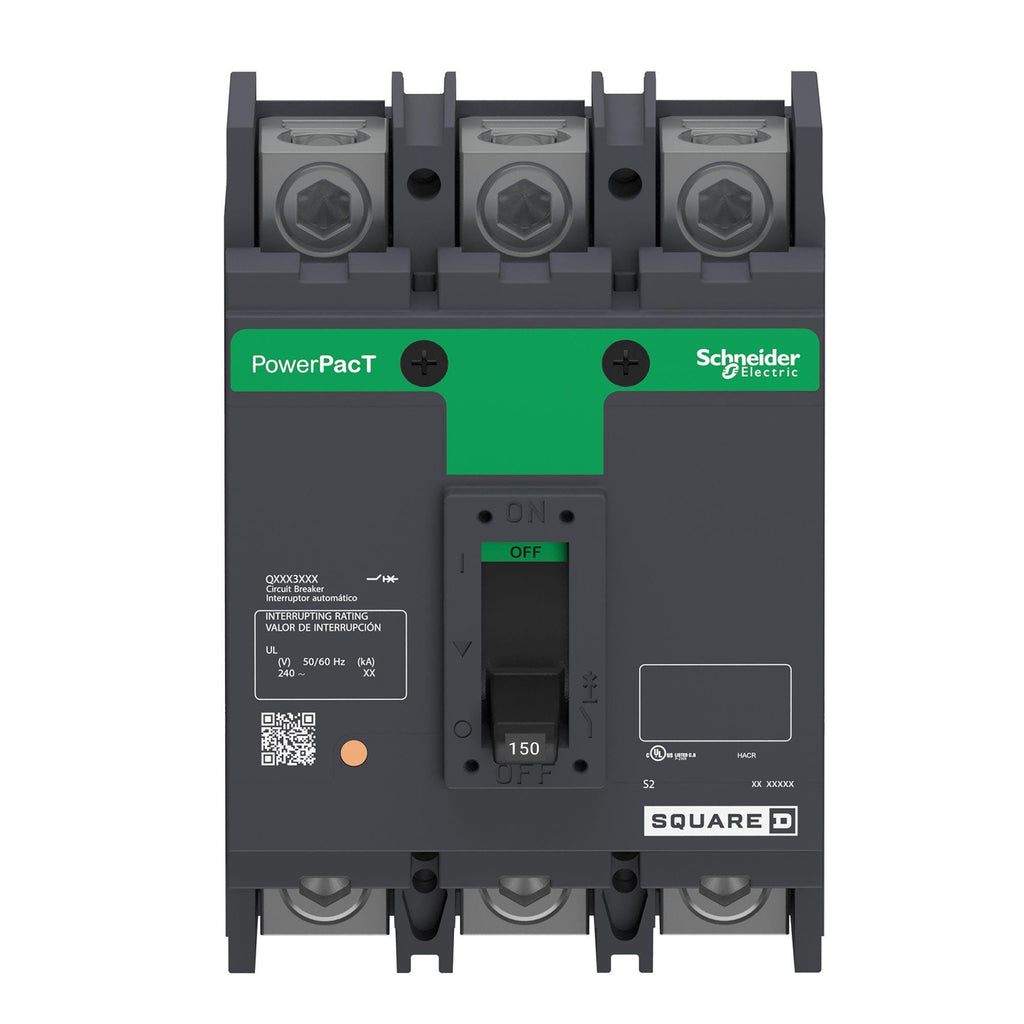

QBL32150 - Square D PowerPacT Q 150A 3P 240VAC 10kAIC Molded Case Circuit Breaker, Thermal Magnetic Trip, Feed-Thru Lugs, UL/CSA/NEMA/NOM Certified

QBL32150

QBL32150 is a Square D PowerPacT Q series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This 3-pole, 150A, 240VAC thermal magnetic circuit breaker features a 10kA interrupting rating, feed-thru line and load side lugs, and is mercury and PVC free for environmental safety. It is suitable for unit mounting and offers both long time and instantaneous trip functions for enhanced protection.

Key Specifications
• Amperage: 150A
• Voltage: 240VAC
• Poles: 3
• Mounting Type: Unit
• Interrupt Rating: 10kAIC at 120/208/240VAC
• Series/Frame: PowerPacT Q (QBL)
• Trip Unit: Thermal Magnetic (long time and instantaneous)
• Certifications: UL, CSA, NEMA, NOM, RoHS, REACh, HACR
• Connection Type: Feed-Thru (line and load side lugs)
• Max Wire Size: 300 MCM
• Min Wire Size: AWG 4
• Temperature Rating: 40 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBL32150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBL
• Voltage : 240
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/QB
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901417835
• GTIN : 00785901417835
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.709
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
