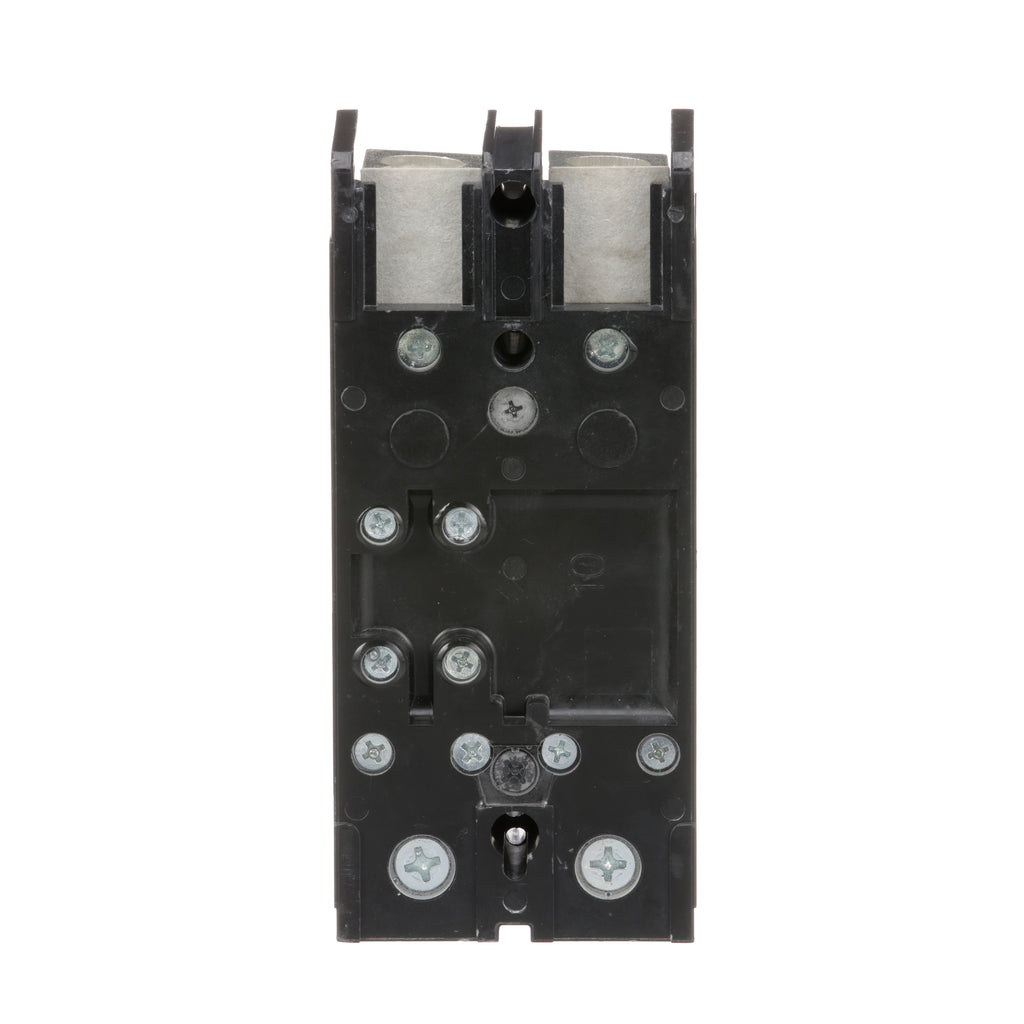

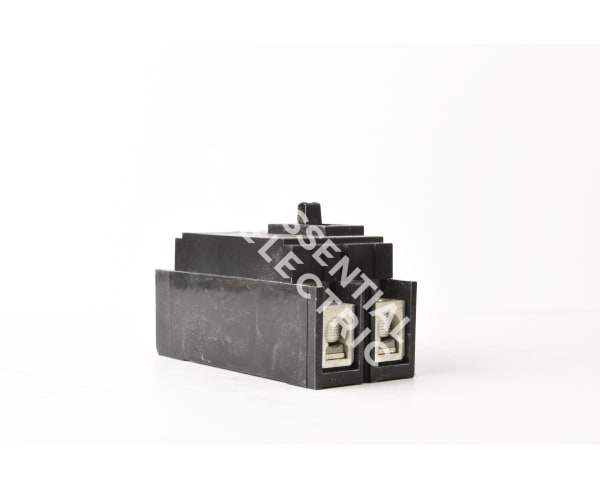

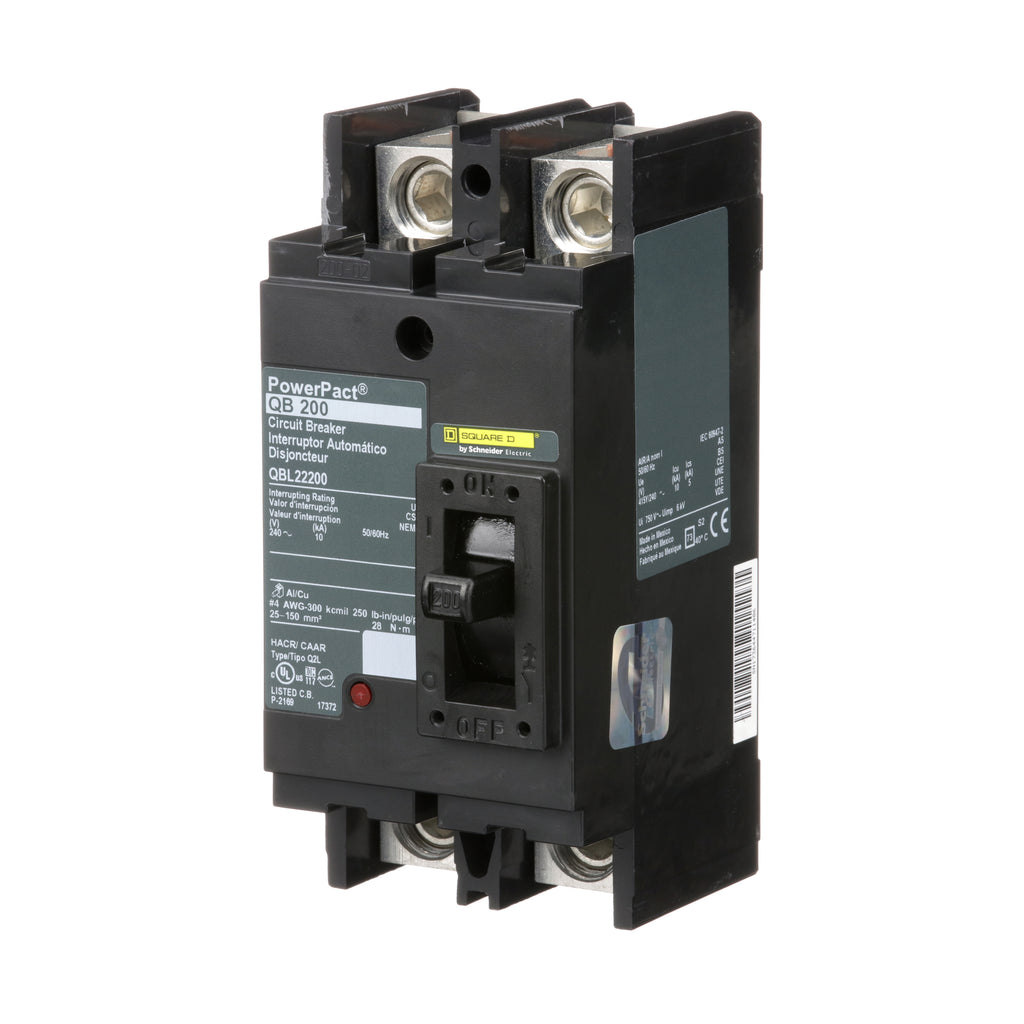

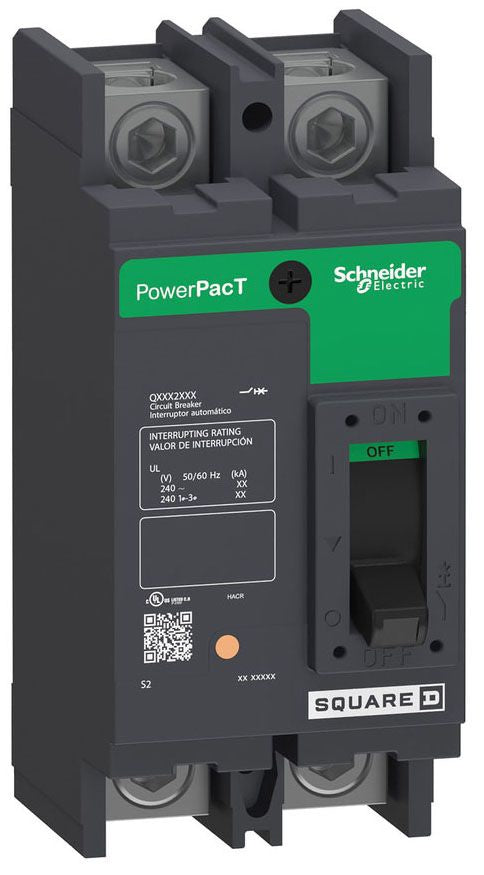

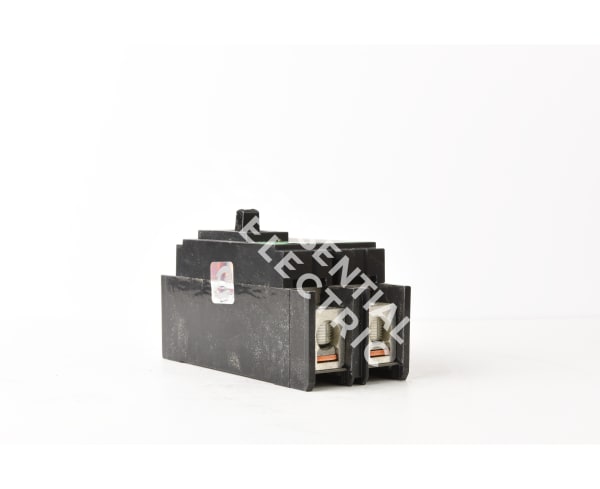

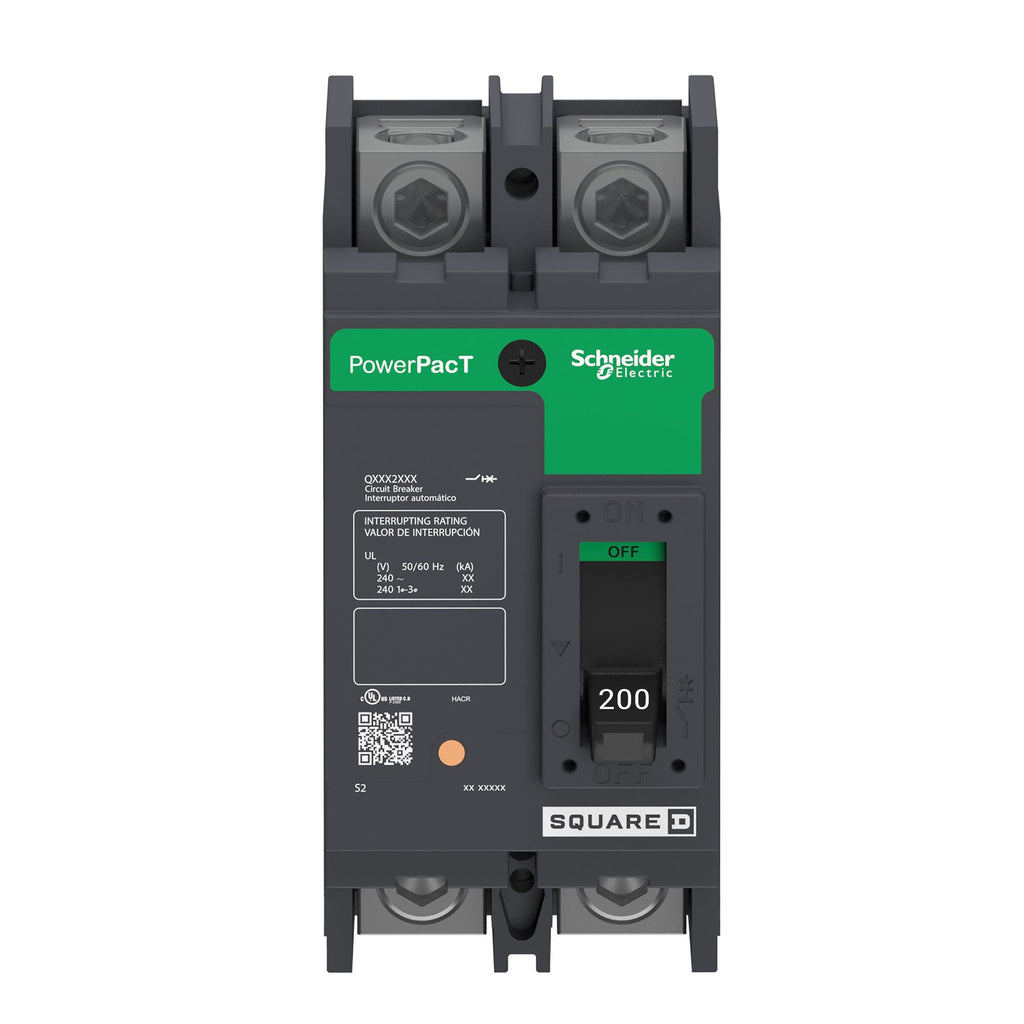

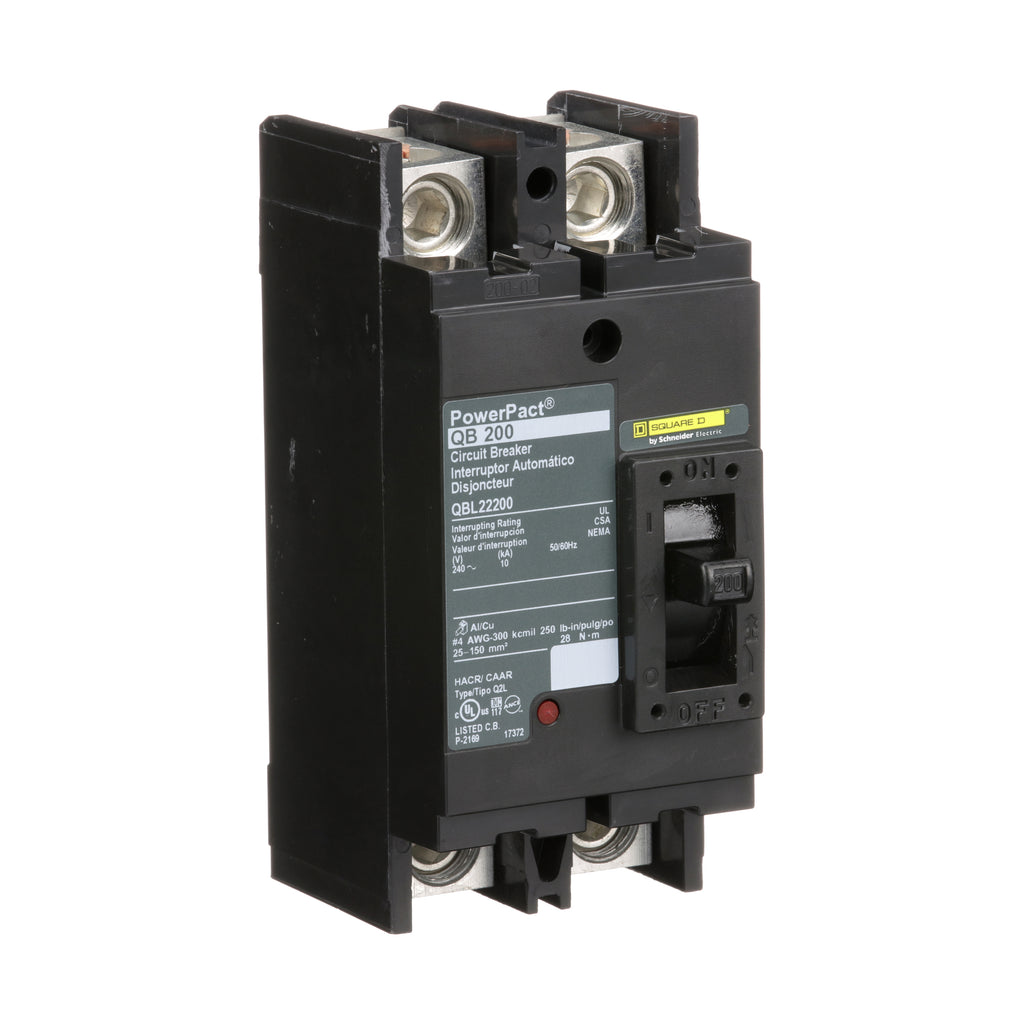

QBL22200 - Square D 200 Amp 240VAC 2 Pole PowerPact QBL Thermal Magnetic Circuit Breaker

QBL22200

QBL22200 is a Square D 2 Pole thermal magnetic molded case circuit breaker rated for 200 Amps and 240VAC voltage.This PowerPact QBL series breaker features a 10kA interrupting rating at 240VAC, feed-thru connection type, and includes long-time and instantaneous trip functions. It is UL, CSA, IEC, and RoHS certified, designed for bolt-on mounting in panelboards and switchboards. The breaker supports line and load side lug connections and operates reliably within a temperature range of 40 to 70 °C.

Key Specifications
• Amperage: 200 A
• Voltage Rating: 240 VAC
• Number of Poles: 2
• Interrupting Rating: 10 kA at 240 VAC
• Frame Type: QBL (PowerPact Q Series)
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Mounting Type: Bolt-On Unit
• Connection Type: Feed-Thru, Line and Load Lug
• Certifications: UL Listed, CSA Certified, IEC Rated, RoHS Compliant
• Dimensions: Approximately 6.47 in H x 4.5 in W x 3.93 in D
• Temperature Rating: 40 to 70 °C
• Phase: Single

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBL22200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBL
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/QB
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901412632
• GTIN : 00785901412632
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.4 lb
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
