QBL22100 - Square D PowerPact Q 100A 2-Pole 240V Molded Case Circuit Breaker, Thermal Magnetic, 10kA Interrupt, UL/CSA/IEC

QBL22100

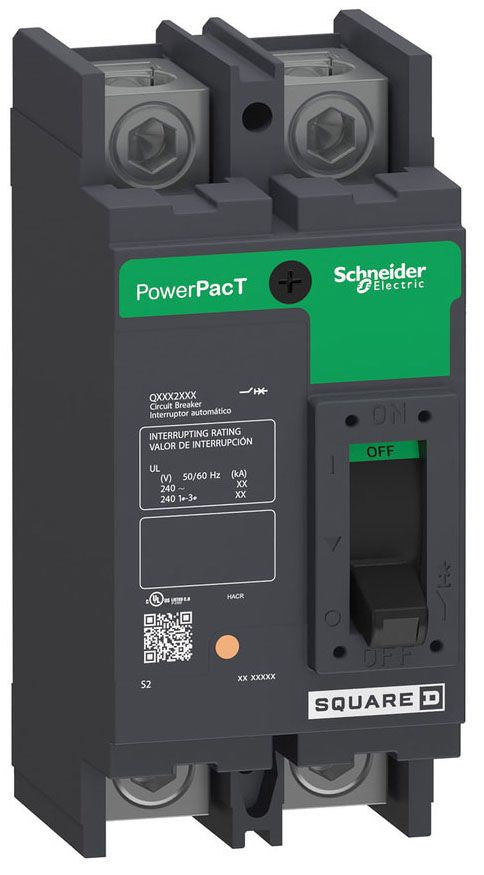

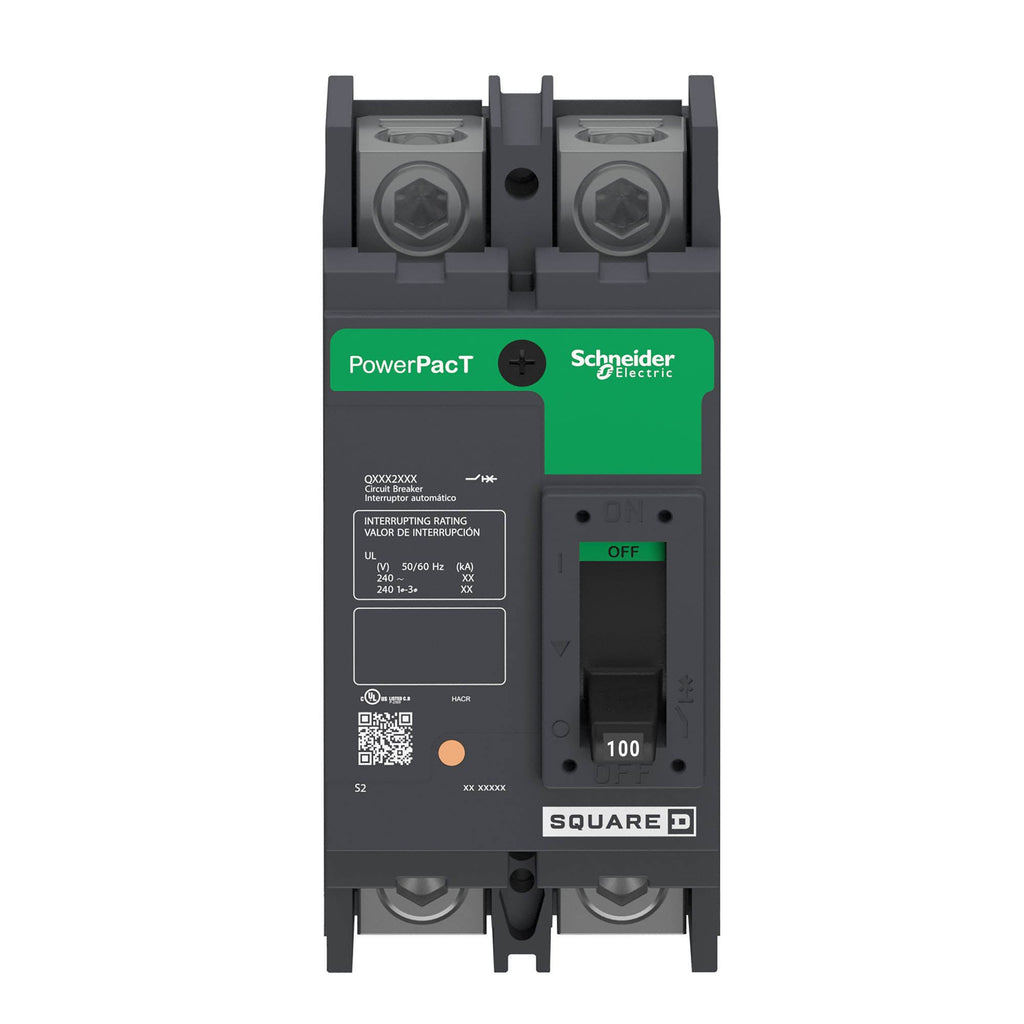

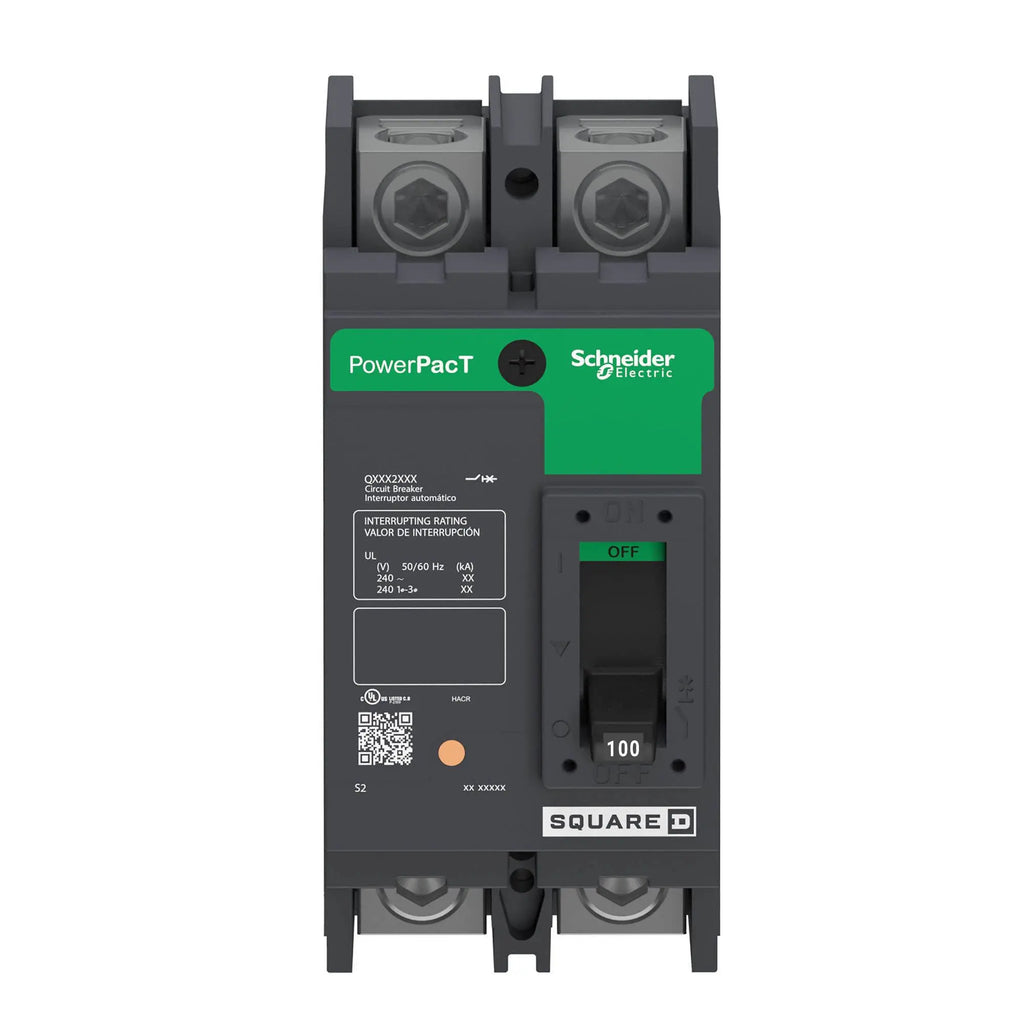

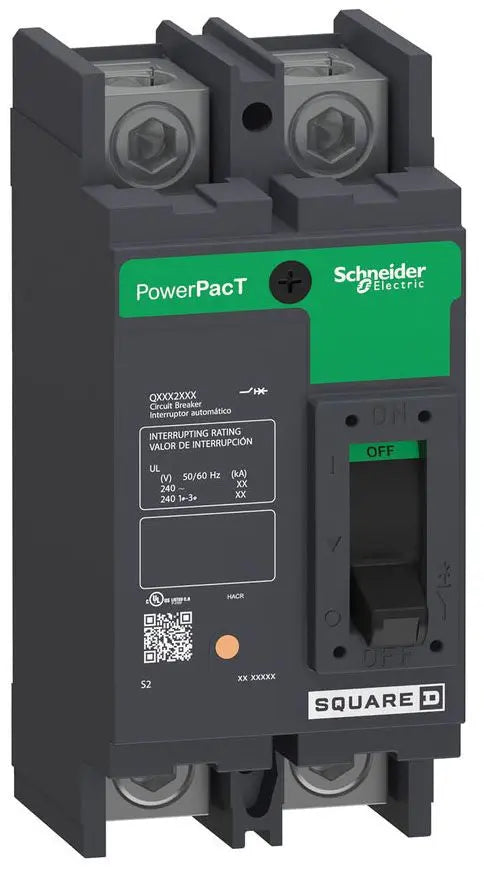

QBL22100 is a Square D PowerPact Q series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a 100 amp current rating, 240V AC voltage rating, and a 10kA interrupting capacity at 240V. It is a 2-pole device with a non-interchangeable trip unit, line and load side lug terminals, and is suitable for feed-thru applications. The QBL22100 is UL listed, CSA, and IEC certified for safety and compliance.

Key Specifications
• Part Number: QBL22100
• Manufacturer: Square D
• Series/Frame: PowerPact Q
• Amperage: 100A
• Voltage: 240V AC
• Poles: 2
• Mounting Type: Panel Mount
• Interrupt Rating: 10kA @ 240V AC
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Certifications: UL, CSA, IEC
• Terminals: Line & Load Side Lugs
• Application: Feed-Thru
• Approvals: UL 489 Listed, CSA, ANCE, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBL22100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBL
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901702931
• GTIN : 00785901702931
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.4
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
