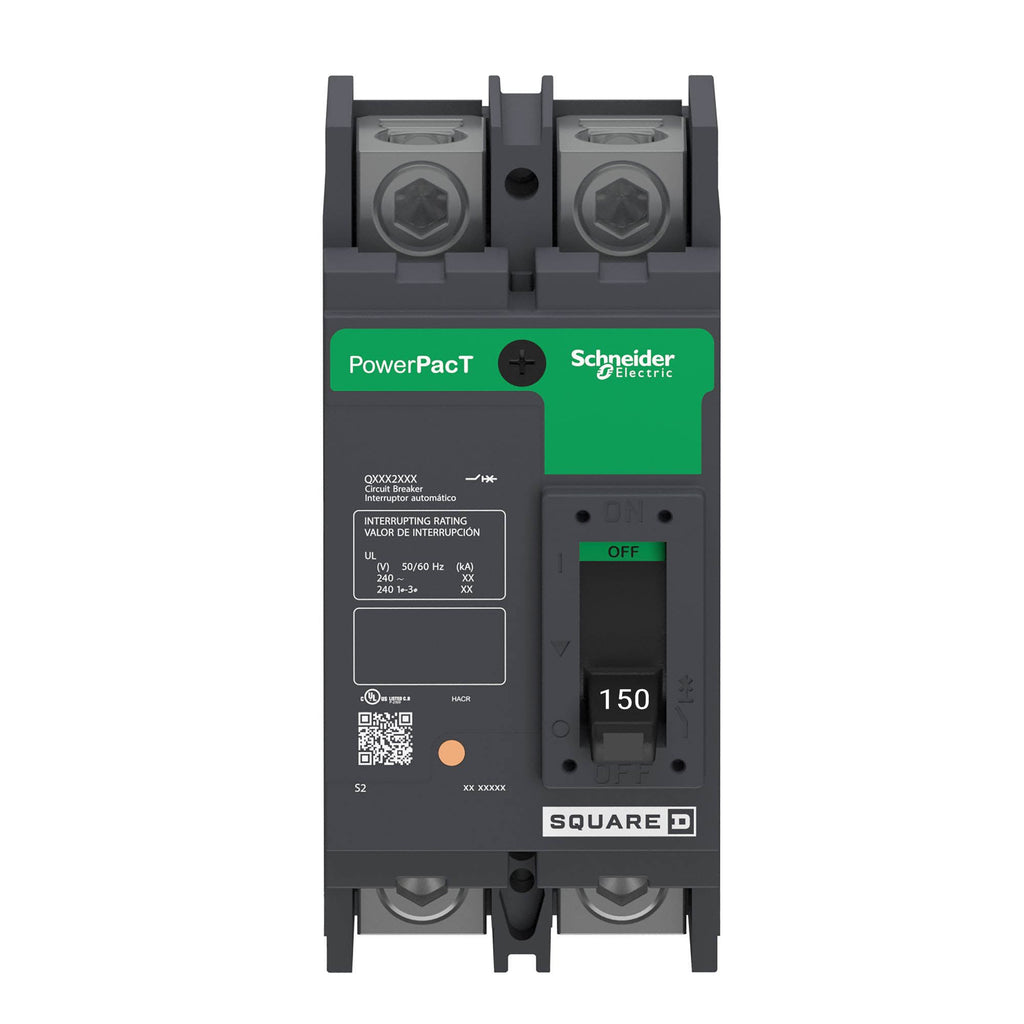

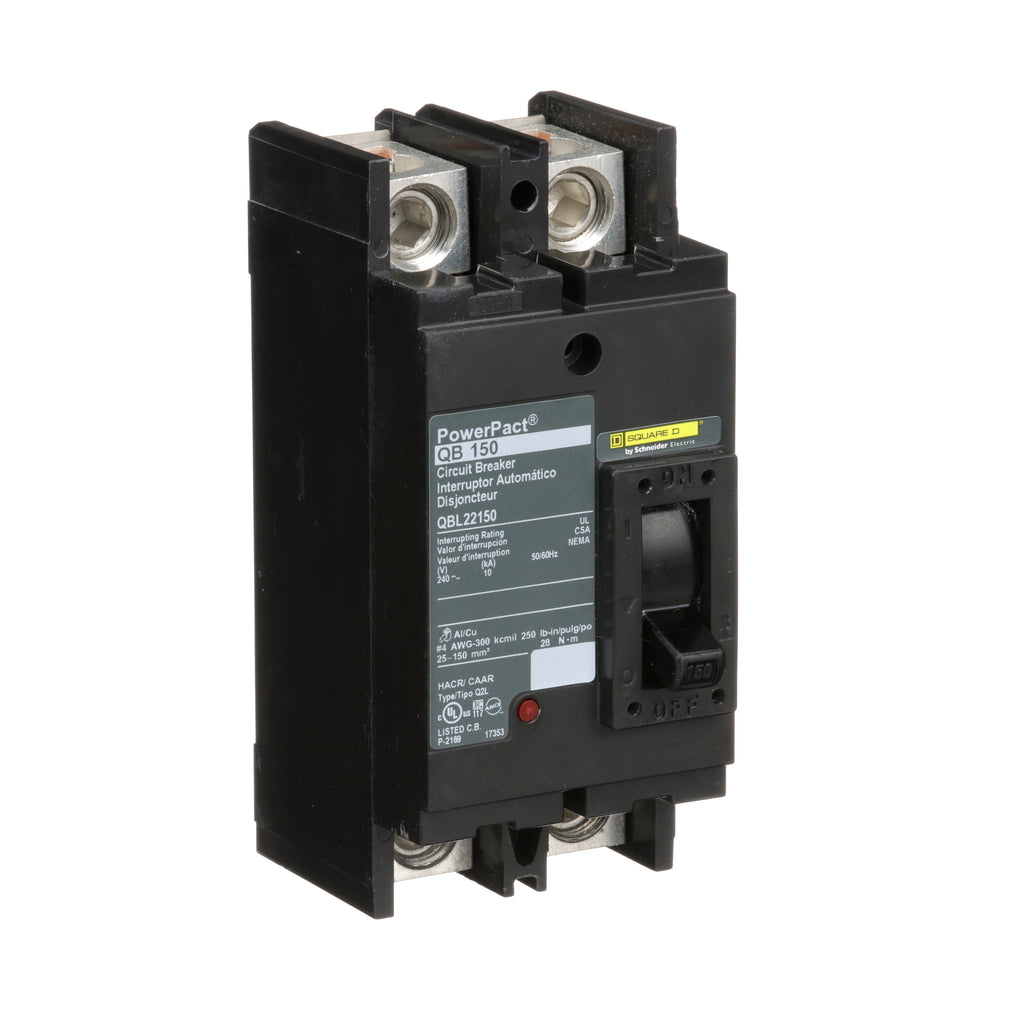

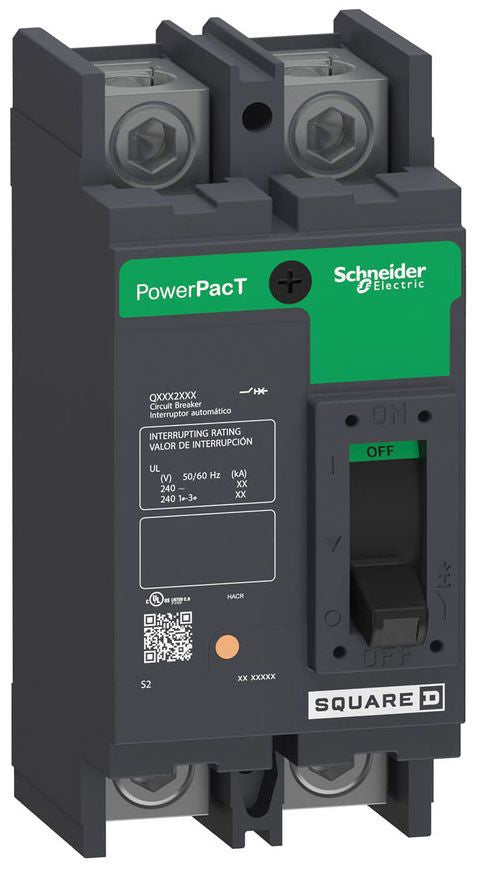

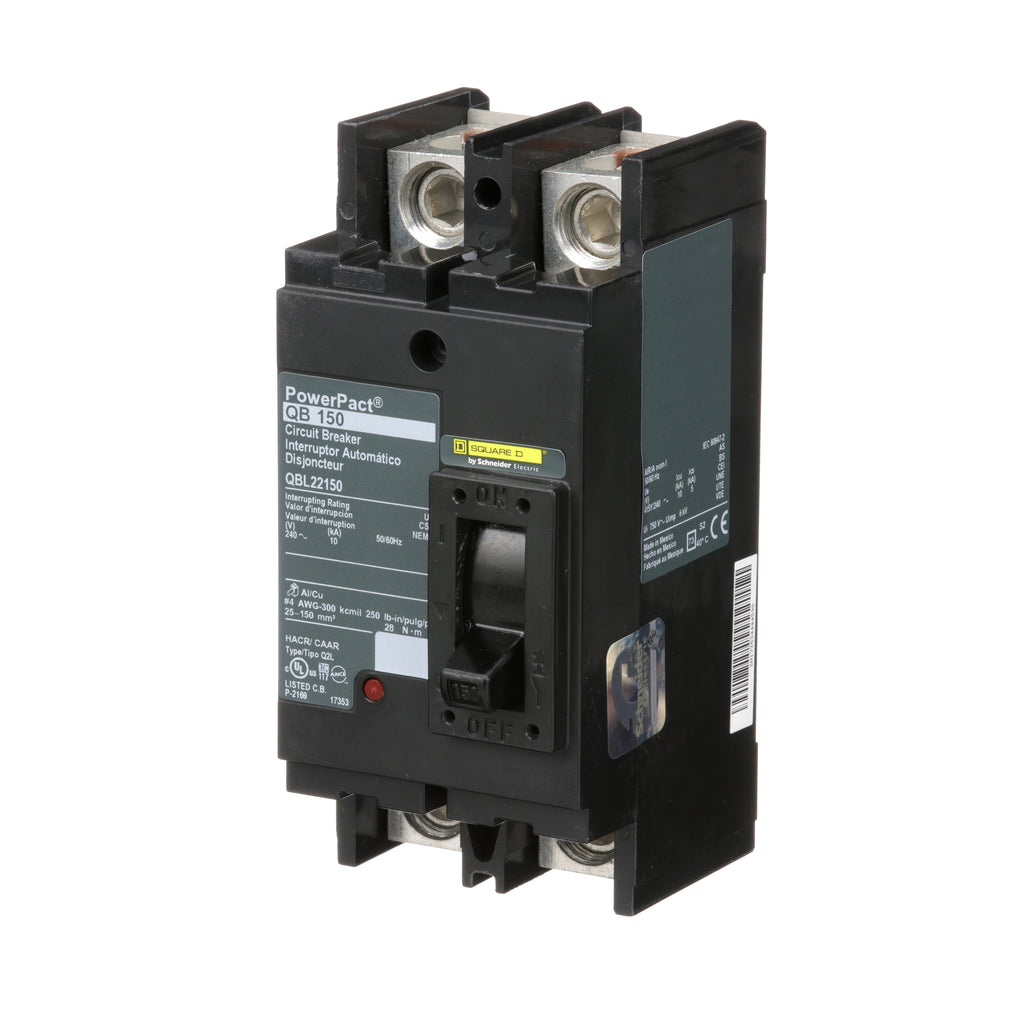

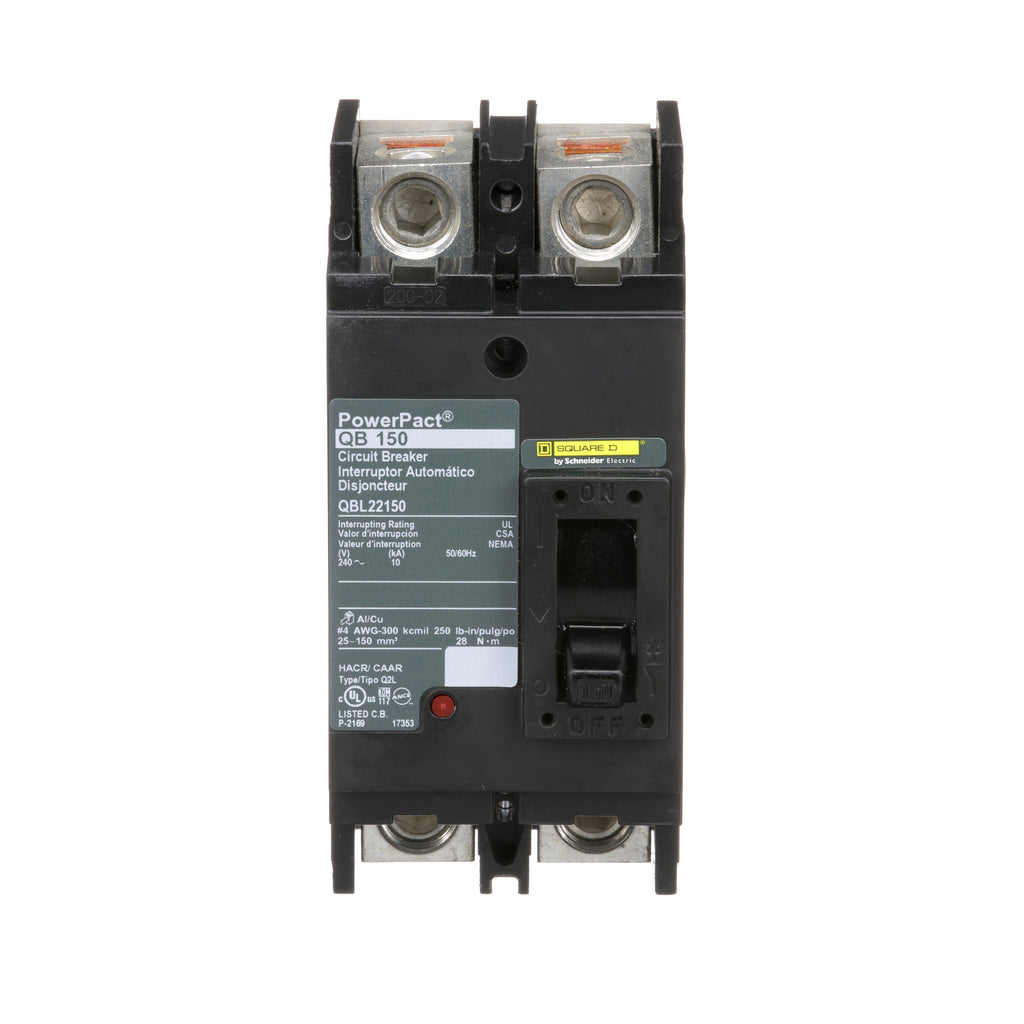

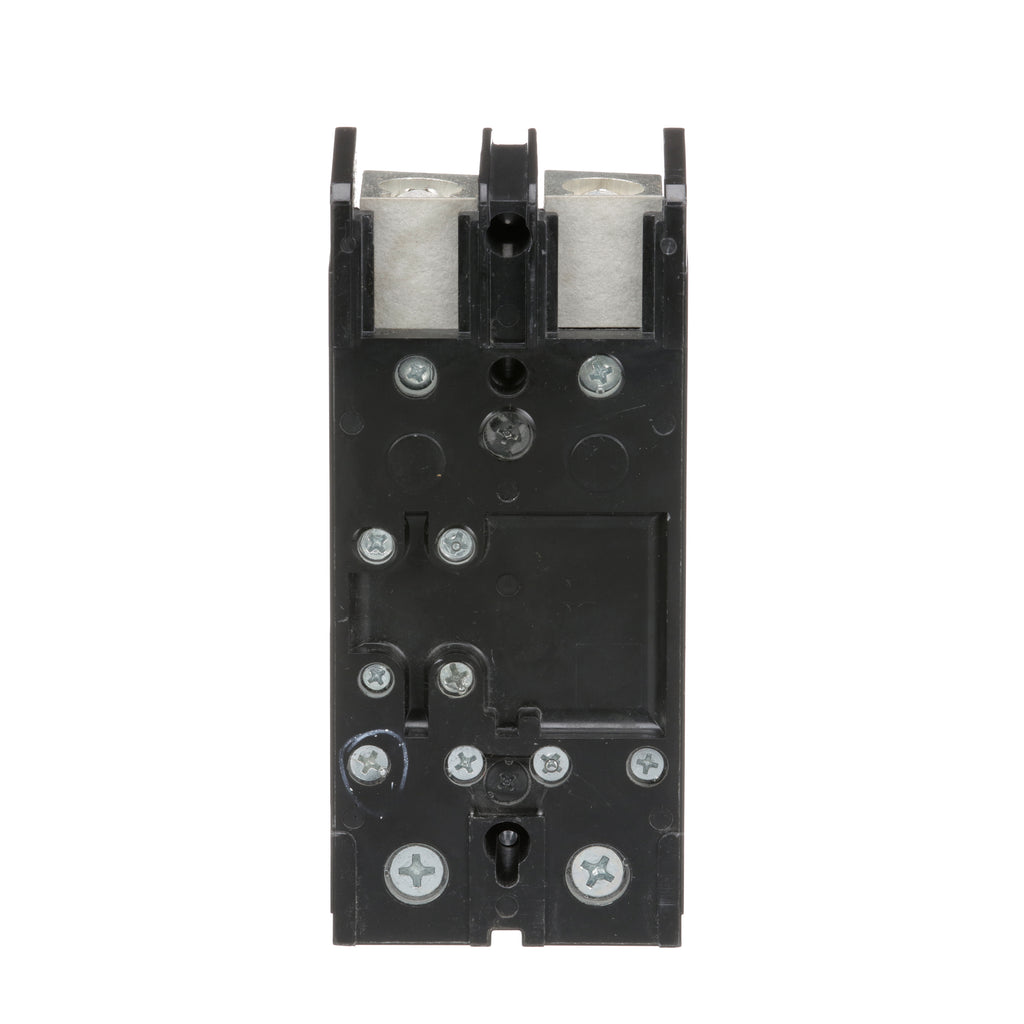

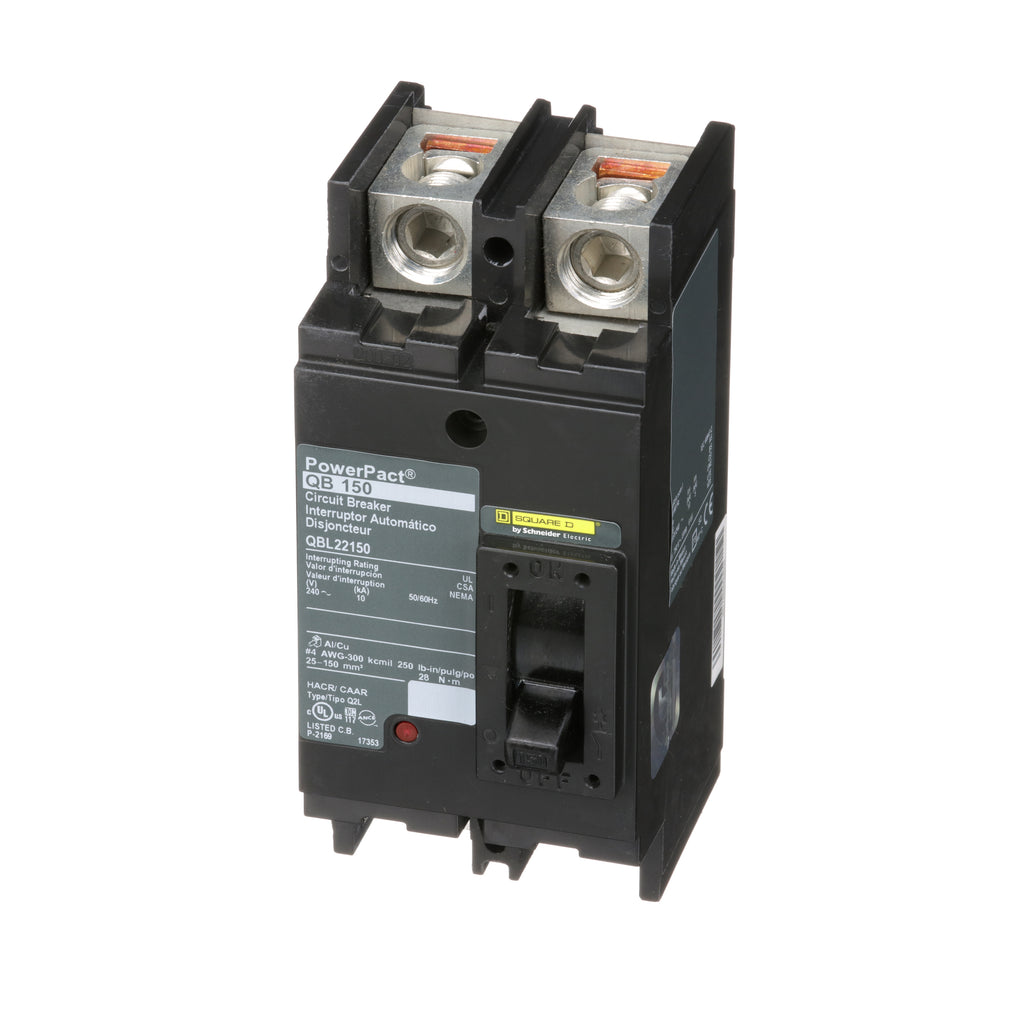

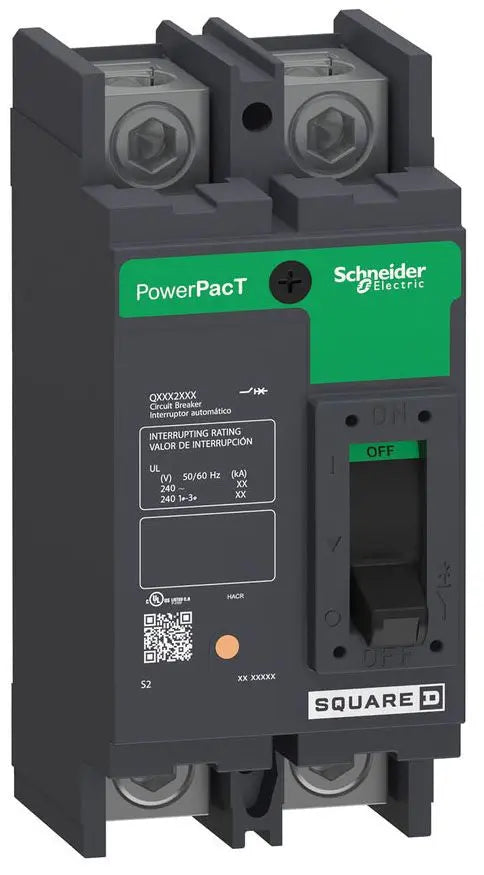

QBL22150 - Square D PowerPacT Q 150A 2 Pole 240V Molded Case Circuit Breaker, Thermal Magnetic, 10kAIC, Feed-Thru, UL/CSA/NEMA/NOM, Unit Mount

QBL22150

QBL22150 is a Square D PowerPacT Q series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This 2-pole, 150 Amp, 240VAC thermal magnetic circuit breaker features a feed-thru connection with lugs on both line and load sides, an interrupting rating of 10kAIC, and is unit mounted for easy installation. It is certified to UL, CSA, NEMA, and NOM standards, ensuring compliance and safety in diverse environments.

Key Specifications
• Amperage: 150A
• Voltage: 240VAC
• Poles: 2
• Mounting Type: Unit mount
• Interrupt Rating: 10kAIC at 240VAC
• Series/Frame: PowerPacT Q, Q-Frame
• Trip Unit: Thermal magnetic, LI (Long-Time and Instantaneous)
• Connection: Feed-thru, line and load side lugs
• Certifications: UL, CSA, NEMA, NOM
• Operating Temperature: -25°C to +70°C
• Dimensions: 3.93" D x 3" W x 6.47" H
• Standards: HACR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBL22150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBL
• Voltage : 240
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/QB
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901412571
• GTIN : 00785901412571
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.351
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
