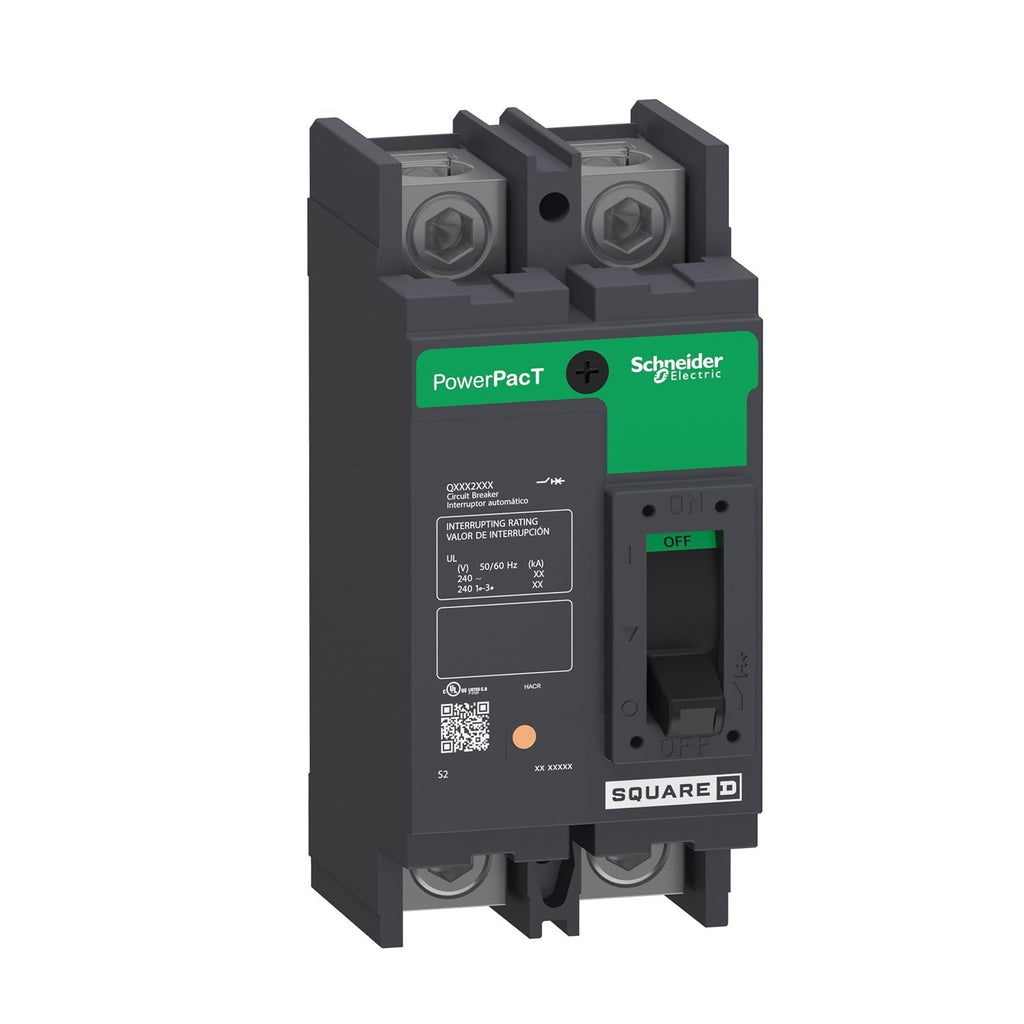

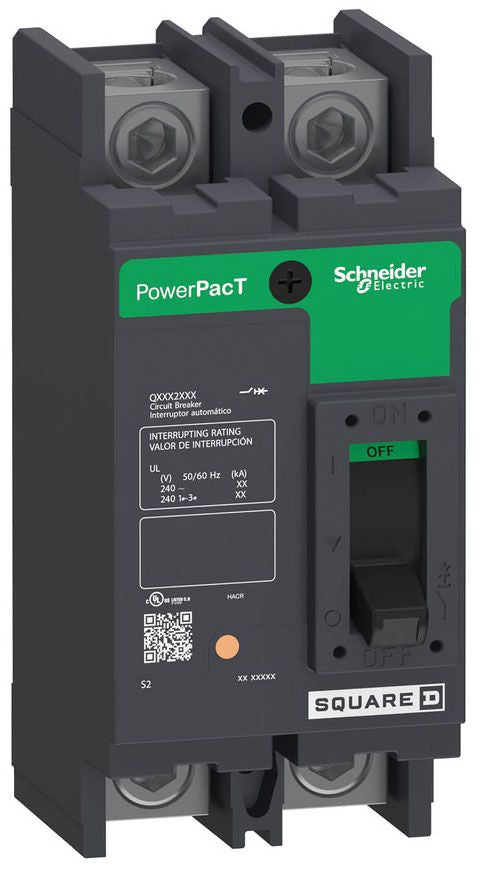

QBL22090 - Square D PowerPact Q 90A 2-Pole 240V Molded Case Circuit Breaker, 10kA Interrupt, Thermal Magnetic Trip, Feed-Thru, UL/CSA/CE

QBL22090

QBL22090 is a Square D PowerPact Q-series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This 2-pole, 90 amp, 240V AC circuit breaker features a thermal magnetic trip unit, feed-thru lug terminals, and a 10kA interrupt rating at 240V. It is suitable for panelboard mounting and is certified to UL, CSA, and CE standards for safety and performance.

Key Specifications
• Manufacturer: Square D
• Part Number: QBL22090
• Amperage: 90A
• Voltage: 240V AC
• Poles: 2
• Mounting Type: Panelboard (Molded Case)
• Interrupt Rating: 10kA at 240V
• Series/Frame: PowerPact Q (QBL)
• Trip Unit: Thermal Magnetic
• Terminals: Feed-Thru (Line & Load Side Lugs)
• Certifications: UL 489 Listed, CSA, CE
• Network Frequency: 50/60 Hz
• Dimensions: 3" W x 3.93" D x 6.47" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBL22090
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBL
• Voltage : 240
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : Q Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901407584
• GTIN : 00785901407584
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.406
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
