QBL22080 - Square D PowerPact Q 80A 240VAC 2-Pole Molded Case Circuit Breaker, Q Frame, Thermal Magnetic Trip, Unit Mount, 10kA Interrupt, UL/CSA/CE

Save $434.65
SKU: QBL22080-New
Condition: New
Price:
$276.35 $711.00
Stock:
29 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

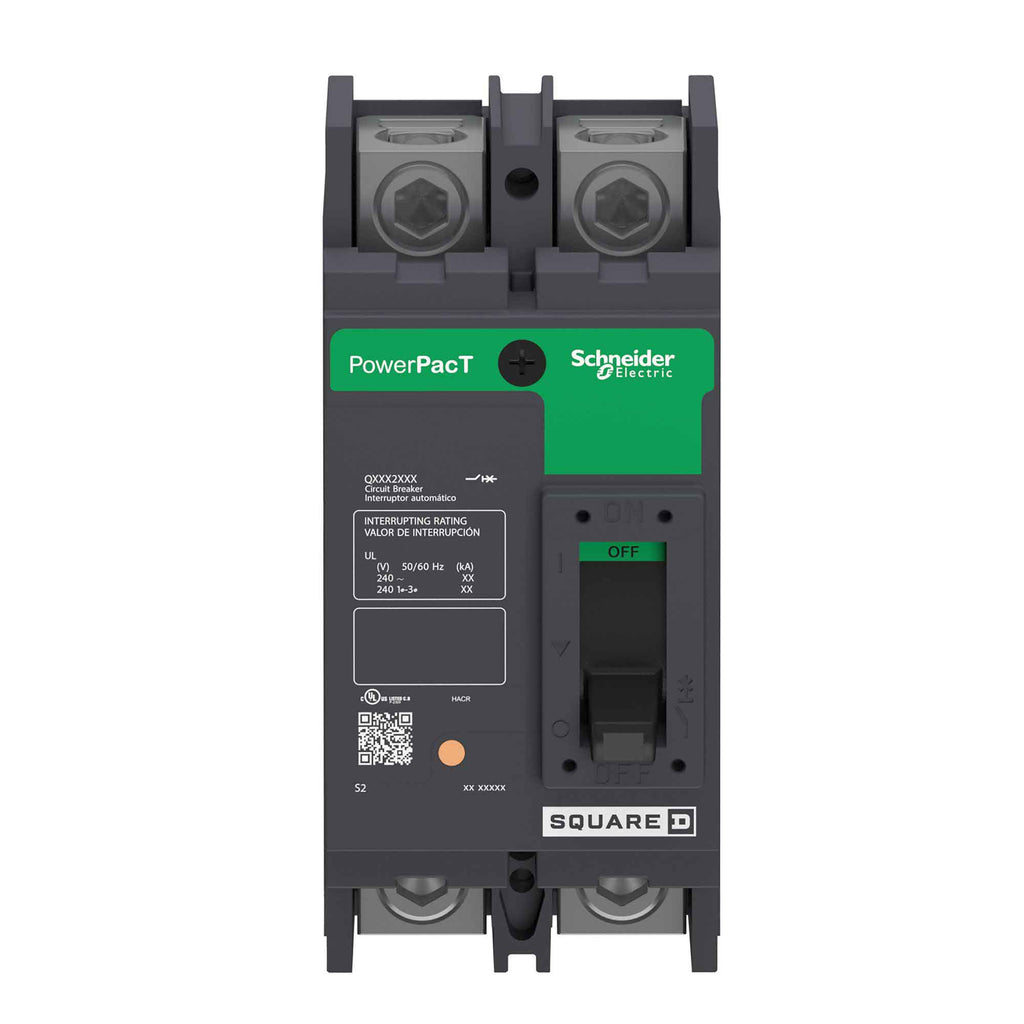

QBL22080 - Schneider Electric/ Square D Feed-Thru 80 Amp 2 Pole Circuit Breaker - Essential Electric Supply

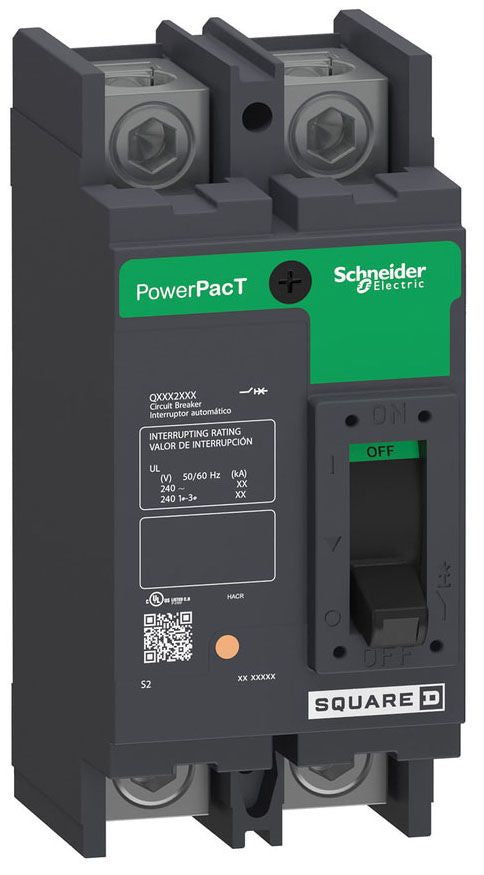

QBL22080 - Square D PowerPact Q 80A 240VAC 2-Pole Molded Case Circuit Breaker, Q Frame, Thermal Magnetic Trip, Unit Mount, 10kA Interrupt, UL/CSA/CE - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QBL22080 - Schneider Electric/ Square D Feed-Thru 80 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QBL22080 - Square D PowerPact Q 80A 240VAC 2-Pole Molded Case Circuit Breaker, Q Frame, Thermal Magnetic Trip, Unit Mount, 10kA Interrupt, UL/CSA/CE - Essential Electric Supply

Description

QBL22080


QBL22080 is a Square D PowerPact Q series molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This thermal magnetic trip circuit breaker features a 2-pole design, 80A current rating, and 240VAC voltage rating, with a 10kA interrupting capacity. It is unit mounted, suitable for panel installation, and supports both aluminum and copper conductors from 4 AWG to 300 kcmil. The QBL22080 is UL, CSA, and CE listed, ensuring compliance with North American and international standards.

    Key Specifications
  • Part Number: QBL22080
  • Manufacturer: Square D (Schneider Electric)
  • Series/Frame: PowerPact Q, Q Frame
  • Amperage: 80A
  • Voltage: 240VAC
  • Poles: 2
  • Mounting Type: Unit, Panel
  • Interrupt Rating: 10kA at 240VAC
  • Trip Unit: Thermal Magnetic (long time and instantaneous)
  • Connection: Feed-thru, line and load side lugs
  • Wire Size: 4 AWG to 300 kcmil Al/Cu
  • Certifications: UL, CSA, CE, NEMA, NOM, IEC, ANCE, RoHS, REACh, HACR
  • Temperature Rating: 104°F (40°C) to 158°F (70°C)
  • Dimensions: 3.93" L x 3" W x 6.47" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QBL22080
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : QBL
  • Voltage : 240
  • Amperage : 80
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@240V
  • Connection : Feed-Thru
  • Functions : Long Time and Instantaneous Trip
  • Frame Size : Q Frame
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901407577
  • GTIN : 00785901407577
  • Country of Origin : Mexico
  • Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
  • Weight : 3.406
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
  • Certification : UL, CSA, NOM
  • Wire Size : AWG 4 to 300KCmil, Aluminum/Copper
