2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

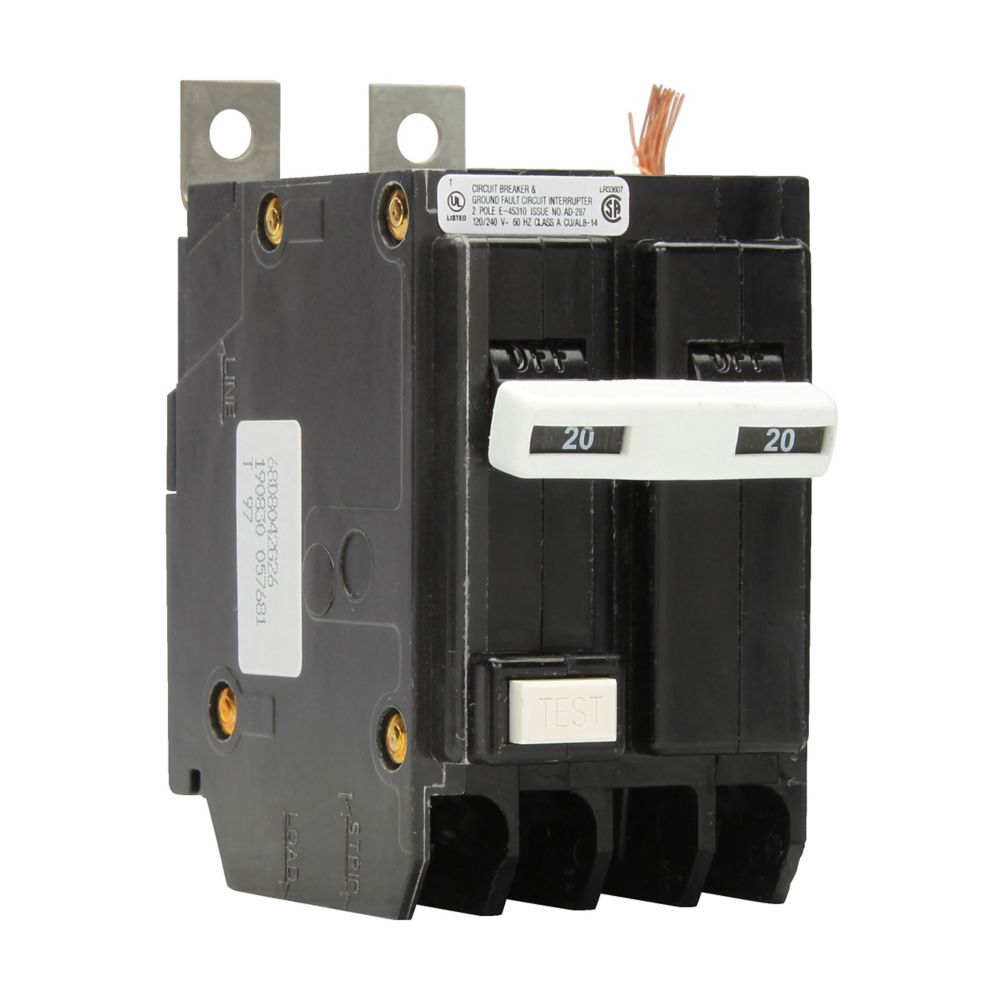

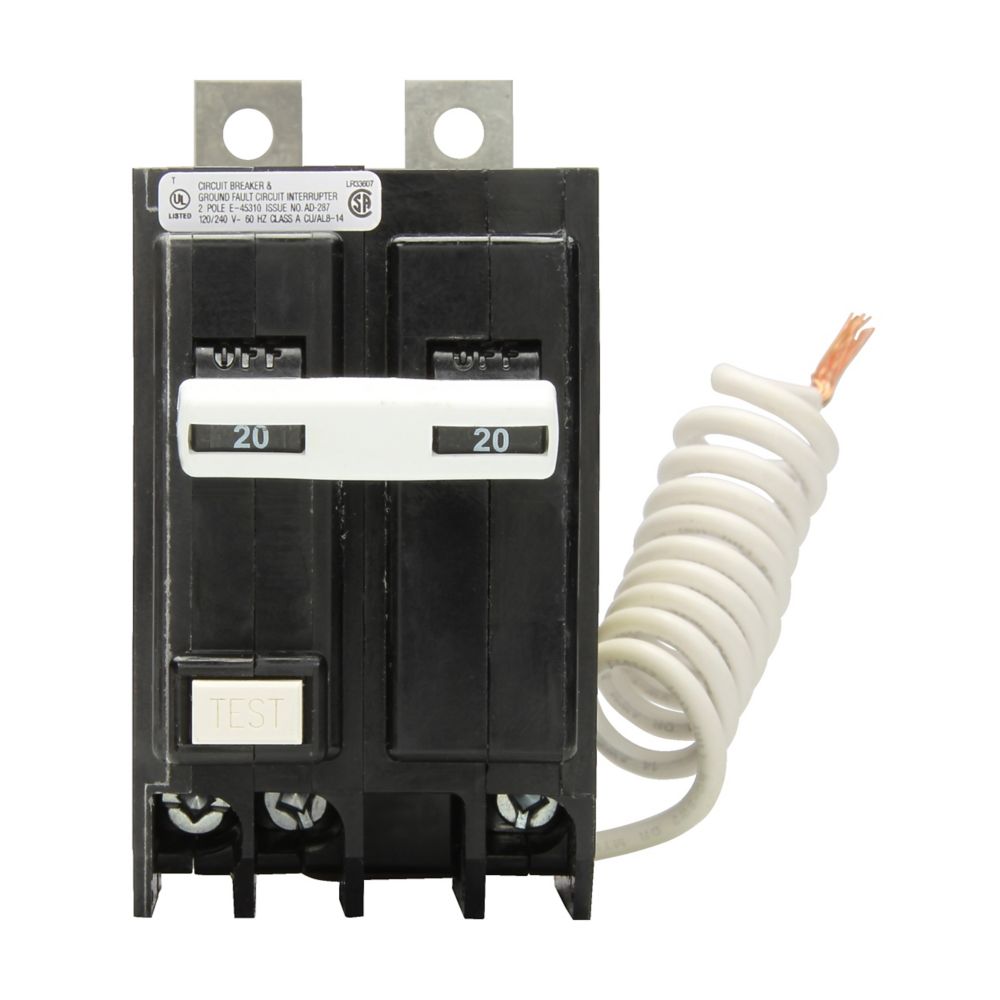

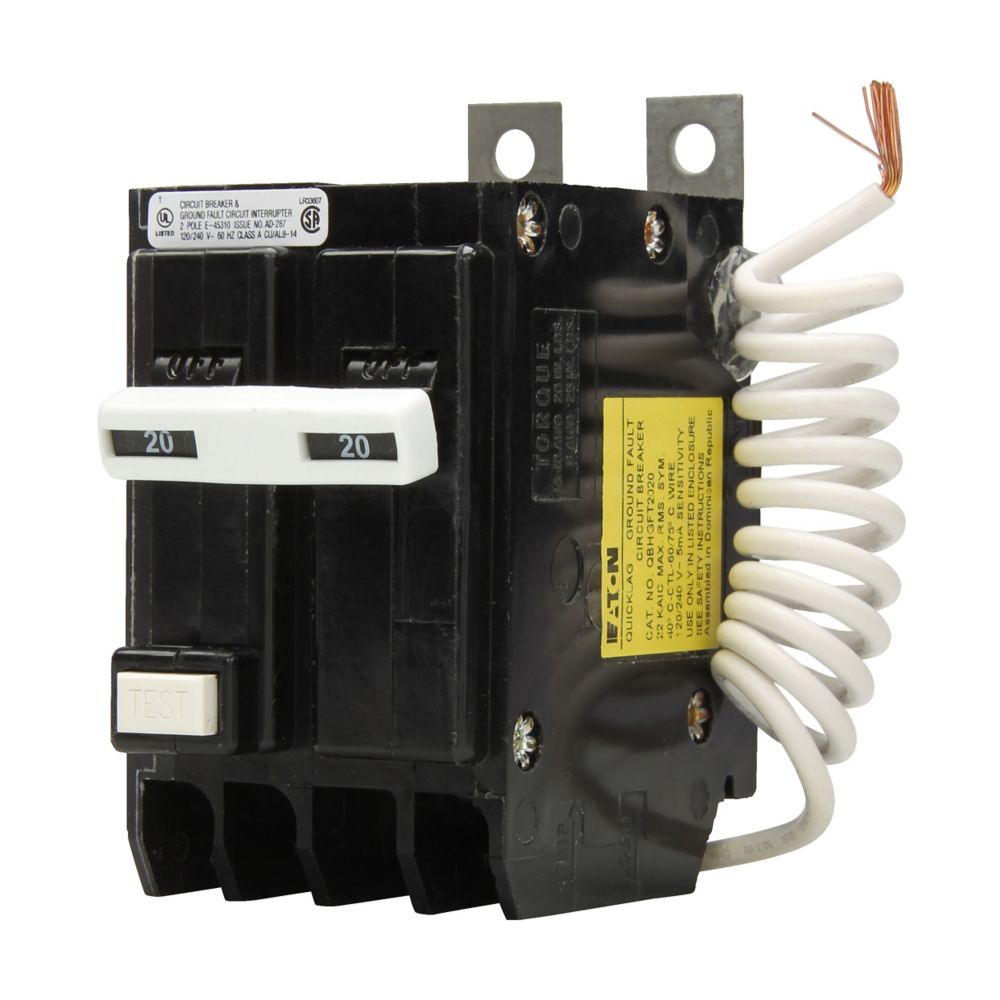

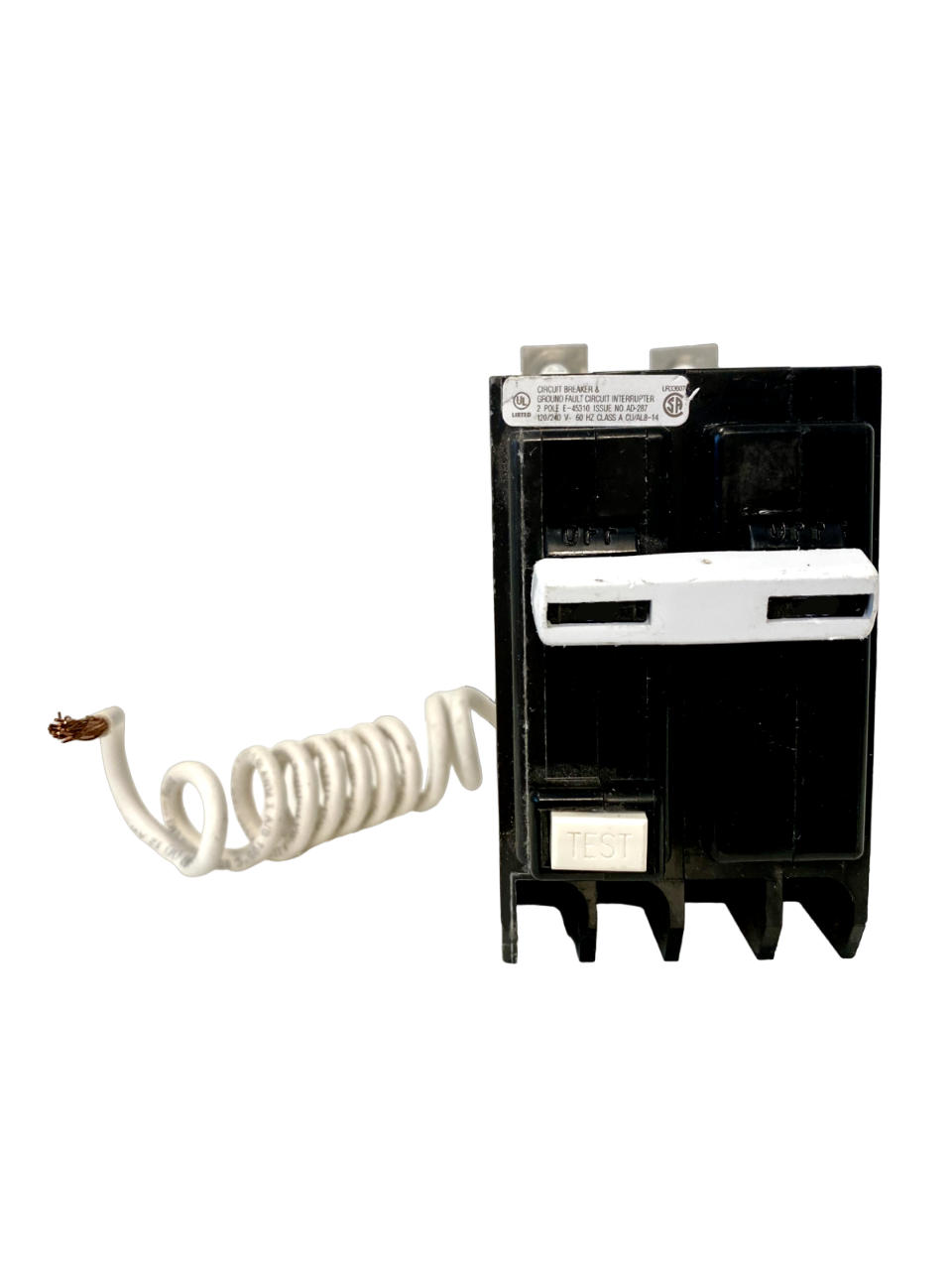

QBHGFT2025
QBHGFT2025 is a 25 amp, 240 Volt, 2-pole GFCI circuit breaker from Eaton designed for reliable ground fault protection.This Eaton QBHGFT2025 features a bolt-on mounting type with a 22kA interrupt rating at 240V. It includes a thermal/magnetic trip unit and provides 5 mA ground fault protection. The breaker is HACR rated and UL 489 certified, suitable for industrial and commercial applications requiring enhanced safety.
- Amperage: 25A
- Voltage: 120/240V AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 22kA at 240V
- Trip Unit: Thermal/Magnetic with 5 mA GFCI
- Series/Frame: QB
- Certifications: UL 489, HACR Rated
- Function: Ground Fault Circuit Interruption
Specifications
- Part Number: QBHGFT2025
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QB
- Voltage : 240
- Amperage : 25
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LIG - Long-Time, Instantaneous and Ground Fault
- Protection : Thermal Magnetic
Product Data
- UPC : 786676027830
- GTIN : 00786676027830
- Country of Origin : Dominican Republic
- Dimensions : 4.5 in x 2 in x 2.75 in (Length/Depth x Height x Width)
- Weight : 0.6
- Certification : UL 489
