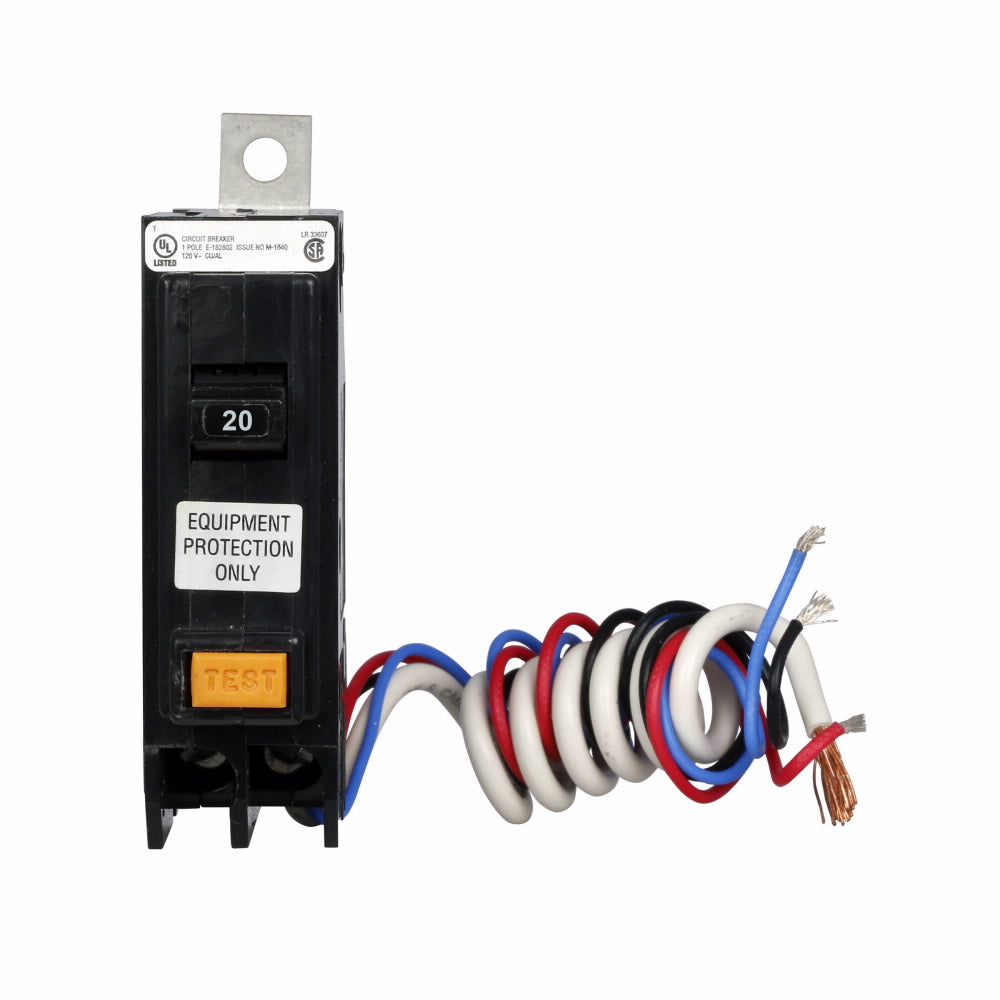

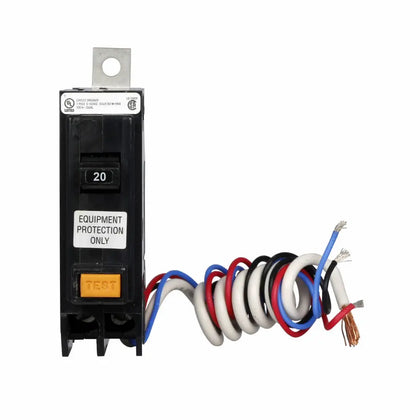

QBGFEP1020W1 - Cutler Hammer 20A 120V Single-Pole GFCI Circuit Breaker Bolt-On 10kAIC with Bell Alarm

QBGFEP1020W1

QBGFEP1020W1 is a Cutler Hammer 20 amp, 120 volt, single-pole ground fault circuit breaker with bolt-on mounting and a 10 kA interrupt rating.QBGFEP1020W1 features a non-interchangeable trip unit with 30 mA ground fault trip sensitivity and includes a bell alarm for fault indication. It is UL 943 and HACR rated for reliable protection in residential and commercial applications.

• Amperage Rating: 20 A
• Voltage Rating: 120 V AC
• Number of Poles: Single-pole
• Mounting Type: Bolt-on
• Interrupt Rating: 10 kAIC
• Trip Type: Non-Interchangeable
• Trip Sensitivity: 30 mA ground fault
• Special Feature: Bell alarm
• Certifications: UL 943, HACR rated
• Product Dimensions: 2 in depth x 1 in height x 2 in width
• Weight: 0.2 lb
• Warranty: 1 year

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBGFEP1020W1
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QBGF
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679415023
• GTIN : 00786679415023
• Country of Origin : Dominican Republic
• Dimensions : 2 in x 1 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.2
• Certification : UL 943
