Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QBGF1020

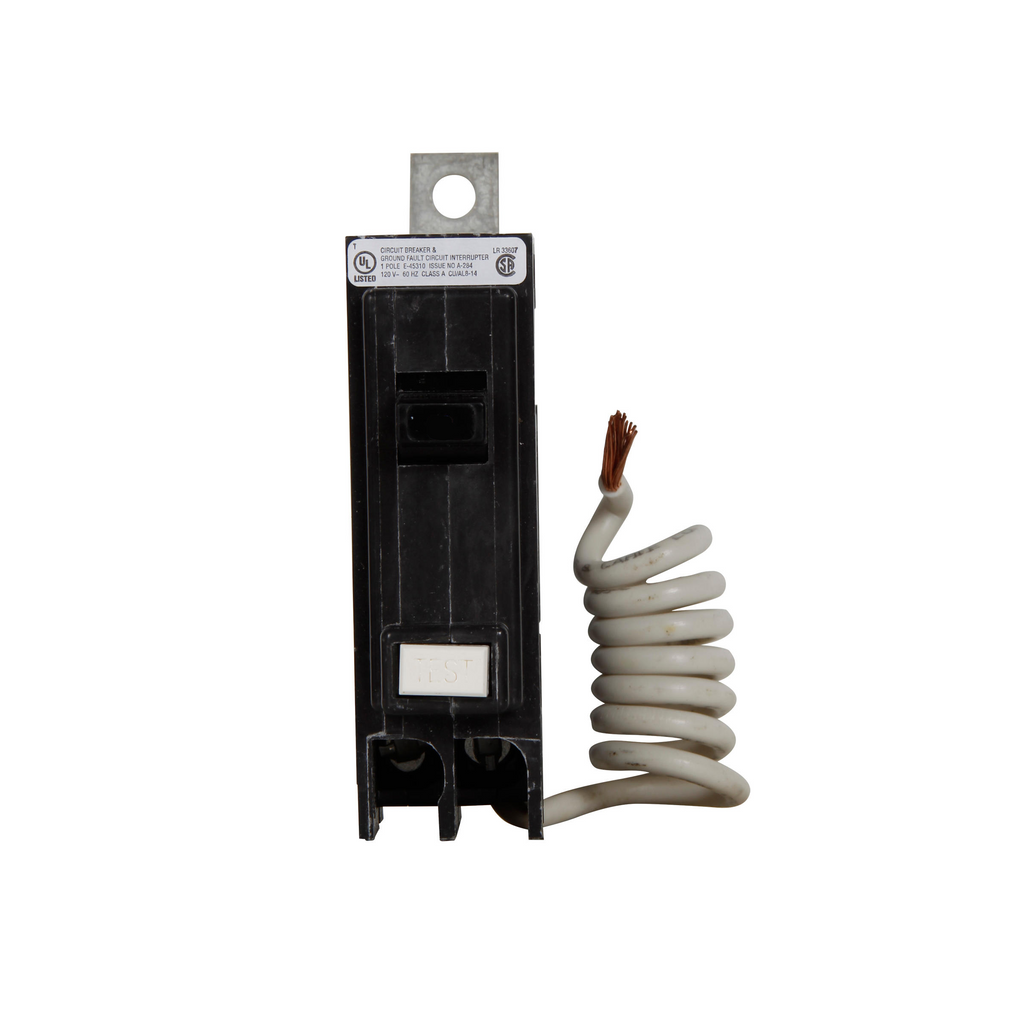

QBGF1020 is a Cutler Hammer 1 pole ground fault circuit breaker rated for 20 amps and 120 volts AC with a bolt-on mounting type.This circuit breaker features a 10kA interrupting rating at 120V, thermal magnetic protection with long-time and instantaneous trip functions, and 5 mA ground fault trip sensitivity. It is designed with a BAB frame and includes moisture-fungus treatment for enhanced durability. The breaker is HACR rated and UL 489 listed, suitable for single-phase applications.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: QBGF1020
- Amperage: 20 A
- Voltage: 120 V AC
- Poles: 1
- Interrupting Rating: 10 kAIC at 120 V
- Mounting Type: Bolt-On
- Frame Type: BAB
- Trip Type: Thermal Magnetic, Non-Interchangeable
- Ground Fault Trip Sensitivity: 5 mA
- Certifications: UL 489 Listed, HACR Rated
- Special Features: Moisture-Fungus Treatment
Specifications
- Part Number: QBGF1020
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QBGF
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 078667936020
- GTIN : 00786679360200
- Weight : 2.05
