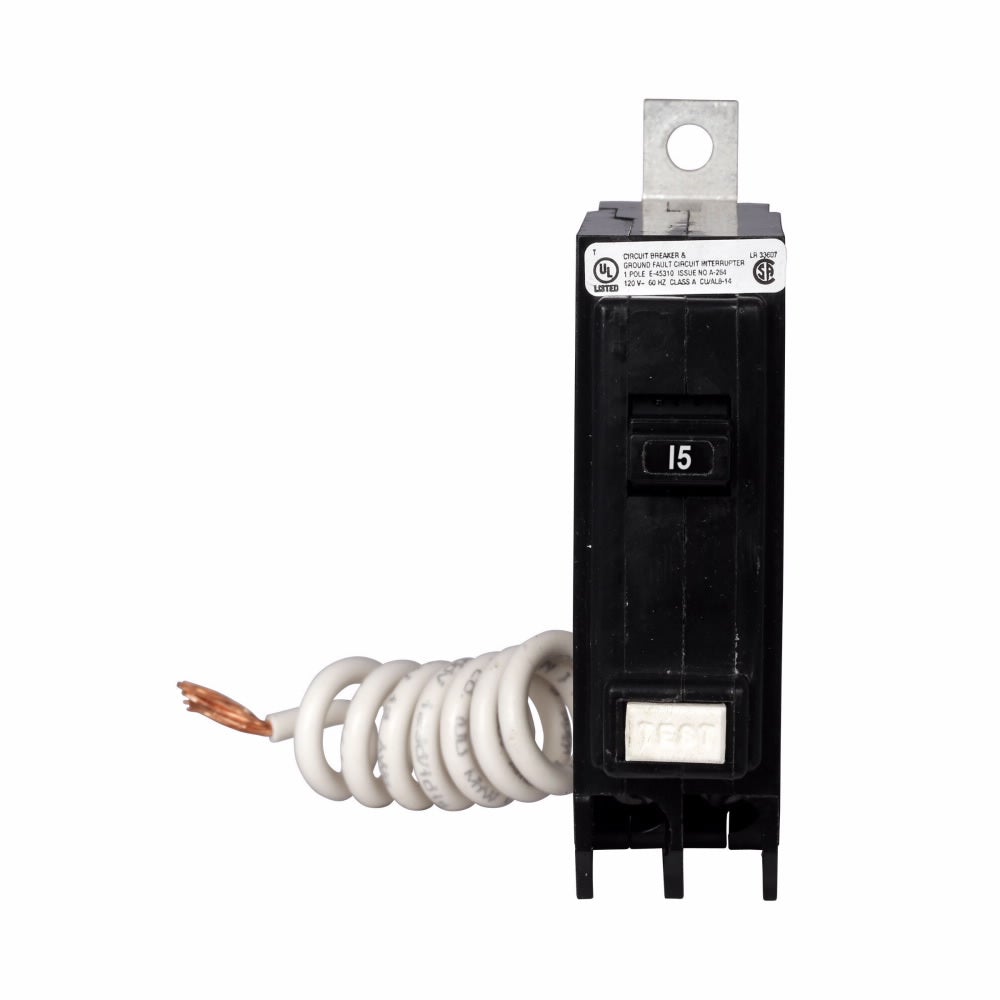

QBGF1015 - Cutler Hammer 15A 120V Single-Pole Ground Fault Circuit Breaker Bolt-On 10kAIC

QBGF1015

QBGF1015 is a Cutler Hammer 15 amp, 120 volt, single-pole ground fault circuit breaker with bolt-on mounting and a 10 kA interrupting rating.This QBGF series breaker features a 5 mA trip sensitivity for ground fault protection, non-interchangeable trip type, and is HACR rated. It is UL 489 certified and designed for reliable circuit protection in residential or commercial applications.

• Amperage: 15 A
• Voltage: 120 V
• Poles: Single-pole
• Mounting Type: Bolt-on
• Interrupt Rating: 10 kAIC
• Trip Type: Non-Interchangeable
• Trip Sensitivity: 5 mA ground fault
• Series/Frame: QBGF
• Certifications: UL 489
• HACR Rated
• Product Dimensions: 5.1 in depth, 3.3 in width, 1.2 in height
• Weight: 0.4 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBGF1015
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QBGF
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679360156
• Dimensions : 5.1 in x 1.2 in x 3.3 in (Length/Depth x Height x Width)
• Weight : 0.4
