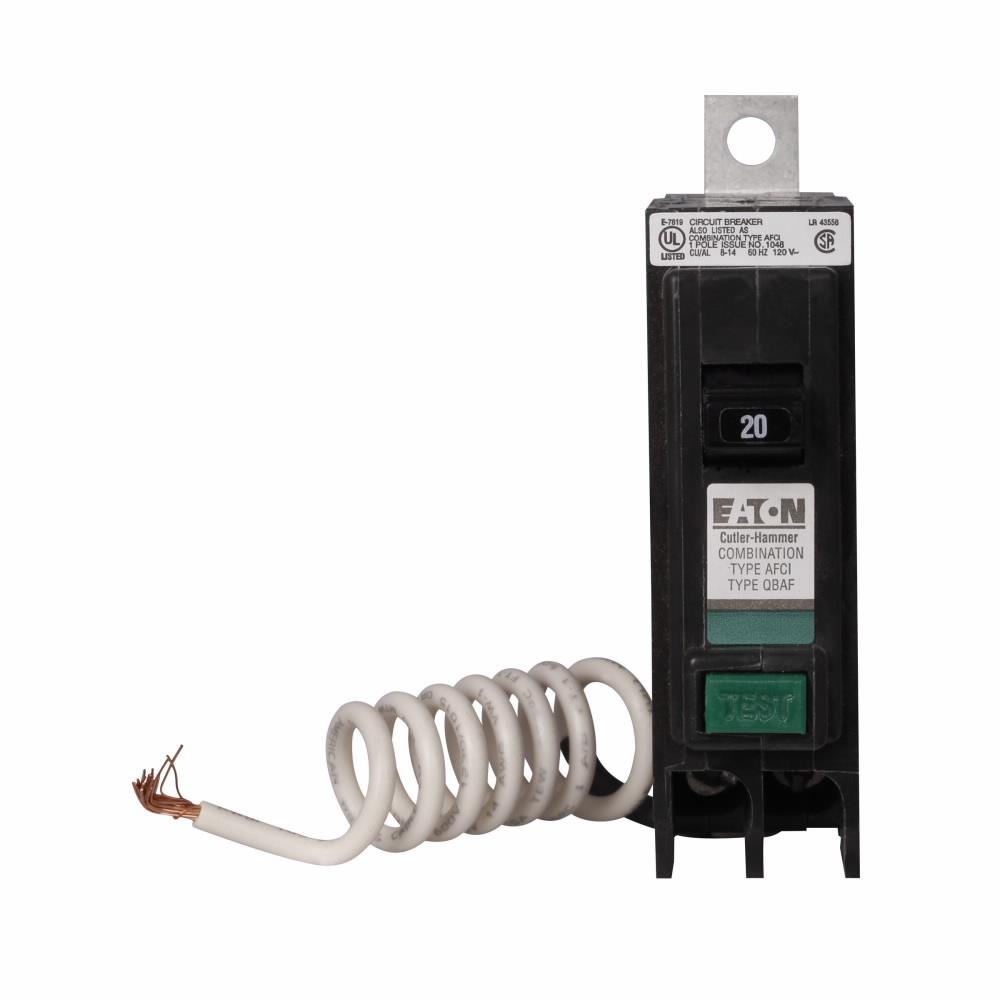

QBCAF1020 - Cutler Hammer 20A 120/240V 1-Pole Combination AFCI Circuit Breaker Bolt-On 10kA Interrupt

QBCAF1020

QBCAF1020 is a Cutler Hammer 20 Amp, 1 Pole Combination Arc Fault Circuit Breaker designed for 120/240 VAC applications with a 10 kA interrupt rating.This Type QBCAF breaker features a 1-inch frame, bolt-on mounting, and thermal magnetic protection with long time and instantaneous trip functions. It is HACR rated and UL 489 certified, suitable for use in load centers and fuseboxes, providing reliable combination arc fault circuit interruption.

• Amperage: 20 A
• Voltage: 120/240 VAC
• Poles: 1
• Interrupt Rating: 10 kAIC @ 120 V
• Mounting Type: Bolt-On
• Series/Frame: QB (1 inch)
• Trip Unit: Combination AFCI (Arc Fault Circuit Interrupter)
• Protection: Thermal Magnetic
• Certifications: UL 489, HACR Rated
• Connection Type: Box Lug
• Dimensions: Approx. 5.1 in length, 1.2 in height, 3.3 in width

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBCAF1020
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QBCAF
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 786685244914
• GTIN : 00786685244914
• Dimensions : 5.1 in x 1.2 in x 3.3 in (Length/Depth x Height x Width)
• Weight : 0.2
• Certification : UL
