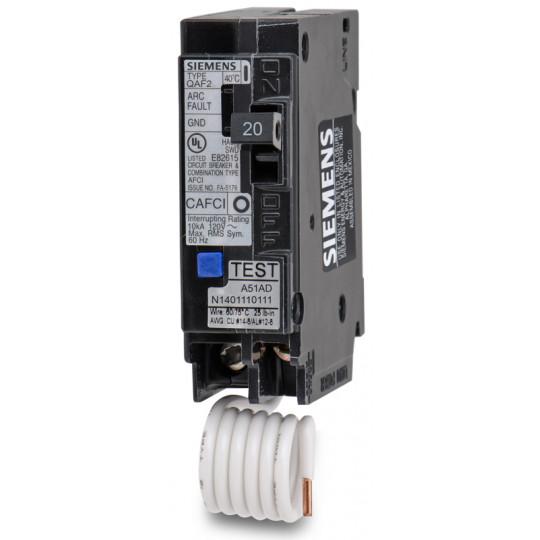

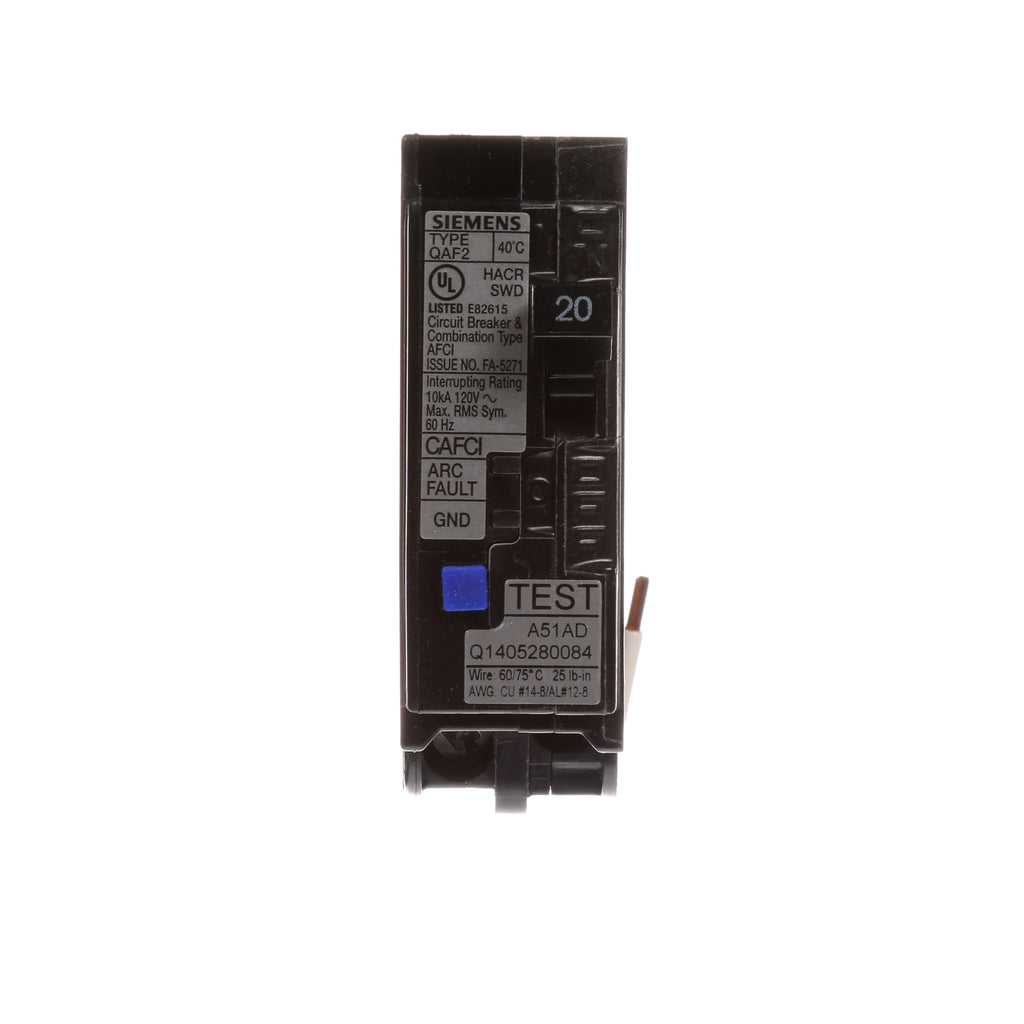

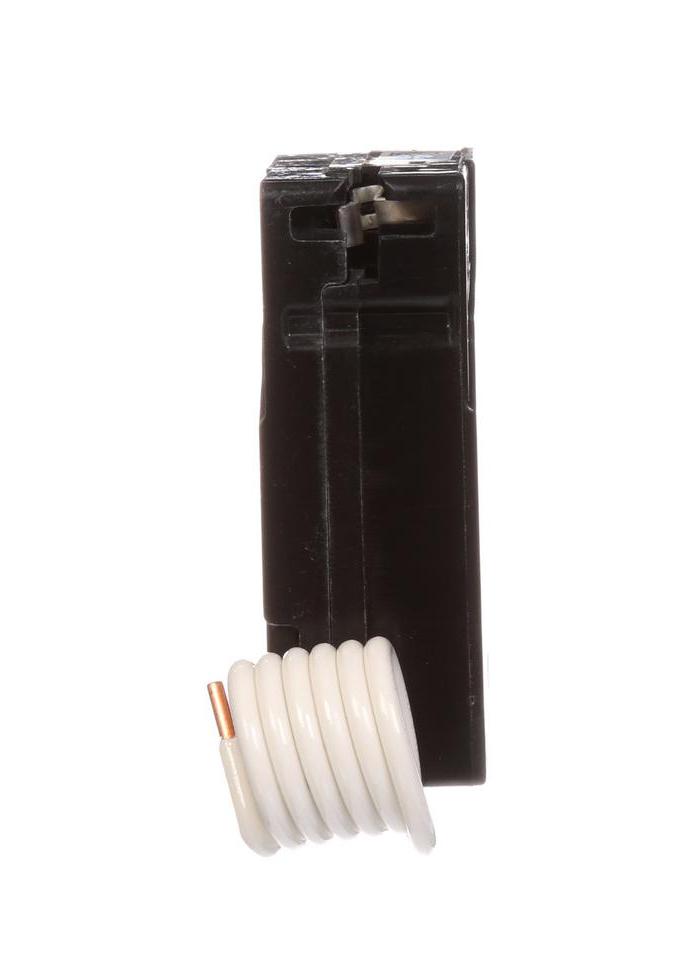

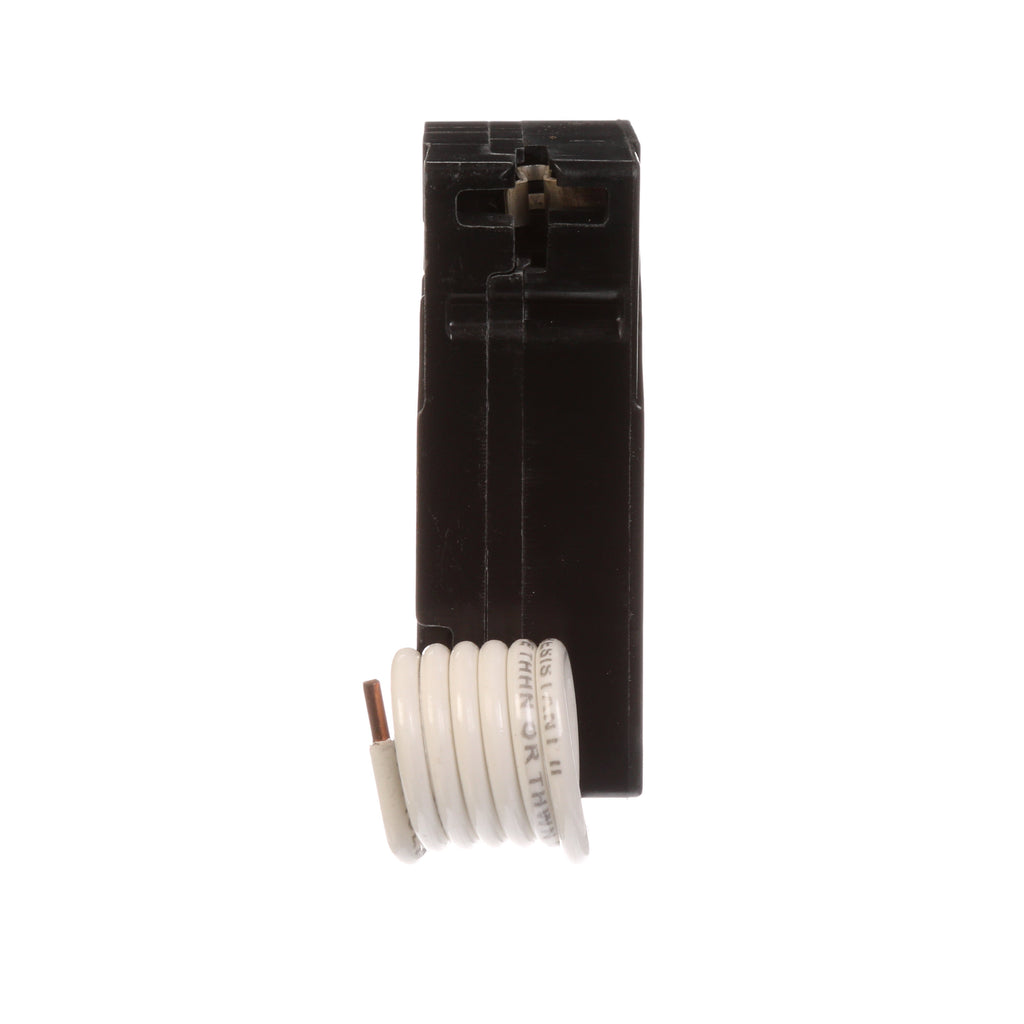

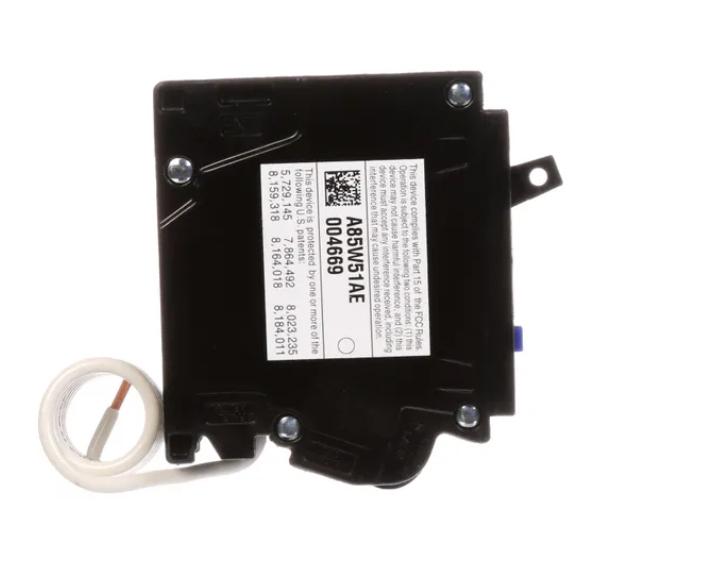

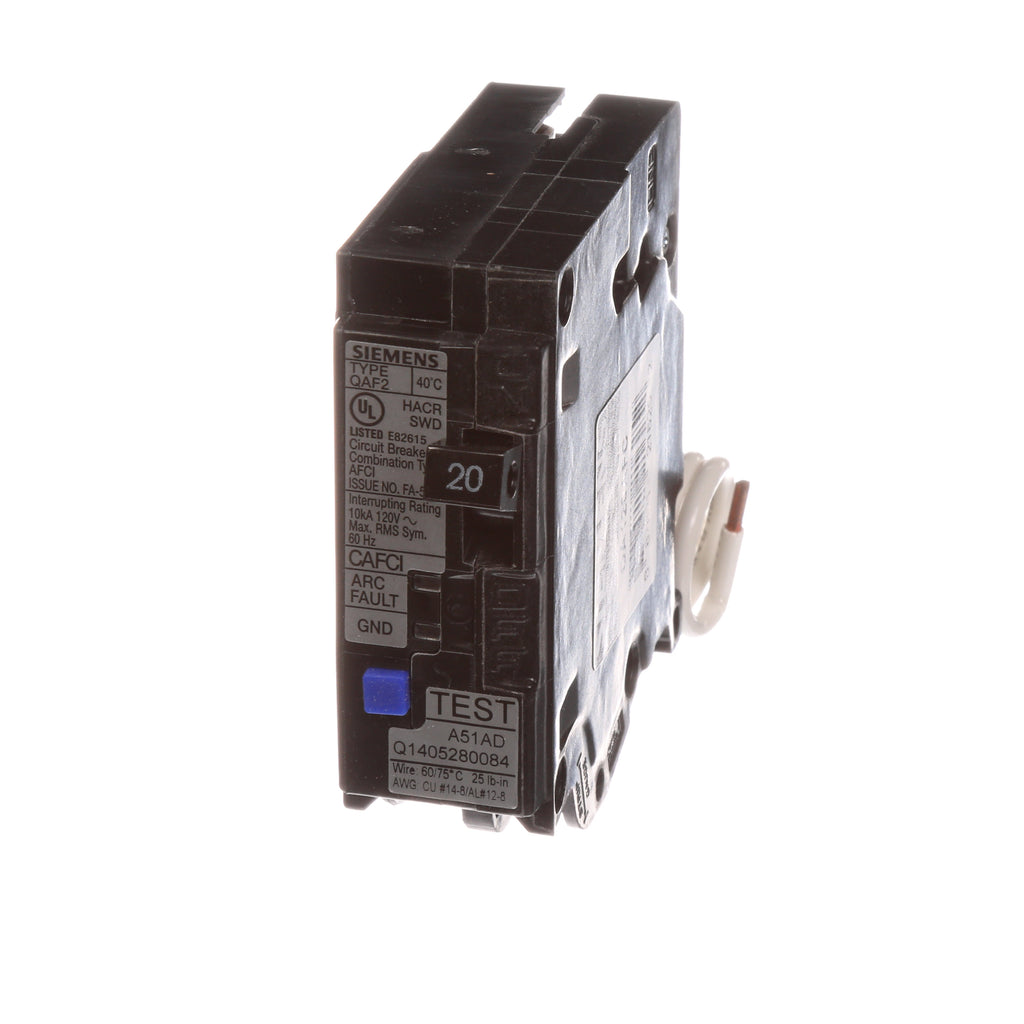

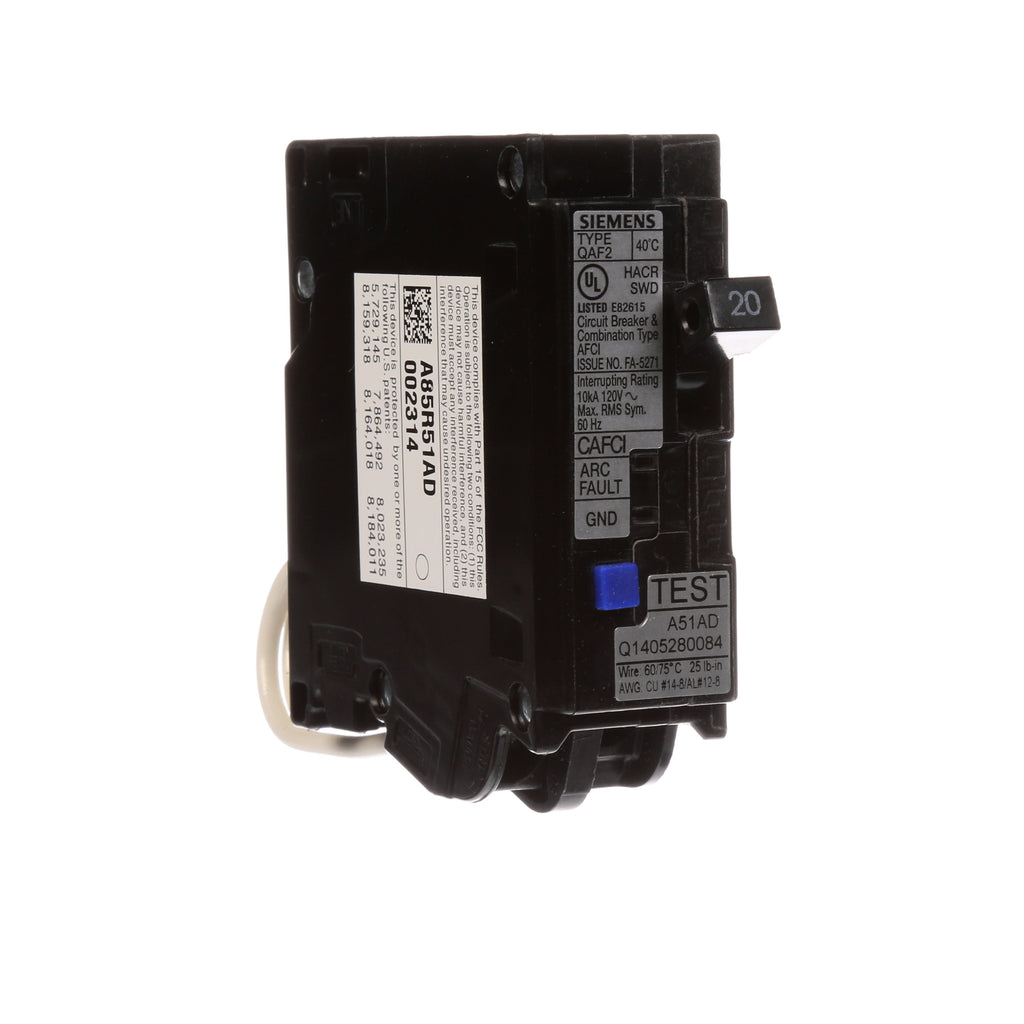

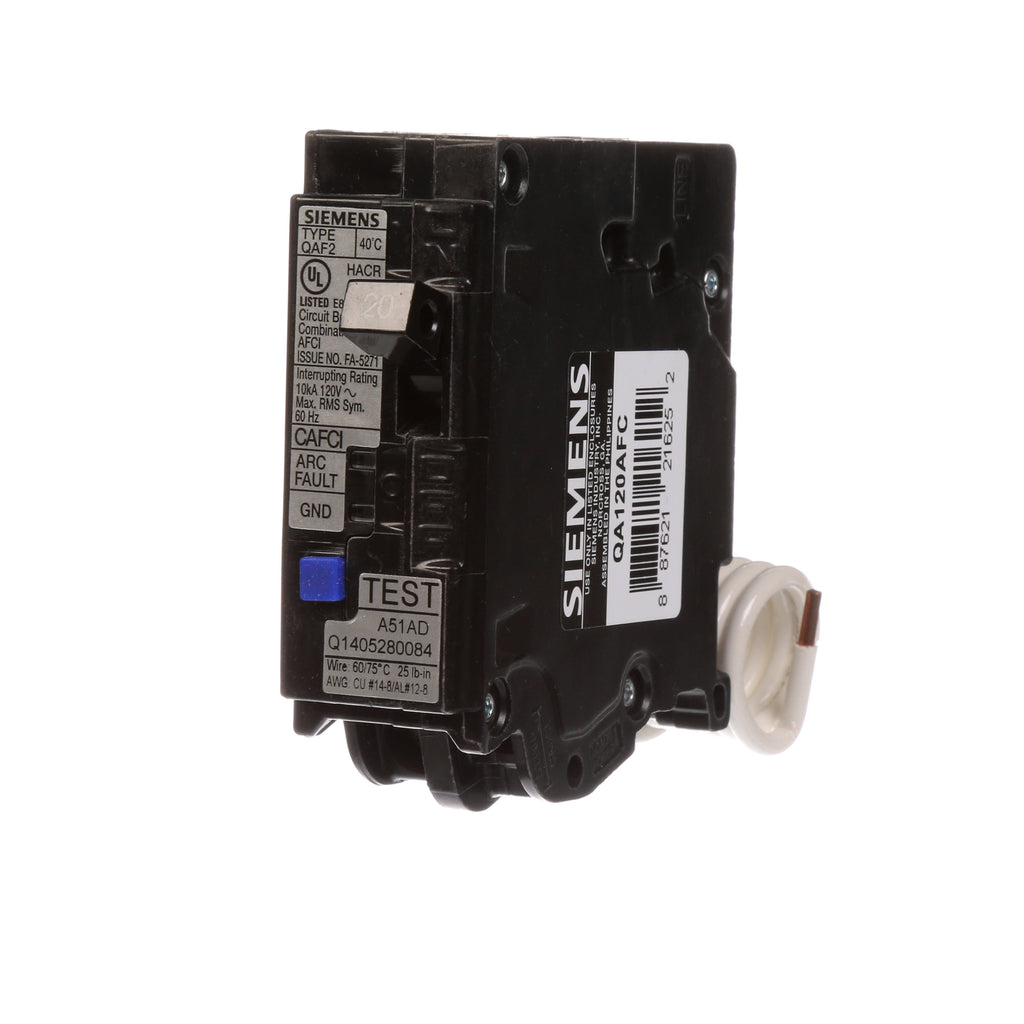

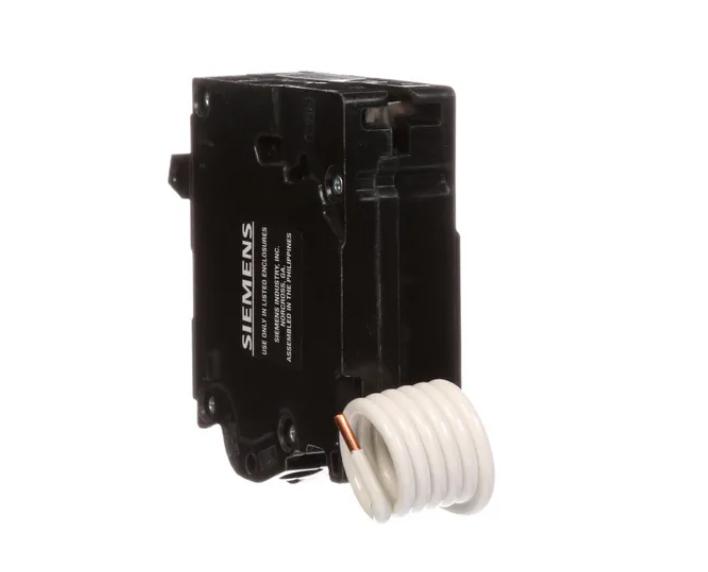

QA120AFC - Siemens 20A 120V 1-Pole Combination Arc Fault Circuit Breaker Plug-In Mount

QA120AFC

QA120AFC is a Siemens 20A 120V 1-pole combination arc fault circuit breaker designed for use in Siemens load centers. This breaker provides advanced protection against arc faults, overloads, and short circuits, making it ideal for residential and commercial applications. The QA120AFC features a plug-in mounting design, LED trip indicators, and a 10kA interrupting rating. It is UL listed and CSA approved, ensuring compliance with safety standards. The breaker is compatible with Siemens Type EQ, EQL, SEQ, and EQG load centers and offers easy installation with both lugs at the same angle for simplified wiring.

• Manufacturer: Siemens
• Series/Frame: QA/Q
• Amperage: 20A
• Voltage: 120VAC
• Poles: 1
• Mounting Type: Plug-In
• Interrupt Rating: 10kAIC at 120V
• Trip Unit: Combination Arc Fault (CAFCI)
• Certifications: UL Listed, CSA Approved
• Wire Size: 14-8 AWG (Copper), 12-8 AWG (Aluminum)
• Dimensions: 3.05" x 3.1" x 4.4"
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QA120AFC
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q Series
• Type : QAF2
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Plug-In
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : QAF2
• Protection : Thermal Magnetic

Product Data

• UPC : 887621216252
• GTIN : 00887621216252
• Country of Origin : Mexico
• Dimensions : 3.1 in x 2.56 in x 4.4 in
• Weight : 0.243 lb
• Panel Type : Siemens Single Phase Load Center
• Standards : UL 1699
• Certification : UL 1699
• Wire Size : 14-8 AWG (Copper) 12-8 AWG (Aluminum)
