Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
Q35000S01

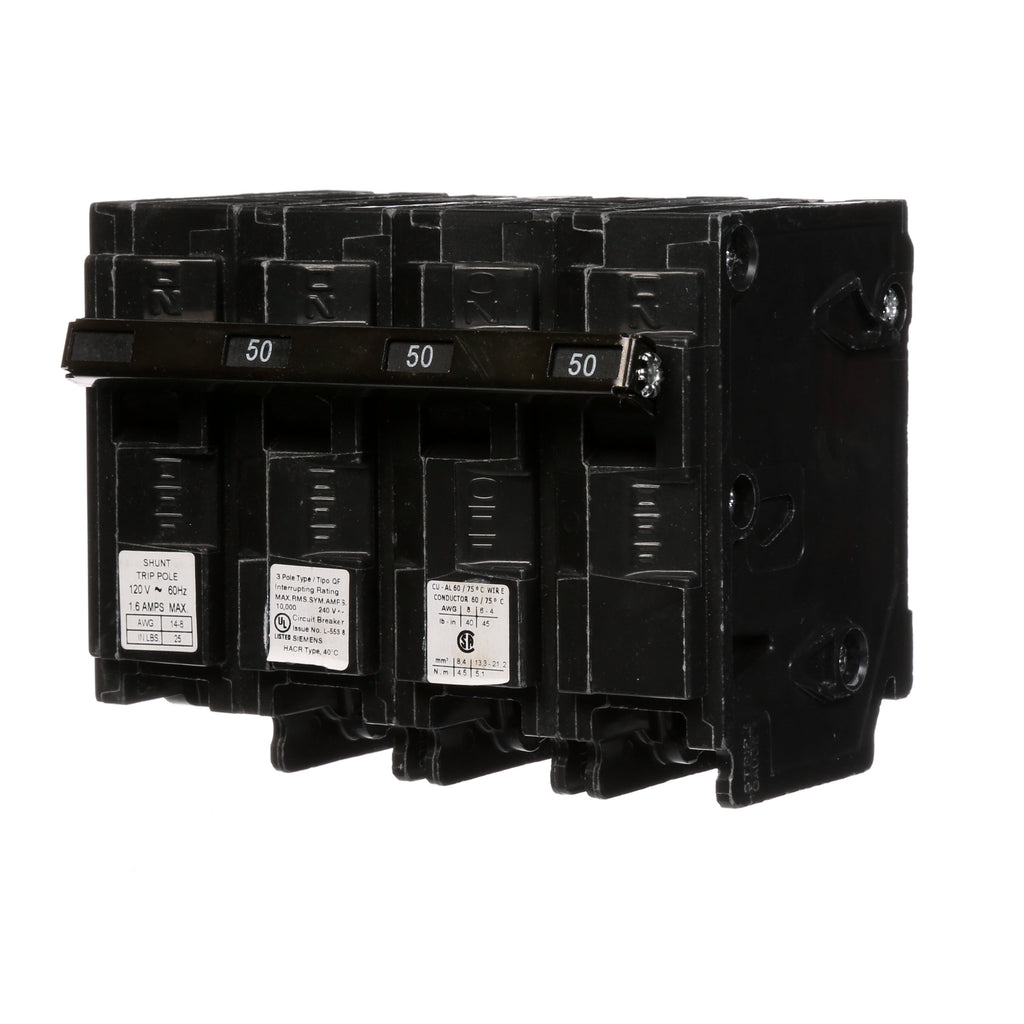

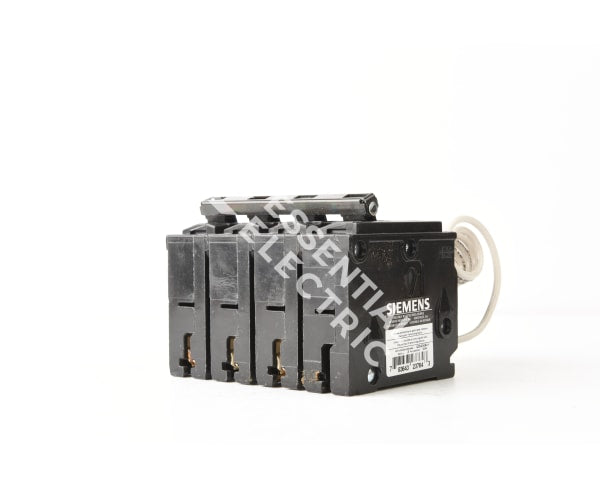

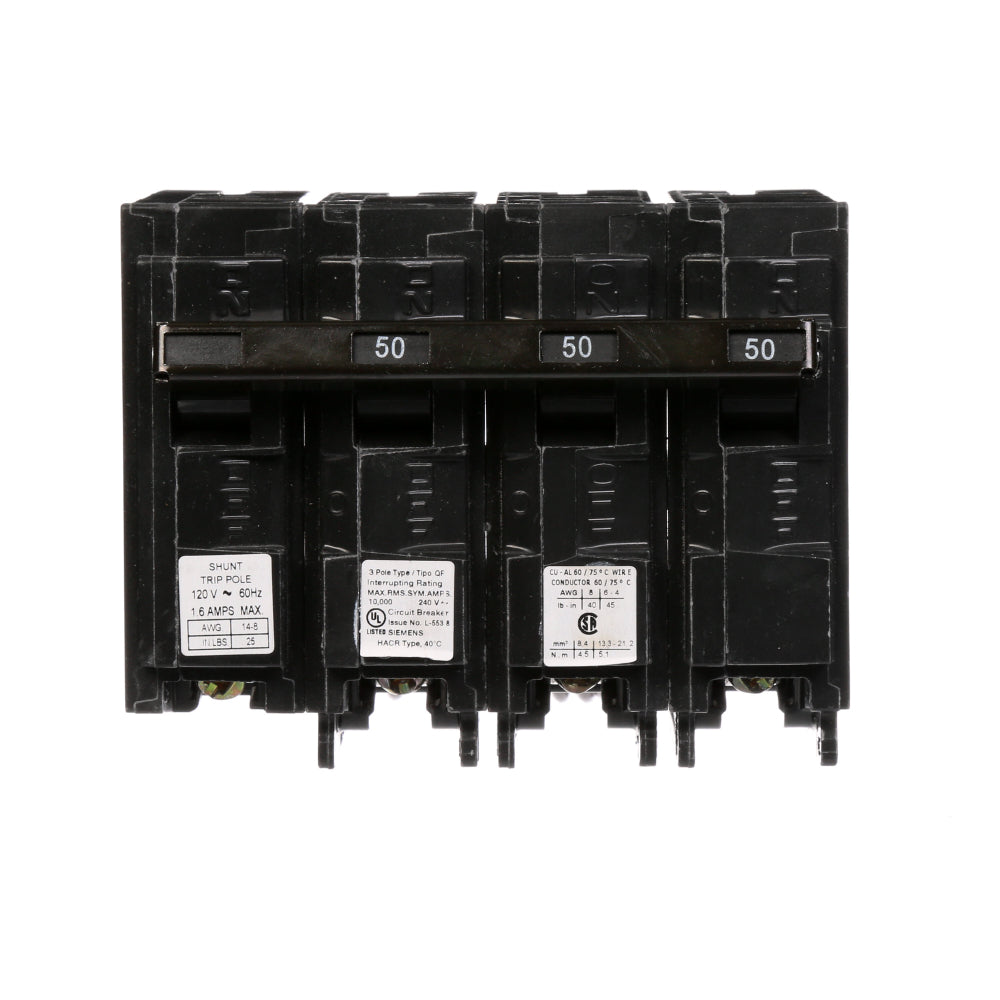

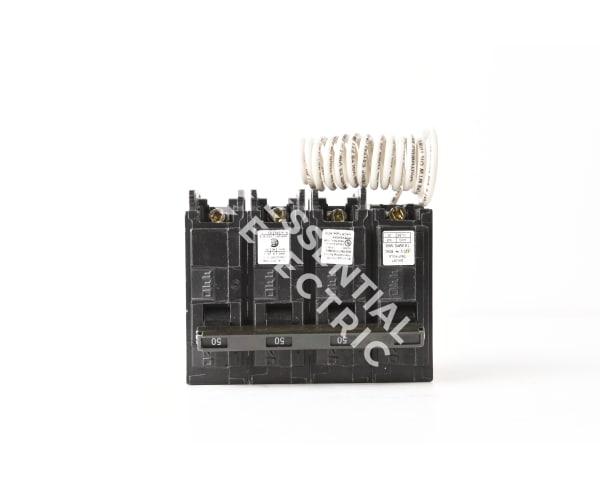

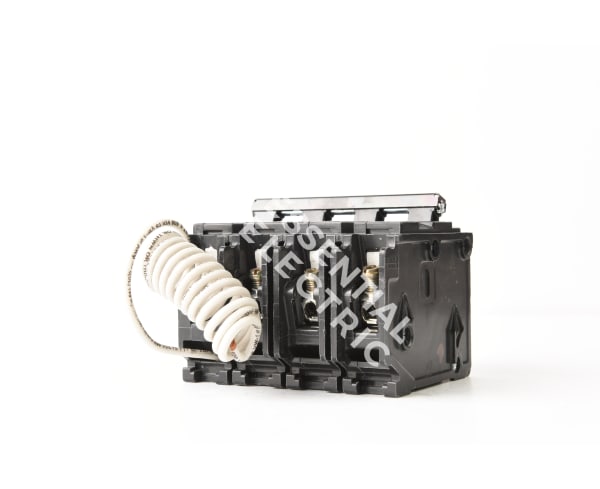

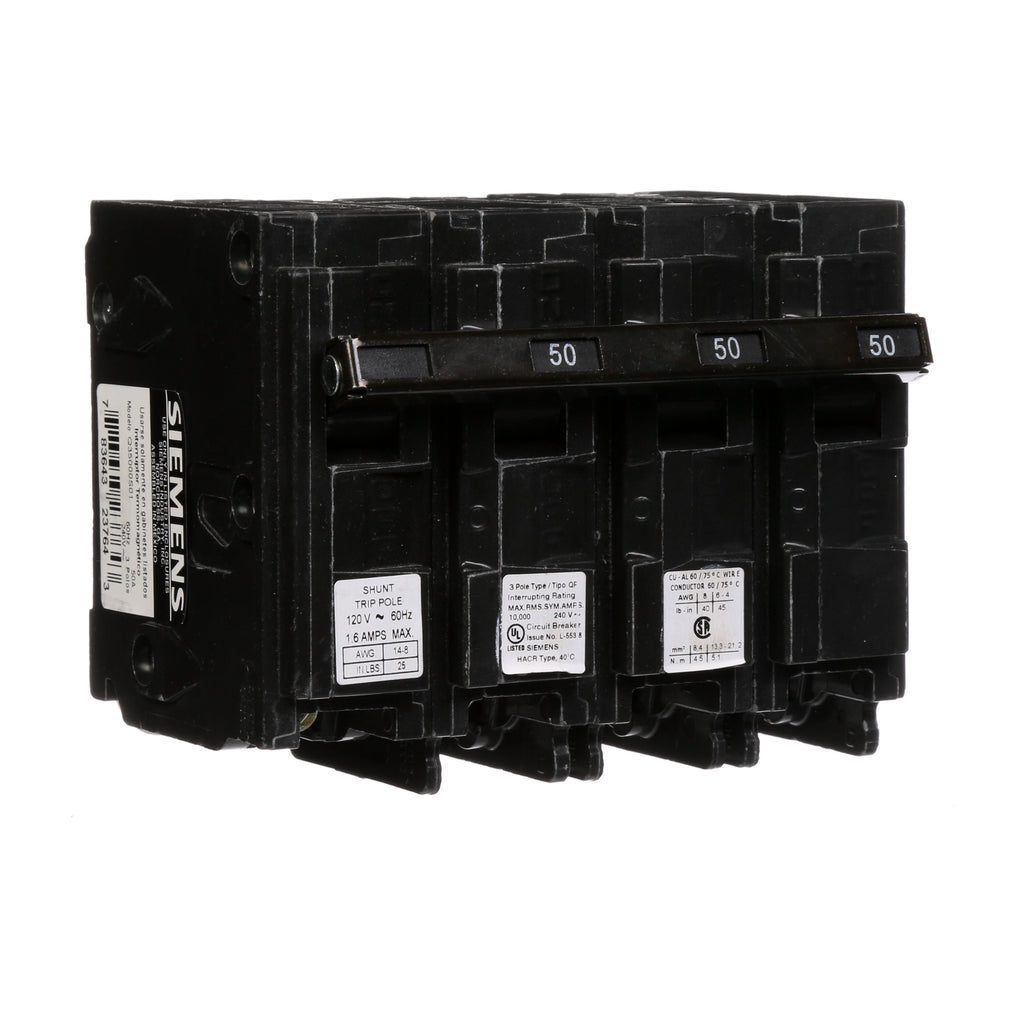

Q35000S01 is a Siemens 50A, 240V, 3 Pole plug-in circuit breaker with a 120V shunt trip for external tripping applications. This molded case circuit breaker is designed for use in Siemens PL and ES series load centers, providing reliable overload and short circuit protection. The Q35000S01 features a thermal magnetic trip unit and a 10,000A interrupting rating at 240VAC. It is a plug-in type breaker, suitable for both residential and light commercial applications where a shunt trip is required for remote or emergency shutdown.
- Part Number: Q35000S01
- Manufacturer: Siemens
- Amperage: 50A
- Voltage: 240VAC
- Poles: 3
- Mounting Type: Plug-In
- Interrupt Rating: 10,000A @ 240VAC
- Series/Frame: Q Series
- Trip Unit: Thermal Magnetic with 120V Shunt Trip
- Application: Load Centers (Siemens PL/ES)
- Compliance: UL Listed
- Wire Size: 8-6 AWG (copper)
Specifications
- Part Number: Q35000S01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QP
- Voltage : 240
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783643237643
- GTIN : 00783643237643
- Country of Origin : Mexico
- Dimensions : 5.118 x 4.331 x 3.543 inch
- Weight : 1.102
- Certification : UL Listed
