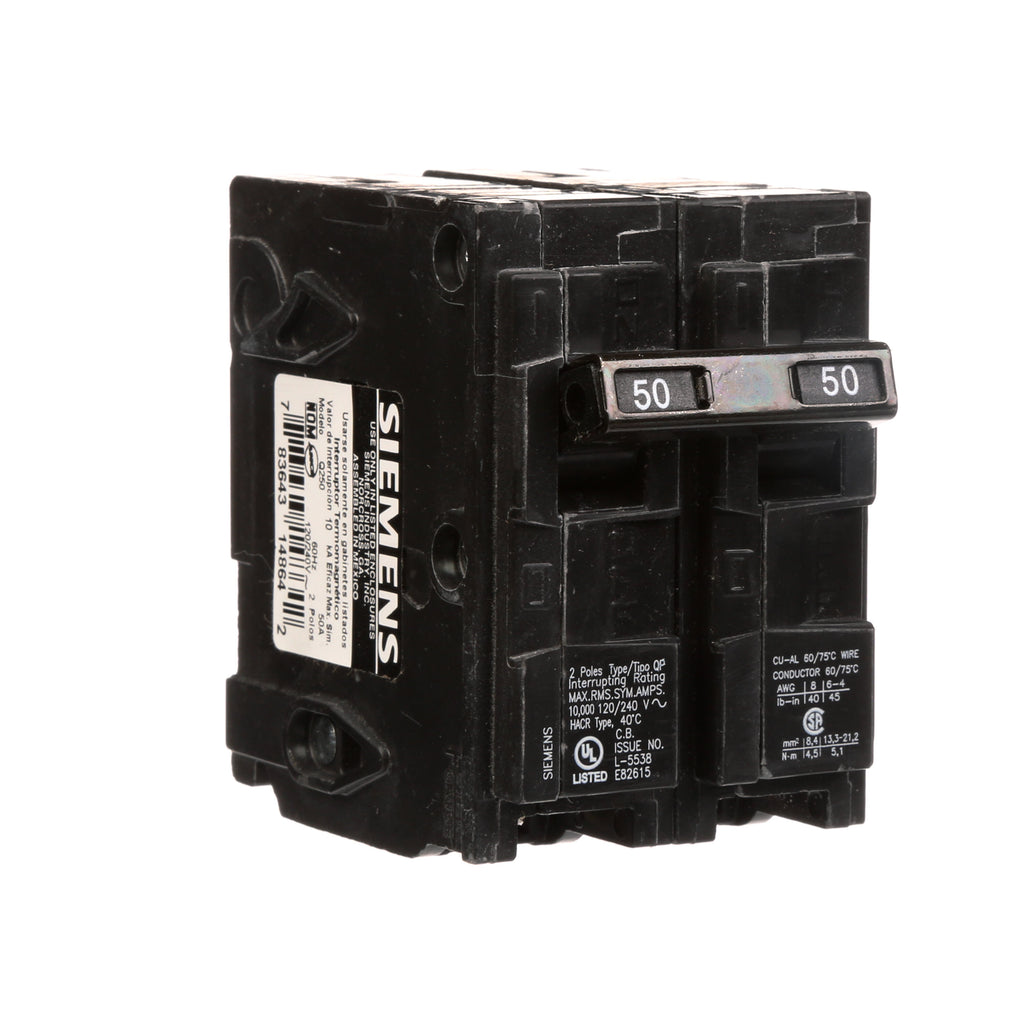

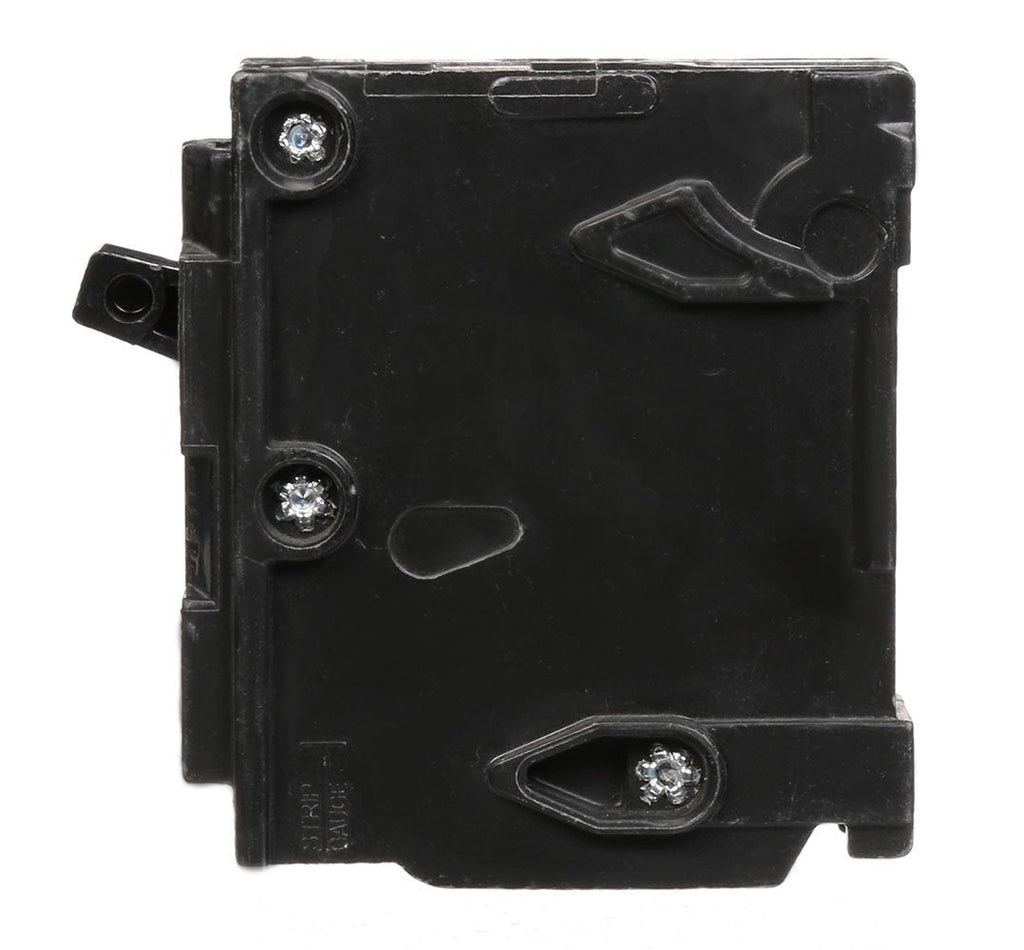

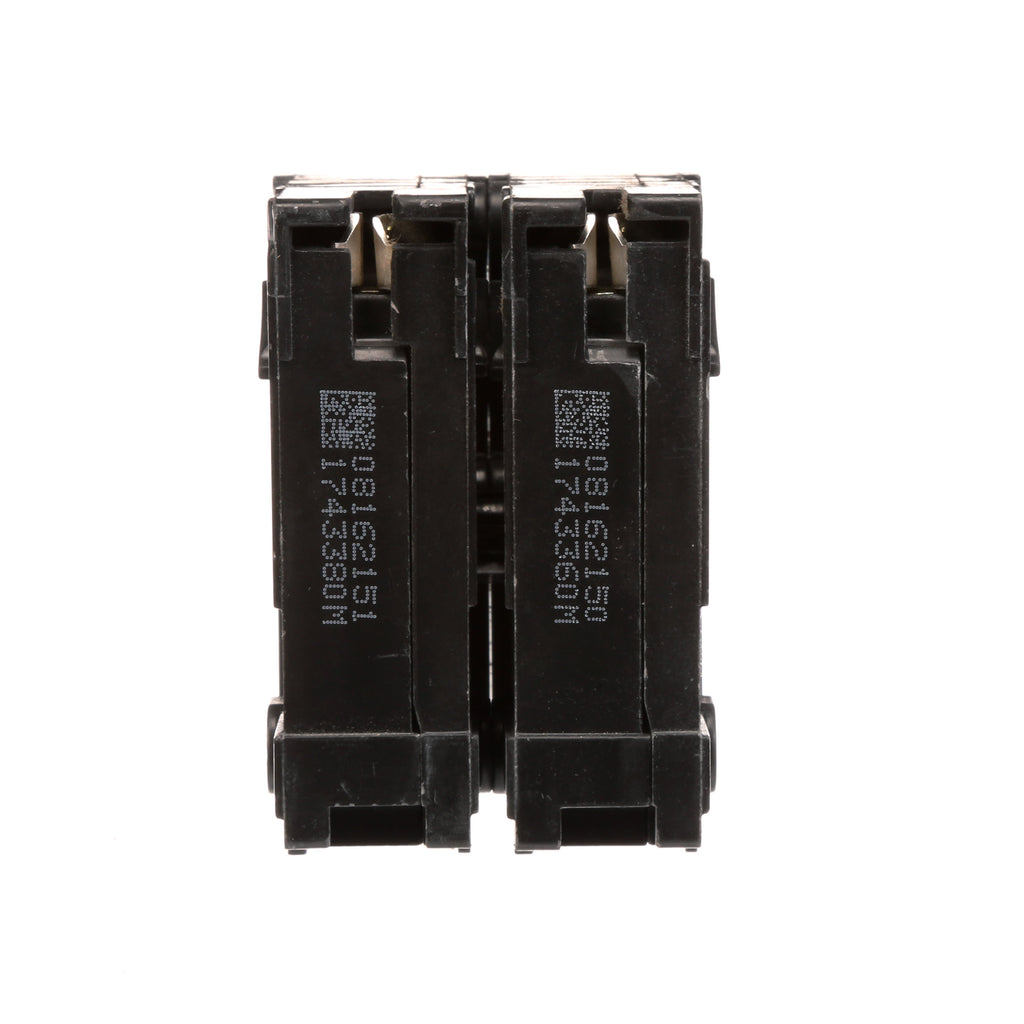

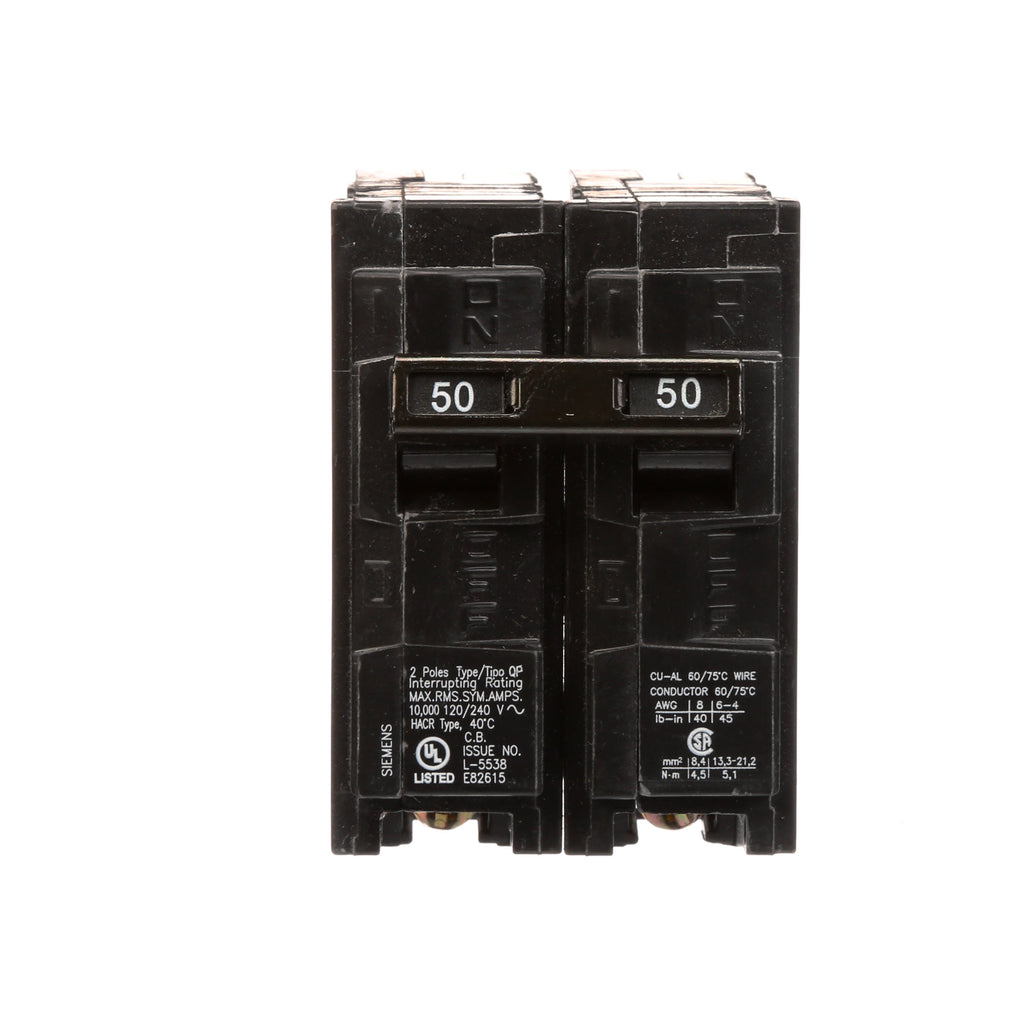

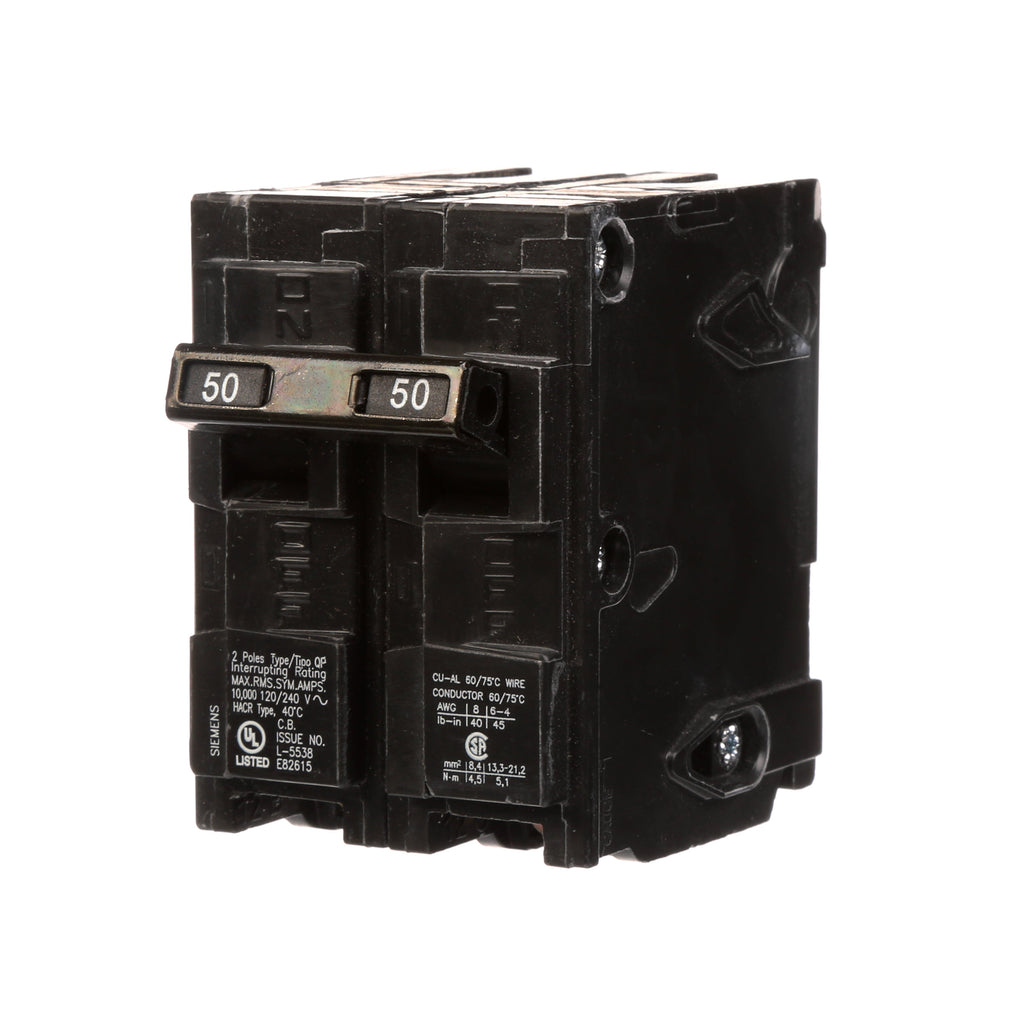

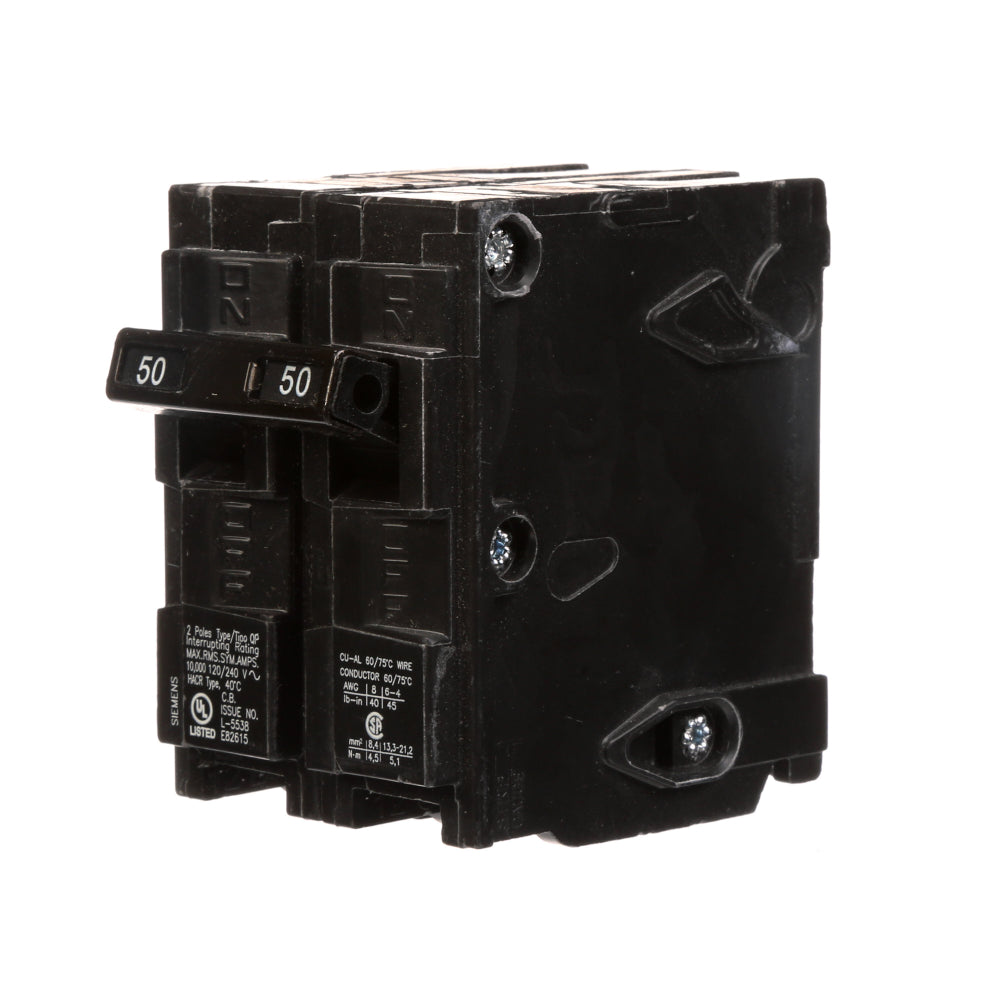

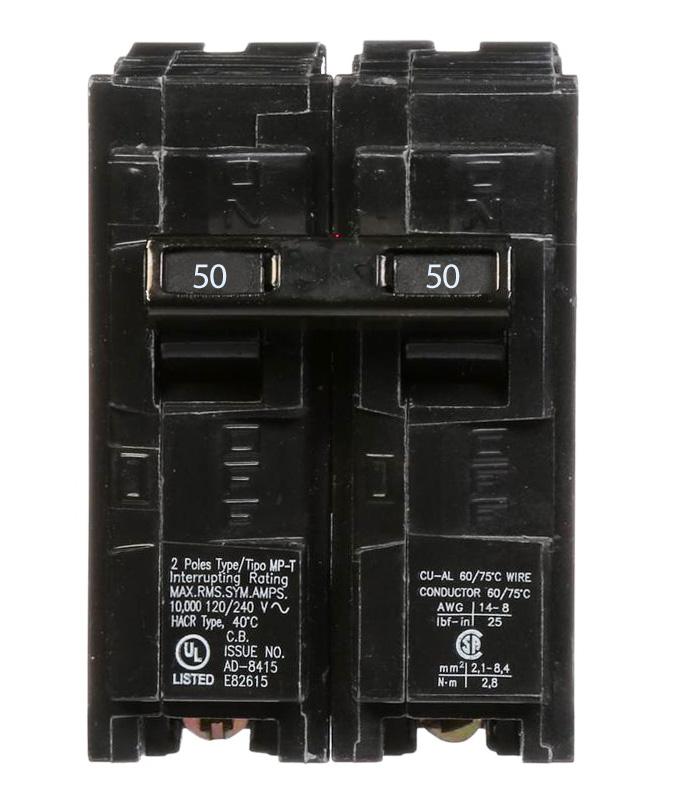

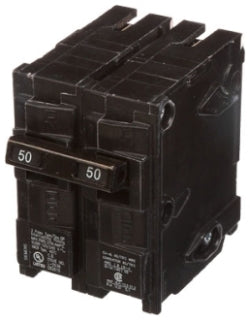

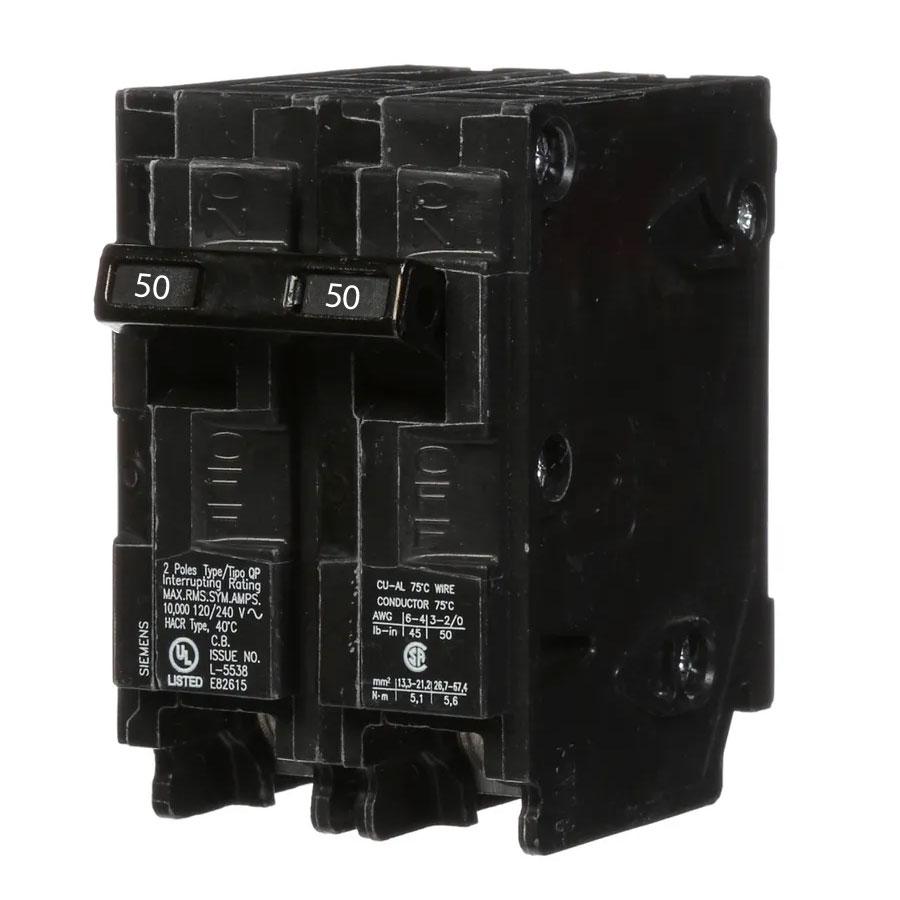

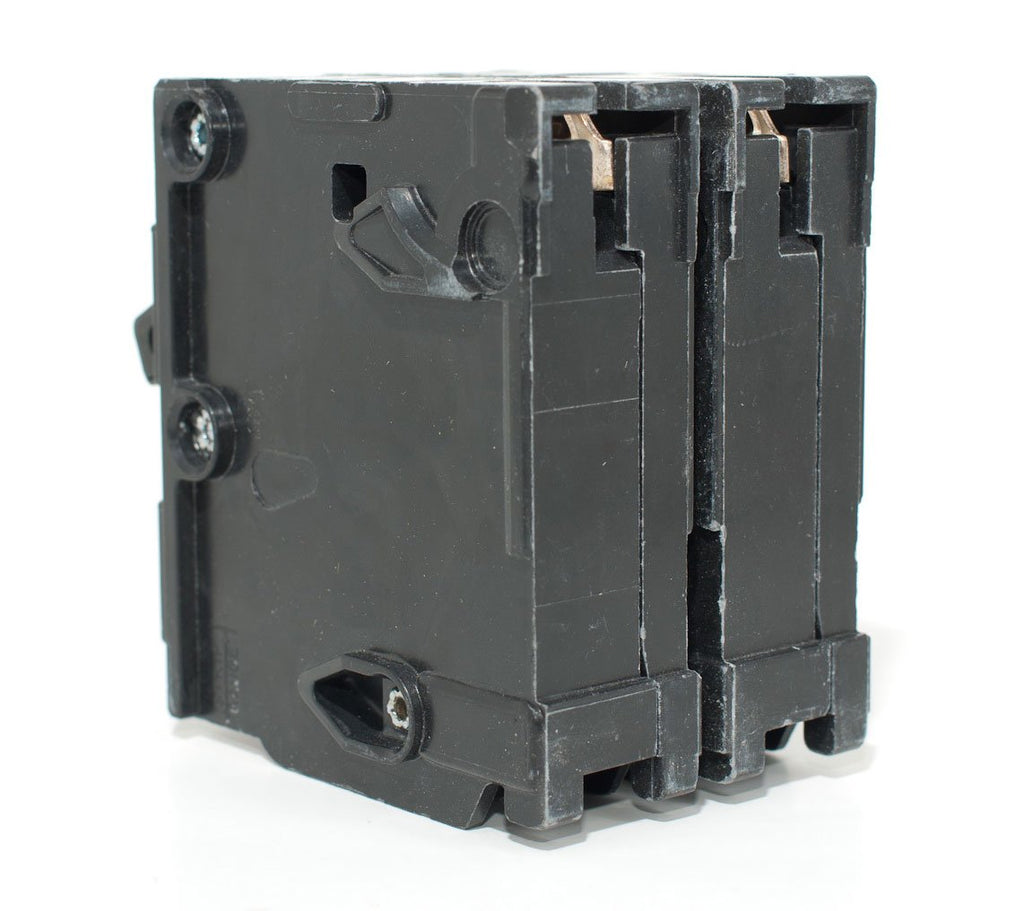

Q250 - Siemens 50 Amp 2-Pole 120/240V Plug-In Type QP Circuit Breaker, 10kA Interrupt, Thermal Magnetic Trip, UL/CSA/HACR

Q250

Q250 is a Siemens 2-pole, 50 Amp, 120/240V plug-in circuit breaker designed for reliable overload and short-circuit protection in residential and light commercial applications.

This thermal magnetic, common trip breaker features a 10,000 Amp interrupting rating, easy plug-in installation in Siemens QP frame load centers, and the time-saving Insta-Wire feature. It is compatible with Siemens PL, ES, EQ, EQL, SEQ, and EQG series panels and is certified for safety and performance.

Key Specifications
• Amperage: 50A
• Voltage: 120/240V AC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10,000A (10kA)
• Series/Frame: QP (Type Q)
• Trip Unit: Thermal magnetic, common trip
• Wire Size: 8-6 AWG Copper, 8-4 AWG Aluminum
• Certifications: UL Listed, CSA Certified, HACR Rated
• Dimensions: 3-1/8" L x 2" W x 3" D
• Terminal Type: Lug
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: Q250
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q Series
• Type : QP
• Voltage : 120/240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/QP
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643148642
• GTIN : 00783643148642
• Country of Origin : Mexico
• Dimensions : 2.756 x 2.756 x 1.969 inch
• Weight : 0.551
• Panel Type : Siemens EQ Load Centers
• Standards : UL Listed
• Certification : UL Listed
