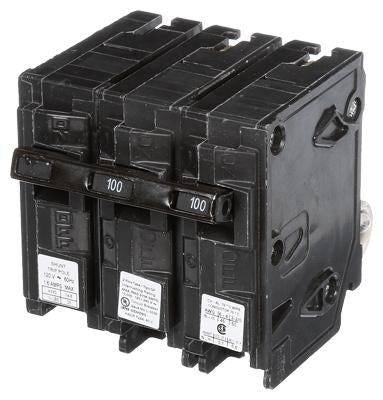

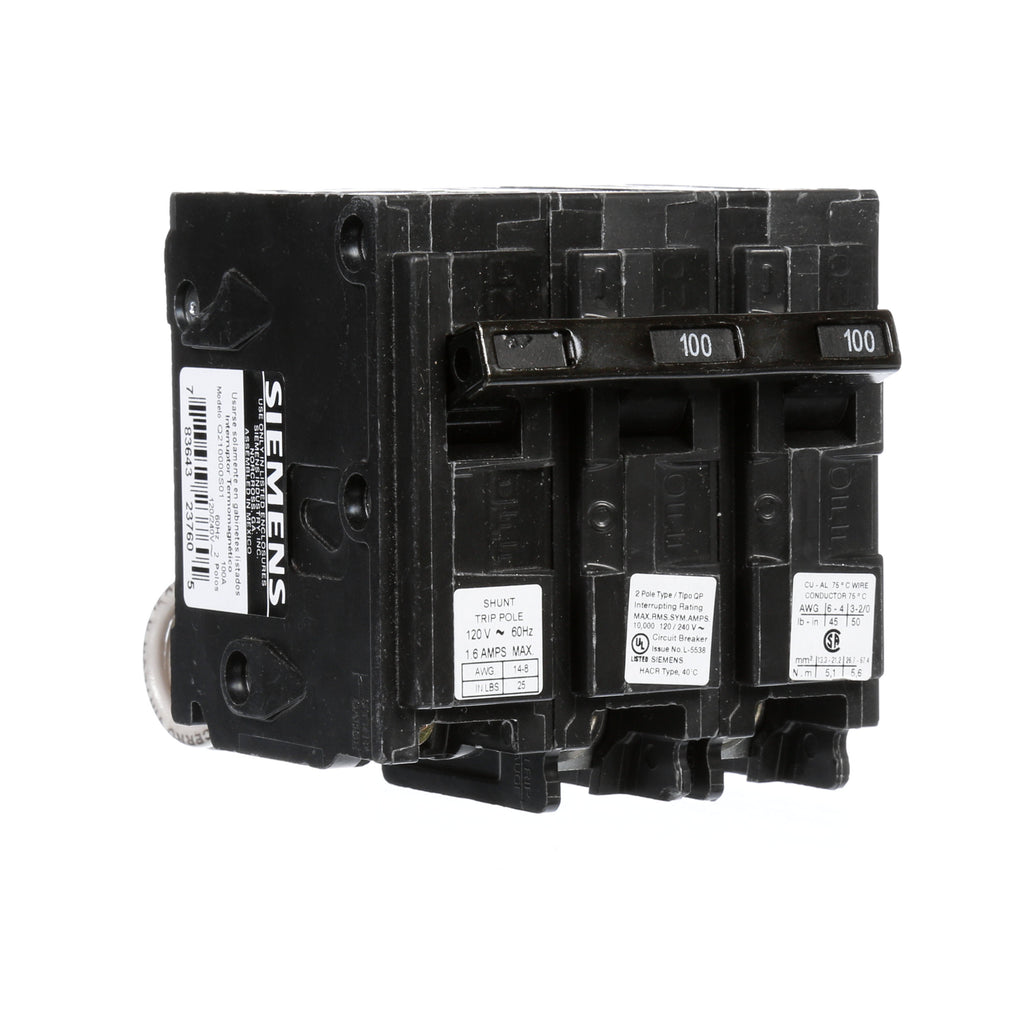

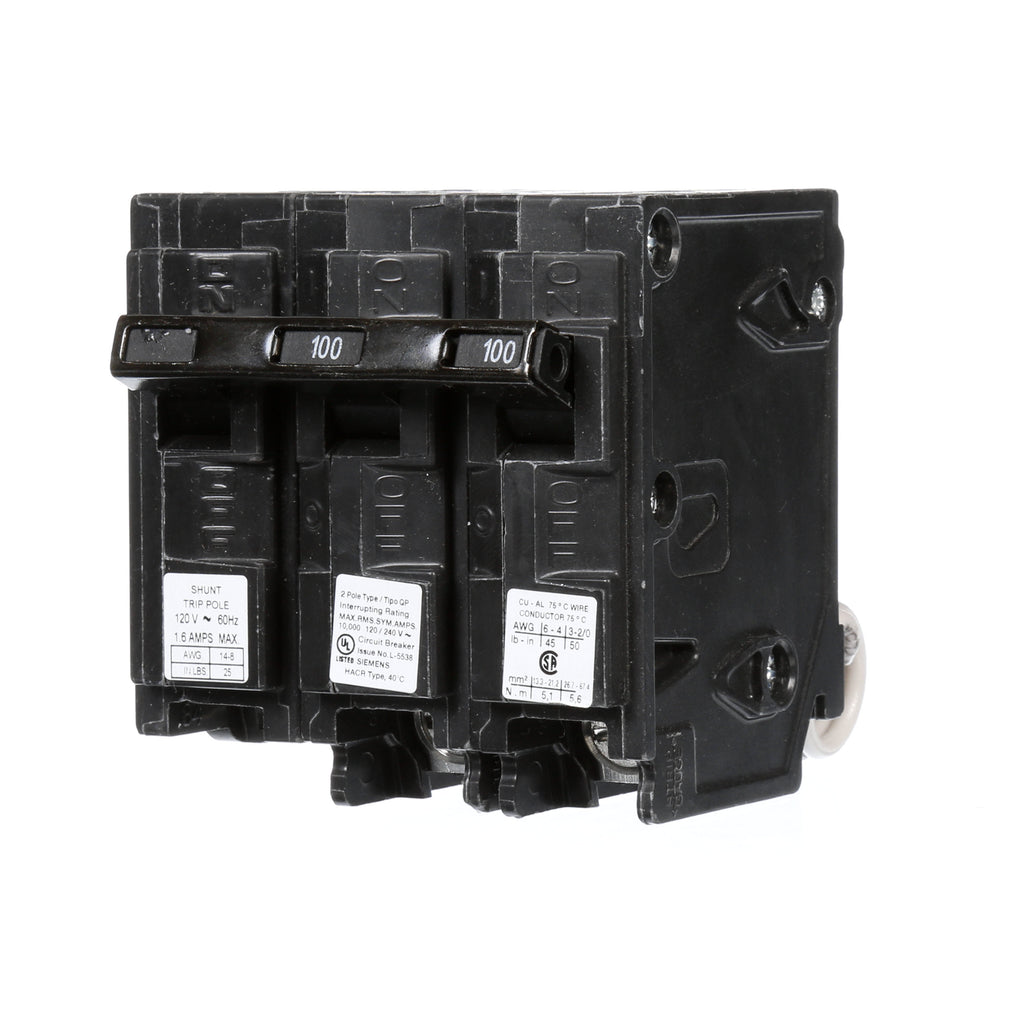

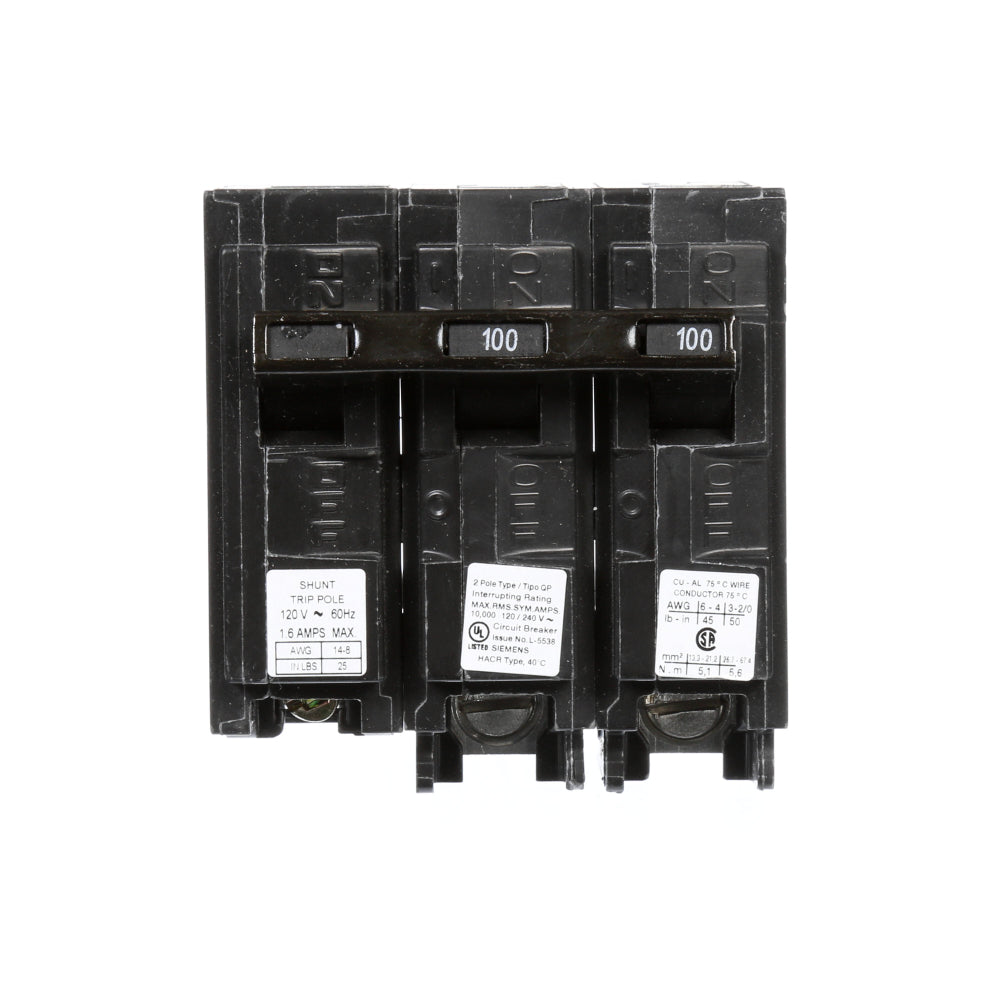

Q210000S01 - Siemens 2 Pole 100 Amp 120/240VAC Thermal Magnetic Circuit Breaker with Shunt Trip

Q210000S01

Q210000S01 is a Siemens 2 Pole 100 Amp thermal magnetic molded case circuit breaker designed for 120/240VAC applications with a 10kA interrupting rating.This circuit breaker features a bolt-on mounting type, long time and instantaneous trip functions, and a 120V shunt trip. It is part of the Siemens Q series frame and supports wire gauges from #8 to 2/0 Aluminum/Copper. Certified to UL, CSA, and NOM standards, it provides reliable circuit protection for residential and light commercial electrical distribution.

Key Specifications
• Manufacturer: Siemens
• Part Number: Q210000S01
• Amperage: 100 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 10kAIC @ 240V
• Series/Frame: Q Series
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Shunt Trip: 120V
• Wire Gauge Range: #8 to 2/0 Aluminum/Copper
• Certifications: UL, CSA, NOM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: Q210000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q Series
• Type : QP
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643237605
• GTIN : 00783643237605
• Country of Origin : Mexico
• Dimensions : 5.118 x 3.937 x 3.543 inch
• Weight : 1.257
• Wire Size : #8 to 2/0 Aluminum/Copper
