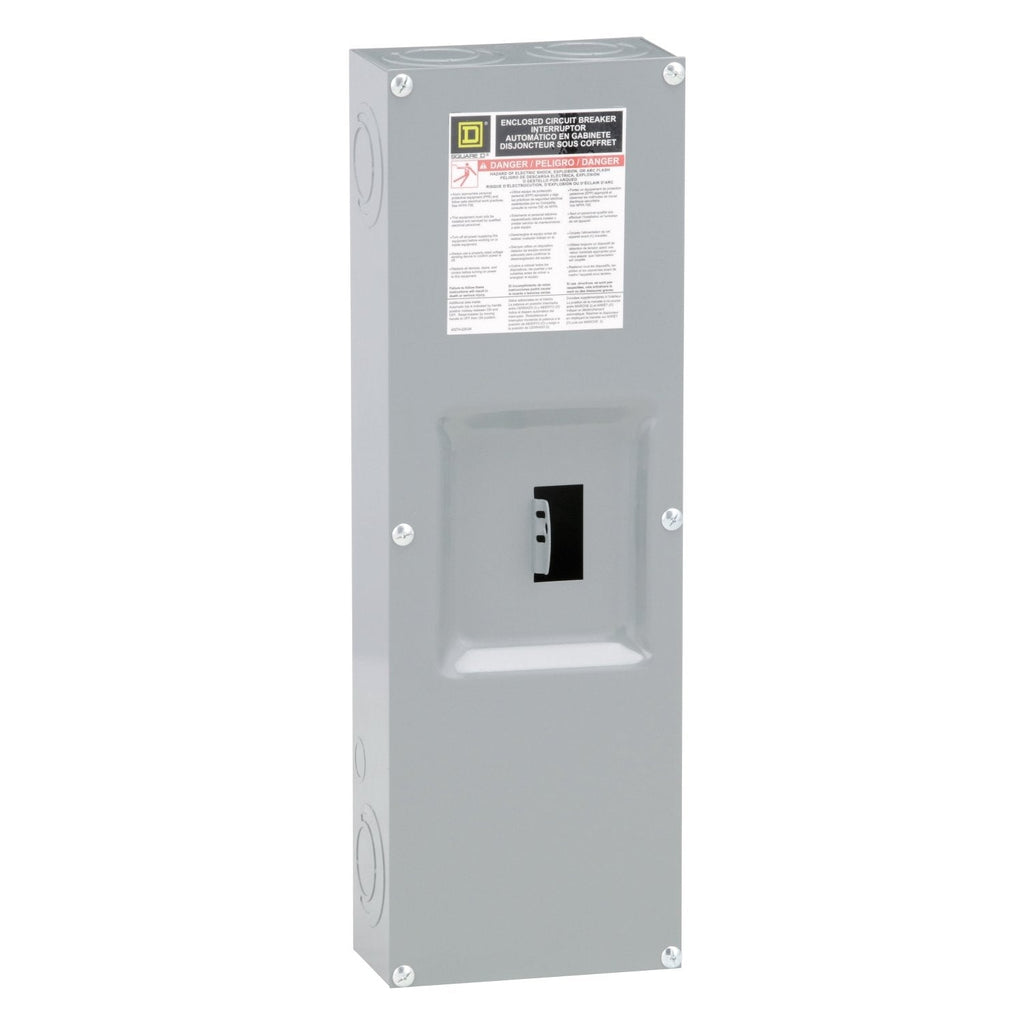

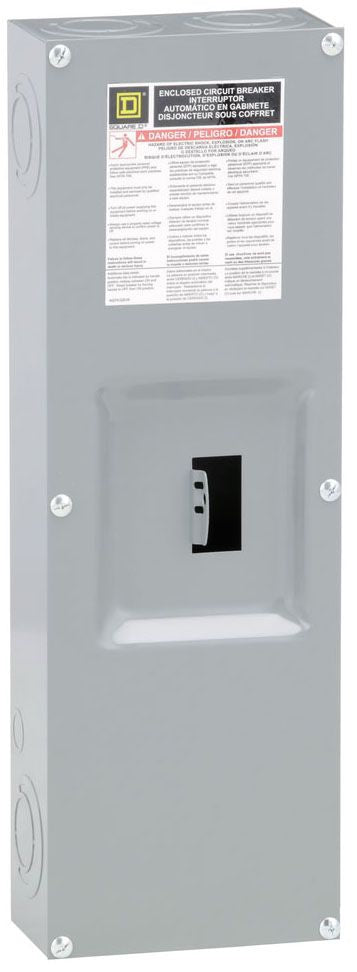

Q22200NS - Square D 200A 240V 2-Pole Circuit Breaker Enclosure NEMA 1

Q22200NS

Q22200NS is a Square D 200 Amp, 240 Volt, 2-pole circuit breaker enclosure designed for indoor use with a NEMA 1 rating.The Q22200NS enclosure features durable steel construction and is compatible with Q-frame circuit breakers, providing reliable protection and easy surface mounting.

Key Specifications
• Amperage: 200 Amps
• Voltage: 240 Volts
• Poles: 2
• Mounting Type: Surface Mount
• Enclosure Material: Steel
• Enclosure Rating: NEMA 1 (Indoor)
• Compatible Breaker Type: Q-frame (QBL, QDL, QGL, QJL)
• Dimensions: 23.12" H x 7.63" W x 4.25" D (588mm x 194mm x 108mm)
• UL Listed
• RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Please note that circuit breakers are not included with the enclosures and must be purchased separately.

Specifications

• Part Number: Q22200NS
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Enclosure
• Family : HOMELINE
• Type : Q
• Voltage : 240
• Amperage : 200
• Temp Rating : -13–158 °F (-25–70 °C)
• Nema Rating : 1
• Compatible Frames : QO,Q2L,QBL,QDL,QGL,QJL

Product Data

• UPC : 785901785446
• GTIN : 00785901785446
• Country of Origin : Mexico
• Dimensions : 23.1 in (588 mm) x 7.6 in (194 mm) x 4.3 in (108 mm) (Height x Width x Depth)
• Weight : 11.7
• Certification : UL Listed CSA Certified
