Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Enclosure
Description
Q22200NRB

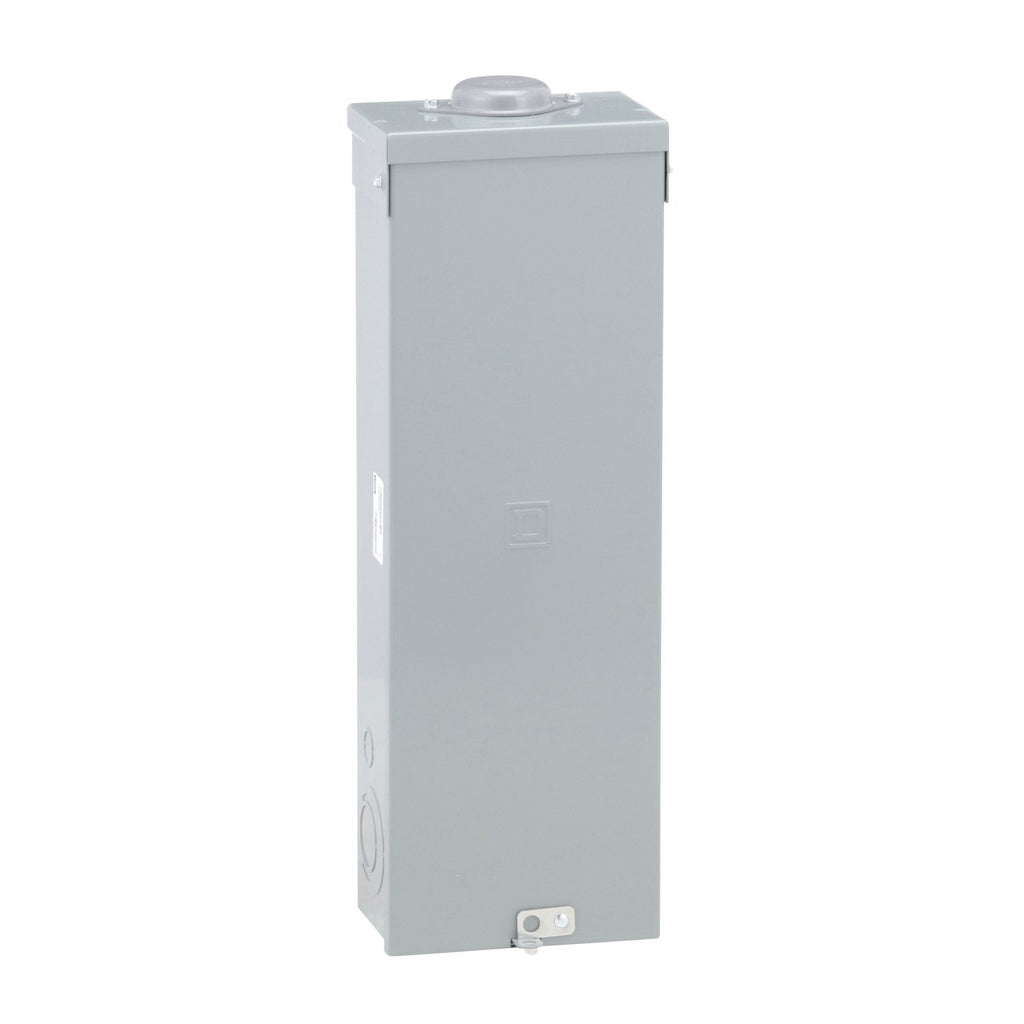

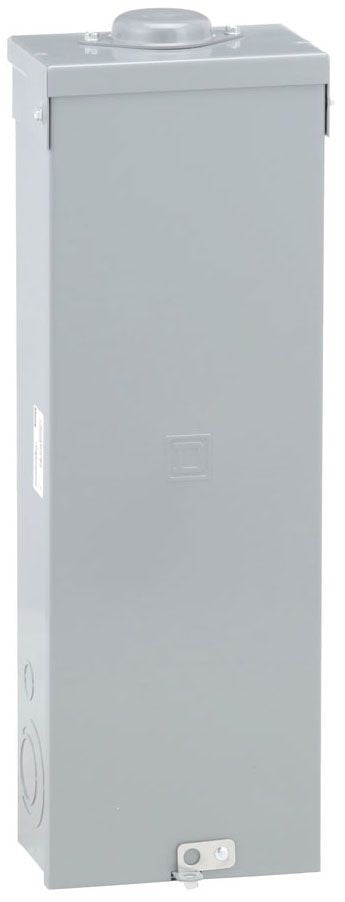

Q22200NRB is a Square D circuit breaker enclosure designed for 200 Amp, 240 Volt applications with 2 poles and NEMA 3R rating.This enclosure is constructed of steel and designed for PowerPact Q frame circuit breakers with a current rating range of 100 to 200 Amps. It supports 2-pole or 3-pole QBL, QDL, QGL, and QJL breaker types. The enclosure is UL listed and suitable for surface mounting, providing reliable protection in outdoor or harsh environments with its NEMA 3R rating.
- Key Specifications
- Amperage: 200 Amp
- Voltage: 240 Volt
- Number of Poles: 2P or 3P
- Frame/Series: PowerPact Q (QBL, QDL, QGL, QJL)
- Enclosure Material: Steel
- Mounting Type: Surface mount
- Interrupt Rating: Compatible with 100-200A breakers
- NEMA Rating: 3R (rainproof outdoor)
- UL Listed: Yes
- Dimensions: Approx. 23.38 in H x 7.63 in W x 4.75 in D
- Country of Origin: USA
- Part Number: Q22200NRB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Enclosure
- Family : HOMELINE
- Type : Q
- Voltage : 240
- Amperage : 200
- Nema Rating : 3R
- Compatible Frames : QO,Q2L
- UPC : 785901785453
- GTIN : 00785901785453
- Country of Origin : Mexico
- Dimensions : 23.4 in (594 mm) x 7.6 in (194 mm) x 4.8 in (121 mm) (Height x Width x Depth)
- Weight : 15.501
- Certification : UL Listed CSA Certified
Additional Information
Please note that circuit breakers are not included with the enclosures and must be purchased separately.
