Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
Q2200B

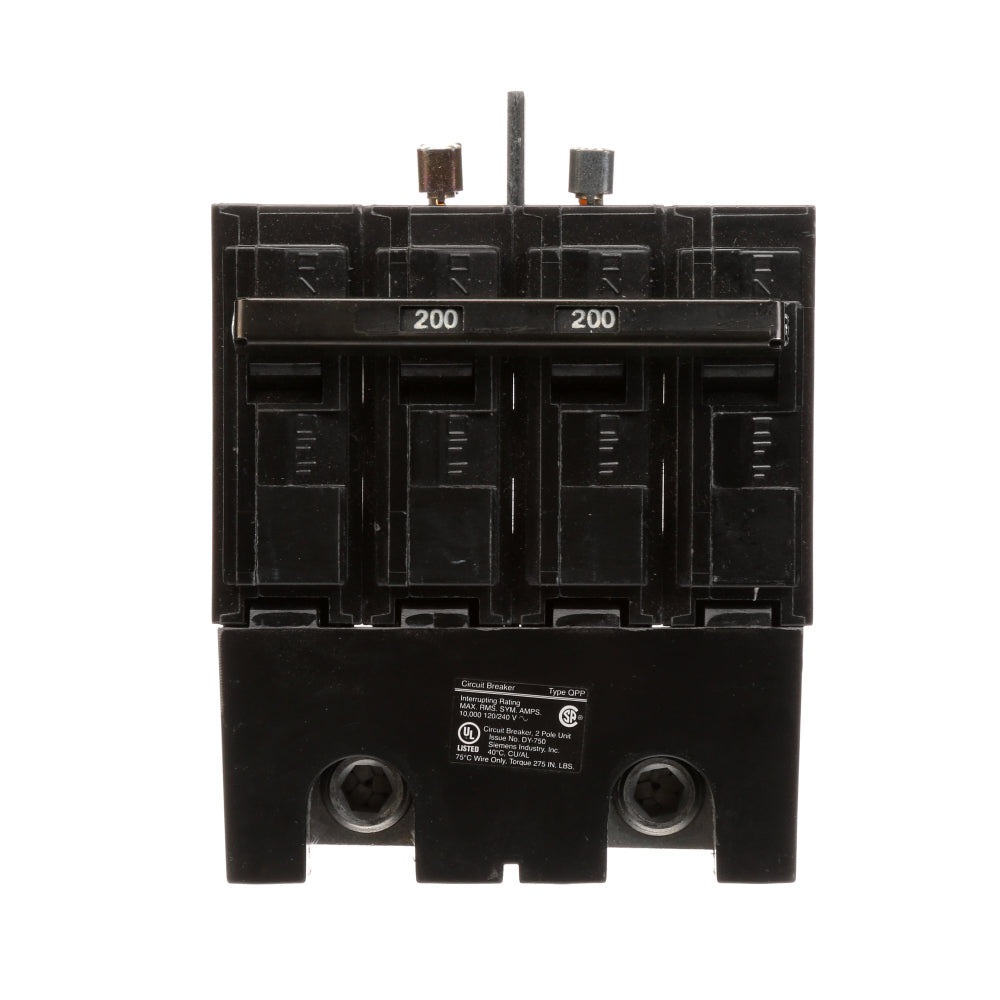

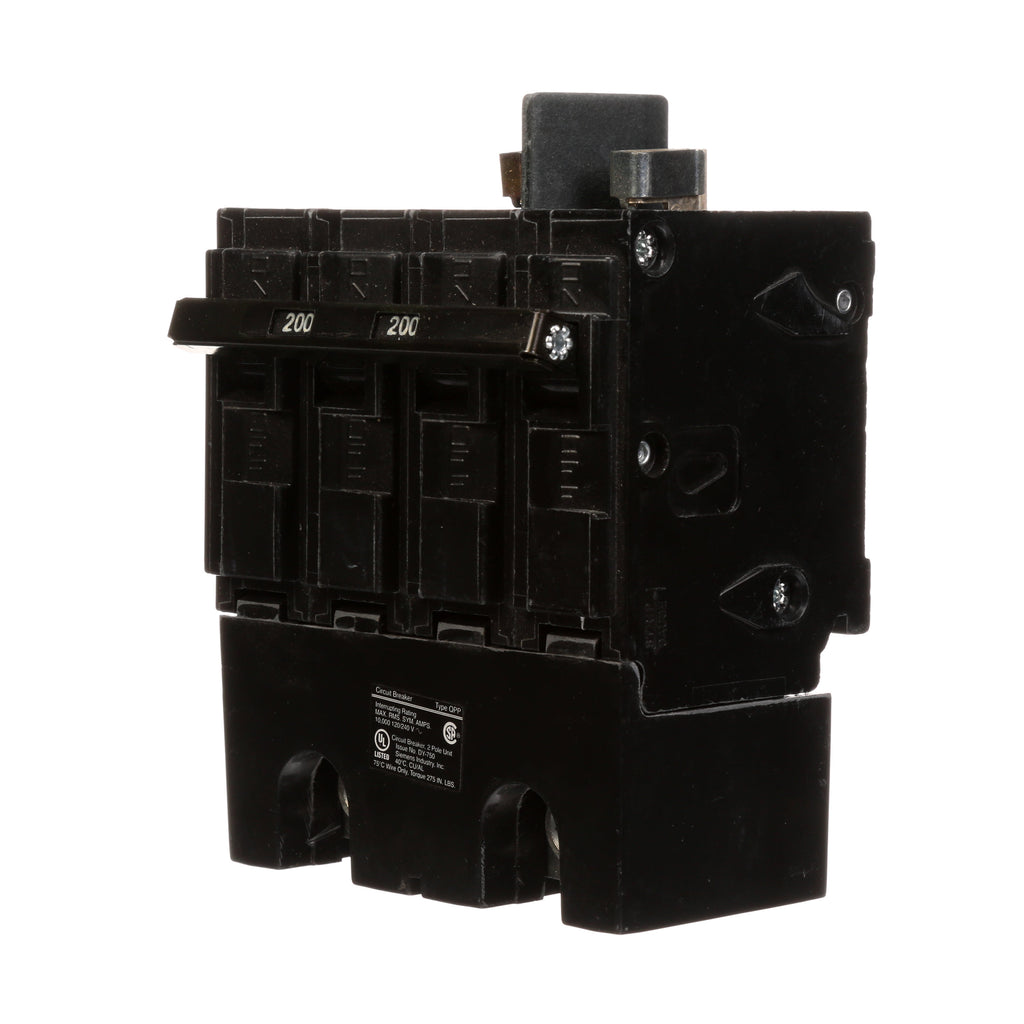

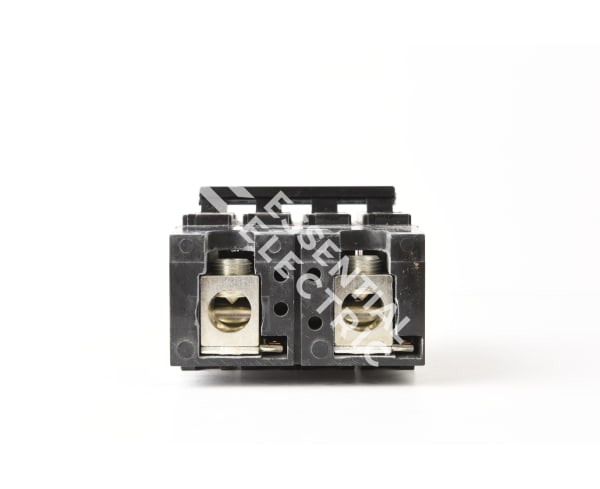

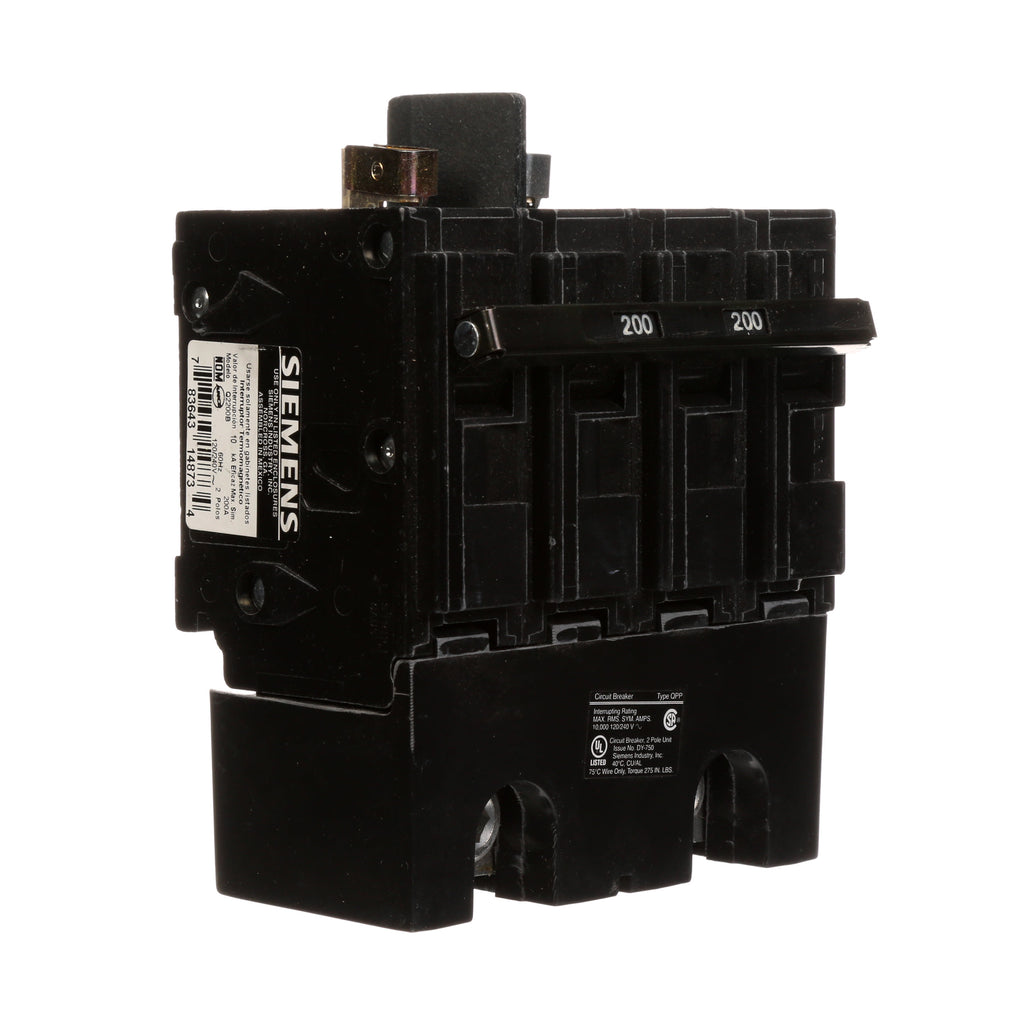

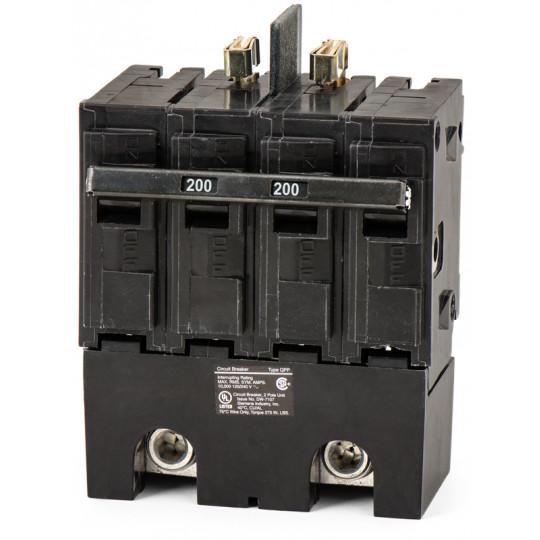

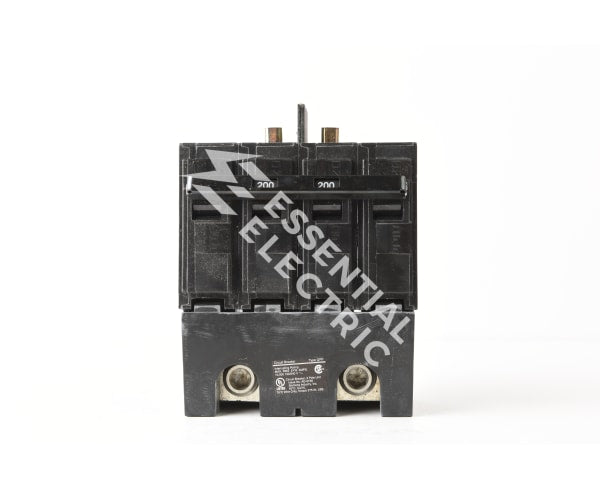

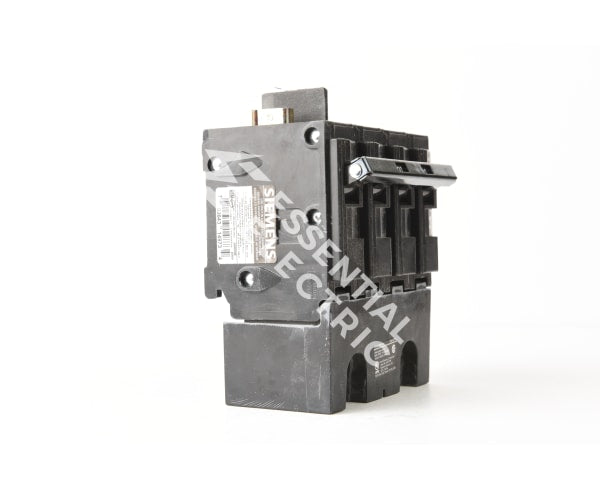

Q2200B is a Siemens 2 Pole thermal magnetic molded case circuit breaker rated for 200 Amps and 120/240VAC voltage.This Siemens Q2200B circuit breaker features a plug-on mounting type with a Q frame series, providing reliable long-time and instantaneous trip protection. It has a 10kA interrupting rating at 240V and is UL approved for safety and performance.
- Key Specifications
- Manufacturer: Siemens
- Part Number: Q2200B
- Amperage: 200 Amps
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Plug-On
- Interrupt Rating: 10 kAIC at 240V
- Series/Frame: Q
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Phase: Single Phase
- Certifications: UL Listed
Specifications
- Part Number: Q2200B
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QPP
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
Product Data
- UPC : 783643148734
- GTIN : 00783643148734
- Country of Origin : Mexico
- Dimensions : 12.598 x 4.331 x 3.543 inch
- Weight : 2.161
