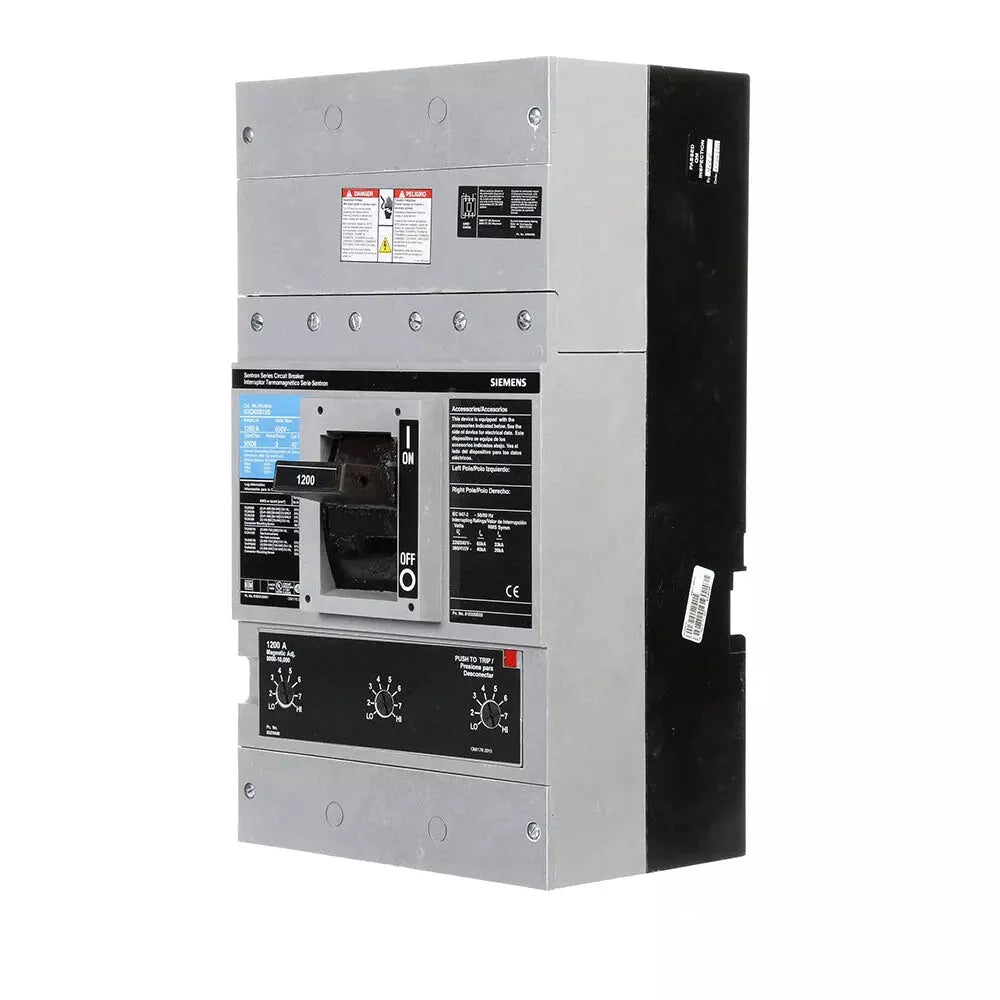

PXD63S120A - Siemens 600V 1200A 3 Pole Bolt-On Circuit Breaker ND Frame Thermal Magnetic Trip

PXD63S120A

PXD63S120A is a Siemens molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This breaker features a robust ND frame and is rated for 1200A continuous current at 600V AC, making it suitable for demanding electrical environments. The PXD63S120A is a 3-pole device with a bolt-on mounting configuration, providing secure and stable installation. It utilizes a thermal magnetic trip unit for precise overcurrent protection and includes a self-protective instantaneous override for added safety. The breaker is engineered for high interrupt capacity and is built to meet rigorous industry standards. This Siemens circuit breaker is ideal for applications requiring high amperage and reliable fault interruption. Its compact design and robust construction ensure long-term performance and easy integration into existing electrical panels. The PXD63S120A is suitable for use in a wide range of industrial, commercial, and utility power distribution systems.

• Manufacturer: Siemens
• Part Number: PXD63S120A
• Series/Frame: ND Frame
• Amperage Rating: 1200A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 50kA @ 480V
• Interrupt Rating: 25kA @ 600V
• Trip Unit: Thermal Magnetic
• Self-Protective Instantaneous Override
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PXD63S120A
• Manufacturer : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : PXD
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : NA - No Overcurrent Protection
• Frame Size : PD Frame
• Protection : Non-Automatic

Product Data

• Weight : 65
