Product Info
- Manufacturer:Square D
- Sub-Category:Breaker Type
Description
PTMA36400GNCLH

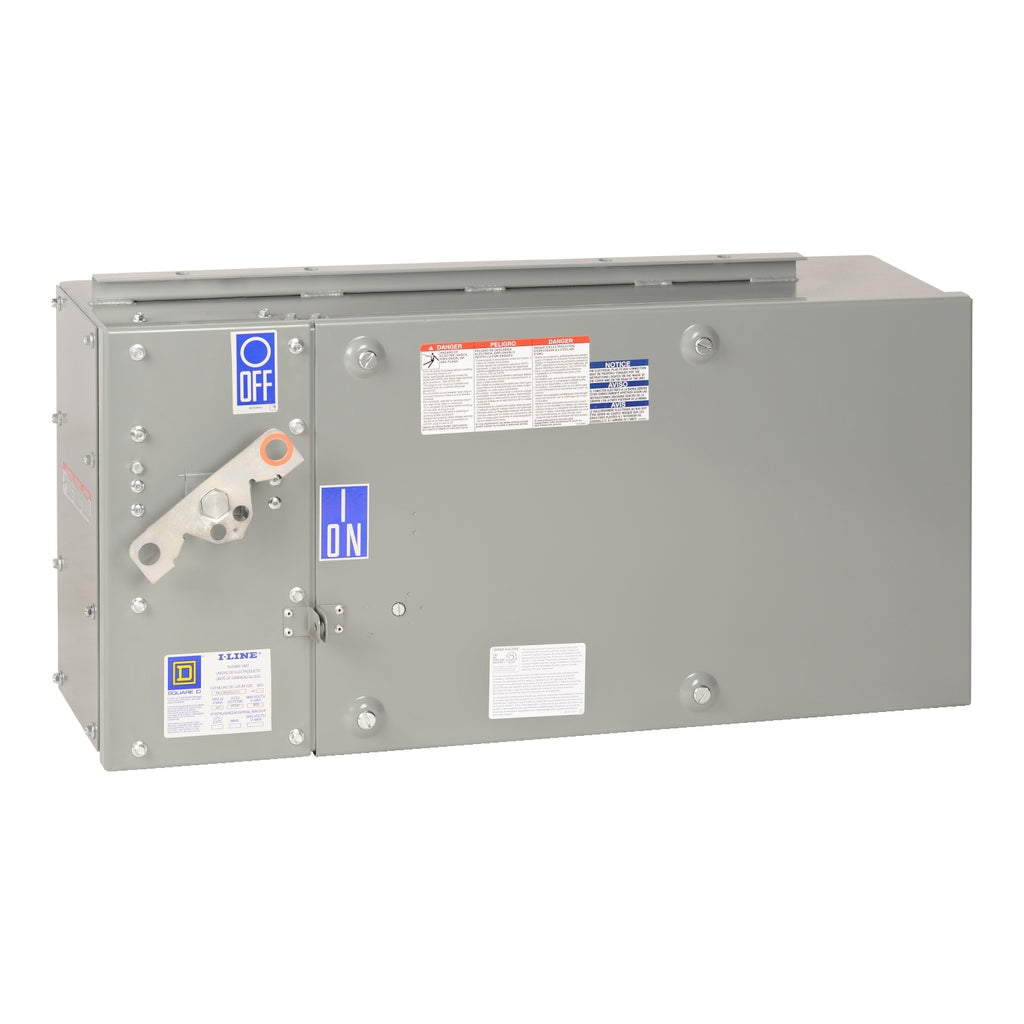

PTMA36400GNCLH is a Square D 400 Amp, 600 Volt, 3-Pole I-Line Bus Plug circuit breaker designed for reliable power distribution applications.This Square D bus plug features a thermal-magnetic trip unit providing protection against overloads and short circuits. It is designed for plug-on mounting in I-Line panelboards and switchboards, with a frame type L and a 3-pole configuration. The breaker supports a voltage rating of 600VAC and 250VDC, with an interrupting rating up to 42kAIC depending on application. It includes load side lug terminal connections and complies with UL and CSA certifications.
- Manufacturer: Square D
- Part Number: PTMA36400GNCLH
- Amperage: 400A
- Voltage: 600VAC, 250VDC
- Poles: 3
- Mounting Type: I-Line Plug-On
- Frame Type: L
- Trip Unit: Thermal Magnetic
- Interrupting Rating: Up to 42kAIC
- Terminal Connection: Load Side Lug
- Certifications: UL, CSA
Specifications
- Part Number: PTMA36400GNCLH
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PTMA
- Voltage : 600
- Amperage : 400
- Phase : 3
- AIC rating : 65kA@480V
- Wire : 4
Product Data
- Weight : 225
