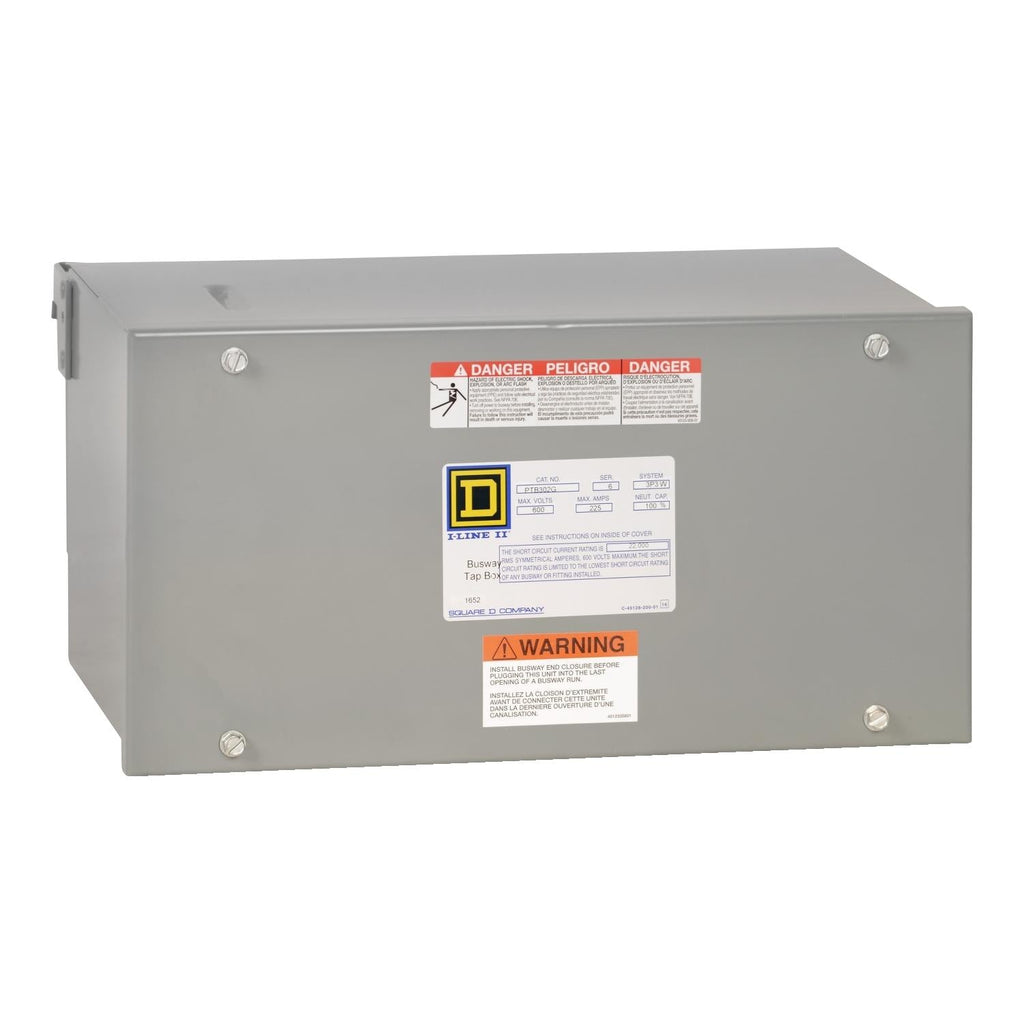

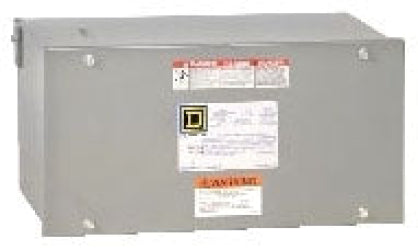

PTB302G - Square D 225A 277/480V 3-Phase 3-Wire I-Line Busway Plug-In Cable Tap Box

PTB302G

PTB302G is a Square D I-Line busway plug-in cable tap box designed for 3-phase, 3-wire electrical systems. This tap box provides a reliable connection for tapping into I-Line aluminum or copper busway systems, supporting a 225A current rating and 277/480V AC voltage. The unit features a plug-in mounting design for easy installation and includes an integral ground bus for added safety and compliance. The PTB302G is constructed with copper conductors and is compatible with both aluminum and copper busbar systems. It is suitable for indoor applications and is UL listed and CSA certified, ensuring compliance with industry standards. The compact design allows for efficient use of space in electrical distribution setups.

• Part Number: PTB302G
• Manufacturer: Square D
• Amperage Rating: 225 A
• Voltage Rating: 277/480 V AC
• Phase: 3-Phase
• Wiring Configuration: 3-Wire with Integral Ground Bus
• Mounting Type: Plug-In
• Compatible With: I-Line Aluminum/Copper Busway
• Conductor Material: Copper
• Series: I-Line
• Approvals: UL Listed, CSA Certified
• Country of Origin: United States

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PTB302G
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Tap Box
• Family : I-Line
• Type : PTB
• Voltage : 480
• Amperage : 225
• Phase : 3
• Wire : 3

Product Data

• UPC : 785901087380
• GTIN : 00785901087380
• Country of Origin : United States
• Dimensions : 8.5 in (216 mm) x 16.4 in (416 mm) x 7.8 in (197 mm) (Height x Width x Depth)
• Weight : 18.281
• Certification : UL, CSA
