Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Fusible
Description
PQ4620GR

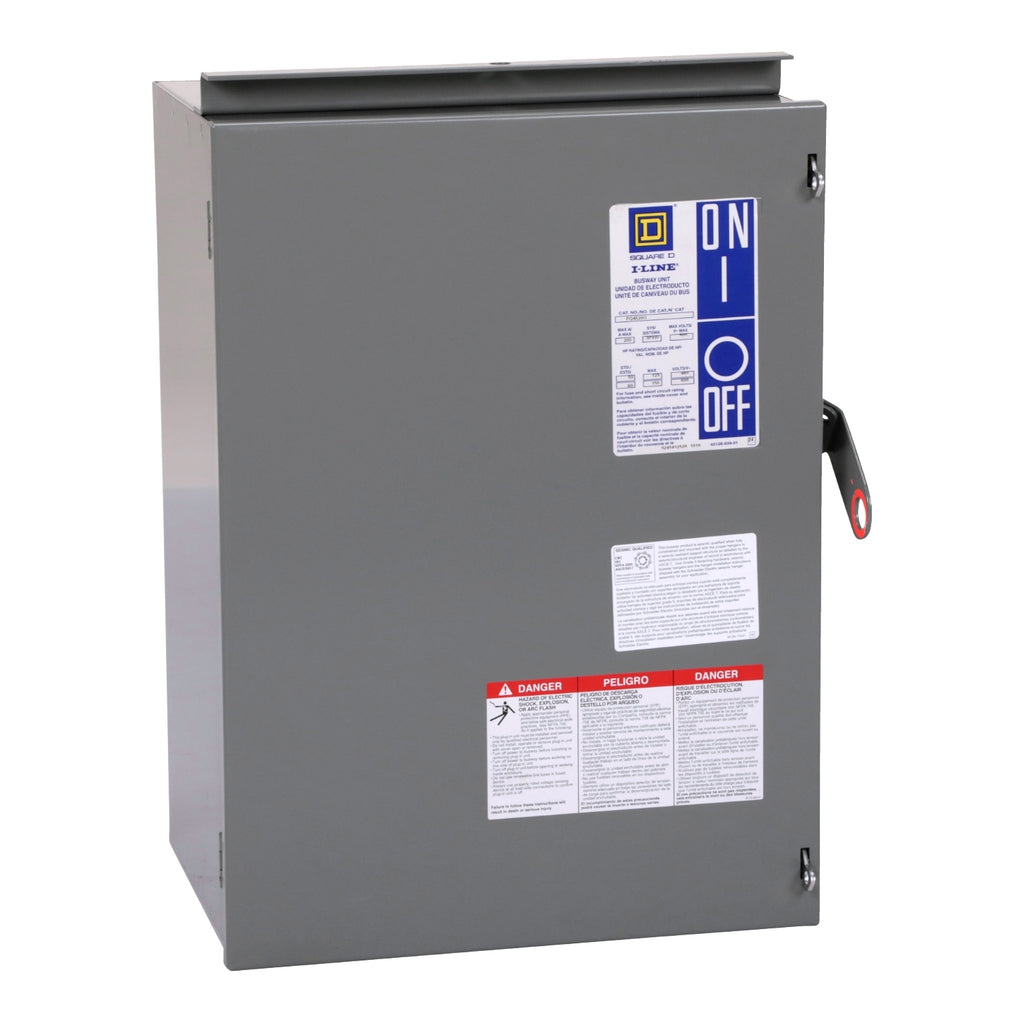

PQ4620GR is a 3-phase fusible bus plug rated for 200 amperes at 600 volts, designed for use with I-Line aluminum and copper busway systems. This plug-on unit features a 4-wire configuration with ground fusible capability and accepts Class H, K, and R fuses for reliable electrical distribution in commercial and industrial applications. Key Specifications
- Amperage Rating: 200 Ampere
- Voltage Rating: 600 VAC
- Phase: 3-Phase
- Wire Configuration: 4 Wire
- Mounting Type: Plug-On
- Fuse Class: H, K, R
- Busway Style: I-Line
- Interrupting Rating: 200 Kiloampere at 480 VAC
- Compact and totally enclosed design
- Sandwich-type construction for superior voltage drop characteristics
- UL and CSA Certified
Specifications
- Part Number: PQ4620GR
- Manufacturer : Schneider Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 200
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H,K,R
- Wire : 4
Product Data
- Weight : 65
