PQ3220G - Square D 200 Amp 240V 3-Pole Fusible Bus Plug, I-Line Series, Plug-In Mount, Class H/K/R Fuses, UL 857, CSA C22.2

PQ3220G

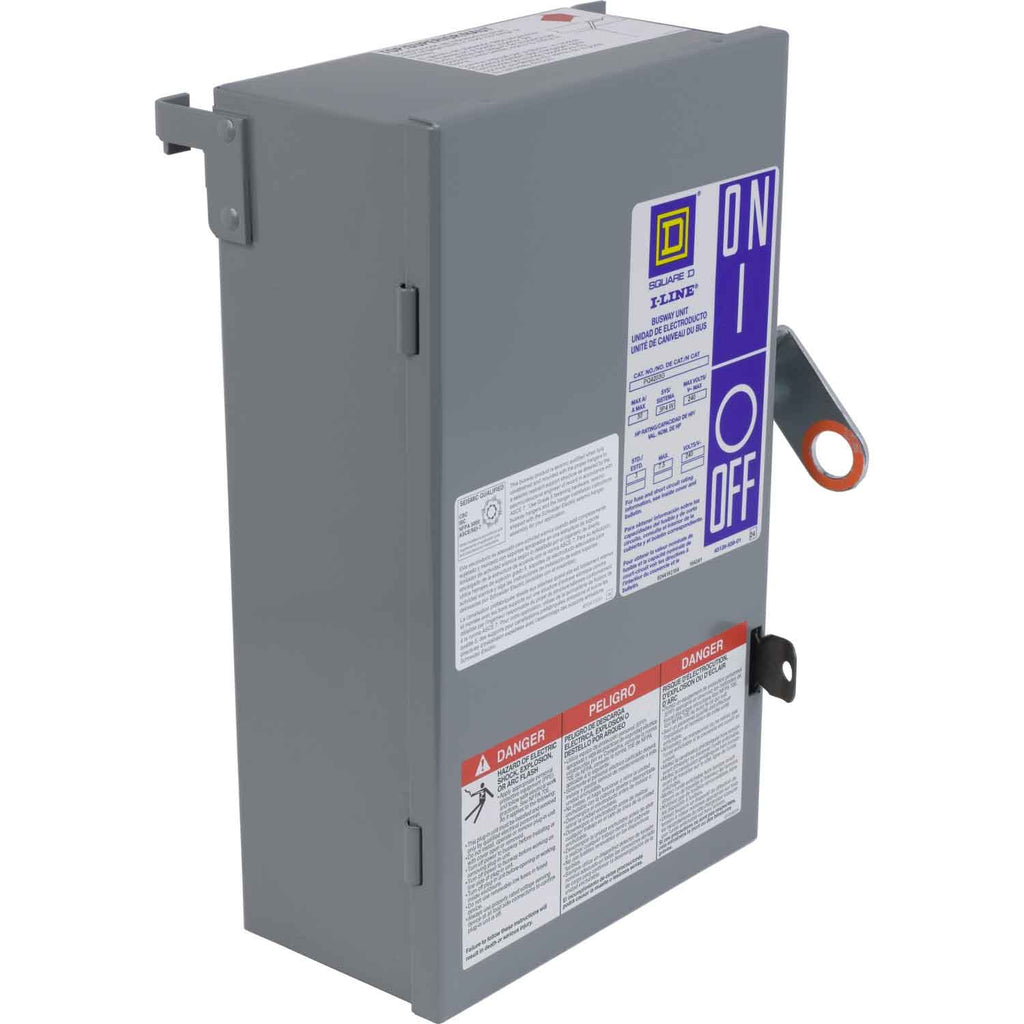

PQ3220G is a Square D fusible bus plug designed for reliable power distribution in commercial and industrial applications.

This plug-in unit is part of the Square D I-Line series, featuring a 200 Amp, 240V, 3-pole, 3-phase, 3-wire configuration with a plug-in mounting style. It accepts Class H, K, and R fuses for flexible overcurrent protection and is suitable for use with both aluminum and copper I-Line busway systems. The enclosure is aluminum, and the unit is certified to UL 857 and CSA C22.2 standards for safety and compliance.

Key Specifications
• Part Number: PQ3220G
• Manufacturer: Square D (Schneider Electric)
• Amperage: 200 Amp
• Voltage: 240V AC
• Poles: 3
• Mounting Type: Plug-in (I-Line busway)
• Interrupt Rating: 200kA @ 240V
• Series/Frame: I-Line
• Trip Unit: Fusible (accepts Class H, K, R fuses)
• Certifications: UL 857, CSA C22.2
• Wire: 3-wire
• Enclosure Material: Aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ3220G
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 240 AC
• Amperage : 200
• Phase : 3
• AIC rating : 200kA@240V
• Fuse Class : H, K, J, R
• Wire : 3

Product Data

• UPC : 785901017332
• GTIN : 00785901017332
• Country of Origin : Mexico
• Dimensions : 22-1/2 in x 16-13/64 in
• Weight : 69
• Certification : CSA Certified, UL Listed
