Description
PQ3203GRA

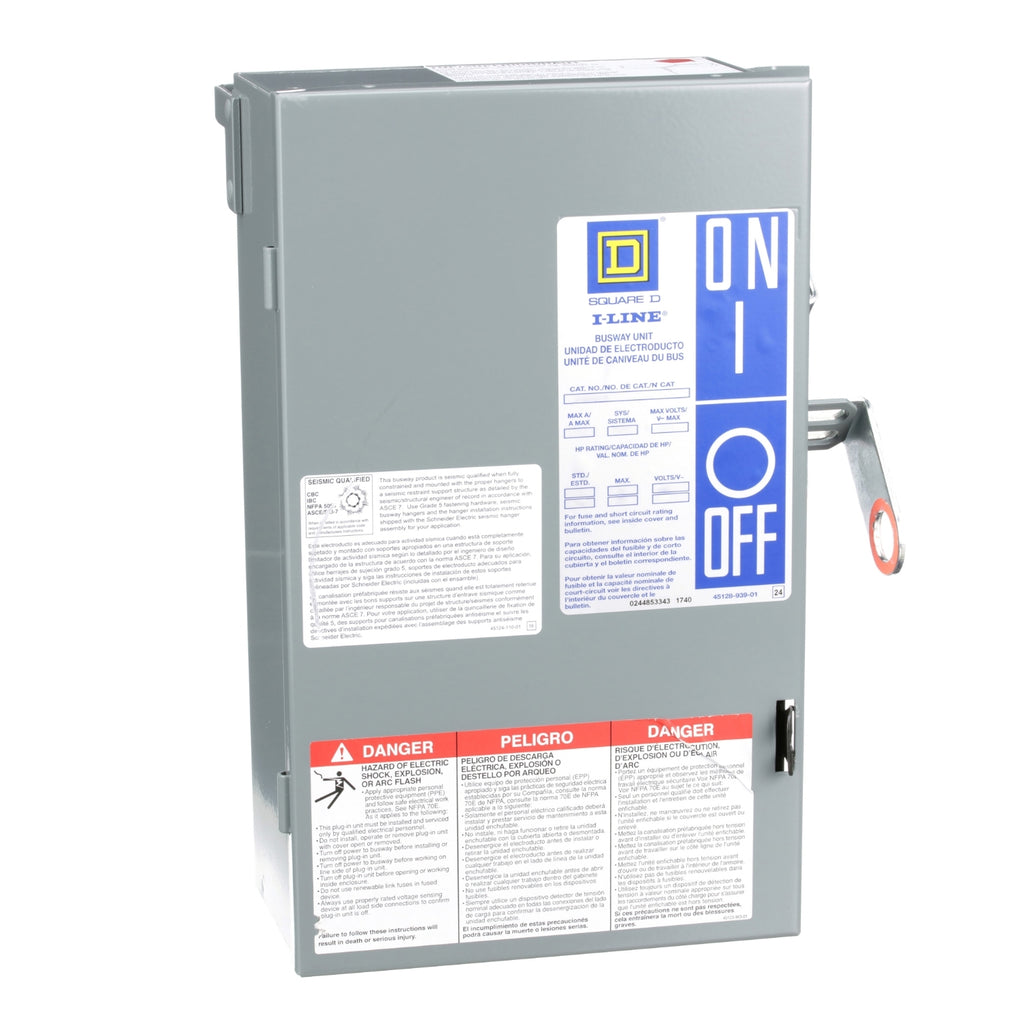

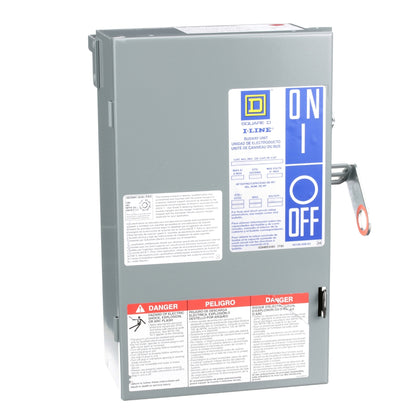

PQ3203GRA is a Square D fusible bus plug designed for 30 Amp, 240 Volt applications in three-phase power distribution systems.This bus plug features a 3-pole configuration compatible with I-Line style I & II aluminum and copper busway systems. It is rated for 30 Amps and 240 Volts AC, with fusible protection using H, K, and R class fuses. The PQ3203GRA is engineered for reliable connection and protection in industrial and commercial electrical distribution.
- Amperage: 30 Amps
- Voltage: 240 Volts AC
- Poles: 3
- Phase/Wire: 3 Phase, 3 Wire with Ground
- Fuse Class: H, K, R
- Fusible: Yes
- Compatible with I-Line Style I & II Busway
- Mounting Type: Plug-In
- Interrupt Rating: 200kA at 240V
Specifications
- Part Number: PQ3203GRA
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 240
- Amperage : 30
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : H,K,R
- Wire : 3
Product Data
- Weight : 30
