Description
PQ3206GRA

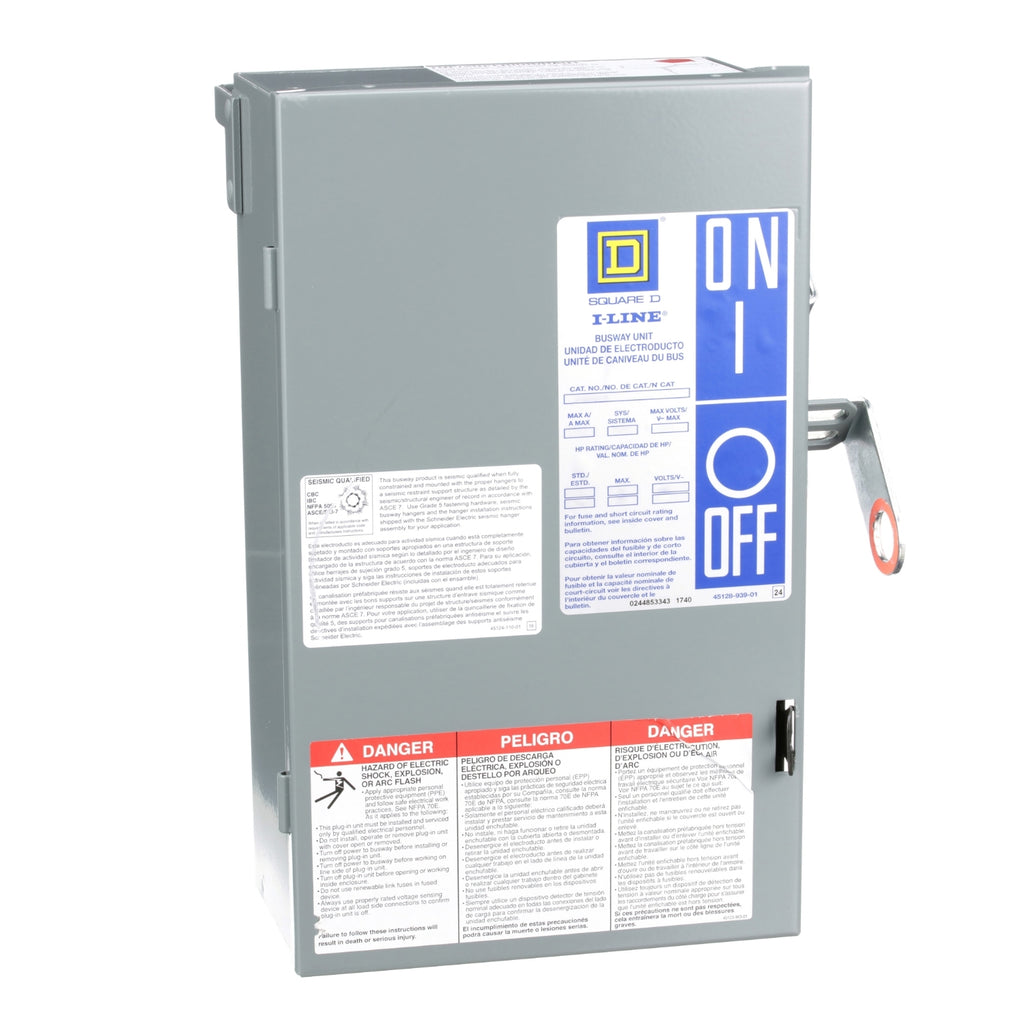

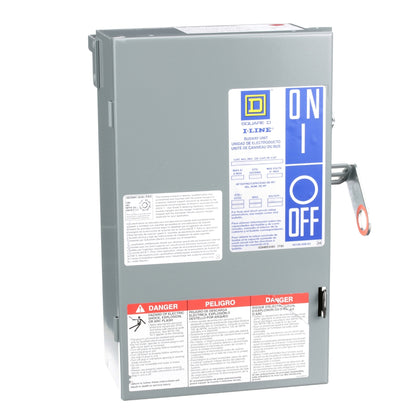

PQ3206GRA is a Square D fusible bus plug rated for 60 amperes at 240 volts AC with 3 poles and 3 wire configuration suitable for I-Line Style I and II aluminum and copper busway systems. This plug-in style bus plug accepts Class H, K, and R fuses and features an interrupt rating of 200kA at 240V, providing reliable overcurrent protection in industrial power distribution applications. The unit is constructed with an aluminum enclosure and is UL 857 and CSA C22.2 certified for safe operation.
- Amperage Rating: 60 Amps
- Voltage Rating: 240V AC
- Poles: 3
- Phase/Wire: 3 Phase, 3 Wire with Ground
- Fusible: Yes
- Fuse Class: H, K, R
- Interrupt Rating: 200kA at 240V
- Enclosure Material: Aluminum
- Certifications: UL 857, CSA C22.2
- Compatible Busway: I-Line Style I and II
Specifications
- Part Number: PQ3206GRA
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 240
- Amperage : 60
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : H,K,R
- Wire : 3
Product Data
- Weight : 30
