Description
PQ3206GLP

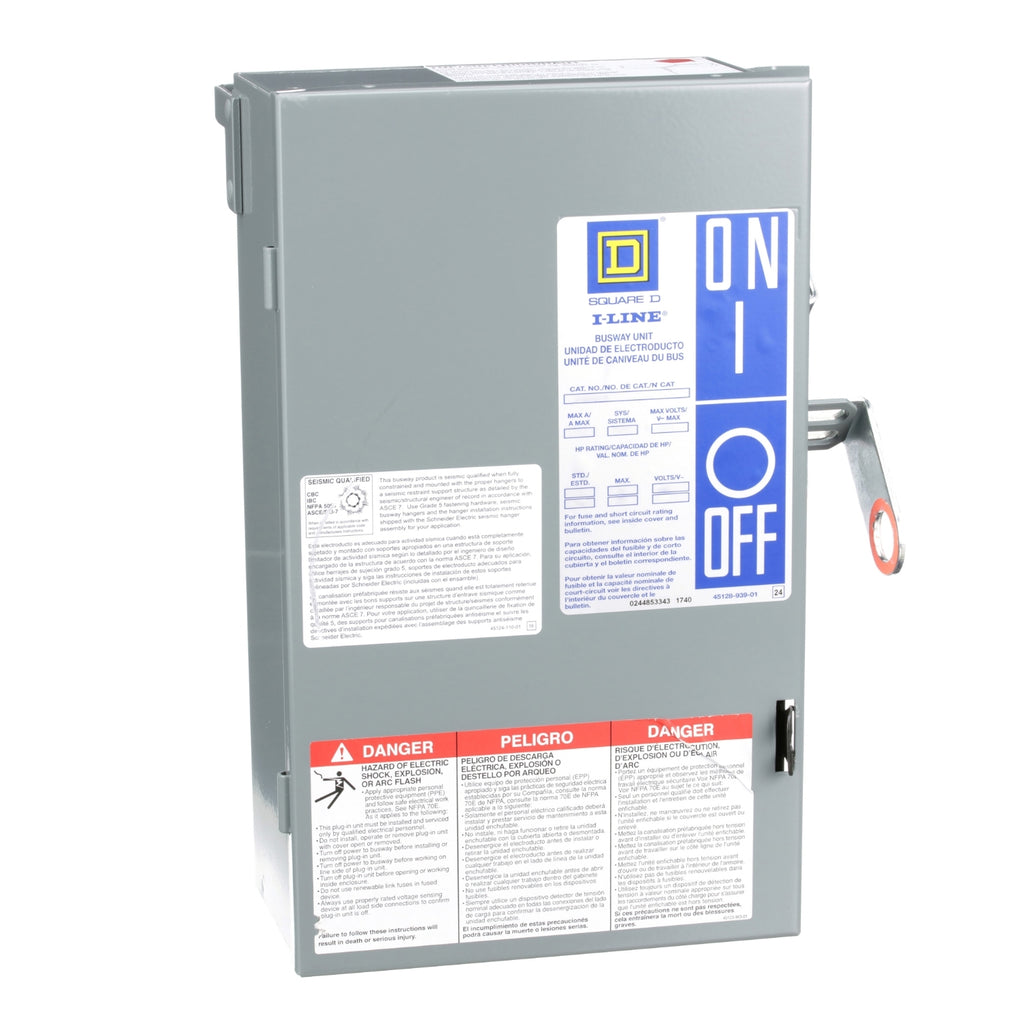

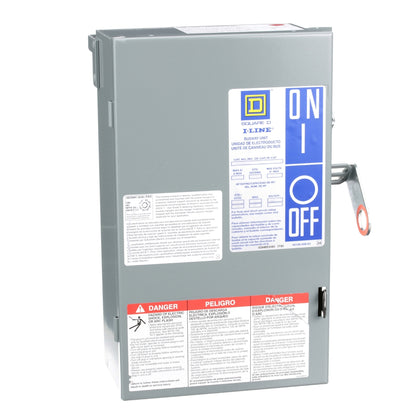

PQ3206GLP is a Square D fusible bus plug designed for 3-phase power distribution with a 60 Ampere current rating and 240 Volt voltage rating.
This bus plug features a 3-pole configuration and a plug-in connection type compatible with I-Line busway systems. It accepts Class H, K, J, or R fuses and is suitable for use with aluminum and copper busway systems. The unit is fusible, providing overcurrent protection, and is designed for easy installation with mounting hook alignment to the opening.
- Key Specifications
- Manufacturer: Square D
- Part Number: PQ3206GLP
- Current Rating: 60 Amps
- Voltage Rating: 240 Volts AC
- Poles: 3
- Connection Type: Plug-in
- Fuse Types Accepted: Class H, K, J, R
- Mounting: Plug-in for I-Line Busway
- Application: Fusible Bus Plug for Power Distribution
- Compatible with Aluminum and Copper Busway
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PQ3206GLP
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 240
- Amperage : 60
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : H,K,R
- Wire : 3
Product Data
- Weight : 30
