Description
PQ3206GGS

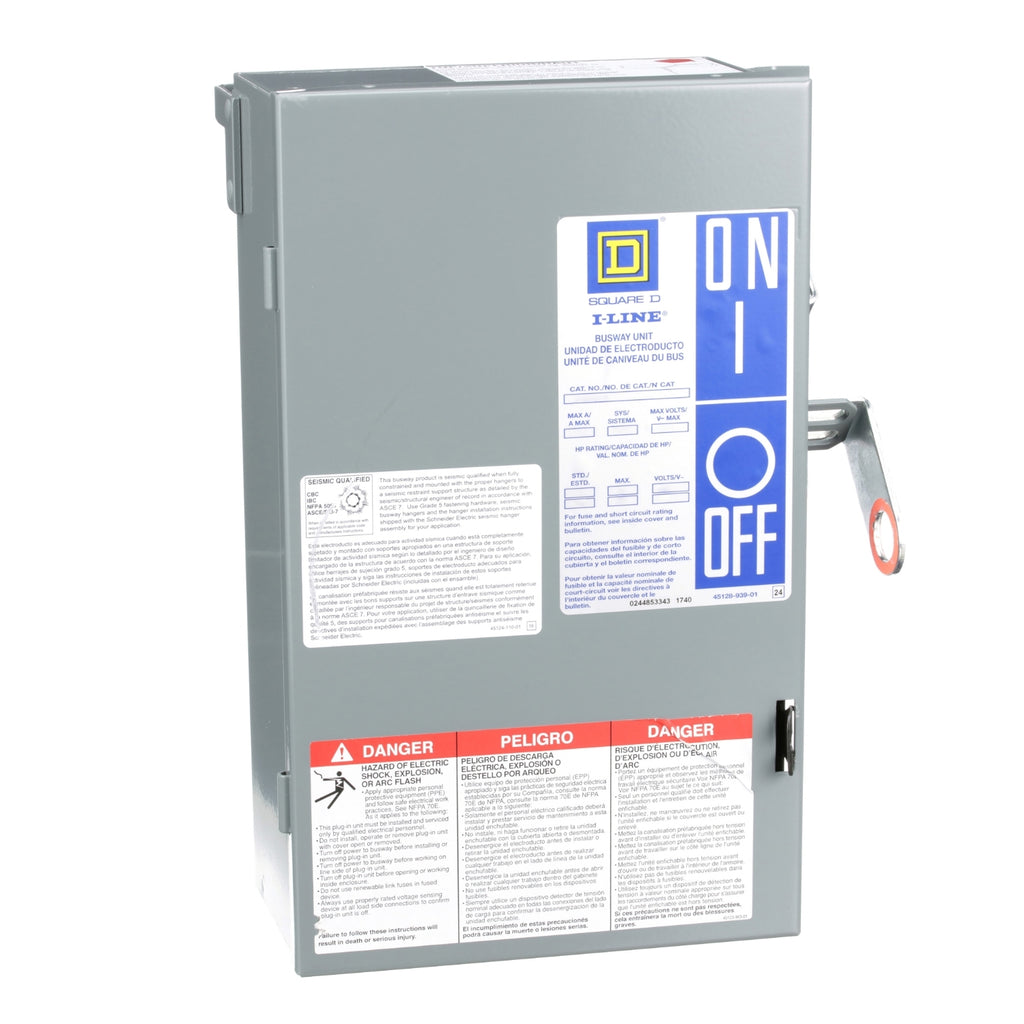

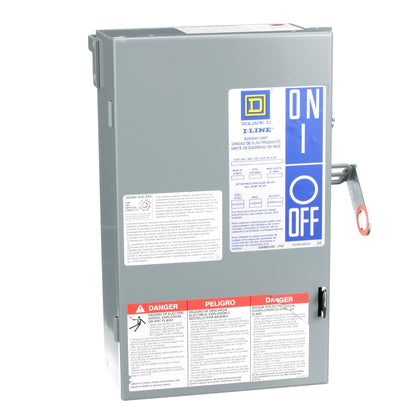

PQ3206GGS is a Square D fusible bus plug rated for 60 Amps and 240 Volts AC, designed for I-Line busway systems.This 3-pole, 3-wire bus plug features a plug-in connection type and accepts Class H, K, or R fuses. It is suitable for use with aluminum and copper busway systems, providing reliable circuit protection with a fusible design. The unit is constructed for easy installation with mounting hook alignment and is compatible with I-Line Style I and II busway enclosures.
- Amperage: 60 Amps
- Voltage: 240 Volts AC
- Poles: 3
- Phase/Wire: 3 Phase, 3 Wire with Ground
- Fuse Class: H, K, R
- Connection Type: Plug-in
- Mounting: I-Line Busway
- Fusible: Yes
- Compatible with aluminum and copper busway
- Series/Frame: PQ
Specifications
- Part Number: PQ3206GGS
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 240
- Amperage : 60
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : H,K,R
- Wire : 3
Product Data
- Weight : 30
