Description
PQ3206GE

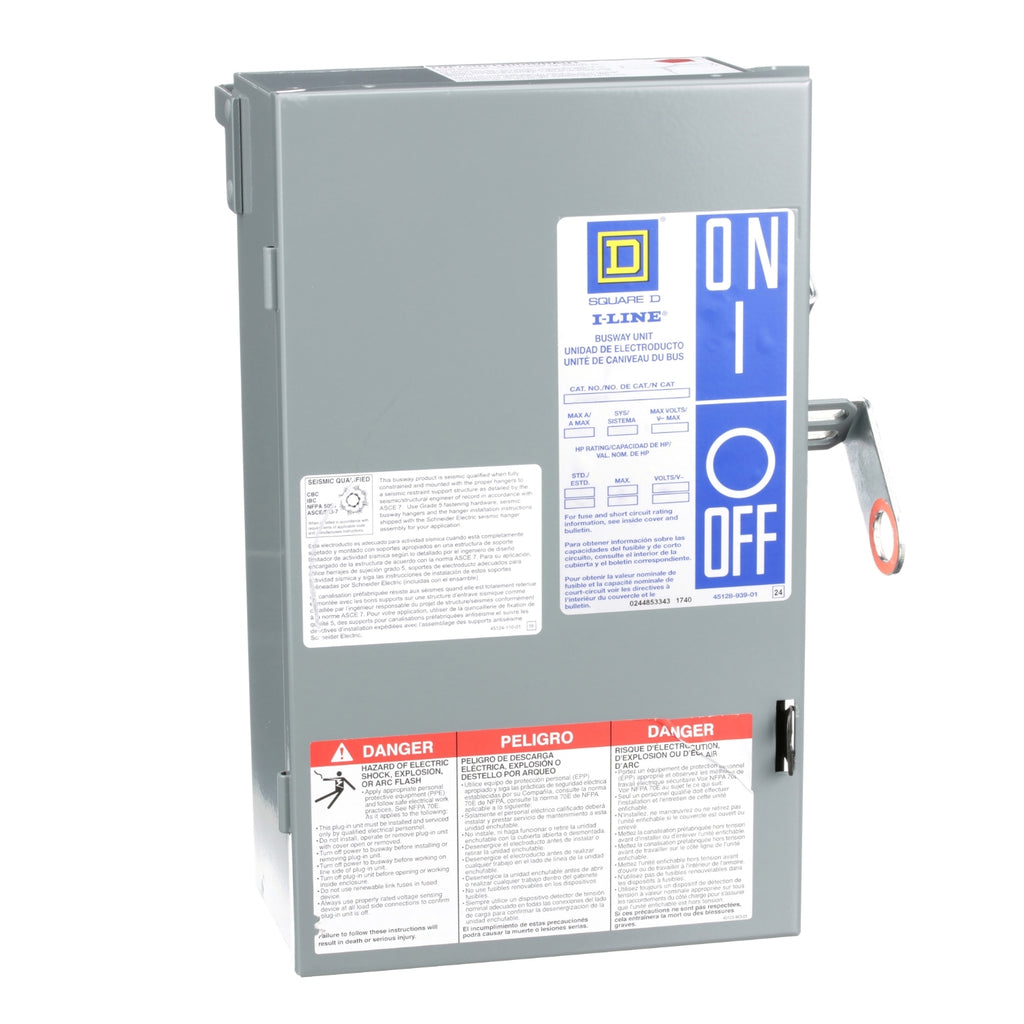

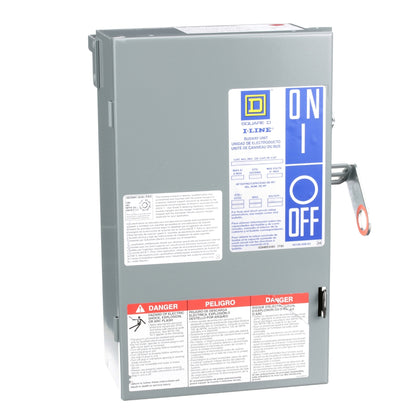

PQ3206GE is a Square D fusible bus plug designed for 60 ampere, 240 volt applications with a 3 pole configuration.PQ3206GE features a plug-in connection type compatible with I-Line busway systems and accepts Class H, K, or R fuses. It is suitable for use with aluminum and copper busway and provides reliable circuit protection in industrial and commercial power distribution.
- Manufacturer: Square D
- Amperage: 60 Amps
- Voltage: 240 VAC
- Poles: 3
- Mounting Type: Plug-in connection
- Fuse Type: Accepts Class H, K, R fuses
- Series/Frame: I-Line Busway
- Fusible bus plug design
- Compatible with aluminum and copper busway systems
- UL 857 and CSA C22.2 certified
Specifications
- Part Number: PQ3206GE
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 240
- Amperage : 60
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : H,K,R
- Wire : 3
Product Data
- Weight : 30
