PLP34120U33A - Square D PowerPacT P 1200A 480V 3 Pole Circuit Breaker 100kA

PLP34120U33A

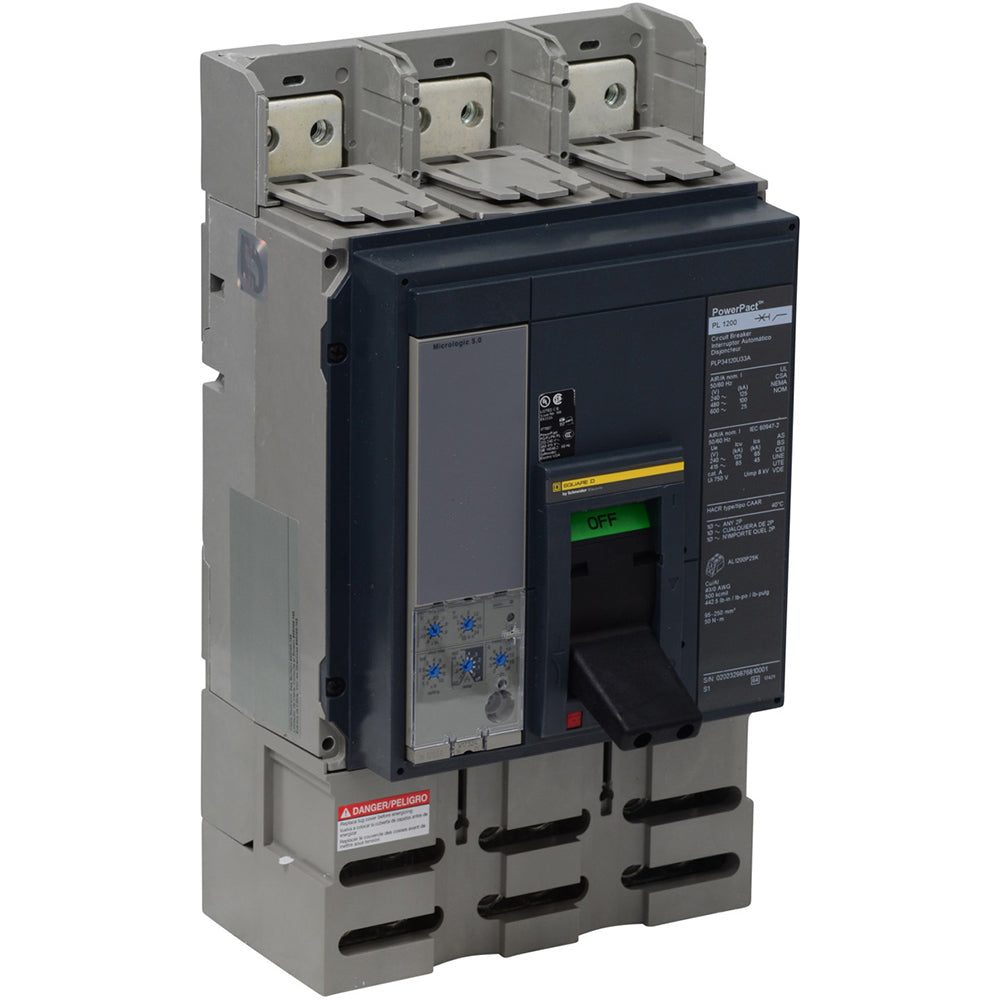

PLP34120U33A is a Square D PowerPacT P molded case circuit breaker rated for 1200 amperes at 480 volts with a 3 pole configuration and 100kA interrupt rating. This bolt-on circuit breaker is designed for industrial and commercial power distribution applications requiring high interrupting capacity and reliable overcurrent protection. The unit features Micrologic 5.0 electronic trip technology with long-time and instantaneous trip functions, providing advanced protection and coordination capabilities for critical electrical systems.

• Amperage Rating: 1200A
• Voltage Rating: 480VAC
• Poles: 3
• Interrupt Rating: 100kA at 480VAC
• Series: PowerPacT P
• Mounting Type: Bolt-On
• Trip Unit: Micrologic 5.0 Electronic
• Network Frequency: 50/60 Hz
• Rated Service Breaking Capacity: 65 kA
• Thermal Rating: 80%
• Termination: Lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PLP34120U33A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PLP
• Voltage : 480
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : P Frame
• Protection : Solid State

Product Data

• Country of Origin : United States
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
