PLM34120CU44A - Square D 1200A 3-Pole PowerPact P Molded Case Circuit Breaker 480VAC 100kA Micrologic 6.0A

PLM34120CU44A

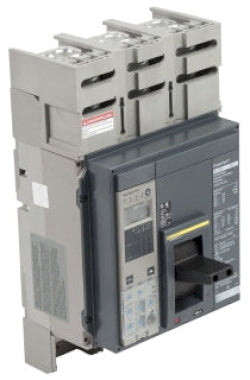

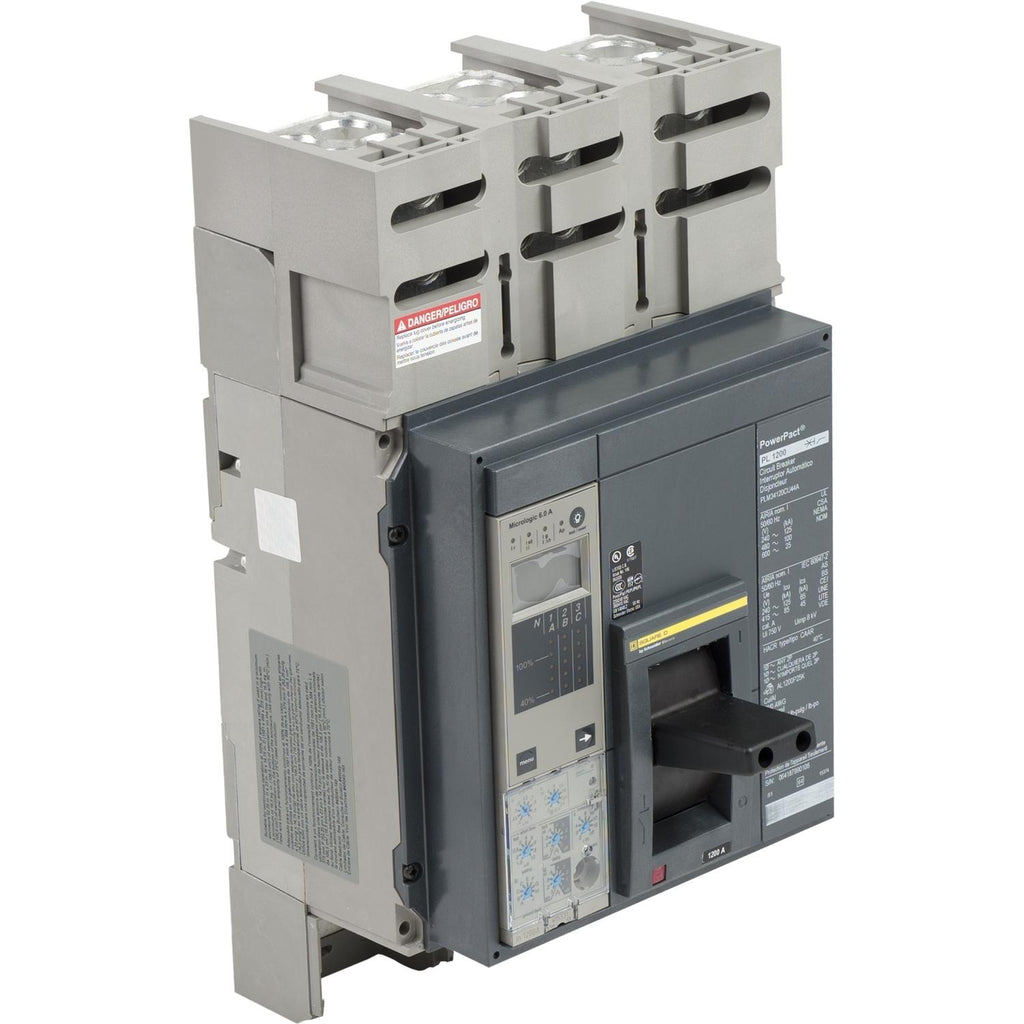

PLM34120CU44A is a Square D PowerPact P molded case circuit breaker designed for reliable protection in electrical distribution systems.This 3-pole circuit breaker features a 1200 ampere rating and operates at 480 volts AC. It has a high interrupt rating of 100kA at 480VAC, ensuring robust fault current interruption. The breaker includes a Micrologic 6.0A electronic trip unit for precise and adjustable trip settings. It uses lug-type line side terminations and is UL and CSA certified.

• Amperage: 1200A
• Voltage Rating: 480VAC
• Poles: 3
• Interrupt Rating: 100kA at 480VAC
• Series/Frame: PowerPact P
• Trip Unit: Micrologic 6.0A electronic trip
• Mounting Type: Molded case
• Line Side Termination: Lugs
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PLM34120CU44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PLM
• Voltage : 480
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : Lug, Terminal Nut
• Frame Size : P
• MCM Size : Min. Wire Size (4) 3/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
• Protection : Solid State

Product Data

• UPC : 785901779186
• GTIN : 00785901779186
• Country of Origin : Mexico
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 42
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
