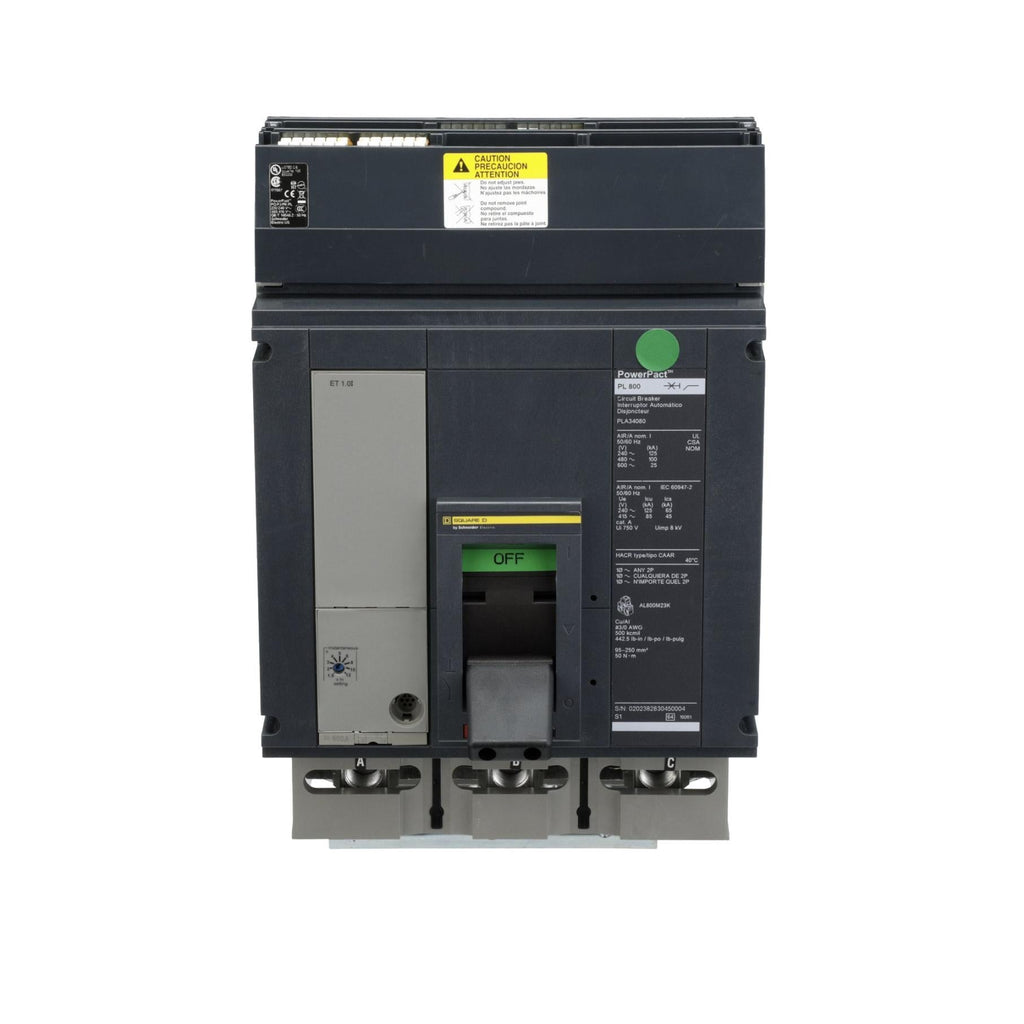

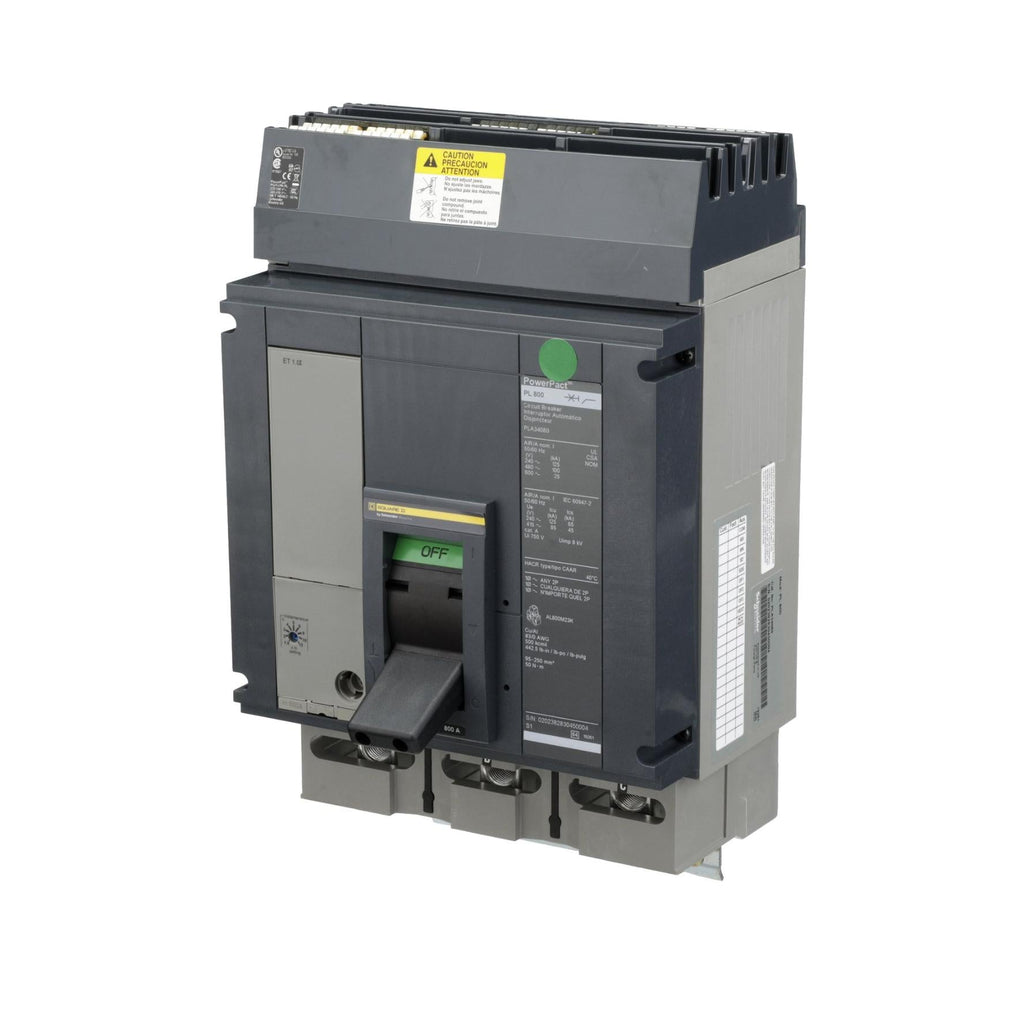

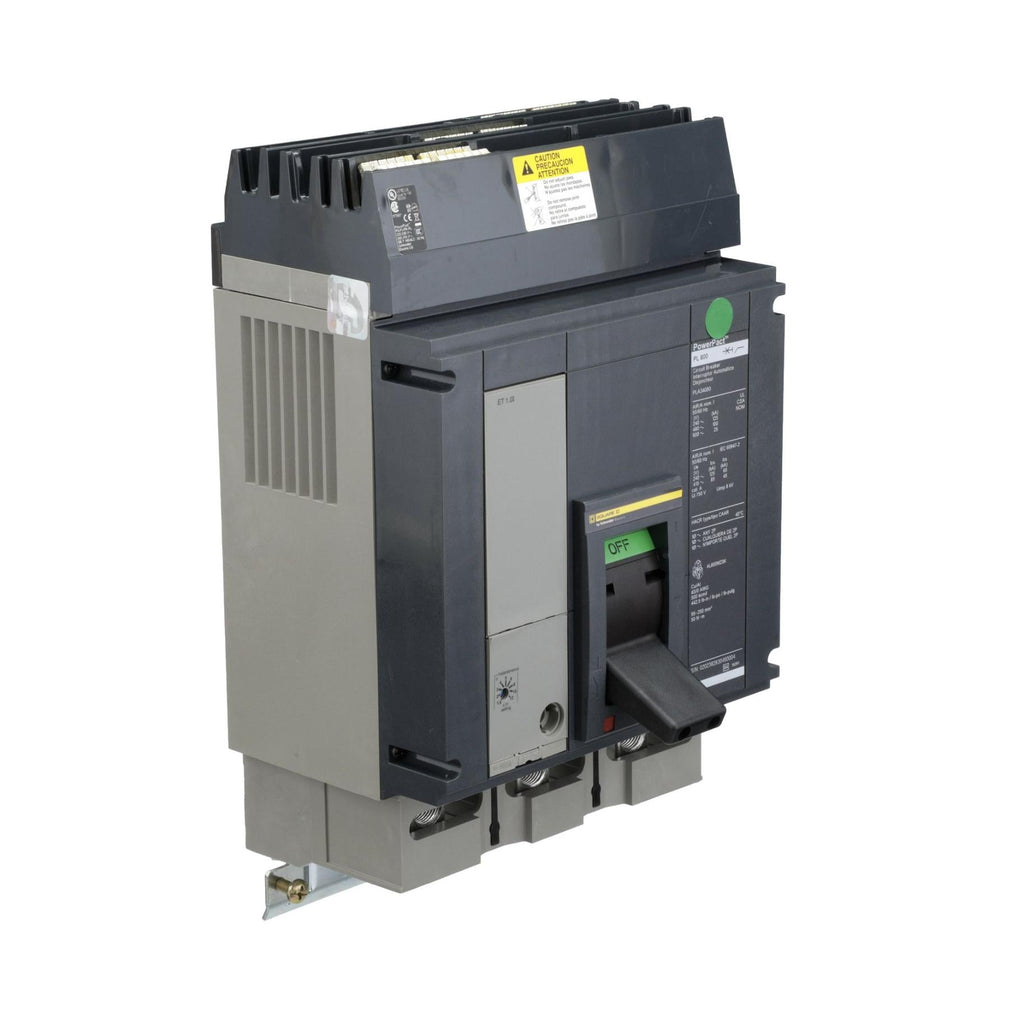

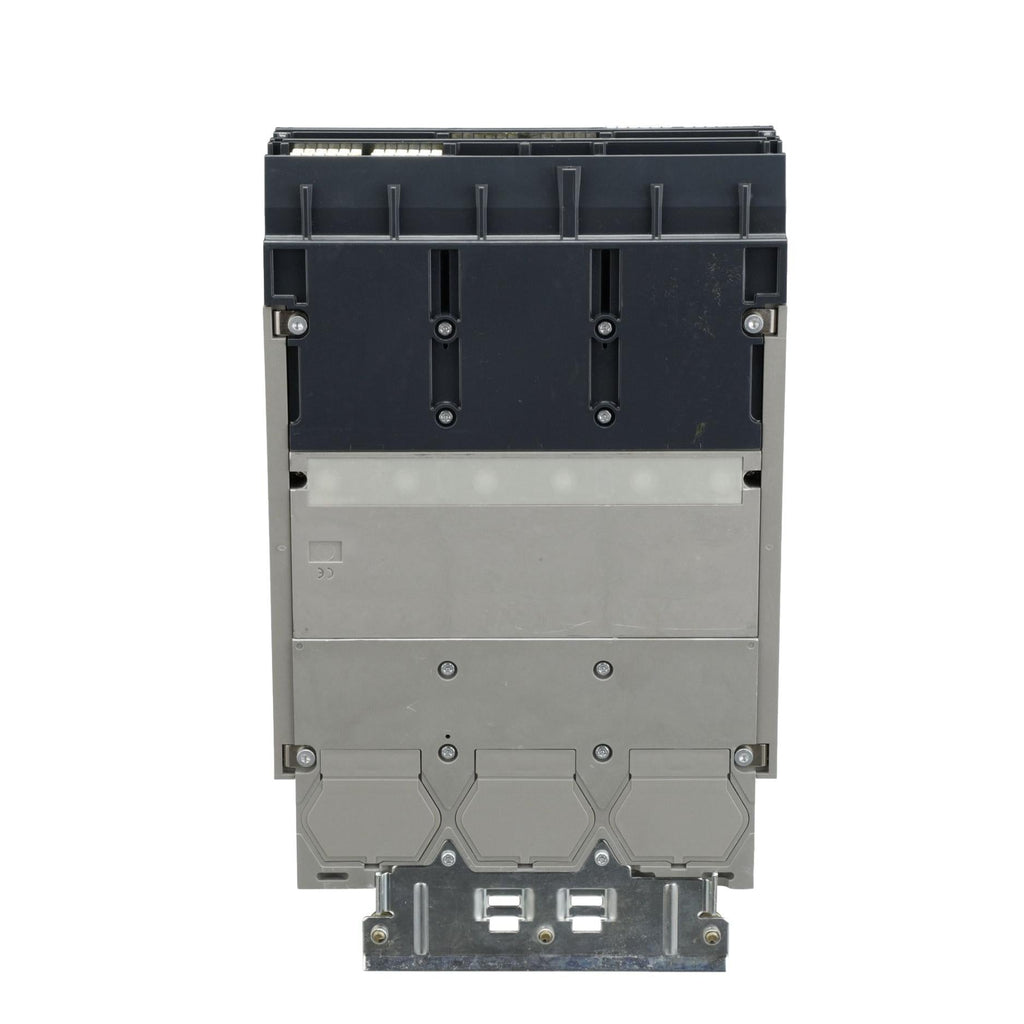

PLA34080 - Square D PowerPact P-Frame 800A 3 Pole Molded Case Circuit Breaker 480V 100kA I-Line

PLA34080

PLA34080 is a Square D PowerPact P-Frame 800A 3 pole molded case circuit breaker designed for reliable protection in power distribution systems. This breaker features an I-Line plug-in mounting style and a solid state electronic trip unit (ET 1.0I), providing precise overload and short circuit protection. It is rated for 480VAC and offers a continuous current rating of 80% with a 100kA interrupting rating at 480V. The PLA34080 is suitable for use in I-Line panelboards and switchboards, and is UL, CSA, and IEC listed for safety and compliance. The PLA34080 circuit breaker is part of the PowerPact P-Frame series, known for its robust construction and field-interchangeable trip units. It features an integral push-to-trip button for manual operation and is designed for easy installation and maintenance in demanding electrical environments. This breaker is ideal for commercial and industrial applications requiring high reliability and performance.

• Part Number: PLA34080
• Manufacturer: Square D
• Series/Frame: PowerPact P-Frame
• Amperage: 800A
• Number of Poles: 3
• Voltage Rating: 480VAC
• Interrupting Rating: 100kA @ 480V
• Mounting Type: I-Line Plug-In
• Continuous Current Rating: 80%
• Trip Unit: ET 1.0I (Basic Electronic)
• Standards: UL, CSA, IEC
• Application: Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PLA34080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PLA
• Voltage : 480
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : P Frame
• Temp Rating : 28-158 °F (-2-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901493396
• GTIN : 00785901493396
• Country of Origin : Mexico
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 36.83
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
