PKL36100CU43A - Square D 1000A 600VAC 3-Pole Powerpact P Molded Case Circuit Breaker

PKL36100CU43A

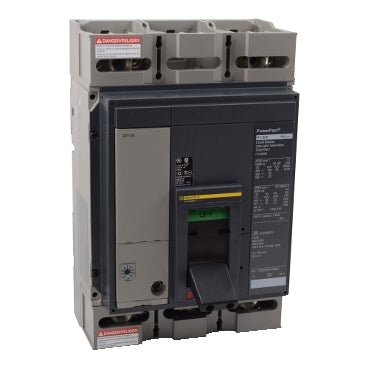

PKL36100CU43A is a Square D Powerpact P molded case circuit breaker rated for 1000 amps and 600 volts AC with 3 poles.

This circuit breaker features a Powerpact P frame style with a 3-pole configuration and a 1000 amp line rated current. It is designed for unit mounting with lug-type electrical connections on both line and load sides. The breaker has a breaking capacity code J and an interrupt rating of 25kA at 600VAC. It includes a Micrologic 5.0A trip unit providing electronic trip protection with 100% continuous current rating. This breaker is UL listed and suitable for heavy-duty power distribution applications.

• Manufacturer: Square D
• Part Number: PKL36100CU43A
• Amperage: 1000A
• Voltage: 600VAC
• Poles: 3
• Frame/Series: Powerpact P
• Mounting Type: Unit Mount
• Interrupt Rating: 25kA @ 600VAC
• Trip Unit: Micrologic 5.0A electronic
• Breaking Capacity Code: J
• Continuous Current Rating: 100%
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PKL36100CU43A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PKL
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : P Frame
• Protection : Solid State

Product Data

• Country of Origin : United States
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
